SDO HMI 2014-09-10 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.54 | 47.23 | 5.62 | 28.60 | -21.25 | 79.44 | -20.28 | 146.07 | 0.5735 | 301.1 | 239.0 | |
|
previous
or next observation for the same group /

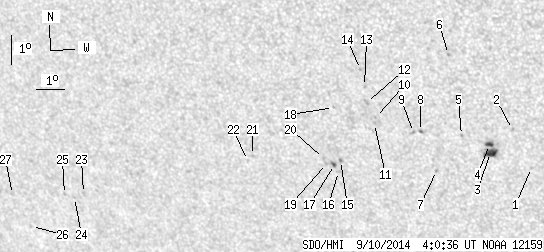

back to the solar disc SDO HMI 2014-09-10 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.68 | -21.64 | 85.06 | -14.67 | 153.86 | 0.5362 | 440.0 | 396.4 | |
| 0.00 | 1.60 | 0.00 | 0.93 | -20.36 | 84.56 | -15.17 | 151.90 | 0.5229 | 785.0 | 606.7 | |
| 6.24 | 14.71 | 3.66 | 8.63 | -21.17 | 83.73 | -15.99 | 151.41 | 0.5391 | 857.1 | 690.2 | |
| 2.32 | -3.00 | 1.36 | -3.00 | -20.90 | 83.73 | -16.00 | 151.15 | 0.5356 | 1026.6 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -20.63 | 82.82 | -16.91 | 149.52 | 0.5388 | 659.0 | 530.8 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -17.90 | 82.68 | -17.05 | 146.39 | 0.5061 | 798.0 | 688.5 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -21.87 | 81.82 | -17.91 | 149.32 | 0.5615 | 721.0 | 656.5 | |
| 0.00 | 1.69 | 0.00 | 1.00 | -20.54 | 81.44 | -18.29 | 147.46 | 0.5483 | -660.0 | -568.3 | |
| 0.00 | 1.96 | 0.00 | 1.16 | -20.59 | 81.20 | -18.53 | 147.16 | 0.5508 | 940.0 | 657.1 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -20.13 | 79.96 | -19.77 | 144.97 | 0.5554 | 359.0 | 296.7 | |
| 0.00 | 1.43 | 0.00 | 0.85 | -20.34 | 79.90 | -19.83 | 145.11 | 0.5583 | 679.0 | 507.8 | |
| 0.00 | 2.67 | 0.00 | 1.59 | -19.63 | 79.72 | -20.01 | 144.09 | 0.5517 | -656.0 | -528.5 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -19.09 | 79.72 | -20.01 | 143.48 | 0.5455 | -507.0 | -474.6 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -18.53 | 79.66 | -20.07 | 142.73 | 0.5395 | -823.0 | -720.4 | |
| 0.00 | 1.43 | 0.00 | 0.87 | -21.67 | 78.53 | -21.20 | 144.76 | 0.5846 | 918.0 | 807.2 | |
| 0.00 | 1.69 | 0.00 | 1.04 | -22.05 | 78.40 | -21.33 | 145.00 | 0.5900 | 606.0 | 493.5 | |
| 0.98 | 1.78 | 0.60 | 1.09 | -21.82 | 78.30 | -21.43 | 144.63 | 0.5882 | 944.5 | 795.7 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -19.86 | 78.56 | -21.17 | 142.81 | 0.5642 | -697.0 | -492.5 | |
| 0.00 | 1.25 | 0.00 | 0.76 | -21.80 | 78.02 | -21.71 | 144.26 | 0.5902 | 754.0 | 600.4 | |
| 0.00 | 1.60 | 0.00 | 0.98 | -21.63 | 77.94 | -21.79 | 143.99 | 0.5890 | 716.0 | 594.4 | |
| 0.00 | 1.16 | 0.00 | 0.72 | -21.66 | 75.43 | -24.30 | 141.04 | 0.6106 | 722.0 | 543.9 | |
| 0.00 | 1.34 | 0.00 | 0.84 | -21.84 | 75.22 | -24.51 | 141.01 | 0.6143 | 614.0 | 465.2 | |
| 0.00 | 1.69 | 0.00 | 1.15 | -23.38 | 68.80 | -30.93 | 136.27 | 0.6848 | -784.0 | -580.1 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -23.55 | 68.41 | -31.32 | 136.10 | 0.6896 | -581.0 | -482.4 | |
| 0.00 | 0.71 | 0.00 | 0.49 | -23.47 | 68.04 | -31.69 | 135.70 | 0.6921 | -618.0 | -483.8 | |
| 0.00 | 0.98 | 0.00 | 0.69 | -24.71 | 66.39 | -33.34 | 135.64 | 0.7164 | -363.0 | -395.5 | |
| 0.00 | 1.43 | 0.00 | 1.00 | -23.62 | 65.96 | -33.77 | 134.11 | 0.7116 | -204.0 | -182.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
