SDO HMI 2014-09-10 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 259.60 | 1405.35 | 132.81 | 719.49 | 15.66 | 87.29 | -11.89 | 53.06 | 0.2509 | 436.1 | 95.6 | |
|
previous
or next observation for the same group /

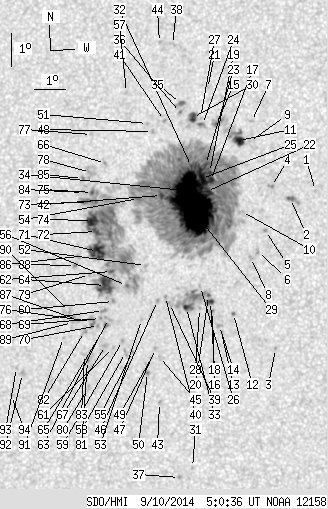

back to the solar disc SDO HMI 2014-09-10 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.59 | 16.63 | 91.89 | -7.29 | 36.59 | 0.2050 | -652.0 | -481.8 | |
| 1.60 | 6.60 | 0.81 | 3.34 | 16.37 | 91.10 | -8.08 | 40.18 | 0.2099 | 1142.4 | 827.8 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 11.80 | 90.79 | -8.39 | 60.55 | 0.1648 | -939.0 | -795.7 | |
| 0.00 | 2.50 | 0.00 | 1.27 | 16.73 | 90.48 | -8.70 | 41.11 | 0.2213 | 1047.0 | 823.7 | |
| 0.00 | 1.78 | 0.00 | 0.90 | 15.38 | 90.35 | -8.83 | 46.03 | 0.2066 | -1054.0 | -796.6 | |
| 0.00 | 2.23 | 0.00 | 1.13 | 14.74 | 90.12 | -9.06 | 49.13 | 0.2023 | -725.0 | -674.6 | |
| 0.00 | 1.52 | 0.00 | 0.78 | 18.71 | 89.74 | -9.44 | 37.80 | 0.2546 | 792.0 | 606.1 | |
| 0.00 | 2.50 | 0.00 | 1.26 | 14.55 | 89.91 | -9.27 | 50.49 | 0.2031 | -806.0 | -714.2 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 18.09 | 89.71 | -9.47 | 39.50 | 0.2470 | 835.0 | 726.6 | |
| 0.00 | 2.41 | 0.00 | 1.22 | 15.95 | 89.56 | -9.62 | 46.43 | 0.2228 | 278.0 | 285.9 | |
| 7.13 | 21.84 | 3.65 | 11.18 | 18.12 | 89.35 | -9.83 | 40.45 | 0.2511 | 1232.0 | 328.6 | |
| 0.00 | 1.69 | 0.00 | 0.86 | 12.84 | 89.44 | -9.74 | 59.00 | 0.1933 | -1047.0 | -818.5 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 12.26 | 89.09 | -10.09 | 62.51 | 0.1940 | -937.0 | -717.5 | |
| 0.00 | 2.23 | 0.00 | 1.13 | 12.47 | 89.02 | -10.17 | 61.70 | 0.1966 | -988.0 | -843.9 | |
| 0.53 | 10.70 | 0.27 | 5.49 | 18.63 | 88.61 | -10.57 | 41.10 | 0.2656 | 1015.2 | 395.6 | |
| 0.00 | 1.60 | 0.00 | 0.81 | 12.89 | 88.78 | -10.40 | 60.35 | 0.2034 | -1018.0 | -817.4 | |
| 4.10 | 880.98 | 2.10 | 450.50 | 16.87 | 88.52 | -10.66 | 46.29 | 0.2460 | 1241.8 | 401.2 | |
| 2.67 | 40.56 | 1.35 | 20.57 | 13.19 | 88.70 | -10.48 | 59.22 | 0.2070 | -1177.8 | -271.9 | |
| 2.23 | -17.00 | 1.14 | -17.00 | 17.12 | 88.48 | -10.70 | 45.67 | 0.2493 | 1150.4 | 999999 | |
| 0.62 | -18.00 | 0.32 | -18.00 | 13.37 | 88.63 | -10.55 | 58.63 | 0.2096 | -821.0 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.32 | 19.70 | 88.25 | -10.93 | 39.35 | 0.2828 | 600.0 | 569.9 | |
| 7.67 | -17.00 | 3.91 | -17.00 | 16.53 | 88.41 | -10.77 | 47.62 | 0.2435 | 1337.6 | 999999 | |
| 0.27 | -17.00 | 0.14 | -17.00 | 17.36 | 88.33 | -10.85 | 45.32 | 0.2537 | 1177.3 | 999999 | |
| 0.00 | 3.83 | 0.00 | 1.97 | 18.59 | 88.16 | -11.02 | 42.36 | 0.2701 | 993.0 | 846.9 | |
| 15.24 | -17.00 | 7.80 | -17.00 | 16.93 | 88.23 | -10.95 | 46.87 | 0.2501 | 1258.9 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.68 | 13.64 | 88.37 | -10.81 | 58.13 | 0.2157 | 635.0 | 544.4 | |
| 0.00 | 1.34 | 0.00 | 0.69 | 18.80 | 88.08 | -11.10 | 42.00 | 0.2736 | 426.0 | 346.1 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 12.97 | 88.37 | -10.82 | 60.90 | 0.2102 | -966.0 | -718.7 | |
| 94.05 | -17.00 | 47.97 | -17.00 | 15.80 | 88.17 | -11.02 | 50.65 | 0.2388 | 1772.8 | 999999 | |
| 4.46 | 8.83 | 2.30 | 4.55 | 18.79 | 87.82 | -11.36 | 42.65 | 0.2764 | 991.2 | 753.1 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 8.16 | 88.31 | -10.87 | 84.49 | 0.1884 | -845.0 | -708.8 | |
| 0.27 | -17.00 | 0.14 | -17.00 | 17.29 | 87.89 | -11.29 | 46.64 | 0.2583 | 1132.7 | 999999 | |
| 2.32 | -18.00 | 1.18 | -18.00 | 12.99 | 87.95 | -11.23 | 61.66 | 0.2165 | -1064.0 | 999999 | |
| 59.55 | -17.00 | 30.48 | -17.00 | 16.55 | 87.71 | -11.47 | 49.31 | 0.2526 | 1410.7 | 999999 | |
| 0.00 | 4.46 | 0.00 | 2.30 | 19.22 | 87.40 | -11.78 | 42.58 | 0.2862 | 875.0 | 767.9 | |
| 0.00 | 1.87 | 0.00 | 0.97 | 18.94 | 87.42 | -11.76 | 43.23 | 0.2827 | 970.0 | 789.4 | |
| 0.00 | 1.69 | 0.00 | 0.86 | 7.85 | 87.92 | -11.26 | 86.23 | 0.1948 | -979.0 | -752.1 | |
| 0.00 | 2.50 | 0.00 | 1.30 | 21.04 | 87.00 | -12.18 | 39.27 | 0.3125 | 664.0 | 645.1 | |
| 0.00 | 3.92 | 0.00 | 1.99 | 13.10 | 87.41 | -11.77 | 62.27 | 0.2254 | -996.0 | -695.1 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 13.31 | 87.28 | -11.91 | 61.70 | 0.2291 | -983.0 | -817.5 | |
| 0.00 | 1.43 | 0.00 | 0.74 | 18.68 | 86.92 | -12.26 | 45.05 | 0.2856 | 893.0 | 798.1 | |
| 2.23 | -17.00 | 1.14 | -17.00 | 16.38 | 86.98 | -12.20 | 51.50 | 0.2603 | 864.4 | 999999 | |
| 0.00 | 1.87 | 0.00 | 0.95 | 10.10 | 87.22 | -11.96 | 75.63 | 0.2115 | -828.0 | -685.5 | |
| 0.00 | 1.52 | 0.00 | 0.79 | 21.09 | 86.57 | -12.62 | 40.10 | 0.3177 | 721.0 | 564.4 | |
| 0.00 | 0.71 | 0.00 | 0.36 | 11.49 | 87.17 | -12.01 | 69.44 | 0.2188 | -806.0 | -700.5 | |
| 0.00 | 1.87 | 0.00 | 0.95 | 13.18 | 87.03 | -12.15 | 62.65 | 0.2318 | -1093.0 | -865.7 | |
| 0.00 | 1.60 | 0.00 | 0.82 | 11.72 | 87.03 | -12.15 | 68.61 | 0.2223 | -897.0 | -681.7 | |
| 0.00 | 1.52 | 0.00 | 0.78 | 18.33 | 86.55 | -12.63 | 46.77 | 0.2861 | 750.0 | 669.3 | |
| 0.00 | 1.43 | 0.00 | 0.72 | 11.45 | 86.92 | -12.26 | 69.95 | 0.2226 | -906.0 | -730.6 | |
| 0.00 | 1.87 | 0.00 | 0.95 | 10.99 | 86.81 | -12.37 | 72.06 | 0.2220 | -1000.0 | -862.6 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 18.57 | 86.37 | -12.81 | 46.52 | 0.2909 | 678.0 | 512.7 | |
| 0.00 | 1.87 | 0.00 | 0.96 | 14.23 | 86.59 | -12.59 | 59.50 | 0.2463 | -784.0 | -535.6 | |
| 0.00 | 1.34 | 0.00 | 0.68 | 12.59 | 86.55 | -12.63 | 65.78 | 0.2351 | -884.0 | -675.0 | |
| 1.43 | -17.00 | 0.73 | -17.00 | 16.27 | 86.24 | -12.94 | 53.38 | 0.2690 | 357.7 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.68 | 11.62 | 86.31 | -12.87 | 70.06 | 0.2331 | -1051.0 | -837.5 | |
| 0.45 | 295.89 | 0.23 | 152.15 | 13.61 | 86.02 | -13.16 | 62.76 | 0.2500 | -1003.6 | -505.3 | |
| 0.00 | 1.60 | 0.00 | 0.84 | 19.51 | 85.61 | -13.57 | 45.73 | 0.3103 | 715.0 | 520.2 | |
| 0.00 | 3.48 | 0.00 | 1.77 | 11.58 | 86.09 | -13.09 | 70.48 | 0.2365 | -665.0 | -667.3 | |
| 0.00 | 1.69 | 0.00 | 0.86 | 11.94 | 85.98 | -13.20 | 69.18 | 0.2401 | -984.0 | -764.6 | |
| 0.00 | 1.52 | 0.00 | 0.78 | 13.11 | 85.63 | -13.55 | 65.18 | 0.2525 | -1002.0 | -805.4 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 11.72 | 85.70 | -13.48 | 70.40 | 0.2433 | -906.0 | -719.9 | |
| 1.16 | -56.00 | 0.59 | -56.00 | 14.02 | 85.52 | -13.67 | 62.11 | 0.2605 | -1221.6 | 999999 | |
| 0.00 | 3.03 | 0.00 | 1.55 | 12.59 | 85.50 | -13.68 | 67.30 | 0.2513 | -1007.0 | -904.1 | |
| 15.87 | -56.00 | 8.14 | -56.00 | 13.59 | 85.35 | -13.83 | 63.88 | 0.2600 | -1160.9 | 999999 | |
| 0.80 | 2.85 | 0.41 | 1.46 | 12.38 | 85.42 | -13.76 | 68.22 | 0.2514 | -1029.0 | -864.0 | |
| 0.00 | 1.43 | 0.00 | 0.74 | 17.31 | 85.10 | -14.08 | 52.50 | 0.2941 | 853.0 | 708.6 | |
| 0.00 | 2.76 | 0.00 | 1.41 | 11.77 | 85.45 | -13.73 | 70.49 | 0.2477 | -864.0 | -744.7 | |
| 0.00 | 2.50 | 0.00 | 1.28 | 12.83 | 85.33 | -13.85 | 66.65 | 0.2554 | -968.0 | -884.9 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 12.59 | 85.25 | -13.93 | 67.66 | 0.2552 | -1039.0 | -874.3 | |
| 0.00 | 1.60 | 0.00 | 0.82 | 12.37 | 85.19 | -13.99 | 68.52 | 0.2548 | -977.0 | -856.7 | |
| 18.90 | -56.00 | 9.73 | -56.00 | 14.62 | 85.03 | -14.15 | 60.86 | 0.2721 | -1168.6 | 999999 | |
| 4.28 | -56.00 | 2.21 | -56.00 | 15.22 | 84.96 | -14.22 | 59.01 | 0.2778 | -1181.3 | 999999 | |
| 0.89 | -56.00 | 0.46 | -56.00 | 16.14 | 84.86 | -14.32 | 56.34 | 0.2867 | -901.1 | 999999 | |
| 9.54 | -56.00 | 4.92 | -56.00 | 15.56 | 84.80 | -14.38 | 58.22 | 0.2826 | -1281.9 | 999999 | |
| 1.34 | -56.00 | 0.69 | -56.00 | 16.41 | 84.74 | -14.44 | 55.73 | 0.2907 | -999.3 | 999999 | |
| 0.00 | 6.42 | 0.00 | 3.29 | 12.49 | 84.96 | -14.22 | 68.39 | 0.2591 | -609.0 | -764.6 | |
| 0.00 | 1.69 | 0.00 | 0.88 | 18.19 | 84.57 | -14.61 | 51.08 | 0.3094 | 601.0 | 461.8 | |
| 0.00 | 8.02 | 0.00 | 4.16 | 17.02 | 84.63 | -14.55 | 54.16 | 0.2976 | -517.0 | -387.6 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 13.91 | 84.82 | -14.36 | 63.56 | 0.2701 | -649.0 | -500.4 | |
| 0.00 | 2.50 | 0.00 | 1.28 | 10.49 | 84.97 | -14.21 | 75.99 | 0.2499 | -700.0 | -533.8 | |
| 0.00 | 1.78 | 0.00 | 0.91 | 11.30 | 84.90 | -14.28 | 72.89 | 0.2542 | -952.0 | -834.0 | |
| 0.00 | 4.72 | 0.00 | 2.42 | 12.18 | 84.76 | -14.42 | 69.77 | 0.2606 | -728.0 | -621.3 | |
| 0.00 | 2.05 | 0.00 | 1.05 | 11.48 | 84.79 | -14.39 | 72.32 | 0.2567 | -787.0 | -616.2 | |
| 0.00 | 1.60 | 0.00 | 0.83 | 16.40 | 84.45 | -14.73 | 56.25 | 0.2947 | -918.0 | -816.6 | |
| 0.00 | 1.43 | 0.00 | 0.74 | 16.83 | 84.39 | -14.80 | 55.13 | 0.2993 | -962.0 | -852.3 | |
| 0.00 | 1.96 | 0.00 | 1.01 | 14.45 | 84.43 | -14.75 | 62.34 | 0.2796 | -906.0 | -734.8 | |
| 0.00 | 3.30 | 0.00 | 1.70 | 12.53 | 84.48 | -14.70 | 68.80 | 0.2668 | -824.0 | -686.9 | |
| 0.00 | 2.14 | 0.00 | 1.10 | 14.17 | 84.35 | -14.83 | 63.36 | 0.2789 | -948.0 | -796.5 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 12.44 | 84.36 | -14.82 | 69.28 | 0.2683 | -656.0 | -487.8 | |
| 0.00 | 1.78 | 0.00 | 0.92 | 12.77 | 84.25 | -14.94 | 68.25 | 0.2718 | -690.0 | -566.5 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 11.98 | 84.10 | -15.08 | 71.21 | 0.2701 | -730.0 | -518.2 | |
| 0.00 | 3.03 | 0.00 | 1.57 | 10.84 | 82.85 | -16.33 | 76.24 | 0.2856 | -842.0 | -650.7 | |
| 0.00 | 1.60 | 0.00 | 0.83 | 11.02 | 82.65 | -16.53 | 75.78 | 0.2894 | -709.0 | -459.1 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 10.17 | 82.53 | -16.65 | 78.76 | 0.2888 | -784.0 | -644.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
