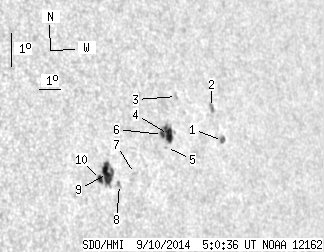

SDO HMI 2014-09-10 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.79 | 56.88 | 21.04 | 41.92 | 9.78 | 147.40 | 48.22 | 276.63 | 0.7417 | 40.6 | -48.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-10 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.52 | 3.57 | 1.20 | 2.83 | 9.79 | 151.05 | 51.87 | 276.75 | 0.7828 | -582.1 | -403.4 | |
| 0.00 | 3.57 | 0.00 | 2.81 | 10.83 | 150.74 | 51.56 | 278.08 | 0.7793 | -613.0 | -458.6 | |
| 0.00 | 1.87 | 0.00 | 1.43 | 11.32 | 149.15 | 49.97 | 278.71 | 0.7618 | 513.0 | 377.2 | |
| 8.91 | 17.83 | 6.71 | 13.40 | 10.22 | 148.52 | 49.34 | 277.25 | 0.7548 | -724.0 | -500.2 | |
| 0.00 | 0.98 | 0.00 | 0.73 | 9.84 | 148.34 | 49.16 | 276.74 | 0.7529 | -614.0 | -537.2 | |
| 2.05 | -4.00 | 1.53 | -4.00 | 10.24 | 148.24 | 49.06 | 277.28 | 0.7517 | -827.6 | 999999 | |
| 0.00 | 1.60 | 0.00 | 1.17 | 9.20 | 146.74 | 47.56 | 275.83 | 0.7346 | -236.0 | -209.0 | |
| 0.00 | 2.41 | 0.00 | 1.73 | 8.93 | 146.01 | 46.83 | 275.44 | 0.7261 | 401.0 | 324.7 | |
| 13.55 | 25.05 | 9.64 | 17.82 | 9.31 | 145.54 | 46.36 | 275.95 | 0.7204 | 694.1 | 491.6 | |
| 2.76 | -9.00 | 1.96 | -9.00 | 9.15 | 145.21 | 46.02 | 275.73 | 0.7164 | 886.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
