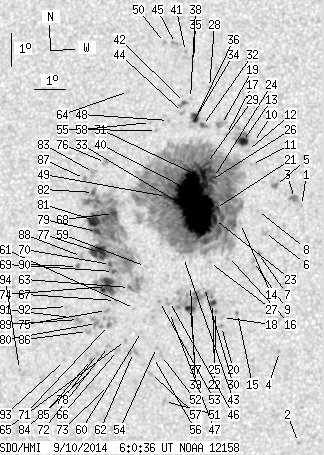

SDO HMI 2014-09-10 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 254.90 | 1375.73 | 130.22 | 702.94 | 15.65 | 87.34 | -11.29 | 51.75 | 0.2428 | 494.2 | 123.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-10 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.59 | 16.17 | 91.39 | -7.25 | 37.85 | 0.1984 | 673.0 | 460.5 | |
| 0.00 | 1.43 | 0.00 | 0.71 | 8.98 | 91.49 | -7.15 | 75.81 | 0.1274 | -958.0 | -723.5 | |
| 0.00 | 5.71 | 0.00 | 2.89 | 16.38 | 91.16 | -7.48 | 38.03 | 0.2036 | 1091.0 | 916.7 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 11.72 | 90.84 | -7.80 | 59.25 | 0.1553 | -874.0 | -681.0 | |
| 0.00 | 3.83 | 0.00 | 1.94 | 16.76 | 90.54 | -8.10 | 39.01 | 0.2152 | 1168.0 | 876.7 | |
| 0.00 | 3.30 | 0.00 | 1.67 | 15.32 | 90.25 | -8.39 | 44.79 | 0.2006 | -560.0 | -539.4 | |
| 0.36 | 1.52 | 0.18 | 0.77 | 14.68 | 90.08 | -8.55 | 47.75 | 0.1952 | -909.2 | -725.5 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 15.99 | 90.00 | -8.64 | 43.27 | 0.2116 | 739.0 | 570.8 | |
| 0.00 | 2.05 | 0.00 | 1.04 | 14.43 | 89.93 | -8.70 | 49.20 | 0.1944 | -1065.0 | -830.0 | |
| 0.00 | 1.34 | 0.00 | 0.68 | 18.07 | 89.77 | -8.86 | 37.74 | 0.2403 | 812.0 | 584.5 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 17.40 | 89.74 | -8.89 | 39.71 | 0.2319 | 882.0 | 698.0 | |
| 0.00 | 0.71 | 0.00 | 0.36 | 17.82 | 89.59 | -9.04 | 38.97 | 0.2390 | 894.0 | 730.0 | |
| 6.69 | 16.58 | 3.42 | 8.47 | 18.10 | 89.42 | -9.22 | 38.74 | 0.2443 | 1263.0 | 500.7 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 15.58 | 89.47 | -9.16 | 46.30 | 0.2130 | 359.0 | 268.8 | |
| 0.00 | 1.60 | 0.00 | 0.81 | 12.85 | 89.49 | -9.15 | 57.40 | 0.1848 | -895.0 | -702.8 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 14.57 | 89.14 | -9.50 | 51.04 | 0.2063 | -10.0 | -44.2 | |
| 0.00 | 1.34 | 0.00 | 0.68 | 18.30 | 88.89 | -9.74 | 39.71 | 0.2526 | 744.0 | 598.3 | |
| 0.00 | 2.32 | 0.00 | 1.17 | 12.72 | 89.02 | -9.61 | 59.23 | 0.1904 | -775.0 | -625.7 | |
| 0.00 | 5.35 | 0.00 | 2.74 | 18.61 | 88.71 | -9.92 | 39.41 | 0.2583 | 543.0 | 593.5 | |
| 0.00 | 1.69 | 0.00 | 0.85 | 12.44 | 89.00 | -9.63 | 60.55 | 0.1885 | -1030.0 | -892.7 | |
| 2.94 | 858.28 | 1.50 | 438.13 | 16.03 | 88.66 | -9.98 | 47.15 | 0.2281 | 1342.1 | 426.9 | |
| 0.00 | 1.60 | 0.00 | 0.81 | 12.89 | 88.80 | -9.84 | 58.98 | 0.1952 | -1118.0 | -835.8 | |
| 4.64 | -21.00 | 2.36 | -21.00 | 15.69 | 88.64 | -9.99 | 48.34 | 0.2246 | 1411.9 | 999999 | |
| 1.60 | -21.00 | 0.82 | -21.00 | 16.97 | 88.55 | -10.09 | 44.45 | 0.2403 | 1231.5 | 999999 | |
| 2.59 | 49.75 | 1.31 | 25.19 | 13.14 | 88.69 | -9.94 | 58.17 | 0.1988 | -1192.8 | -194.2 | |
| 2.59 | -21.00 | 1.32 | -21.00 | 16.88 | 88.45 | -10.18 | 44.99 | 0.2403 | 1222.3 | 999999 | |
| 0.00 | 1.96 | 0.00 | 0.99 | 14.38 | 88.54 | -10.09 | 53.41 | 0.2123 | 701.0 | 378.9 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 19.74 | 88.25 | -10.38 | 37.86 | 0.2776 | 766.0 | 631.8 | |
| 0.27 | -21.00 | 0.14 | -21.00 | 17.40 | 88.30 | -10.34 | 43.86 | 0.2482 | 1048.7 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.32 | 13.62 | 88.42 | -10.21 | 56.79 | 0.2069 | 580.0 | 599.7 | |
| 14.80 | -21.00 | 7.56 | -21.00 | 16.94 | 88.23 | -10.41 | 45.43 | 0.2437 | 1251.8 | 999999 | |
| 1.07 | 3.03 | 0.55 | 1.56 | 18.56 | 88.10 | -10.53 | 41.17 | 0.2644 | 1071.8 | 855.7 | |
| 87.73 | -21.00 | 44.67 | -21.00 | 15.80 | 88.16 | -10.47 | 49.25 | 0.2320 | 1772.0 | 999999 | |
| 5.26 | 9.09 | 2.71 | 4.68 | 18.80 | 87.86 | -10.78 | 41.17 | 0.2701 | 960.4 | 641.7 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 20.53 | 87.68 | -10.96 | 37.51 | 0.2936 | 789.0 | 601.5 | |
| 0.00 | 1.43 | 0.00 | 0.73 | 18.52 | 87.75 | -10.89 | 42.18 | 0.2679 | 1039.0 | 887.7 | |
| 4.28 | -25.00 | 2.17 | -25.00 | 12.97 | 88.01 | -10.63 | 60.48 | 0.2075 | -1162.7 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.78 | 19.39 | 87.66 | -10.98 | 40.22 | 0.2794 | 634.0 | 412.1 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 13.67 | 87.98 | -10.66 | 57.64 | 0.2137 | 636.0 | 402.6 | |
| 62.32 | -21.00 | 31.84 | -21.00 | 16.59 | 87.73 | -10.90 | 47.78 | 0.2458 | 1417.1 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 20.84 | 87.39 | -11.24 | 37.53 | 0.3004 | 836.0 | 685.2 | |
| 1.16 | 4.81 | 0.60 | 2.48 | 19.26 | 87.47 | -11.16 | 40.99 | 0.2799 | 881.9 | 697.5 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 14.51 | 87.71 | -10.92 | 54.95 | 0.2250 | -559.0 | -383.3 | |
| 0.00 | 2.23 | 0.00 | 1.15 | 18.95 | 87.43 | -11.21 | 41.88 | 0.2766 | 1040.0 | 759.6 | |
| 0.00 | 3.83 | 0.00 | 1.99 | 21.08 | 87.04 | -11.59 | 37.83 | 0.3070 | 799.0 | 618.5 | |
| 0.00 | 4.01 | 0.00 | 2.04 | 13.17 | 87.33 | -11.30 | 61.07 | 0.2190 | -570.0 | -698.0 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 12.83 | 87.35 | -11.28 | 62.42 | 0.2162 | -836.0 | -613.2 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 18.69 | 86.99 | -11.65 | 43.59 | 0.2785 | 952.0 | 764.9 | |
| 0.27 | -21.00 | 0.14 | -21.00 | 16.36 | 87.07 | -11.56 | 50.10 | 0.2518 | 964.0 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.02 | 21.10 | 86.68 | -11.96 | 38.62 | 0.3110 | 776.0 | 652.4 | |
| 0.00 | 1.60 | 0.00 | 0.81 | 10.14 | 87.30 | -11.34 | 74.74 | 0.2015 | -827.0 | -649.1 | |
| 0.00 | 3.21 | 0.00 | 1.63 | 11.52 | 87.15 | -11.48 | 68.45 | 0.2106 | -787.0 | -550.9 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 13.16 | 87.02 | -11.62 | 61.72 | 0.2236 | -1084.0 | -887.3 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 11.76 | 86.99 | -11.65 | 67.66 | 0.2147 | -913.0 | -798.6 | |
| 0.00 | 1.34 | 0.00 | 0.69 | 18.38 | 86.62 | -12.01 | 45.29 | 0.2792 | 893.0 | 648.4 | |
| 0.00 | 1.34 | 0.00 | 0.68 | 11.46 | 86.90 | -11.73 | 69.13 | 0.2142 | -839.0 | -696.2 | |
| 0.00 | 3.30 | 0.00 | 1.67 | 10.97 | 86.83 | -11.80 | 71.41 | 0.2129 | -1022.0 | -700.2 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 18.62 | 86.41 | -12.23 | 45.13 | 0.2844 | 686.0 | 484.9 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 14.21 | 86.52 | -12.11 | 58.65 | 0.2393 | -776.0 | -572.4 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 12.24 | 86.49 | -12.14 | 66.43 | 0.2253 | -948.0 | -711.3 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 12.93 | 86.24 | -12.40 | 64.06 | 0.2337 | -760.0 | -582.4 | |
| 0.00 | 4.37 | 0.00 | 2.22 | 11.59 | 86.27 | -12.37 | 69.46 | 0.2250 | -730.0 | -779.1 | |
| 0.62 | 16.94 | 0.32 | 8.64 | 13.56 | 86.05 | -12.59 | 61.95 | 0.2411 | -1082.6 | -391.3 | |
| 0.00 | 1.25 | 0.00 | 0.65 | 19.55 | 85.61 | -13.02 | 44.48 | 0.3043 | 727.0 | 486.3 | |
| 0.00 | 1.34 | 0.00 | 0.68 | 11.95 | 86.00 | -12.63 | 68.35 | 0.2313 | -917.0 | -776.4 | |
| 0.00 | 3.30 | 0.00 | 1.68 | 11.64 | 85.76 | -12.87 | 69.94 | 0.2334 | -810.0 | -567.1 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 13.15 | 85.62 | -13.01 | 64.19 | 0.2446 | -1067.0 | -814.4 | |
| 5.88 | 269.42 | 3.03 | 138.31 | 15.80 | 85.40 | -13.23 | 55.41 | 0.2687 | 228.7 | -523.3 | |
| 1.16 | -68.00 | 0.59 | -68.00 | 14.03 | 85.51 | -13.12 | 61.16 | 0.2526 | -1165.0 | 999999 | |
| 1.16 | -68.00 | 0.59 | -68.00 | 14.24 | 85.40 | -13.23 | 60.60 | 0.2558 | -1181.3 | 999999 | |
| 0.53 | 9.27 | 0.27 | 4.73 | 12.39 | 85.44 | -13.19 | 67.39 | 0.2426 | -1085.5 | -860.8 | |
| 0.00 | 2.23 | 0.00 | 1.14 | 11.76 | 85.47 | -13.16 | 69.85 | 0.2386 | -822.0 | -774.6 | |
| 0.00 | 0.71 | 0.00 | 0.36 | 10.58 | 85.52 | -13.11 | 74.64 | 0.2323 | -798.0 | -648.0 | |
| 13.73 | -68.00 | 7.03 | -68.00 | 13.57 | 85.34 | -13.29 | 63.09 | 0.2517 | -1192.1 | 999999 | |
| 0.00 | 2.23 | 0.00 | 1.14 | 12.84 | 85.35 | -13.28 | 65.78 | 0.2467 | -1024.0 | -890.9 | |
| 0.00 | 3.57 | 0.00 | 1.84 | 17.35 | 85.03 | -13.60 | 51.47 | 0.2882 | 850.0 | 634.0 | |
| 16.58 | -68.00 | 8.51 | -68.00 | 14.60 | 85.03 | -13.61 | 60.02 | 0.2640 | -1187.4 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.68 | 11.53 | 85.13 | -13.50 | 71.15 | 0.2428 | -926.0 | -807.9 | |
| 4.81 | -68.00 | 2.48 | -68.00 | 15.23 | 84.89 | -13.74 | 58.15 | 0.2710 | -1138.8 | 999999 | |
| 0.00 | 8.47 | 0.00 | 4.33 | 12.44 | 85.05 | -13.58 | 67.72 | 0.2489 | -1014.0 | -805.4 | |
| 10.25 | -68.00 | 5.28 | -68.00 | 15.57 | 84.80 | -13.83 | 57.24 | 0.2750 | -1299.9 | 999999 | |
| 1.16 | -68.00 | 0.60 | -68.00 | 16.42 | 84.71 | -13.92 | 54.77 | 0.2838 | -1012.3 | 999999 | |
| 0.00 | 4.73 | 0.00 | 2.45 | 17.03 | 84.67 | -13.97 | 53.06 | 0.2900 | -299.0 | -372.0 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 11.08 | 85.03 | -13.61 | 73.09 | 0.2424 | -743.0 | -631.7 | |
| 0.00 | 1.96 | 0.00 | 1.00 | 11.35 | 84.95 | -13.68 | 72.09 | 0.2448 | -1046.0 | -850.8 | |
| 0.00 | 3.03 | 0.00 | 1.55 | 12.19 | 84.78 | -13.85 | 69.03 | 0.2517 | -726.0 | -704.0 | |
| 0.00 | 1.96 | 0.00 | 1.02 | 16.84 | 84.39 | -14.24 | 54.12 | 0.2919 | -986.0 | -879.3 | |
| 0.00 | 2.50 | 0.00 | 1.28 | 14.46 | 84.46 | -14.18 | 61.41 | 0.2713 | -996.0 | -740.1 | |
| 0.00 | 3.92 | 0.00 | 2.01 | 12.55 | 84.48 | -14.16 | 68.09 | 0.2585 | -822.0 | -728.8 | |
| 0.45 | 2.67 | 0.23 | 1.38 | 14.15 | 84.35 | -14.28 | 62.61 | 0.2707 | -986.6 | -763.2 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 12.60 | 84.22 | -14.42 | 68.22 | 0.2628 | -646.0 | -513.1 | |
| 0.00 | 1.34 | 0.00 | 0.69 | 12.93 | 84.10 | -14.53 | 67.18 | 0.2665 | -465.0 | -408.1 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 11.29 | 84.10 | -14.54 | 73.17 | 0.2583 | -709.0 | -565.4 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 10.97 | 82.68 | -15.96 | 75.51 | 0.2800 | -814.0 | -604.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
