SDO HMI 2014-09-10 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.37 | 207.26 | 35.37 | 134.32 | -15.95 | 65.64 | -32.99 | 125.64 | 0.6457 | 243.4 | 217.9 | |
|
previous
or next observation for the same group /

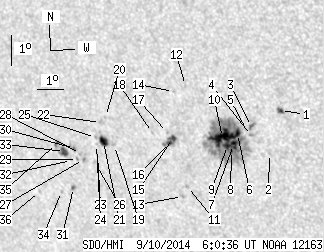

back to the solar disc SDO HMI 2014-09-10 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.78 | 3.92 | 1.10 | 2.43 | -14.72 | 68.92 | -29.71 | 126.76 | 0.6006 | -743.6 | -550.3 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -16.17 | 68.29 | -30.35 | 128.12 | 0.6191 | 696.0 | 543.4 | |
| 0.80 | 3.57 | 0.50 | 2.24 | -15.32 | 67.77 | -30.86 | 126.53 | 0.6180 | 999.2 | 822.9 | |
| 0.00 | 2.05 | 0.00 | 1.29 | -15.61 | 67.72 | -30.91 | 126.89 | 0.6208 | 861.0 | 641.9 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -15.43 | 67.57 | -31.06 | 126.51 | 0.6210 | 648.0 | 617.6 | |
| 3.39 | 144.52 | 2.15 | 92.27 | -15.58 | 67.21 | -31.42 | 126.40 | 0.6261 | 1123.3 | 339.1 | |
| 4.64 | -6.00 | 2.95 | -6.00 | -15.96 | 67.00 | -31.63 | 126.71 | 0.6313 | 983.9 | 999999 | |
| 0.98 | -6.00 | 0.63 | -6.00 | -16.16 | 66.89 | -31.74 | 126.89 | 0.6340 | 680.9 | 999999 | |
| 4.37 | -6.00 | 2.79 | -6.00 | -16.01 | 66.77 | -31.86 | 126.58 | 0.6342 | 833.8 | 999999 | |
| 21.13 | -6.00 | 13.50 | -6.00 | -15.75 | 66.63 | -32.00 | 126.13 | 0.6338 | 1001.9 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.94 | -17.48 | 64.98 | -33.66 | 126.99 | 0.6641 | 625.0 | 534.1 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -14.14 | 65.53 | -33.10 | 123.08 | 0.6342 | 566.0 | 412.2 | |
| 0.00 | 1.78 | 0.00 | 1.19 | -17.83 | 64.71 | -33.92 | 127.22 | 0.6694 | 693.0 | 502.0 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -14.37 | 65.05 | -33.59 | 123.00 | 0.6413 | 607.0 | 492.2 | |
| 3.03 | 10.16 | 1.98 | 6.66 | -15.92 | 64.72 | -33.91 | 124.80 | 0.6556 | 864.1 | 570.5 | |
| 1.96 | -15.00 | 1.29 | -15.00 | -16.06 | 64.58 | -34.05 | 124.87 | 0.6581 | 784.2 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.58 | -15.74 | 64.57 | -34.06 | 124.44 | 0.6560 | 594.0 | 508.1 | |
| 0.00 | 0.98 | 0.00 | 0.65 | -15.78 | 63.99 | -34.64 | 124.05 | 0.6625 | 317.0 | 294.7 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -16.33 | 62.41 | -36.23 | 123.58 | 0.6831 | -362.0 | -375.2 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -15.39 | 62.25 | -36.38 | 122.28 | 0.6787 | -458.0 | -425.6 | |
| 5.79 | 8.02 | 3.94 | 5.45 | -16.23 | 62.00 | -36.63 | 123.17 | 0.6868 | -914.9 | -629.8 | |
| 0.00 | 1.16 | 0.00 | 0.78 | -15.61 | 62.01 | -36.62 | 122.39 | 0.6826 | -673.0 | -641.9 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -16.68 | 61.66 | -36.97 | 123.50 | 0.6932 | -592.0 | -654.3 | |
| 0.00 | 0.71 | 0.00 | 0.49 | -16.35 | 61.70 | -36.94 | 123.11 | 0.6907 | -513.0 | -421.5 | |
| 0.00 | 0.53 | 0.00 | 0.36 | -16.12 | 61.71 | -36.93 | 122.83 | 0.6892 | -548.0 | -452.0 | |
| 0.00 | 1.25 | 0.00 | 0.86 | -16.92 | 61.49 | -37.15 | 123.68 | 0.6966 | -703.0 | -554.1 | |
| 0.00 | 1.69 | 0.00 | 1.17 | -16.89 | 61.05 | -37.58 | 123.35 | 0.7008 | -750.0 | -673.7 | |
| 0.00 | 1.60 | 0.00 | 1.11 | -16.70 | 60.98 | -37.65 | 123.06 | 0.7004 | -666.0 | -483.8 | |
| 0.00 | 1.07 | 0.00 | 0.74 | -16.91 | 60.81 | -37.82 | 123.20 | 0.7035 | -525.0 | -412.1 | |
| 0.62 | 3.48 | 0.43 | 2.41 | -16.55 | 60.77 | -37.86 | 122.73 | 0.7017 | -828.6 | -672.2 | |
| 0.71 | 1.69 | 0.50 | 1.19 | -17.87 | 60.41 | -38.22 | 124.10 | 0.7135 | -819.4 | -712.6 | |
| 0.00 | 0.98 | 0.00 | 0.68 | -16.97 | 60.56 | -38.08 | 123.10 | 0.7064 | -599.0 | -406.9 | |
| 4.10 | 6.86 | 2.86 | 4.80 | -16.69 | 60.34 | -38.29 | 122.61 | 0.7070 | -769.9 | -473.1 | |
| 0.00 | 1.16 | 0.00 | 0.82 | -18.05 | 59.88 | -38.76 | 123.96 | 0.7199 | -609.0 | -479.3 | |
| 1.07 | 2.32 | 0.75 | 1.62 | -16.45 | 60.08 | -38.56 | 122.14 | 0.7083 | -682.1 | -566.2 | |
| 0.00 | 0.98 | 0.00 | 0.71 | -18.12 | 58.95 | -39.68 | 123.45 | 0.7296 | -493.0 | -356.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
