SDO HMI 2014-09-10 08:07:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.67 | 59.92 | 23.07 | 45.33 | 9.73 | 147.09 | 49.61 | 276.62 | 0.7576 | 172.2 | -32.2 | |
|
previous
or next observation for the same group /

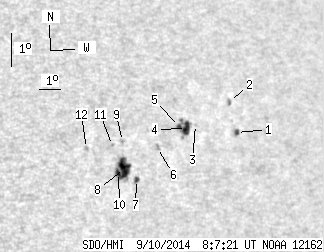

back to the solar disc SDO HMI 2014-09-10 08:07:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.60 | 3.12 | 1.32 | 2.57 | 9.84 | 151.11 | 53.63 | 276.88 | 0.8014 | -451.6 | -308.1 | |
| 0.00 | 2.41 | 0.00 | 1.98 | 10.80 | 150.99 | 53.51 | 278.08 | 0.7999 | -450.0 | -388.7 | |
| 0.00 | 1.16 | 0.00 | 0.91 | 10.28 | 149.13 | 51.65 | 277.39 | 0.7804 | 207.0 | 163.1 | |
| 7.40 | 17.30 | 5.78 | 13.48 | 10.20 | 148.67 | 51.19 | 277.28 | 0.7754 | -706.8 | -524.7 | |
| 1.96 | -4.00 | 1.52 | -4.00 | 10.29 | 148.34 | 50.87 | 277.39 | 0.7719 | -828.7 | 999999 | |
| 0.00 | 2.59 | 0.00 | 1.96 | 9.77 | 147.17 | 49.69 | 276.67 | 0.7589 | -457.0 | -485.8 | |
| 1.52 | 3.39 | 1.12 | 2.51 | 8.90 | 146.01 | 48.54 | 275.48 | 0.7461 | 417.3 | 331.1 | |
| 15.16 | 25.05 | 11.12 | 18.37 | 9.28 | 145.53 | 48.05 | 275.98 | 0.7403 | 688.8 | 500.0 | |
| 0.00 | 1.60 | 0.00 | 1.18 | 10.10 | 145.59 | 48.12 | 277.08 | 0.7409 | 462.0 | 400.6 | |
| 3.03 | -8.00 | 2.21 | -8.00 | 9.19 | 145.24 | 47.76 | 275.84 | 0.7370 | 892.2 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.84 | 10.02 | 145.12 | 47.64 | 276.97 | 0.7354 | 471.0 | 384.5 | |
| 0.00 | 2.14 | 0.00 | 1.53 | 10.04 | 143.95 | 46.47 | 276.98 | 0.7216 | 615.0 | 464.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
