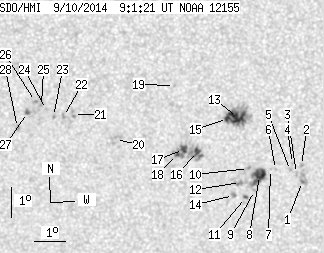

SDO HMI 2014-09-10 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.42 | 139.67 | 21.82 | 79.19 | -19.82 | 107.59 | 10.61 | 200.76 | 0.4878 | 440.8 | 343.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-10 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 8.91 | 0.21 | 5.17 | -21.11 | 110.76 | 13.78 | 205.24 | 0.5232 | -372.8 | 224.6 | |
| 0.00 | 1.52 | 0.00 | 0.87 | -20.56 | 110.68 | 13.70 | 205.59 | 0.5154 | 804.0 | 644.2 | |
| 0.00 | 1.78 | 0.00 | 1.03 | -20.82 | 110.54 | 13.55 | 205.12 | 0.5180 | 636.0 | 493.4 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -20.48 | 110.37 | 13.39 | 205.16 | 0.5123 | 689.0 | 547.7 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -20.71 | 110.33 | 13.34 | 204.88 | 0.5153 | 746.0 | 623.9 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -20.66 | 109.83 | 12.84 | 204.09 | 0.5115 | 450.0 | 332.0 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -20.66 | 109.66 | 12.68 | 203.82 | 0.5104 | 558.0 | 406.3 | |
| 12.30 | 18.45 | 7.08 | 10.62 | -20.85 | 109.31 | 12.33 | 203.08 | 0.5110 | 856.0 | 469.4 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -21.36 | 109.19 | 12.21 | 202.47 | 0.5173 | -351.0 | -297.3 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -20.60 | 108.93 | 11.95 | 202.64 | 0.5053 | 935.0 | 777.1 | |
| 0.62 | 1.69 | 0.36 | 0.98 | -21.60 | 108.91 | 11.93 | 201.82 | 0.5189 | -785.4 | -734.2 | |
| 0.00 | 5.97 | 0.00 | 3.44 | -21.08 | 108.70 | 11.72 | 201.88 | 0.5106 | 816.0 | 474.9 | |
| 13.46 | 39.49 | 7.58 | 22.24 | -18.86 | 108.44 | 11.46 | 203.25 | 0.4782 | 1073.5 | 519.6 | |
| 0.00 | 3.12 | 0.00 | 1.80 | -21.52 | 108.51 | 11.52 | 201.21 | 0.5156 | 668.0 | 572.5 | |
| 3.12 | -13.00 | 1.76 | -13.00 | -18.89 | 108.12 | 11.13 | 202.64 | 0.4766 | 1000.1 | 999999 | |
| 3.21 | 29.51 | 1.82 | 16.70 | -19.98 | 107.21 | 10.23 | 200.12 | 0.4871 | 970.4 | 759.8 | |
| 3.21 | -16.00 | 1.81 | -16.00 | -19.90 | 106.75 | 9.76 | 199.34 | 0.4836 | 1134.0 | 999999 | |
| 1.43 | -16.00 | 0.81 | -16.00 | -20.06 | 106.56 | 9.58 | 198.88 | 0.4850 | 937.2 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -17.74 | 106.33 | 9.35 | 200.20 | 0.4501 | 810.0 | 695.2 | |
| 0.00 | 6.86 | 0.00 | 3.84 | -19.51 | 104.52 | 7.54 | 195.39 | 0.4677 | 645.0 | 557.0 | |
| 0.00 | 2.23 | 0.00 | 1.23 | -18.64 | 103.13 | 6.15 | 193.11 | 0.4494 | -609.0 | -734.6 | |
| 0.00 | 2.05 | 0.00 | 1.14 | -18.71 | 102.82 | 5.83 | 192.42 | 0.4492 | -771.0 | -657.1 | |
| 0.00 | 1.43 | 0.00 | 0.79 | -18.70 | 102.49 | 5.51 | 191.76 | 0.4481 | -776.0 | -667.7 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -18.46 | 102.26 | 5.28 | 191.39 | 0.4438 | -803.0 | -605.8 | |
| 0.00 | 2.14 | 0.00 | 1.18 | -18.29 | 102.10 | 5.12 | 191.12 | 0.4406 | -906.0 | -757.8 | |
| 0.00 | 1.78 | 0.00 | 0.98 | -18.19 | 101.90 | 4.92 | 190.76 | 0.4385 | -1004.0 | -842.8 | |
| 0.71 | 2.14 | 0.39 | 1.18 | -18.56 | 101.66 | 4.68 | 190.08 | 0.4434 | -954.6 | -851.2 | |
| 0.00 | 2.67 | 0.00 | 1.48 | -19.06 | 101.35 | 4.37 | 189.24 | 0.4504 | -912.0 | -755.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
