SDO HMI 2014-09-10 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 255.21 | 1301.44 | 129.72 | 661.46 | 15.80 | 87.45 | -9.54 | 46.60 | 0.2219 | 406.1 | 154.7 | |
|
previous
or next observation for the same group /

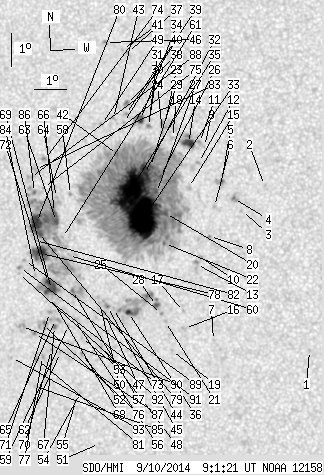

back to the solar disc SDO HMI 2014-09-10 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.49 | 11.80 | 93.49 | -3.49 | 36.79 | 0.1000 | -898.0 | -633.4 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 16.81 | 92.00 | -4.99 | 26.53 | 0.1871 | -786.0 | -585.6 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 16.04 | 91.29 | -5.69 | 31.85 | 0.1815 | 692.0 | 571.1 | |
| 0.45 | 4.28 | 0.22 | 2.16 | 16.40 | 91.03 | -5.96 | 31.92 | 0.1892 | 1142.4 | 880.6 | |
| 0.71 | 4.46 | 0.36 | 2.25 | 16.92 | 90.63 | -6.35 | 32.10 | 0.2002 | 1162.2 | 893.4 | |
| 0.00 | 1.60 | 0.00 | 0.81 | 16.15 | 90.43 | -6.55 | 35.15 | 0.1912 | -671.0 | -560.7 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 12.07 | 90.51 | -6.47 | 52.34 | 0.1398 | -866.0 | -677.0 | |
| 0.00 | 1.52 | 0.00 | 0.76 | 15.23 | 90.30 | -6.68 | 38.75 | 0.1801 | -904.0 | -842.1 | |
| 0.00 | 0.62 | 0.00 | 0.32 | 17.98 | 90.05 | -6.93 | 31.51 | 0.2207 | 260.0 | 184.0 | |
| 0.00 | 1.43 | 0.00 | 0.72 | 14.59 | 90.04 | -6.94 | 42.25 | 0.1748 | -1021.0 | -790.1 | |
| 0.00 | 2.41 | 0.00 | 1.22 | 18.10 | 89.89 | -7.10 | 31.81 | 0.2238 | 819.0 | 625.0 | |
| 0.00 | 1.60 | 0.00 | 0.81 | 17.49 | 89.88 | -7.11 | 33.41 | 0.2152 | 943.0 | 689.1 | |
| 0.00 | 4.10 | 0.00 | 2.06 | 14.37 | 89.92 | -7.06 | 43.59 | 0.1735 | -632.0 | -787.0 | |
| 7.49 | 13.73 | 3.81 | 6.98 | 18.07 | 89.54 | -7.45 | 33.13 | 0.2265 | 1180.4 | 539.5 | |
| 0.00 | 3.12 | 0.00 | 1.58 | 16.72 | 89.59 | -7.39 | 36.65 | 0.2074 | 238.0 | 165.7 | |
| 0.00 | 2.23 | 0.00 | 1.12 | 12.43 | 89.60 | -7.38 | 53.93 | 0.1559 | -832.0 | -678.4 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 12.94 | 89.56 | -7.43 | 51.46 | 0.1618 | -928.0 | -706.6 | |
| 0.00 | 2.14 | 0.00 | 1.09 | 18.24 | 89.01 | -7.97 | 34.44 | 0.2339 | 902.0 | 624.1 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 11.75 | 89.22 | -7.77 | 58.90 | 0.1552 | -874.0 | -759.8 | |
| 2.94 | 867.92 | 1.49 | 440.87 | 15.91 | 88.89 | -8.09 | 41.70 | 0.2045 | 672.5 | 429.7 | |
| 0.00 | 1.78 | 0.00 | 0.90 | 12.63 | 89.00 | -7.98 | 54.93 | 0.1663 | -855.0 | -643.5 | |
| 0.62 | -20.00 | 0.32 | -20.00 | 15.00 | 88.89 | -8.09 | 44.95 | 0.1933 | 572.6 | 999999 | |
| 0.00 | 4.46 | 0.00 | 2.27 | 18.61 | 88.74 | -8.24 | 34.41 | 0.2415 | 624.0 | 702.6 | |
| 0.00 | 1.43 | 0.00 | 0.73 | 18.39 | 88.69 | -8.30 | 35.12 | 0.2391 | 1039.0 | 844.2 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 12.87 | 88.87 | -8.11 | 54.18 | 0.1704 | -1047.0 | -803.9 | |
| 1.16 | -20.00 | 0.59 | -20.00 | 17.04 | 88.68 | -8.30 | 38.83 | 0.2211 | 955.7 | 999999 | |
| 0.27 | -20.00 | 0.14 | -20.00 | 16.55 | 88.58 | -8.41 | 40.67 | 0.2160 | 1036.0 | 999999 | |
| 1.87 | 45.29 | 0.94 | 22.82 | 13.11 | 88.71 | -8.28 | 53.56 | 0.1751 | -1230.2 | -277.1 | |
| 0.27 | -20.00 | 0.14 | -20.00 | 17.34 | 88.35 | -8.63 | 39.03 | 0.2286 | 1093.3 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 18.82 | 88.25 | -8.74 | 35.43 | 0.2491 | 638.0 | 506.5 | |
| 0.00 | 2.14 | 0.00 | 1.09 | 18.57 | 88.23 | -8.76 | 36.11 | 0.2460 | 1077.0 | 880.4 | |
| 14.98 | -20.00 | 7.62 | -20.00 | 17.12 | 88.17 | -8.81 | 40.23 | 0.2277 | 1151.6 | 999999 | |
| 92.71 | -20.00 | 46.98 | -20.00 | 15.78 | 88.20 | -8.79 | 44.44 | 0.2109 | 1525.5 | 999999 | |
| 4.90 | 10.07 | 2.51 | 5.16 | 18.78 | 87.96 | -9.03 | 36.39 | 0.2515 | 920.7 | 704.0 | |
| 67.48 | -20.00 | 34.31 | -20.00 | 16.63 | 87.75 | -9.24 | 43.05 | 0.2264 | 1305.6 | 999999 | |
| 2.32 | -28.00 | 1.17 | -28.00 | 12.88 | 87.84 | -9.15 | 57.20 | 0.1852 | -987.2 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 20.84 | 87.42 | -9.57 | 33.26 | 0.2845 | 816.0 | 674.8 | |
| 0.00 | 3.21 | 0.00 | 1.65 | 19.27 | 87.48 | -9.50 | 36.59 | 0.2627 | 925.0 | 762.8 | |
| 0.00 | 1.34 | 0.00 | 0.69 | 18.93 | 87.47 | -9.52 | 37.45 | 0.2584 | 963.0 | 787.9 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 18.68 | 87.41 | -9.57 | 38.22 | 0.2557 | 824.0 | 563.2 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 20.93 | 87.25 | -9.74 | 33.52 | 0.2873 | 771.0 | 658.8 | |
| 0.62 | -20.00 | 0.32 | -20.00 | 17.69 | 87.28 | -9.71 | 41.26 | 0.2447 | 417.9 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.01 | 18.80 | 87.08 | -9.90 | 38.85 | 0.2606 | 828.0 | 667.3 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 12.99 | 87.36 | -9.62 | 57.95 | 0.1930 | -888.0 | -735.9 | |
| 0.53 | 3.57 | 0.27 | 1.80 | 13.05 | 87.17 | -9.81 | 58.18 | 0.1963 | -1059.7 | -764.3 | |
| 0.00 | 2.14 | 0.00 | 1.11 | 21.14 | 86.67 | -10.31 | 34.58 | 0.2954 | 786.0 | 718.7 | |
| 0.00 | 1.60 | 0.00 | 0.81 | 12.84 | 87.09 | -9.90 | 59.34 | 0.1957 | -912.0 | -837.7 | |
| 0.00 | 1.96 | 0.00 | 0.99 | 11.84 | 87.03 | -9.95 | 64.15 | 0.1889 | -930.0 | -775.0 | |
| 0.00 | 1.52 | 0.00 | 0.78 | 18.60 | 86.71 | -10.28 | 40.36 | 0.2622 | 293.0 | 465.6 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 13.17 | 86.92 | -10.07 | 58.30 | 0.2010 | -918.0 | -732.7 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 8.90 | 87.06 | -9.93 | 79.73 | 0.1739 | -747.0 | -585.4 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 11.61 | 86.41 | -10.57 | 66.46 | 0.1969 | -951.0 | -778.4 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 12.09 | 86.39 | -10.59 | 64.24 | 0.2005 | -763.0 | -620.4 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 10.43 | 86.42 | -10.56 | 72.24 | 0.1902 | -821.0 | -601.1 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 10.15 | 86.27 | -10.71 | 73.84 | 0.1913 | -577.0 | -427.1 | |
| 0.00 | 2.67 | 0.00 | 1.35 | 12.64 | 86.15 | -10.83 | 62.32 | 0.2080 | -799.0 | -711.7 | |
| 0.62 | 12.12 | 0.32 | 6.15 | 13.51 | 86.05 | -10.94 | 58.85 | 0.2165 | -1140.4 | -509.0 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 16.44 | 85.84 | -11.15 | 48.85 | 0.2474 | 764.0 | 570.9 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 12.45 | 85.97 | -11.02 | 63.49 | 0.2094 | -830.0 | -649.8 | |
| 0.00 | 2.05 | 0.00 | 1.04 | 14.57 | 85.87 | -11.11 | 55.14 | 0.2283 | -392.0 | -328.6 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 15.12 | 85.65 | -11.33 | 53.68 | 0.2365 | -40.0 | -60.4 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 11.63 | 85.75 | -11.23 | 67.55 | 0.2074 | -851.0 | -728.5 | |
| 2.32 | 183.19 | 1.18 | 93.52 | 15.60 | 85.43 | -11.55 | 52.52 | 0.2441 | 415.1 | -568.5 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 16.33 | 85.39 | -11.59 | 50.23 | 0.2520 | -164.0 | -176.5 | |
| 0.00 | 4.37 | 0.00 | 2.22 | 12.62 | 85.55 | -11.43 | 63.55 | 0.2170 | -934.0 | -877.2 | |
| 2.50 | -63.00 | 1.28 | -63.00 | 15.87 | 85.35 | -11.63 | 51.80 | 0.2478 | 497.1 | 999999 | |
| 0.80 | 1.96 | 0.41 | 0.99 | 12.41 | 85.53 | -11.45 | 64.49 | 0.2159 | -1015.1 | -871.8 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 13.11 | 85.50 | -11.49 | 61.65 | 0.2214 | -922.0 | -778.9 | |
| 8.91 | 29.95 | 4.53 | 15.24 | 13.53 | 85.38 | -11.60 | 60.19 | 0.2263 | -1153.1 | -602.4 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 11.71 | 85.46 | -11.52 | 67.65 | 0.2124 | -893.0 | -793.4 | |
| 0.00 | 1.69 | 0.00 | 0.86 | 12.83 | 85.35 | -11.63 | 63.06 | 0.2215 | -965.0 | -841.0 | |
| 4.28 | -69.00 | 2.18 | -69.00 | 13.74 | 85.28 | -11.71 | 59.58 | 0.2296 | -1209.8 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 13.22 | 85.27 | -11.71 | 61.62 | 0.2256 | -133.0 | -166.0 | |
| 0.00 | 1.96 | 0.00 | 1.01 | 17.49 | 84.93 | -12.05 | 47.80 | 0.2700 | 1035.0 | 751.1 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 16.63 | 84.96 | -12.03 | 50.30 | 0.2607 | 447.0 | 333.3 | |
| 0.00 | 6.60 | 0.00 | 3.35 | 12.46 | 85.15 | -11.84 | 64.95 | 0.2221 | -692.0 | -777.8 | |
| 0.00 | 1.60 | 0.00 | 0.81 | 11.49 | 85.19 | -11.79 | 69.04 | 0.2155 | -1036.0 | -875.0 | |
| 16.05 | -63.00 | 8.19 | -63.00 | 14.61 | 84.98 | -12.01 | 56.94 | 0.2412 | -1175.2 | 999999 | |
| 4.99 | -63.00 | 2.55 | -63.00 | 15.25 | 84.88 | -12.11 | 54.92 | 0.2483 | -1169.3 | 999999 | |
| 14.80 | -63.00 | 7.57 | -63.00 | 15.55 | 84.80 | -12.19 | 54.08 | 0.2523 | -1226.0 | 999999 | |
| 0.00 | 1.78 | 0.00 | 0.90 | 11.40 | 85.00 | -11.98 | 69.73 | 0.2179 | -974.0 | -807.0 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 15.01 | 84.80 | -12.19 | 55.94 | 0.2472 | -721.0 | -631.9 | |
| 0.00 | 3.30 | 0.00 | 1.70 | 17.17 | 84.66 | -12.32 | 49.32 | 0.2701 | -187.0 | -293.5 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 13.94 | 84.85 | -12.13 | 59.65 | 0.2374 | -647.0 | -512.6 | |
| 0.00 | 1.60 | 0.00 | 0.81 | 10.58 | 85.01 | -11.98 | 73.37 | 0.2139 | -762.0 | -687.9 | |
| 0.62 | 6.51 | 0.32 | 3.34 | 16.47 | 84.68 | -12.31 | 51.41 | 0.2627 | -1020.0 | -801.7 | |
| 0.00 | 2.14 | 0.00 | 1.09 | 12.18 | 84.91 | -12.08 | 66.51 | 0.2240 | -950.0 | -708.4 | |
| 0.00 | 3.48 | 0.00 | 1.79 | 16.92 | 84.52 | -12.47 | 50.37 | 0.2694 | -773.0 | -690.7 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 14.39 | 84.48 | -12.50 | 58.74 | 0.2464 | -966.0 | -790.4 | |
| 0.00 | 4.01 | 0.00 | 2.04 | 12.38 | 84.49 | -12.50 | 66.35 | 0.2318 | -647.0 | -735.1 | |
| 0.00 | 1.96 | 0.00 | 1.00 | 14.17 | 84.33 | -12.65 | 59.79 | 0.2468 | -955.0 | -831.1 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 13.99 | 84.31 | -12.67 | 60.49 | 0.2457 | -707.0 | -563.5 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 11.44 | 84.21 | -12.77 | 70.61 | 0.2307 | -728.0 | -562.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
