SDO HMI 2014-09-10 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.46 | 50.19 | 4.93 | 29.98 | -21.57 | 79.42 | -17.56 | 150.17 | 0.5557 | 486.1 | 443.2 | |
|
previous
or next observation for the same group /

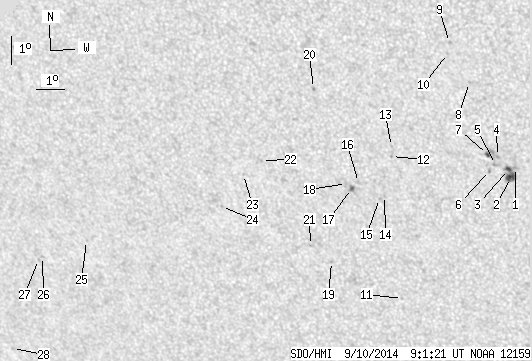

back to the solar disc SDO HMI 2014-09-10 09:01:21 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.69 | 0.00 | 0.98 | -20.88 | 83.96 | -13.02 | 155.79 | 0.5154 | 722.0 | 510.3 | |
| 4.72 | 10.61 | 2.74 | 6.14 | -21.23 | 83.76 | -13.22 | 155.76 | 0.5214 | 855.6 | 736.7 | |
| 1.69 | -2.00 | 0.98 | -2.00 | -20.95 | 83.72 | -13.26 | 155.46 | 0.5179 | 1010.7 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -20.52 | 83.40 | -13.59 | 154.55 | 0.5142 | 796.0 | 661.8 | |
| 0.00 | 2.50 | 0.00 | 1.44 | -20.79 | 83.30 | -13.68 | 154.65 | 0.5184 | 557.0 | 589.2 | |
| 0.00 | 1.34 | 0.00 | 0.78 | -21.01 | 83.08 | -13.90 | 154.48 | 0.5227 | 646.0 | 563.9 | |
| 1.07 | 6.24 | 0.62 | 3.60 | -20.46 | 83.07 | -13.91 | 153.97 | 0.5155 | 748.2 | 687.4 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -18.04 | 82.69 | -14.29 | 150.99 | 0.4861 | 856.0 | 542.0 | |
| 0.00 | 1.43 | 0.00 | 0.80 | -16.73 | 82.15 | -14.84 | 148.63 | 0.4731 | 608.0 | 545.9 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -17.10 | 82.05 | -14.93 | 148.89 | 0.4786 | 668.0 | 585.0 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -25.62 | 79.54 | -17.44 | 153.30 | 0.6037 | 571.0 | 541.0 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -20.64 | 79.83 | -17.15 | 149.17 | 0.5406 | 740.0 | 582.4 | |
| 0.00 | 0.53 | 0.00 | 0.31 | -20.30 | 79.87 | -17.11 | 148.88 | 0.5360 | 615.0 | 530.7 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -22.00 | 79.43 | -17.55 | 149.93 | 0.5603 | 671.0 | 547.4 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -22.11 | 79.24 | -17.74 | 149.78 | 0.5630 | 451.0 | 383.3 | |
| 0.00 | 1.43 | 0.00 | 0.85 | -21.58 | 78.59 | -18.39 | 148.36 | 0.5614 | 800.0 | 576.2 | |
| 0.98 | 3.92 | 0.59 | 2.35 | -21.80 | 78.32 | -18.66 | 148.21 | 0.5660 | 925.0 | 729.2 | |
| 0.00 | 2.94 | 0.00 | 1.76 | -21.63 | 78.18 | -18.81 | 147.84 | 0.5652 | 740.0 | 561.9 | |
| 0.00 | 1.34 | 0.00 | 0.83 | -24.40 | 77.24 | -19.75 | 149.28 | 0.6046 | 625.0 | 557.7 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -18.44 | 77.46 | -19.52 | 143.38 | 0.5335 | -632.0 | -571.6 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -23.86 | 76.58 | -20.40 | 147.96 | 0.6031 | 564.0 | 562.1 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -20.97 | 75.33 | -21.65 | 143.44 | 0.5805 | 682.0 | 619.5 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -21.49 | 74.62 | -22.36 | 143.12 | 0.5921 | 585.0 | 462.1 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -22.65 | 73.64 | -23.34 | 143.20 | 0.6126 | 741.0 | 584.1 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -24.14 | 68.37 | -28.61 | 139.23 | 0.6714 | -602.0 | -499.8 | |
| 0.00 | 1.34 | 0.00 | 0.92 | -24.83 | 66.51 | -30.47 | 138.22 | 0.6931 | -567.0 | -453.2 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -24.95 | 66.32 | -30.66 | 138.18 | 0.6957 | -474.0 | -352.9 | |
| 0.00 | 1.43 | 0.00 | 1.05 | -28.31 | 64.24 | -32.75 | 139.81 | 0.7403 | -644.0 | -482.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
