SDO HMI 2014-09-10 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 241.28 | 1175.80 | 128.36 | 626.34 | -13.94 | 96.99 | 0.55 | 181.78 | 0.3683 | 0.8 | -56.7 | |
|
previous
or next observation for the same group /

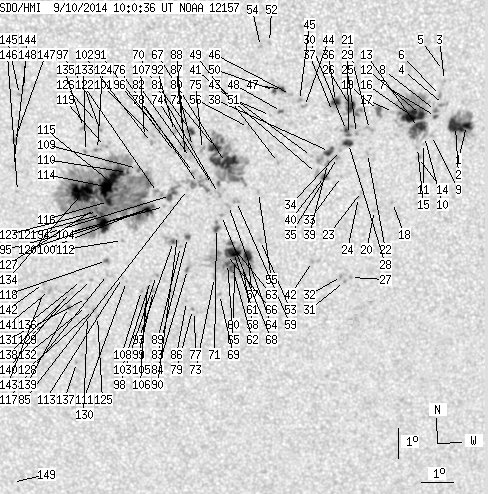

back to the solar disc SDO HMI 2014-09-10 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.79 | 52.50 | 3.08 | 27.89 | -12.17 | 105.13 | 8.68 | 204.04 | 0.3639 | 1115.4 | 452.9 | |
| 13.73 | -1.00 | 7.29 | -1.00 | -12.19 | 104.78 | 8.34 | 203.17 | 0.3620 | 1139.6 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.56 | -10.72 | 104.40 | 7.96 | 203.89 | 0.3374 | -374.0 | -326.8 | |
| 0.00 | 3.65 | 0.00 | 1.93 | -11.48 | 104.39 | 7.95 | 202.96 | 0.3488 | 804.0 | 716.3 | |
| 0.00 | 1.25 | 0.00 | 0.66 | -10.40 | 104.36 | 7.92 | 204.18 | 0.3323 | -522.0 | -348.0 | |
| 0.00 | 2.14 | 0.00 | 1.13 | -11.20 | 104.29 | 7.85 | 203.03 | 0.3438 | 821.0 | 627.6 | |
| 0.80 | 1.87 | 0.42 | 0.99 | -11.86 | 104.15 | 7.71 | 201.93 | 0.3531 | 894.0 | 760.5 | |
| 0.00 | 2.41 | 0.00 | 1.27 | -11.67 | 104.15 | 7.70 | 202.12 | 0.3501 | 1006.0 | 855.8 | |
| 0.00 | 1.25 | 0.00 | 0.66 | -12.47 | 104.04 | 7.60 | 201.02 | 0.3616 | 582.0 | 483.9 | |
| 0.00 | 1.87 | 0.00 | 0.99 | -12.50 | 103.83 | 7.38 | 200.44 | 0.3608 | 559.0 | 420.0 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -12.72 | 103.80 | 7.36 | 200.16 | 0.3641 | 411.0 | 431.0 | |
| 5.70 | 95.20 | 3.01 | 50.26 | -11.79 | 103.68 | 7.24 | 200.78 | 0.3492 | 1085.3 | 626.2 | |
| 9.98 | -12.00 | 5.29 | -12.00 | -12.20 | 103.63 | 7.19 | 200.23 | 0.3552 | 954.1 | 999999 | |
| 0.00 | 1.78 | 0.00 | 0.95 | -13.17 | 103.66 | 7.21 | 199.38 | 0.3702 | 791.0 | 666.2 | |
| 0.00 | 1.60 | 0.00 | 0.85 | -12.85 | 103.62 | 7.17 | 199.57 | 0.3650 | 220.0 | 252.0 | |
| 14.97 | -12.00 | 7.91 | -12.00 | -11.82 | 103.37 | 6.93 | 199.94 | 0.3478 | 1282.4 | 999999 | |
| 0.00 | 2.50 | 0.00 | 1.32 | -11.71 | 102.84 | 6.40 | 198.62 | 0.3433 | 569.0 | 588.4 | |
| 0.00 | 1.34 | 0.00 | 0.72 | -14.61 | 102.88 | 6.44 | 196.29 | 0.3886 | 748.0 | 593.0 | |
| 2.32 | 5.79 | 1.22 | 3.05 | -11.64 | 102.37 | 5.93 | 197.41 | 0.3399 | 1104.5 | 871.2 | |
| 0.00 | 1.34 | 0.00 | 0.72 | -14.86 | 102.33 | 5.88 | 194.78 | 0.3901 | 557.0 | 465.0 | |
| 0.00 | 3.57 | 0.00 | 1.88 | -12.24 | 102.11 | 5.67 | 196.16 | 0.3481 | 816.0 | 758.8 | |
| 0.00 | 1.78 | 0.00 | 0.95 | -13.01 | 102.06 | 5.62 | 195.44 | 0.3600 | 803.0 | 576.6 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -14.24 | 101.90 | 5.46 | 194.16 | 0.3787 | 650.0 | 537.9 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -14.43 | 101.81 | 5.37 | 193.81 | 0.3814 | 643.0 | 418.7 | |
| 0.00 | 1.52 | 0.00 | 0.80 | -12.37 | 101.71 | 5.26 | 194.98 | 0.3483 | 961.0 | 804.0 | |
| 7.58 | 20.50 | 3.98 | 10.77 | -11.47 | 101.50 | 5.06 | 195.11 | 0.3332 | 1095.6 | 774.7 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -17.06 | 101.63 | 5.18 | 191.87 | 0.4217 | -832.0 | -709.3 | |
| 4.19 | 6.24 | 2.22 | 3.30 | -12.68 | 101.46 | 5.02 | 194.09 | 0.3524 | 919.9 | 529.7 | |
| 0.71 | 9.27 | 0.38 | 4.89 | -12.40 | 101.46 | 5.02 | 194.28 | 0.3477 | 951.8 | 666.9 | |
| 1.25 | -29.00 | 0.66 | -29.00 | -12.27 | 101.39 | 4.95 | 194.20 | 0.3454 | 859.5 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -17.19 | 101.44 | 5.00 | 191.39 | 0.4231 | -908.0 | -778.6 | |
| 0.00 | 2.23 | 0.00 | 1.22 | -17.02 | 101.34 | 4.90 | 191.25 | 0.4202 | -908.0 | -687.3 | |
| 0.00 | 1.25 | 0.00 | 0.66 | -13.75 | 101.27 | 4.82 | 192.87 | 0.3685 | 565.0 | 427.0 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -12.91 | 101.22 | 4.78 | 193.28 | 0.3549 | 868.0 | 734.9 | |
| 0.00 | 2.50 | 0.00 | 1.32 | -13.13 | 101.13 | 4.69 | 192.90 | 0.3582 | 938.0 | 779.9 | |
| 4.46 | 7.93 | 2.34 | 4.16 | -11.34 | 101.04 | 4.60 | 193.88 | 0.3291 | 1119.0 | 563.1 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -11.65 | 100.95 | 4.51 | 193.39 | 0.3339 | 274.0 | 316.0 | |
| 3.83 | 11.50 | 2.03 | 6.09 | -12.93 | 100.88 | 4.44 | 192.35 | 0.3542 | 1043.1 | 737.6 | |
| 0.00 | 2.94 | 0.00 | 1.56 | -13.32 | 100.82 | 4.38 | 191.96 | 0.3601 | 795.0 | 689.0 | |
| 1.69 | 4.81 | 0.90 | 2.56 | -13.74 | 100.74 | 4.29 | 191.50 | 0.3666 | 800.4 | 584.0 | |
| 0.00 | 3.48 | 0.00 | 1.85 | -13.64 | 100.49 | 4.04 | 190.89 | 0.3642 | 678.0 | 615.9 | |
| 0.00 | 1.69 | 0.00 | 0.92 | -16.51 | 100.41 | 3.97 | 189.36 | 0.4096 | -861.0 | -686.3 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -13.09 | 100.32 | 3.88 | 190.75 | 0.3548 | 759.0 | 599.5 | |
| 0.00 | 2.50 | 0.00 | 1.31 | -11.48 | 100.08 | 3.64 | 190.98 | 0.3282 | -739.0 | -507.1 | |
| 0.00 | 2.23 | 0.00 | 1.17 | -11.29 | 99.93 | 3.49 | 190.63 | 0.3245 | 943.0 | 680.2 | |
| 0.00 | 1.96 | 0.00 | 1.02 | -11.10 | 99.65 | 3.21 | 189.90 | 0.3206 | 828.0 | 569.2 | |
| 1.69 | 6.95 | 0.88 | 3.63 | -10.94 | 99.40 | 2.96 | 189.23 | 0.3172 | 974.6 | 698.4 | |
| 0.62 | 2.58 | 0.33 | 1.36 | -11.64 | 99.38 | 2.93 | 188.81 | 0.3287 | 737.0 | 515.3 | |
| 0.00 | 1.16 | 0.00 | 0.61 | -13.27 | 99.30 | 2.86 | 187.89 | 0.3551 | -492.0 | -478.2 | |
| 1.07 | -47.00 | 0.56 | -47.00 | -10.97 | 99.15 | 2.71 | 188.46 | 0.3171 | 841.3 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -11.76 | 99.04 | 2.60 | 187.76 | 0.3299 | 613.0 | 465.7 | |
| 0.00 | 1.69 | 0.00 | 0.88 | -9.45 | 98.99 | 2.55 | 188.69 | 0.2916 | 871.0 | 676.8 | |
| 0.00 | 1.96 | 0.00 | 1.06 | -15.81 | 98.76 | 2.32 | 185.69 | 0.3950 | 872.0 | 693.4 | |
| 0.00 | 1.69 | 0.00 | 0.88 | -9.57 | 98.71 | 2.27 | 187.70 | 0.2930 | 1001.0 | 779.2 | |
| 0.00 | 1.52 | 0.00 | 0.81 | -14.24 | 98.69 | 2.24 | 185.92 | 0.3696 | 896.0 | 674.1 | |
| 0.00 | 1.25 | 0.00 | 0.66 | -12.14 | 98.36 | 1.92 | 185.63 | 0.3348 | -714.0 | -509.8 | |
| 7.67 | 100.10 | 4.15 | 54.18 | -16.33 | 98.36 | 1.92 | 184.59 | 0.4028 | 1010.5 | 427.8 | |
| 0.27 | -57.00 | 0.14 | -57.00 | -16.59 | 98.21 | 1.76 | 184.17 | 0.4068 | 598.3 | 999999 | |
| 0.00 | 3.21 | 0.00 | 1.71 | -14.53 | 98.00 | 1.56 | 184.07 | 0.3733 | 887.0 | 788.8 | |
| 0.27 | -57.00 | 0.14 | -57.00 | -16.43 | 97.95 | 1.51 | 183.60 | 0.4039 | 1026.0 | 999999 | |
| 9.72 | -57.00 | 5.25 | -57.00 | -16.20 | 97.92 | 1.48 | 183.56 | 0.4001 | 1228.6 | 999999 | |
| 3.92 | -57.00 | 2.13 | -57.00 | -16.69 | 97.89 | 1.45 | 183.42 | 0.4080 | 858.5 | 999999 | |
| 1.52 | -57.00 | 0.82 | -57.00 | -15.90 | 97.82 | 1.38 | 183.38 | 0.3953 | 1140.4 | 999999 | |
| 0.00 | 2.32 | 0.00 | 1.24 | -14.66 | 97.75 | 1.31 | 183.40 | 0.3751 | 928.0 | 792.2 | |
| 1.96 | -57.00 | 1.06 | -57.00 | -16.56 | 97.73 | 1.29 | 183.06 | 0.4058 | 906.9 | 999999 | |
| 0.27 | -57.00 | 0.14 | -57.00 | -16.26 | 97.70 | 1.26 | 183.02 | 0.4010 | 884.0 | 999999 | |
| 23.00 | 118.46 | 12.17 | 62.65 | -13.26 | 97.65 | 1.21 | 183.36 | 0.3523 | -1037.2 | -396.8 | |
| 0.00 | 1.34 | 0.00 | 0.72 | -14.98 | 97.54 | 1.09 | 182.79 | 0.3802 | 973.0 | 751.3 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -17.59 | 97.48 | 1.04 | 182.37 | 0.4219 | 693.0 | 560.5 | |
| 0.00 | 3.21 | 0.00 | 1.71 | -14.27 | 97.44 | 1.00 | 182.64 | 0.3685 | 855.0 | 708.3 | |
| 2.14 | 5.53 | 1.15 | 2.97 | -15.41 | 97.38 | 0.94 | 182.35 | 0.3870 | 1063.1 | 815.8 | |
| 6.69 | -67.00 | 3.53 | -67.00 | -12.78 | 97.34 | 0.90 | 182.56 | 0.3441 | -1252.4 | 999999 | |
| 0.00 | 2.41 | 0.00 | 1.31 | -17.02 | 97.32 | 0.88 | 182.05 | 0.4128 | 696.0 | 612.3 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -13.97 | 97.25 | 0.81 | 182.17 | 0.3636 | 820.0 | 684.9 | |
| 0.00 | 2.94 | 0.00 | 1.55 | -12.84 | 96.94 | 0.50 | 181.41 | 0.3449 | -962.0 | -842.0 | |
| 0.00 | 19.07 | 0.00 | 10.13 | -13.94 | 96.82 | 0.37 | 181.01 | 0.3629 | 705.0 | 721.8 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -18.15 | 96.69 | 0.25 | 180.56 | 0.4306 | -611.0 | -600.2 | |
| 0.00 | 2.23 | 0.00 | 1.18 | -13.58 | 96.66 | 0.22 | 180.60 | 0.3570 | 785.0 | 720.4 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -18.08 | 96.63 | 0.19 | 180.42 | 0.4295 | -780.0 | -688.4 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -12.75 | 96.63 | 0.19 | 180.54 | 0.3433 | -946.0 | -830.1 | |
| 2.50 | 8.20 | 1.31 | 4.31 | -12.26 | 96.60 | 0.16 | 180.46 | 0.3353 | -973.0 | -649.2 | |
| 0.00 | 1.60 | 0.00 | 0.85 | -13.10 | 96.57 | 0.13 | 180.35 | 0.3491 | -888.0 | -689.3 | |
| 1.25 | 2.94 | 0.67 | 1.58 | -15.70 | 96.47 | 0.03 | 180.08 | 0.3914 | 981.6 | 822.0 | |
| 0.00 | 3.12 | 0.00 | 1.69 | -16.75 | 96.47 | 0.03 | 180.07 | 0.4083 | 837.0 | 653.8 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -14.13 | 96.47 | 0.03 | 180.09 | 0.3660 | 610.0 | 467.7 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -17.82 | 96.44 | -0.00 | 179.99 | 0.4253 | -783.0 | -546.2 | |
| 0.00 | 2.05 | 0.00 | 1.08 | -13.07 | 96.42 | -0.03 | 179.93 | 0.3485 | -739.0 | -593.8 | |
| 0.00 | 4.46 | 0.00 | 2.35 | -12.75 | 96.38 | -0.06 | 179.83 | 0.3432 | -807.0 | -895.2 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -15.99 | 96.25 | -0.19 | 179.54 | 0.3962 | 673.0 | 553.2 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -15.63 | 96.16 | -0.28 | 179.30 | 0.3904 | 829.0 | 568.4 | |
| 0.00 | 1.34 | 0.00 | 0.71 | -12.94 | 96.10 | -0.34 | 179.05 | 0.3465 | -867.0 | -724.3 | |
| 0.00 | 2.85 | 0.00 | 1.50 | -12.26 | 96.08 | -0.37 | 178.93 | 0.3353 | -867.0 | -785.1 | |
| 0.89 | 10.61 | 0.48 | 5.71 | -15.83 | 96.03 | -0.41 | 179.00 | 0.3936 | 975.4 | 642.8 | |
| 3.39 | 12.66 | 1.80 | 6.74 | -14.33 | 95.94 | -0.50 | 178.69 | 0.3693 | 641.9 | 459.7 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -14.69 | 95.76 | -0.69 | 178.22 | 0.3752 | 660.0 | 419.3 | |
| 0.00 | 1.87 | 0.00 | 0.98 | -12.20 | 95.61 | -0.83 | 177.56 | 0.3345 | -1103.0 | -970.9 | |
| 0.00 | 5.35 | 0.00 | 2.85 | -14.23 | 95.54 | -0.90 | 177.61 | 0.3679 | 136.0 | -70.5 | |
| 0.00 | 1.43 | 0.00 | 0.77 | -16.95 | 95.49 | -0.95 | 177.79 | 0.4118 | -871.0 | -722.0 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -17.45 | 95.40 | -1.05 | 177.61 | 0.4198 | -855.0 | -768.3 | |
| 0.27 | 495.76 | 0.14 | 264.43 | -14.69 | 95.38 | -1.06 | 177.26 | 0.3754 | 897.7 | -377.8 | |
| 0.00 | 1.52 | 0.00 | 0.80 | -12.39 | 95.39 | -1.05 | 176.96 | 0.3379 | -782.0 | -754.3 | |
| 0.00 | 1.87 | 0.00 | 0.99 | -12.62 | 95.36 | -1.08 | 176.90 | 0.3416 | -952.0 | -788.6 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -17.12 | 95.30 | -1.14 | 177.36 | 0.4146 | -742.0 | -678.1 | |
| 4.63 | -100.00 | 2.48 | -100.00 | -14.78 | 95.23 | -1.22 | 176.86 | 0.3771 | 835.0 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -17.35 | 95.21 | -1.24 | 177.17 | 0.4183 | -869.0 | -758.6 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -17.72 | 95.14 | -1.30 | 177.06 | 0.4242 | -753.0 | -618.6 | |
| 0.00 | 1.25 | 0.00 | 0.66 | -12.42 | 95.15 | -1.29 | 176.25 | 0.3386 | -986.0 | -808.1 | |
| 0.00 | 1.60 | 0.00 | 0.88 | -17.45 | 95.02 | -1.43 | 176.74 | 0.4201 | -734.0 | -657.2 | |
| 0.00 | 3.48 | 0.00 | 1.84 | -13.45 | 94.92 | -1.52 | 175.83 | 0.3558 | -699.0 | -722.7 | |
| 0.98 | -100.00 | 0.52 | -100.00 | -13.58 | 94.61 | -1.83 | 175.01 | 0.3583 | -970.3 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -17.15 | 94.54 | -1.90 | 175.62 | 0.4159 | -762.0 | -606.2 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -15.80 | 94.43 | -2.01 | 175.07 | 0.3944 | -799.0 | -686.5 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -17.02 | 94.42 | -2.02 | 175.30 | 0.4139 | -690.0 | -596.8 | |
| 1.78 | -100.00 | 0.95 | -100.00 | -14.10 | 94.23 | -2.21 | 174.13 | 0.3673 | -1013.5 | 999999 | |
| 31.73 | -100.00 | 16.87 | -100.00 | -13.91 | 94.08 | -2.36 | 173.67 | 0.3645 | -1315.3 | 999999 | |
| 4.72 | -100.00 | 2.52 | -100.00 | -14.53 | 94.01 | -2.43 | 173.68 | 0.3746 | -861.5 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -16.92 | 93.95 | -2.50 | 174.19 | 0.4130 | -691.0 | -657.1 | |
| 0.80 | 3.03 | 0.43 | 1.64 | -16.46 | 93.92 | -2.52 | 174.01 | 0.4057 | 887.8 | 675.3 | |
| 0.00 | 1.96 | 0.00 | 1.03 | -12.75 | 93.94 | -2.50 | 172.89 | 0.3458 | -1081.0 | -818.0 | |
| 12.92 | -100.00 | 6.94 | -100.00 | -15.28 | 93.81 | -2.63 | 173.41 | 0.3870 | 1012.0 | 999999 | |
| 2.14 | -100.00 | 1.15 | -100.00 | -14.95 | 93.79 | -2.66 | 173.24 | 0.3818 | -90.1 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.70 | -12.24 | 93.79 | -2.65 | 172.27 | 0.3378 | -985.0 | -794.7 | |
| 0.27 | -100.00 | 0.14 | -100.00 | -14.85 | 93.66 | -2.78 | 172.89 | 0.3805 | -710.3 | 999999 | |
| 0.00 | 2.32 | 0.00 | 1.22 | -12.85 | 93.69 | -2.75 | 172.23 | 0.3480 | -991.0 | -843.3 | |
| 0.00 | 1.52 | 0.00 | 0.83 | -18.32 | 93.61 | -2.84 | 173.79 | 0.4357 | -685.0 | -567.8 | |
| 0.00 | 0.71 | 0.00 | 0.37 | -11.98 | 93.70 | -2.74 | 171.90 | 0.3338 | -889.0 | -743.1 | |
| 1.07 | -100.00 | 0.57 | -100.00 | -14.76 | 93.60 | -2.84 | 172.70 | 0.3791 | -516.2 | 999999 | |
| 0.00 | 1.69 | 0.00 | 0.93 | -18.09 | 93.48 | -2.96 | 173.46 | 0.4322 | -970.0 | -759.8 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -17.09 | 93.44 | -3.00 | 173.06 | 0.4166 | -663.0 | -567.4 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -18.33 | 93.29 | -3.15 | 173.10 | 0.4363 | -761.0 | -559.7 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -17.72 | 93.27 | -3.17 | 172.87 | 0.4269 | -842.0 | -726.5 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -17.99 | 93.26 | -3.18 | 172.94 | 0.4311 | -759.0 | -665.6 | |
| 0.00 | 1.60 | 0.00 | 0.85 | -12.91 | 93.32 | -3.13 | 171.22 | 0.3499 | -740.0 | -648.6 | |
| 33.60 | -100.00 | 17.92 | -100.00 | -14.21 | 93.23 | -3.21 | 171.56 | 0.3710 | -1178.4 | 999999 | |
| 0.00 | 2.50 | 0.00 | 1.31 | -12.14 | 93.26 | -3.18 | 170.72 | 0.3375 | -984.0 | -776.6 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -17.13 | 93.12 | -3.32 | 172.35 | 0.4178 | -633.0 | -493.6 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -19.88 | 92.90 | -3.54 | 172.74 | 0.4612 | -844.0 | -613.8 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -17.53 | 92.80 | -3.65 | 171.76 | 0.4248 | -665.0 | -581.2 | |
| 0.53 | 1.69 | 0.29 | 0.93 | -18.03 | 92.69 | -3.75 | 171.70 | 0.4329 | -772.5 | -684.7 | |
| 0.00 | 1.69 | 0.00 | 0.93 | -17.59 | 92.67 | -3.77 | 171.50 | 0.4262 | -647.0 | -531.7 | |
| 0.00 | 2.32 | 0.00 | 1.27 | -17.47 | 92.10 | -4.34 | 170.19 | 0.4256 | -914.0 | -746.8 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -17.24 | 91.91 | -4.53 | 169.68 | 0.4225 | -765.0 | -662.2 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -17.53 | 91.91 | -4.54 | 169.79 | 0.4272 | -694.0 | -547.8 | |
| 0.00 | 1.07 | 0.00 | 0.56 | -10.98 | 91.43 | -5.01 | 164.63 | 0.3251 | -894.0 | -666.3 | |
| 0.00 | 1.07 | 0.00 | 0.56 | -11.11 | 91.30 | -5.14 | 164.37 | 0.3277 | -795.0 | -687.8 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -14.22 | 91.17 | -5.27 | 166.31 | 0.3777 | -800.0 | -641.7 | |
| 0.00 | 1.69 | 0.00 | 0.90 | -12.58 | 91.12 | -5.32 | 165.02 | 0.3519 | -947.0 | -873.5 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -13.42 | 91.07 | -5.37 | 165.50 | 0.3654 | -729.0 | -701.8 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -24.06 | 90.67 | -5.77 | 169.96 | 0.5290 | -667.0 | -495.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
