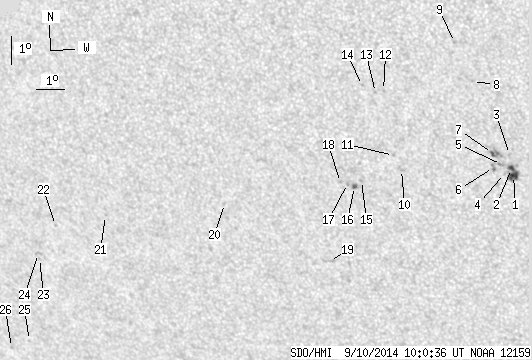

SDO HMI 2014-09-10 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.34 | 54.88 | 5.99 | 32.79 | -21.70 | 79.33 | -17.11 | 151.08 | 0.5544 | 323.2 | 371.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-10 10:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.06 | 13.90 | 3.50 | 8.04 | -21.20 | 83.76 | -12.68 | 156.62 | 0.5178 | 835.4 | 647.4 | |
| 2.14 | -1.00 | 1.23 | -1.00 | -20.96 | 83.72 | -12.72 | 156.35 | 0.5148 | 969.4 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -20.49 | 83.69 | -12.75 | 155.91 | 0.5084 | 853.0 | 647.4 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -21.14 | 83.47 | -12.97 | 156.10 | 0.5187 | 566.0 | 589.0 | |
| 0.00 | 3.21 | 0.00 | 1.85 | -20.84 | 83.40 | -13.04 | 155.72 | 0.5150 | 731.0 | 651.1 | |
| 0.00 | 2.76 | 0.00 | 1.60 | -20.95 | 83.12 | -13.32 | 155.36 | 0.5182 | 666.0 | 571.4 | |
| 1.07 | 7.13 | 0.62 | 4.10 | -20.47 | 83.13 | -13.31 | 154.97 | 0.5117 | 761.8 | 767.4 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -18.05 | 82.68 | -13.76 | 151.91 | 0.4823 | 812.0 | 694.7 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -16.77 | 82.20 | -14.24 | 149.70 | 0.4689 | 704.0 | 594.7 | |
| 0.00 | 2.67 | 0.00 | 1.57 | -21.12 | 80.02 | -16.42 | 150.72 | 0.5412 | 565.0 | 344.6 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -20.65 | 79.81 | -16.63 | 149.94 | 0.5368 | 799.0 | 631.1 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -18.46 | 79.71 | -16.73 | 147.49 | 0.5101 | -616.0 | -492.8 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -18.53 | 79.44 | -17.01 | 147.16 | 0.5133 | -775.0 | -624.8 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -18.31 | 79.03 | -17.42 | 146.29 | 0.5140 | -690.0 | -494.4 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -21.55 | 78.61 | -17.83 | 149.11 | 0.5568 | 757.0 | 694.8 | |
| 1.07 | 2.58 | 0.64 | 1.54 | -21.77 | 78.35 | -18.10 | 148.95 | 0.5614 | 928.3 | 795.4 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -21.68 | 78.12 | -18.32 | 148.54 | 0.5620 | 818.0 | 761.7 | |
| 0.00 | 1.69 | 0.00 | 1.01 | -21.65 | 77.88 | -18.56 | 148.19 | 0.5635 | 664.0 | 566.3 | |
| 0.00 | 3.92 | 0.00 | 2.43 | -24.45 | 77.09 | -19.36 | 149.82 | 0.6023 | 648.0 | 524.8 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -22.57 | 73.69 | -22.75 | 143.81 | 0.6070 | 666.0 | 533.3 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -23.24 | 69.25 | -27.19 | 139.66 | 0.6509 | -678.0 | -543.9 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -23.72 | 67.27 | -29.17 | 138.23 | 0.6723 | -602.0 | -493.0 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -24.94 | 66.34 | -30.10 | 138.67 | 0.6910 | -406.0 | -380.2 | |
| 0.00 | 2.32 | 0.00 | 1.58 | -24.76 | 66.35 | -30.09 | 138.49 | 0.6894 | -629.0 | -434.3 | |
| 0.00 | 0.62 | 0.00 | 0.45 | -27.99 | 65.03 | -31.41 | 140.61 | 0.7275 | -332.0 | -342.7 | |
| 0.00 | 1.16 | 0.00 | 0.85 | -28.30 | 64.20 | -32.24 | 140.22 | 0.7364 | -657.0 | -531.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
