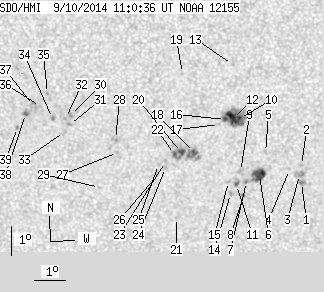

SDO HMI 2014-09-10 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.28 | 136.36 | 17.84 | 77.52 | -19.78 | 107.30 | 11.41 | 202.19 | 0.4917 | 404.4 | 343.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-10 11:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.53 | 2.94 | 0.31 | 1.72 | -21.12 | 110.85 | 14.95 | 207.06 | 0.5310 | -356.5 | -259.0 | |
| 0.00 | 1.34 | 0.00 | 0.78 | -20.54 | 110.79 | 14.89 | 207.51 | 0.5231 | 724.0 | 610.3 | |
| 0.00 | 6.77 | 0.00 | 3.94 | -20.85 | 110.75 | 14.86 | 207.17 | 0.5268 | 692.0 | 556.0 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -20.66 | 110.40 | 14.51 | 206.79 | 0.5220 | 754.0 | 554.8 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -20.06 | 109.55 | 13.65 | 205.97 | 0.5083 | 713.0 | 639.1 | |
| 9.45 | 14.53 | 5.46 | 8.40 | -20.80 | 109.41 | 13.52 | 205.09 | 0.5174 | 874.9 | 649.8 | |
| 0.00 | 1.87 | 0.00 | 1.08 | -21.03 | 109.00 | 13.11 | 204.23 | 0.5179 | 18.0 | 72.1 | |
| 0.45 | 1.60 | 0.26 | 0.93 | -21.51 | 108.94 | 13.05 | 203.73 | 0.5241 | -851.2 | -680.6 | |
| 0.00 | 4.37 | 0.00 | 2.51 | -20.68 | 108.77 | 12.88 | 204.14 | 0.5118 | 421.0 | 483.5 | |
| 1.96 | 32.97 | 1.11 | 18.65 | -18.88 | 108.59 | 12.70 | 205.44 | 0.4861 | 974.5 | 653.0 | |
| 0.62 | 3.39 | 0.36 | 1.96 | -21.12 | 108.68 | 12.78 | 203.62 | 0.5172 | 730.3 | 673.8 | |
| 10.16 | -10.00 | 5.75 | -10.00 | -18.87 | 108.36 | 12.47 | 205.05 | 0.4846 | 1089.7 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -17.06 | 108.24 | 12.34 | 206.56 | 0.4588 | 786.0 | 679.3 | |
| 0.00 | 1.96 | 0.00 | 1.14 | -21.42 | 108.50 | 12.61 | 203.09 | 0.5203 | 737.0 | 551.1 | |
| 0.00 | 1.78 | 0.00 | 1.03 | -21.01 | 108.40 | 12.51 | 203.26 | 0.5141 | 704.0 | 633.7 | |
| 1.52 | -10.00 | 0.86 | -10.00 | -18.90 | 108.14 | 12.24 | 204.62 | 0.4835 | 1018.0 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -19.06 | 107.95 | 12.06 | 204.15 | 0.4846 | 589.0 | 376.4 | |
| 1.87 | 25.40 | 1.06 | 14.43 | -19.98 | 107.20 | 11.31 | 202.04 | 0.4930 | 1008.2 | 762.4 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -17.32 | 106.64 | 10.75 | 203.29 | 0.4520 | 629.0 | 530.9 | |
| 2.76 | -18.00 | 1.57 | -18.00 | -19.97 | 106.78 | 10.88 | 201.30 | 0.4904 | 1096.9 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -22.20 | 106.77 | 10.88 | 199.65 | 0.5217 | 668.0 | 518.1 | |
| 1.25 | -18.00 | 0.71 | -18.00 | -20.03 | 106.55 | 10.66 | 200.85 | 0.4901 | 993.6 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.81 | -20.27 | 106.27 | 10.38 | 200.18 | 0.4919 | 724.0 | 598.6 | |
| 0.00 | 2.05 | 0.00 | 1.17 | -20.47 | 106.29 | 10.39 | 200.05 | 0.4949 | 609.0 | 440.4 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -20.36 | 106.05 | 10.16 | 199.71 | 0.4921 | 618.0 | 603.3 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -20.70 | 106.04 | 10.15 | 199.45 | 0.4969 | 600.0 | 419.2 | |
| 0.00 | 1.43 | 0.00 | 0.80 | -19.92 | 104.69 | 8.79 | 197.53 | 0.4791 | 676.0 | 474.4 | |
| 0.00 | 2.41 | 0.00 | 1.35 | -19.48 | 104.60 | 8.70 | 197.66 | 0.4723 | 647.0 | 637.1 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -21.11 | 104.16 | 8.27 | 195.82 | 0.4941 | 557.0 | 436.3 | |
| 0.00 | 2.32 | 0.00 | 1.29 | -18.64 | 103.10 | 7.21 | 195.28 | 0.4533 | -834.0 | -683.7 | |
| 0.00 | 1.78 | 0.00 | 0.99 | -18.94 | 103.09 | 7.19 | 195.05 | 0.4578 | -640.0 | -489.2 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -18.74 | 102.95 | 7.05 | 194.90 | 0.4541 | -698.0 | -654.5 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -19.18 | 102.93 | 7.04 | 194.62 | 0.4607 | -502.0 | -431.9 | |
| 0.00 | 1.69 | 0.00 | 0.94 | -18.73 | 102.53 | 6.64 | 194.06 | 0.4524 | -820.0 | -665.9 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -17.89 | 102.34 | 6.45 | 194.15 | 0.4389 | -692.0 | -579.3 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -18.32 | 102.13 | 6.24 | 193.47 | 0.4447 | -730.0 | -627.6 | |
| 0.00 | 4.28 | 0.00 | 2.36 | -18.29 | 101.91 | 6.01 | 193.02 | 0.4434 | -570.0 | -794.1 | |
| 0.71 | 4.63 | 0.39 | 2.56 | -18.55 | 101.66 | 5.77 | 192.37 | 0.4466 | -891.6 | -770.4 | |
| 0.00 | 1.60 | 0.00 | 0.89 | -19.02 | 101.42 | 5.52 | 191.64 | 0.4529 | -934.0 | -765.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
