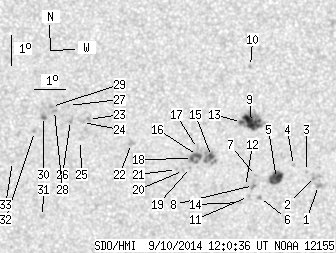

SDO HMI 2014-09-10 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.50 | 118.42 | 19.15 | 67.48 | -19.82 | 107.26 | 11.92 | 203.06 | 0.4954 | 410.6 | 285.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-10 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.28 | 0.00 | 2.50 | -21.12 | 110.87 | 15.52 | 207.95 | 0.5348 | -271.0 | -165.2 | |
| 0.00 | 4.81 | 0.00 | 2.81 | -20.80 | 110.73 | 15.39 | 208.04 | 0.5298 | 638.0 | 584.0 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -20.62 | 110.41 | 15.07 | 207.72 | 0.5253 | 635.0 | 572.7 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -20.40 | 109.96 | 14.61 | 207.21 | 0.5193 | 744.0 | 644.1 | |
| 11.05 | 13.81 | 6.40 | 8.00 | -20.82 | 109.43 | 14.09 | 205.98 | 0.5214 | 851.8 | 647.8 | |
| 0.00 | 1.87 | 0.00 | 1.09 | -21.46 | 108.93 | 13.58 | 204.62 | 0.5266 | -891.0 | -693.0 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -20.70 | 108.72 | 13.38 | 204.95 | 0.5152 | 758.0 | 584.3 | |
| 0.00 | 3.65 | 0.00 | 2.12 | -21.04 | 108.69 | 13.34 | 204.60 | 0.5195 | 788.0 | 671.4 | |
| 15.06 | 30.65 | 8.54 | 17.38 | -18.89 | 108.44 | 13.10 | 206.12 | 0.4890 | 1003.4 | 641.0 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -17.02 | 108.27 | 12.92 | 207.68 | 0.4623 | 828.0 | 639.3 | |
| 0.00 | 1.69 | 0.00 | 0.98 | -21.41 | 108.55 | 13.21 | 204.07 | 0.5237 | 680.0 | 483.5 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -21.06 | 108.42 | 13.08 | 204.15 | 0.5183 | 763.0 | 648.1 | |
| 1.25 | -9.00 | 0.71 | -9.00 | -18.88 | 108.11 | 12.77 | 205.56 | 0.4866 | 1010.9 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.78 | -21.61 | 108.31 | 12.96 | 203.51 | 0.5249 | 642.0 | 482.7 | |
| 2.05 | 12.21 | 1.17 | 6.96 | -20.00 | 107.21 | 11.87 | 203.01 | 0.4965 | 987.7 | 763.0 | |
| 2.49 | 11.14 | 1.42 | 6.34 | -19.96 | 106.75 | 11.41 | 202.24 | 0.4931 | 1129.2 | 789.8 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -19.72 | 106.73 | 11.39 | 202.40 | 0.4897 | 336.0 | 308.5 | |
| 1.60 | -16.00 | 0.91 | -16.00 | -20.05 | 106.59 | 11.25 | 201.88 | 0.4936 | 1017.6 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -20.36 | 106.55 | 11.21 | 201.57 | 0.4977 | 671.0 | 577.8 | |
| 0.00 | 1.51 | 0.00 | 0.86 | -20.46 | 106.33 | 10.98 | 201.10 | 0.4978 | 684.0 | 566.3 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -20.42 | 106.09 | 10.75 | 200.73 | 0.4960 | 751.0 | 531.5 | |
| 0.00 | 3.74 | 0.00 | 2.10 | -19.49 | 104.57 | 9.22 | 198.63 | 0.4750 | 761.0 | 654.1 | |
| 0.00 | 1.87 | 0.00 | 1.04 | -18.66 | 103.14 | 7.79 | 196.43 | 0.4560 | -801.0 | -658.7 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -18.75 | 102.95 | 7.60 | 195.99 | 0.4566 | -705.0 | -606.8 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -19.36 | 102.91 | 7.57 | 195.54 | 0.4655 | -272.0 | -322.2 | |
| 0.00 | 2.41 | 0.00 | 1.34 | -18.68 | 102.56 | 7.21 | 195.26 | 0.4539 | -662.0 | -636.7 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -18.17 | 102.47 | 7.13 | 195.40 | 0.4459 | -667.0 | -557.5 | |
| 0.00 | 1.78 | 0.00 | 0.99 | -18.33 | 102.03 | 6.69 | 194.39 | 0.4466 | -798.0 | -712.4 | |
| 0.00 | 2.05 | 0.00 | 1.13 | -18.20 | 101.93 | 6.59 | 194.26 | 0.4441 | -962.0 | -763.9 | |
| 0.00 | 3.48 | 0.00 | 1.92 | -18.53 | 101.69 | 6.34 | 193.57 | 0.4482 | -967.0 | -829.2 | |
| 0.00 | 2.23 | 0.00 | 1.27 | -21.94 | 101.79 | 6.45 | 192.08 | 0.4997 | -589.0 | -544.0 | |
| 0.00 | 1.51 | 0.00 | 0.84 | -19.03 | 101.42 | 6.07 | 192.75 | 0.4549 | -898.0 | -759.1 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -20.03 | 100.74 | 5.40 | 190.93 | 0.4680 | -670.0 | -490.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
