SDO HMI 2014-09-10 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 235.58 | 1307.92 | 119.21 | 662.01 | 15.86 | 87.50 | -7.84 | 40.93 | 0.2030 | 309.8 | 185.3 | |
|
previous
or next observation for the same group /

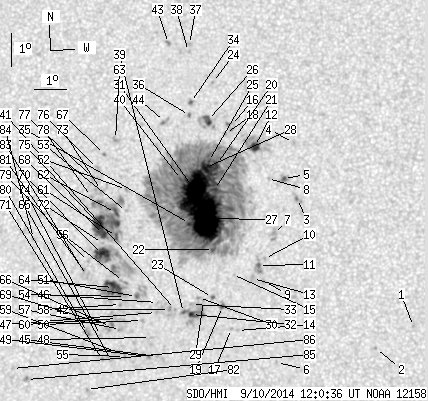

back to the solar disc SDO HMI 2014-09-10 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.58 | 12.54 | 94.70 | -0.65 | 6.81 | 0.0936 | -931.0 | -711.5 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 11.88 | 93.52 | -1.82 | 20.99 | 0.0871 | -900.0 | -674.2 | |
| 0.00 | 4.28 | 0.00 | 2.15 | 16.42 | 91.04 | -4.31 | 24.24 | 0.1763 | 1070.0 | 770.8 | |
| 0.00 | 2.23 | 0.00 | 1.13 | 18.14 | 90.87 | -4.47 | 21.36 | 0.2044 | -783.0 | -543.8 | |
| 1.25 | 5.35 | 0.63 | 2.70 | 17.03 | 90.58 | -4.76 | 24.97 | 0.1890 | 1125.5 | 824.8 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 11.43 | 90.47 | -4.87 | 48.48 | 0.1117 | -836.0 | -604.2 | |
| 0.00 | 8.11 | 0.00 | 4.07 | 15.32 | 90.30 | -5.04 | 30.98 | 0.1653 | 4.0 | 4.0 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 17.03 | 90.07 | -5.27 | 27.25 | 0.1928 | 625.0 | 553.4 | |
| 0.00 | 1.60 | 0.00 | 0.80 | 13.89 | 90.05 | -5.29 | 37.57 | 0.1475 | -717.0 | -572.7 | |
| 0.00 | 1.78 | 0.00 | 0.89 | 14.59 | 90.04 | -5.31 | 34.86 | 0.1573 | -834.0 | -547.9 | |
| 0.80 | 9.89 | 0.40 | 4.96 | 14.37 | 89.86 | -5.49 | 36.59 | 0.1561 | -934.1 | -750.2 | |
| 6.50 | 23.70 | 3.30 | 12.01 | 18.00 | 89.63 | -5.71 | 26.80 | 0.2110 | 1115.4 | 500.3 | |
| 0.00 | 3.03 | 0.00 | 1.52 | 13.97 | 89.68 | -5.67 | 39.09 | 0.1526 | -713.0 | -731.6 | |
| 0.00 | 1.43 | 0.00 | 0.71 | 12.39 | 89.25 | -6.10 | 48.88 | 0.1383 | -771.0 | -524.8 | |
| 0.00 | 0.36 | 0.00 | 0.18 | 14.09 | 89.05 | -6.29 | 41.53 | 0.1611 | -70.0 | -159.8 | |
| 0.00 | 6.15 | 0.00 | 3.13 | 18.64 | 88.87 | -6.47 | 28.27 | 0.2265 | 390.0 | 534.6 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 12.45 | 89.06 | -6.29 | 49.40 | 0.1414 | -878.0 | -723.2 | |
| 0.00 | 1.51 | 0.00 | 0.77 | 18.39 | 88.69 | -6.65 | 29.50 | 0.2243 | 1003.0 | 741.5 | |
| 1.34 | 2.49 | 0.67 | 1.25 | 13.11 | 88.76 | -6.58 | 47.25 | 0.1527 | -1076.1 | -911.6 | |
| 1.96 | 899.71 | 0.99 | 455.20 | 17.44 | 88.44 | -6.91 | 32.80 | 0.2127 | 1047.3 | 424.2 | |
| 2.49 | -20.00 | 1.26 | -20.00 | 16.67 | 88.40 | -6.94 | 35.08 | 0.2023 | 1030.1 | 999999 | |
| 1.78 | -20.00 | 0.90 | -20.00 | 14.84 | 88.43 | -6.91 | 41.13 | 0.1777 | 287.2 | 999999 | |
| 0.53 | 1.60 | 0.27 | 0.80 | 13.38 | 88.44 | -6.90 | 47.28 | 0.1598 | 759.0 | 555.8 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 19.96 | 88.21 | -7.14 | 27.83 | 0.2513 | 863.0 | 737.9 | |
| 0.27 | -20.00 | 0.14 | -20.00 | 17.53 | 88.18 | -7.16 | 33.51 | 0.2164 | 979.7 | 999999 | |
| 4.46 | 14.26 | 2.27 | 7.26 | 18.79 | 88.10 | -7.25 | 30.69 | 0.2350 | 879.2 | 675.6 | |
| 84.03 | -20.00 | 42.41 | -20.00 | 15.78 | 88.18 | -7.16 | 38.74 | 0.1926 | 1344.7 | 999999 | |
| 7.40 | -20.00 | 3.75 | -20.00 | 17.34 | 88.09 | -7.25 | 34.33 | 0.2146 | 1070.6 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 13.29 | 88.16 | -7.18 | 48.83 | 0.1623 | 403.0 | 209.3 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 13.37 | 88.01 | -7.34 | 49.02 | 0.1654 | -832.0 | -660.1 | |
| 64.78 | -20.00 | 32.80 | -20.00 | 16.63 | 87.80 | -7.54 | 37.43 | 0.2079 | 1223.4 | 999999 | |
| 2.05 | 22.72 | 1.03 | 11.41 | 12.86 | 87.80 | -7.54 | 52.27 | 0.1625 | -1087.1 | -614.6 | |
| 0.00 | 1.60 | 0.00 | 0.81 | 13.16 | 87.79 | -7.55 | 50.82 | 0.1658 | 389.0 | 343.8 | |
| 0.62 | 2.85 | 0.32 | 1.46 | 19.33 | 87.53 | -7.82 | 31.35 | 0.2478 | 911.4 | 756.2 | |
| 1.60 | -20.00 | 0.81 | -20.00 | 15.62 | 87.65 | -7.70 | 41.27 | 0.1964 | 969.8 | 999999 | |
| 0.00 | 1.78 | 0.00 | 0.91 | 18.93 | 87.51 | -7.83 | 32.31 | 0.2423 | 758.0 | 637.2 | |
| 0.00 | 2.14 | 0.00 | 1.10 | 21.13 | 87.40 | -7.94 | 28.11 | 0.2747 | 737.0 | 603.7 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 20.91 | 87.38 | -7.96 | 28.58 | 0.2717 | 734.0 | 617.4 | |
| 0.80 | -32.00 | 0.40 | -32.00 | 12.91 | 87.55 | -7.79 | 52.87 | 0.1665 | -802.9 | 999999 | |
| 0.27 | -20.00 | 0.14 | -20.00 | 16.96 | 87.34 | -8.00 | 38.05 | 0.2170 | 745.7 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 13.00 | 87.30 | -8.05 | 53.30 | 0.1709 | -755.0 | -640.8 | |
| 0.00 | 2.23 | 0.00 | 1.12 | 13.00 | 87.11 | -8.23 | 53.93 | 0.1734 | -1021.0 | -816.1 | |
| 0.00 | 2.23 | 0.00 | 1.15 | 21.15 | 86.72 | -8.63 | 30.06 | 0.2806 | 880.0 | 740.4 | |
| 0.00 | 3.48 | 0.00 | 1.78 | 18.73 | 86.72 | -8.63 | 35.29 | 0.2470 | 826.0 | 567.9 | |
| 0.00 | 1.43 | 0.00 | 0.72 | 11.57 | 86.78 | -8.56 | 62.20 | 0.1657 | -1001.0 | -743.4 | |
| 0.00 | 1.43 | 0.00 | 0.72 | 13.20 | 86.73 | -8.62 | 54.16 | 0.1808 | -768.0 | -551.9 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 12.90 | 86.71 | -8.64 | 55.64 | 0.1782 | -974.0 | -869.9 | |
| 0.00 | 1.60 | 0.00 | 0.81 | 12.14 | 86.54 | -8.80 | 59.84 | 0.1738 | -871.0 | -696.3 | |
| 0.00 | 1.43 | 0.00 | 0.72 | 11.56 | 86.50 | -8.84 | 62.95 | 0.1699 | -1050.0 | -878.4 | |
| 0.00 | 1.87 | 0.00 | 0.94 | 12.65 | 86.28 | -9.07 | 58.06 | 0.1820 | -967.0 | -797.9 | |
| 0.62 | 10.87 | 0.31 | 5.49 | 13.37 | 86.06 | -9.28 | 55.33 | 0.1917 | -1112.3 | -607.3 | |
| 0.00 | 1.60 | 0.00 | 0.82 | 16.63 | 85.60 | -9.74 | 44.51 | 0.2323 | 608.0 | 497.6 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 15.95 | 85.64 | -9.71 | 46.60 | 0.2242 | 380.0 | 292.1 | |
| 0.00 | 1.60 | 0.00 | 0.81 | 13.37 | 85.72 | -9.63 | 56.30 | 0.1965 | -711.0 | -506.7 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 11.55 | 85.75 | -9.59 | 64.77 | 0.1813 | -901.0 | -764.7 | |
| 0.00 | 3.12 | 0.00 | 1.58 | 13.82 | 85.64 | -9.71 | 54.59 | 0.2019 | -684.0 | -652.5 | |
| 0.00 | 2.23 | 0.00 | 1.12 | 12.36 | 85.60 | -9.75 | 61.13 | 0.1897 | -889.0 | -723.8 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 13.12 | 85.57 | -9.78 | 57.75 | 0.1964 | -889.0 | -712.6 | |
| 0.00 | 3.21 | 0.00 | 1.62 | 11.66 | 85.53 | -9.82 | 64.67 | 0.1856 | -892.0 | -746.7 | |
| 0.00 | 8.64 | 0.00 | 4.36 | 12.69 | 85.49 | -9.85 | 59.85 | 0.1939 | -628.0 | -672.3 | |
| 1.69 | 90.44 | 0.86 | 46.01 | 15.18 | 85.35 | -9.99 | 50.07 | 0.2193 | -997.8 | -497.5 | |
| 2.58 | -61.00 | 1.31 | -61.00 | 15.92 | 85.29 | -10.06 | 47.70 | 0.2281 | 354.0 | 999999 | |
| 0.00 | 3.12 | 0.00 | 1.60 | 18.15 | 85.17 | -10.18 | 41.28 | 0.2556 | 816.0 | 700.7 | |
| 13.46 | 29.32 | 6.81 | 14.83 | 13.63 | 85.33 | -10.02 | 56.17 | 0.2044 | -1115.4 | -506.7 | |
| 0.00 | 1.60 | 0.00 | 0.81 | 11.42 | 85.35 | -10.00 | 66.26 | 0.1867 | -828.0 | -675.9 | |
| 0.00 | 4.63 | 0.00 | 2.34 | 12.45 | 85.28 | -10.06 | 61.47 | 0.1951 | -678.0 | -842.0 | |
| 0.00 | 1.43 | 0.00 | 0.73 | 17.68 | 84.84 | -10.50 | 43.45 | 0.2537 | 819.0 | 711.2 | |
| 4.10 | -61.00 | 2.08 | -61.00 | 15.24 | 84.94 | -10.41 | 50.98 | 0.2253 | -1145.1 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.36 | 12.53 | 85.06 | -10.29 | 61.58 | 0.1991 | -593.0 | -462.8 | |
| 14.52 | 58.19 | 7.37 | 29.49 | 14.63 | 84.94 | -10.41 | 53.22 | 0.2192 | -1120.0 | -642.0 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 11.44 | 85.07 | -10.28 | 66.68 | 0.1913 | -921.0 | -802.4 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 14.96 | 84.92 | -10.42 | 52.02 | 0.2228 | -823.0 | -661.6 | |
| 0.00 | 8.38 | 0.00 | 4.27 | 16.58 | 84.81 | -10.54 | 46.84 | 0.2414 | -243.0 | -265.9 | |
| 0.00 | 1.51 | 0.00 | 0.77 | 12.17 | 84.98 | -10.37 | 63.42 | 0.1976 | -780.0 | -606.8 | |
| 15.68 | -61.00 | 7.98 | -61.00 | 15.54 | 84.80 | -10.55 | 50.29 | 0.2303 | -1151.2 | 999999 | |
| 0.00 | 3.48 | 0.00 | 1.78 | 17.25 | 84.64 | -10.70 | 45.23 | 0.2510 | -425.0 | -342.1 | |
| 0.00 | 1.69 | 0.00 | 0.87 | 16.97 | 84.49 | -10.85 | 46.43 | 0.2496 | -846.0 | -746.5 | |
| 0.00 | 1.96 | 0.00 | 1.00 | 16.39 | 84.50 | -10.85 | 48.24 | 0.2432 | -1047.0 | -776.9 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 14.41 | 84.50 | -10.84 | 55.12 | 0.2231 | -791.0 | -621.2 | |
| 0.00 | 4.28 | 0.00 | 2.16 | 12.25 | 84.57 | -10.78 | 63.88 | 0.2045 | -780.0 | -738.4 | |
| 0.00 | 2.58 | 0.00 | 1.31 | 13.98 | 84.49 | -10.85 | 56.79 | 0.2194 | -834.0 | -619.9 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 10.53 | 84.60 | -10.75 | 72.00 | 0.1936 | -831.0 | -561.1 | |
| 0.00 | 2.14 | 0.00 | 1.09 | 14.13 | 84.36 | -10.99 | 56.52 | 0.2226 | -841.0 | -706.0 | |
| 0.00 | 1.43 | 0.00 | 0.73 | 15.06 | 82.71 | -12.63 | 56.61 | 0.2540 | -779.0 | -627.4 | |
| 0.00 | 3.83 | 0.00 | 1.95 | 10.78 | 82.71 | -12.64 | 73.20 | 0.2255 | -814.0 | -600.8 | |
| 0.00 | 1.78 | 0.00 | 0.91 | 11.10 | 82.25 | -13.09 | 72.36 | 0.2343 | -706.0 | -551.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
