Sunspot Group 12158

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

12158	250.44	1303.67	126.59	659.11	15.88	87.49	-7.30	39.05	0.1975	357.5	174.4

previous or next observation for the same group / back to the solar disc

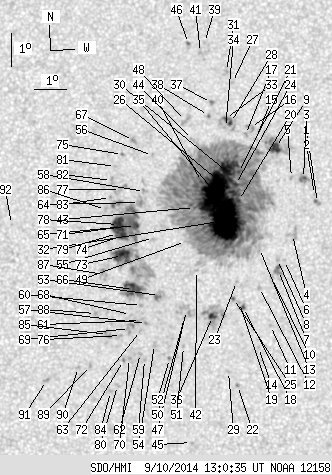

SDO HMI 2014-09-10 13:00:35 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	3.56	0.00	1.79	16.33	91.05	-3.74	21.58	0.1711	1009.0	875.5
2	0.00	0.98	0.00	0.49	16.58	90.95	-3.84	21.55	0.1756	863.0	636.5
3	0.00	6.86	0.00	3.46	17.06	90.59	-4.20	22.26	0.1857	1212.0	904.1
4	0.00	8.55	0.00	4.29	15.35	90.28	-4.51	28.18	0.1613	197.0	81.4
5	0.00	1.69	0.00	0.85	17.09	90.21	-4.58	23.98	0.1886	1033.0	718.6
6	0.00	1.43	0.00	0.71	14.56	90.05	-4.74	32.05	0.1516	-751.0	-530.4
7	0.00	6.41	0.00	3.21	14.25	89.87	-4.93	34.17	0.1489	-893.0	-836.6
8	0.00	1.87	0.00	0.94	14.58	89.83	-4.96	33.12	0.1540	-735.0	-635.1
9	7.39	30.29	3.74	15.34	18.01	89.68	-5.11	24.33	0.2066	1095.9	388.4
10	0.00	1.51	0.00	0.76	14.04	89.65	-5.14	36.17	0.1480	-887.0	-765.0
11	0.00	1.25	0.00	0.62	12.58	89.65	-5.14	43.05	0.1287	-926.0	-677.1
12	0.00	2.23	0.00	1.12	13.73	89.29	-5.51	39.37	0.1477	-874.0	-680.4
13	0.00	3.30	0.00	1.66	14.91	89.26	-5.54	34.79	0.1641	263.0	227.1
14	0.00	0.98	0.00	0.49	11.91	89.29	-5.50	48.82	0.1252	-896.0	-691.7
15	0.00	1.69	0.00	0.86	18.25	89.04	-5.76	26.44	0.2150	674.0	499.9
16	0.00	4.63	0.00	2.35	18.61	88.87	-5.93	26.32	0.2218	505.0	638.3
17	0.00	1.51	0.00	0.77	18.40	88.71	-6.08	27.36	0.2197	750.0	716.3
18	0.98	2.58	0.49	1.29	13.12	88.80	-5.99	44.60	0.1455	-1111.3	-900.6
19	0.00	1.25	0.00	0.62	13.27	88.67	-6.12	44.46	0.1489	-863.0	-641.6
20	1.34	870.25	0.67	439.86	16.37	88.56	-6.24	33.17	0.1914	1061.6	419.2
21	1.34	-20.00	0.68	-20.00	17.23	88.53	-6.27	30.89	0.2040	982.8	999999
22	0.00	1.78	0.00	0.89	10.75	88.67	-6.13	59.39	0.1224	-842.0	-610.3
23	0.00	1.25	0.00	0.63	13.90	88.56	-6.23	42.04	0.1580	-377.0	-277.2
24	1.07	-20.00	0.54	-20.00	16.86	88.45	-6.35	32.22	0.1994	957.7	999999
25	0.53	1.96	0.27	0.98	13.38	88.48	-6.31	44.75	0.1526	597.7	459.2
26	4.10	-20.00	2.07	-20.00	16.61	88.36	-6.44	33.27	0.1967	1089.9	999999
27	0.00	1.25	0.00	0.64	19.99	88.24	-6.56	25.84	0.2474	787.0	642.8
28	1.60	12.74	0.82	6.48	18.76	88.22	-6.58	28.39	0.2290	865.3	644.8
29	0.00	1.60	0.00	0.80	11.17	88.38	-6.42	57.65	0.1304	-825.0	-614.2
30	19.15	-20.00	9.70	-20.00	17.25	88.15	-6.65	32.32	0.2077	1061.2	999999
31	0.00	1.87	0.00	0.96	20.33	88.03	-6.77	25.91	0.2540	694.0	544.2
32	87.67	-20.00	44.20	-20.00	15.75	88.16	-6.63	36.72	0.1867	1337.4	999999
33	0.89	-28.00	0.45	-28.00	18.88	88.05	-6.74	28.72	0.2322	753.3	999999
34	0.00	1.51	0.00	0.77	18.60	88.06	-6.73	29.29	0.2280	958.0	661.7
35	63.97	-20.00	32.36	-20.00	16.64	87.79	-7.01	35.44	0.2025	1218.0	999999
36	3.30	25.12	1.65	12.60	12.83	87.84	-6.95	50.18	0.1544	-1128.1	-555.1
37	0.00	2.23	0.00	1.14	19.37	87.58	-7.21	29.29	0.2432	959.0	815.9
38	0.00	1.43	0.00	0.73	18.97	87.50	-7.29	30.43	0.2380	768.0	641.2
39	0.00	1.07	0.00	0.55	21.22	87.27	-7.52	26.70	0.2729	598.0	511.8
40	0.89	-20.00	0.45	-20.00	16.94	87.36	-7.43	36.12	0.2108	751.9	999999
41	0.00	1.96	0.00	1.01	20.91	87.15	-7.64	27.61	0.2692	832.0	677.2
42	0.00	1.43	0.00	0.72	14.22	87.30	-7.49	45.87	0.1769	-567.0	-356.3
43	0.27	-20.00	0.14	-20.00	16.14	87.17	-7.62	39.27	0.2022	832.7	999999
44	0.00	2.32	0.00	1.18	18.22	87.02	-7.77	33.83	0.2318	593.0	353.6
45	0.00	0.80	0.00	0.40	9.01	87.28	-7.51	76.05	0.1337	-780.0	-550.8
46	0.45	1.78	0.23	0.92	21.18	86.75	-8.05	28.31	0.2764	792.6	652.1
47	0.00	13.63	0.00	6.85	13.00	87.03	-7.77	52.36	0.1671	-460.0	-716.2
48	0.00	5.26	0.00	2.68	18.80	86.77	-8.02	33.23	0.2422	765.0	547.7
49	0.00	0.98	0.00	0.49	15.10	86.92	-7.87	43.78	0.1919	19.0	1.7
50	0.00	1.25	0.00	0.63	12.79	86.97	-7.82	53.59	0.1657	-870.0	-681.7
51	0.00	1.16	0.00	0.58	11.91	86.96	-7.83	58.21	0.1576	-854.0	-624.8
52	0.00	1.43	0.00	0.72	11.54	86.54	-8.26	61.52	0.1608	-1003.0	-849.1
53	0.00	6.50	0.00	3.28	13.44	86.17	-8.63	53.11	0.1833	-891.0	-802.9
54	0.00	2.58	0.00	1.30	11.95	86.06	-8.74	60.60	0.1713	-713.0	-607.8
55	0.00	0.62	0.00	0.32	15.20	85.91	-8.88	46.78	0.2055	416.0	414.1
56	0.00	1.16	0.00	0.59	17.71	85.76	-9.03	39.21	0.2376	462.0	379.9
57	0.00	1.51	0.00	0.76	12.59	85.79	-9.01	58.19	0.1806	-952.0	-794.6
58	0.00	2.41	0.00	1.22	16.60	85.56	-9.23	43.10	0.2260	534.0	486.0
59	0.00	1.07	0.00	0.54	11.49	85.76	-9.03	63.77	0.1723	-944.0	-785.8
60	0.00	1.51	0.00	0.76	13.13	85.61	-9.18	56.14	0.1880	-885.0	-731.5
61	0.00	2.32	0.00	1.17	12.67	85.60	-9.20	58.29	0.1841	-672.0	-719.5
62	0.00	1.51	0.00	0.76	11.67	85.63	-9.16	63.14	0.1756	-999.0	-799.8
63	0.00	2.05	0.00	1.03	12.37	85.61	-9.19	59.71	0.1814	-856.0	-631.0
64	0.00	6.06	0.00	3.08	16.26	85.42	-9.38	44.62	0.2237	-237.0	-207.2
65	3.65	180.23	1.85	91.33	15.56	85.32	-9.47	47.28	0.2168	103.2	-552.9
66	13.27	-65.00	6.71	-65.00	13.61	85.34	-9.45	54.78	0.1963	-1092.1	999999
67	0.00	3.03	0.00	1.55	18.16	85.13	-9.66	39.84	0.2501	918.0	751.5
68	0.00	1.07	0.00	0.54	12.85	85.28	-9.52	58.31	0.1903	-474.0	-513.0
69	0.00	6.50	0.00	3.28	12.42	85.26	-9.53	60.33	0.1870	-736.0	-753.0
70	0.00	0.98	0.00	0.49	11.52	85.29	-9.50	64.73	0.1797	-1021.0	-876.5
71	1.43	-65.00	0.72	-65.00	15.52	85.01	-9.79	48.31	0.2203	-865.4	999999
72	0.00	1.34	0.00	0.67	11.45	85.11	-9.69	65.46	0.1821	-955.0	-816.3
73	15.15	-65.00	7.68	-65.00	14.64	84.95	-9.84	51.70	0.2117	-1109.5	999999
74	5.52	-65.00	2.80	-65.00	15.24	84.92	-9.87	49.52	0.2184	-1090.3	999999
75	0.00	1.34	0.00	0.68	17.72	84.80	-9.99	41.97	0.2483	769.0	698.0
76	0.00	1.51	0.00	0.76	12.21	85.02	-9.78	61.94	0.1889	-941.0	-646.1
77	0.00	8.02	0.00	4.09	16.65	84.79	-10.00	45.18	0.2357	-270.0	-207.1
78	14.61	-65.00	7.42	-65.00	15.58	84.78	-10.01	48.74	0.2238	-1157.5	999999
79	1.87	-65.00	0.95	-65.00	15.30	84.76	-10.03	49.76	0.2211	-915.1	999999
80	0.00	1.96	0.00	0.99	10.69	84.94	-9.85	69.71	0.1800	-708.0	-537.7
81	0.00	1.16	0.00	0.59	17.35	84.59	-10.20	43.60	0.2462	-563.0	-426.1
82	0.00	3.03	0.00	1.55	16.92	84.49	-10.30	45.17	0.2424	-822.0	-710.8
83	0.00	1.07	0.00	0.54	16.40	84.49	-10.31	46.81	0.2365	-894.0	-767.7
84	0.00	2.05	0.00	1.03	10.51	84.73	-10.06	71.05	0.1825	-717.0	-468.8
85	0.00	4.81	0.00	2.43	12.23	84.58	-10.22	62.82	0.1957	-658.0	-709.2
86	0.00	1.78	0.00	0.91	16.03	84.35	-10.45	48.38	0.2342	-909.0	-772.2
87	0.00	7.39	0.00	3.75	14.05	84.38	-10.42	55.49	0.2138	-601.0	-661.0
88	0.00	1.78	0.00	0.90	12.86	84.18	-10.62	60.88	0.2066	-769.0	-613.6
89	0.00	1.34	0.00	0.68	11.28	84.08	-10.71	68.26	0.1972	-834.0	-700.5
90	0.00	1.96	0.00	0.99	11.21	83.71	-11.09	69.20	0.2027	-821.0	-626.2
91	0.00	2.41	0.00	1.22	10.79	82.72	-12.08	72.49	0.2165	-918.0	-706.5
92	0.00	0.98	0.00	0.50	15.50	81.36	-13.43	56.70	0.2690	-690.0	-550.4

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
