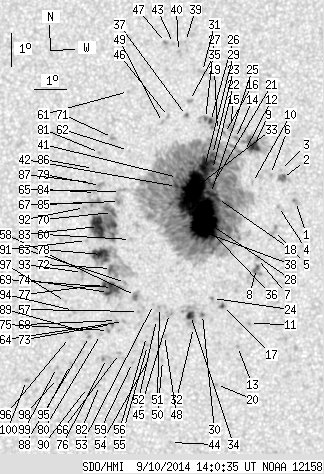

SDO HMI 2014-09-10 14:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 238.63 | 1294.49 | 120.49 | 653.75 | 15.98 | 87.53 | -6.72 | 36.43 | 0.1927 | 321.8 | 220.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-10 14:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.03 | 0.00 | 1.52 | 16.33 | 91.04 | -3.20 | 18.72 | 0.1679 | 959.0 | 859.0 | |
| 0.00 | 6.77 | 0.00 | 3.41 | 17.03 | 90.62 | -3.63 | 19.54 | 0.1816 | 1130.0 | 896.5 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 17.28 | 90.55 | -3.69 | 19.41 | 0.1860 | 797.0 | 619.8 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 16.18 | 90.51 | -3.74 | 21.91 | 0.1686 | -712.0 | -572.9 | |
| 0.00 | 5.26 | 0.00 | 2.64 | 15.44 | 90.39 | -3.85 | 24.35 | 0.1577 | 653.0 | 377.9 | |
| 0.00 | 1.60 | 0.00 | 0.81 | 17.15 | 90.23 | -4.01 | 21.17 | 0.1858 | 974.0 | 752.0 | |
| 0.00 | 2.94 | 0.00 | 1.47 | 14.59 | 89.88 | -4.37 | 29.87 | 0.1486 | -881.0 | -652.2 | |
| 1.69 | 6.50 | 0.85 | 3.25 | 14.28 | 89.85 | -4.39 | 31.10 | 0.1443 | -931.3 | -775.6 | |
| 8.37 | 32.25 | 4.24 | 16.31 | 18.01 | 89.68 | -4.57 | 22.02 | 0.2029 | 1071.4 | 362.1 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 16.90 | 89.67 | -4.57 | 24.38 | 0.1856 | -308.0 | -249.9 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 12.61 | 89.66 | -4.58 | 39.65 | 0.1227 | -923.0 | -757.9 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 17.85 | 89.39 | -4.85 | 23.55 | 0.2023 | 672.0 | 516.8 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 11.91 | 89.30 | -4.94 | 45.80 | 0.1181 | -910.0 | -808.4 | |
| 0.00 | 2.67 | 0.00 | 1.35 | 18.25 | 89.10 | -5.15 | 23.99 | 0.2106 | 771.0 | 563.4 | |
| 0.00 | 6.32 | 0.00 | 3.21 | 18.61 | 88.93 | -5.32 | 23.94 | 0.2174 | 411.0 | 513.0 | |
| 0.00 | 1.78 | 0.00 | 0.90 | 18.40 | 88.74 | -5.50 | 25.11 | 0.2154 | 873.0 | 729.2 | |
| 0.98 | 2.32 | 0.49 | 1.16 | 13.12 | 88.81 | -5.43 | 41.81 | 0.1389 | -991.8 | -784.7 | |
| 0.89 | 903.15 | 0.45 | 456.01 | 16.40 | 88.58 | -5.67 | 30.64 | 0.1867 | 959.5 | 427.7 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 18.49 | 88.51 | -5.73 | 25.81 | 0.2184 | 646.0 | 476.9 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 10.75 | 88.67 | -5.57 | 56.98 | 0.1143 | -908.0 | -696.2 | |
| 2.85 | -18.00 | 1.44 | -18.00 | 16.83 | 88.41 | -5.84 | 30.19 | 0.1944 | 989.8 | 999999 | |
| 0.27 | -18.00 | 0.14 | -18.00 | 17.29 | 88.39 | -5.85 | 29.06 | 0.2013 | 1067.3 | 999999 | |
| 1.60 | -18.00 | 0.81 | -18.00 | 17.75 | 88.38 | -5.87 | 27.99 | 0.2083 | 873.1 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.71 | 13.36 | 88.50 | -5.75 | 42.25 | 0.1456 | 549.0 | 377.4 | |
| 3.74 | -18.00 | 1.89 | -18.00 | 16.55 | 88.35 | -5.89 | 31.19 | 0.1909 | 1131.3 | 999999 | |
| 1.69 | 12.03 | 0.86 | 6.11 | 18.76 | 88.28 | -5.96 | 26.13 | 0.2243 | 877.2 | 643.6 | |
| 0.89 | -26.00 | 0.45 | -26.00 | 18.85 | 88.12 | -6.13 | 26.56 | 0.2269 | 779.7 | 999999 | |
| 76.25 | -18.00 | 38.40 | -18.00 | 15.73 | 88.19 | -6.06 | 34.40 | 0.1806 | 1398.4 | 999999 | |
| 12.65 | -18.00 | 6.40 | -18.00 | 17.35 | 88.14 | -6.11 | 29.95 | 0.2043 | 1078.8 | 999999 | |
| 0.45 | 2.23 | 0.22 | 1.11 | 12.87 | 88.20 | -6.05 | 46.10 | 0.1432 | -1121.6 | -889.2 | |
| 0.00 | 4.36 | 0.00 | 2.23 | 20.30 | 87.97 | -6.28 | 24.33 | 0.2500 | 656.0 | 647.7 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 12.47 | 87.93 | -6.32 | 49.43 | 0.1421 | -812.0 | -651.9 | |
| 56.74 | -18.00 | 28.67 | -18.00 | 16.67 | 87.78 | -6.47 | 33.23 | 0.1978 | 1251.1 | 999999 | |
| 4.19 | 17.64 | 2.10 | 8.83 | 12.83 | 87.82 | -6.42 | 47.95 | 0.1475 | -1095.9 | -493.9 | |
| 0.00 | 2.76 | 0.00 | 1.41 | 19.40 | 87.58 | -6.66 | 27.35 | 0.2392 | 938.0 | 725.7 | |
| 9.53 | -18.00 | 4.81 | -18.00 | 16.12 | 87.67 | -6.57 | 35.33 | 0.1911 | 1174.7 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.77 | 18.94 | 87.50 | -6.74 | 28.59 | 0.2330 | 822.0 | 726.7 | |
| 0.62 | -18.00 | 0.31 | -18.00 | 15.57 | 87.59 | -6.65 | 37.44 | 0.1844 | 944.4 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 21.23 | 87.37 | -6.87 | 24.68 | 0.2682 | 637.0 | 537.6 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 20.91 | 87.16 | -7.08 | 25.88 | 0.2650 | 861.0 | 816.4 | |
| 1.16 | -18.00 | 0.59 | -18.00 | 17.03 | 87.29 | -6.95 | 34.10 | 0.2075 | 777.6 | 999999 | |
| 2.05 | -18.00 | 1.04 | -18.00 | 16.75 | 87.27 | -6.98 | 34.97 | 0.2038 | 875.7 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.78 | 21.16 | 86.99 | -7.26 | 25.99 | 0.2700 | 741.0 | 533.2 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 8.98 | 87.29 | -6.96 | 75.27 | 0.1243 | -870.0 | -684.4 | |
| 0.00 | 4.45 | 0.00 | 2.23 | 12.88 | 87.17 | -7.08 | 50.38 | 0.1566 | -844.0 | -808.8 | |
| 0.00 | 1.96 | 0.00 | 1.00 | 18.90 | 86.93 | -7.32 | 30.67 | 0.2372 | 562.0 | 508.2 | |
| 0.00 | 2.05 | 0.00 | 1.05 | 21.19 | 86.72 | -7.52 | 26.75 | 0.2723 | 876.0 | 688.8 | |
| 0.00 | 1.25 | 0.00 | 0.62 | 12.22 | 87.03 | -7.21 | 54.42 | 0.1516 | -844.0 | -568.8 | |
| 0.00 | 1.78 | 0.00 | 0.91 | 18.71 | 86.74 | -7.50 | 31.73 | 0.2362 | 821.0 | 543.2 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 11.46 | 86.99 | -7.26 | 58.91 | 0.1452 | -773.0 | -676.2 | |
| 0.00 | 1.43 | 0.00 | 0.72 | 13.06 | 86.85 | -7.39 | 50.71 | 0.1627 | -939.0 | -842.1 | |
| 0.00 | 1.87 | 0.00 | 0.94 | 12.70 | 86.77 | -7.48 | 52.83 | 0.1600 | -787.0 | -681.3 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 13.15 | 86.66 | -7.58 | 50.98 | 0.1662 | -813.0 | -645.7 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 11.48 | 86.55 | -7.69 | 60.18 | 0.1519 | -1007.0 | -803.1 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 11.91 | 86.51 | -7.73 | 57.91 | 0.1561 | -882.0 | -732.4 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 12.18 | 86.47 | -7.77 | 56.56 | 0.1591 | -897.0 | -685.5 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 12.93 | 86.20 | -8.04 | 53.63 | 0.1702 | -1063.0 | -880.5 | |
| 0.00 | 5.79 | 0.00 | 2.91 | 13.41 | 86.09 | -8.15 | 51.72 | 0.1766 | -1190.0 | -902.0 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 11.38 | 86.06 | -8.19 | 62.19 | 0.1585 | -950.0 | -777.3 | |
| 0.00 | 2.05 | 0.00 | 1.04 | 15.11 | 85.87 | -8.37 | 45.45 | 0.1982 | 437.0 | 299.4 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 19.65 | 85.60 | -8.64 | 33.19 | 0.2597 | 746.0 | 488.1 | |
| 0.00 | 0.36 | 0.00 | 0.18 | 17.83 | 85.69 | -8.55 | 37.38 | 0.2342 | 532.0 | 591.8 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 13.80 | 85.76 | -8.48 | 51.06 | 0.1850 | -915.0 | -716.6 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 12.62 | 85.74 | -8.50 | 56.58 | 0.1737 | -974.0 | -805.8 | |
| 0.00 | 5.43 | 0.00 | 2.76 | 16.57 | 85.49 | -8.75 | 41.70 | 0.2202 | 183.0 | 201.4 | |
| 0.00 | 1.87 | 0.00 | 0.94 | 11.65 | 85.65 | -8.60 | 61.85 | 0.1668 | -997.0 | -806.0 | |
| 0.00 | 5.17 | 0.00 | 2.62 | 16.27 | 85.48 | -8.77 | 42.73 | 0.2166 | -82.0 | -166.8 | |
| 0.00 | 0.62 | 0.00 | 0.31 | 12.65 | 85.52 | -8.72 | 57.10 | 0.1771 | -958.0 | -794.0 | |
| 7.57 | 29.93 | 3.82 | 15.10 | 13.65 | 85.36 | -8.88 | 52.99 | 0.1888 | -1215.2 | -628.6 | |
| 2.14 | 66.27 | 1.08 | 33.60 | 15.93 | 85.27 | -8.98 | 44.51 | 0.2150 | 381.1 | -470.5 | |
| 0.00 | 2.85 | 0.00 | 1.46 | 18.22 | 85.16 | -9.09 | 37.98 | 0.2448 | 908.0 | 725.3 | |
| 1.78 | 66.63 | 0.90 | 33.66 | 14.22 | 85.31 | -8.94 | 50.73 | 0.1954 | -1052.3 | -583.2 | |
| 0.45 | 2.41 | 0.22 | 1.21 | 12.52 | 85.37 | -8.88 | 58.13 | 0.1782 | -976.4 | -794.2 | |
| 2.67 | -69.00 | 1.35 | -69.00 | 13.49 | 85.24 | -9.00 | 54.02 | 0.1889 | -941.7 | 999999 | |
| 0.00 | 1.87 | 0.00 | 0.94 | 12.34 | 85.28 | -8.96 | 59.27 | 0.1779 | -969.0 | -813.8 | |
| 0.00 | 4.99 | 0.00 | 2.51 | 11.49 | 85.24 | -9.00 | 63.71 | 0.1717 | -611.0 | -789.9 | |
| 2.32 | -69.00 | 1.17 | -69.00 | 13.73 | 85.10 | -9.14 | 53.37 | 0.1931 | -796.5 | 999999 | |
| 14.16 | -72.00 | 7.17 | -72.00 | 14.64 | 84.97 | -9.27 | 50.06 | 0.2042 | -1130.4 | 999999 | |
| 0.00 | 4.54 | 0.00 | 2.31 | 16.75 | 84.85 | -9.40 | 43.14 | 0.2297 | 20.0 | 100.5 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 12.21 | 85.03 | -9.21 | 60.53 | 0.1805 | -775.0 | -655.4 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 17.76 | 84.76 | -9.48 | 40.41 | 0.2430 | 876.0 | 692.3 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 10.67 | 85.05 | -9.19 | 68.60 | 0.1694 | -743.0 | -566.3 | |
| 20.93 | -70.00 | 10.62 | -70.00 | 15.49 | 84.84 | -9.40 | 47.30 | 0.2152 | -1141.2 | 999999 | |
| 0.00 | 2.32 | 0.00 | 1.18 | 16.53 | 84.70 | -9.55 | 44.25 | 0.2288 | -770.0 | -542.3 | |
| 0.00 | 7.66 | 0.00 | 3.89 | 16.22 | 84.68 | -9.56 | 45.29 | 0.2255 | -961.0 | -831.7 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 17.26 | 84.60 | -9.65 | 42.31 | 0.2388 | -656.0 | -455.9 | |
| 0.00 | 2.85 | 0.00 | 1.45 | 16.83 | 84.52 | -9.72 | 43.81 | 0.2345 | -741.0 | -580.6 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 12.15 | 84.69 | -9.55 | 61.70 | 0.1851 | -1025.0 | -876.3 | |
| 0.00 | 1.43 | 0.00 | 0.72 | 12.27 | 84.63 | -9.62 | 61.29 | 0.1870 | -826.0 | -745.9 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 10.60 | 84.68 | -9.56 | 69.68 | 0.1749 | -775.0 | -627.9 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 15.06 | 84.48 | -9.76 | 49.90 | 0.2150 | -700.0 | -545.5 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 16.06 | 84.37 | -9.87 | 46.70 | 0.2274 | -951.0 | -847.3 | |
| 0.00 | 3.38 | 0.00 | 1.71 | 14.08 | 84.40 | -9.85 | 53.88 | 0.2063 | -859.0 | -811.9 | |
| 0.00 | 2.76 | 0.00 | 1.40 | 12.92 | 84.16 | -10.08 | 59.37 | 0.1992 | -680.0 | -553.9 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 11.29 | 84.13 | -10.12 | 67.14 | 0.1878 | -791.0 | -608.5 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 12.10 | 84.07 | -10.18 | 63.32 | 0.1942 | -706.0 | -503.1 | |
| 0.00 | 0.53 | 0.00 | 0.27 | 13.19 | 83.90 | -10.34 | 58.82 | 0.2053 | -661.0 | -441.2 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 10.86 | 83.74 | -10.51 | 69.99 | 0.1915 | -700.0 | -602.5 | |
| 0.00 | 1.78 | 0.00 | 0.90 | 11.19 | 83.69 | -10.55 | 68.42 | 0.1940 | -726.0 | -651.8 | |
| 0.00 | 2.14 | 0.00 | 1.08 | 10.77 | 82.77 | -11.47 | 71.81 | 0.2066 | -972.0 | -765.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
