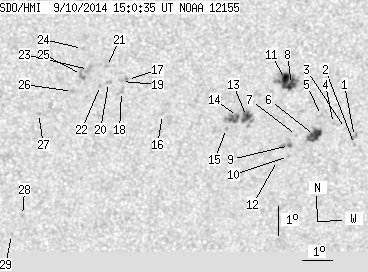

SDO HMI 2014-09-10 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.55 | 110.89 | 17.61 | 63.52 | -19.76 | 107.00 | 13.30 | 205.45 | 0.5035 | 320.2 | 280.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-10 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.74 | 0.00 | 2.20 | -20.84 | 110.86 | 17.17 | 210.66 | 0.5431 | 570.0 | 549.0 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -21.11 | 110.89 | 17.20 | 210.44 | 0.5467 | -272.0 | -301.9 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -20.55 | 110.53 | 16.83 | 210.46 | 0.5370 | 529.0 | 470.3 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -20.36 | 110.10 | 16.41 | 210.01 | 0.5316 | 728.0 | 647.6 | |
| 0.00 | 1.51 | 0.00 | 0.88 | -20.07 | 109.67 | 15.98 | 209.64 | 0.5247 | 694.0 | 524.8 | |
| 9.71 | 13.98 | 5.67 | 8.17 | -20.75 | 109.50 | 15.81 | 208.73 | 0.5321 | 845.0 | 629.9 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -20.73 | 108.90 | 15.21 | 207.83 | 0.5276 | 709.0 | 594.8 | |
| 6.23 | 29.66 | 3.57 | 16.94 | -18.99 | 108.57 | 14.87 | 209.00 | 0.5026 | 852.6 | 724.5 | |
| 0.71 | 6.41 | 0.42 | 3.74 | -21.06 | 108.70 | 15.01 | 207.21 | 0.5306 | 768.8 | 658.3 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -21.44 | 108.70 | 15.01 | 206.87 | 0.5355 | 474.0 | 366.3 | |
| 8.02 | -8.00 | 4.58 | -8.00 | -18.81 | 108.35 | 14.66 | 208.83 | 0.4988 | 1098.4 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -21.56 | 108.35 | 14.66 | 206.21 | 0.5348 | 580.0 | 472.4 | |
| 4.99 | 12.65 | 2.86 | 7.26 | -20.02 | 107.17 | 13.48 | 205.72 | 0.5067 | 997.9 | 645.1 | |
| 0.89 | 10.95 | 0.51 | 6.28 | -20.01 | 106.87 | 13.18 | 205.23 | 0.5047 | 1133.2 | 878.2 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -20.41 | 106.54 | 12.85 | 204.33 | 0.5080 | 657.0 | 542.9 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -19.87 | 104.40 | 10.71 | 201.07 | 0.4880 | 650.0 | 525.2 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -18.66 | 103.19 | 9.50 | 199.76 | 0.4642 | -830.0 | -736.1 | |
| 0.00 | 3.12 | 0.00 | 1.75 | -19.06 | 103.02 | 9.32 | 199.13 | 0.4691 | -592.0 | -470.4 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -18.72 | 103.00 | 9.30 | 199.35 | 0.4641 | -658.0 | -599.2 | |
| 0.00 | 2.05 | 0.00 | 1.14 | -18.75 | 102.58 | 8.89 | 198.52 | 0.4624 | -721.0 | -585.4 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -18.21 | 102.49 | 8.79 | 198.74 | 0.4540 | -822.0 | -621.7 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -18.84 | 102.33 | 8.63 | 197.96 | 0.4626 | -645.0 | -543.6 | |
| 0.00 | 4.10 | 0.00 | 2.27 | -18.30 | 101.91 | 8.22 | 197.53 | 0.4526 | -900.0 | -772.3 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -17.59 | 101.69 | 8.00 | 197.57 | 0.4410 | -649.0 | -533.1 | |
| 0.00 | 4.36 | 0.00 | 2.42 | -18.46 | 101.70 | 8.00 | 196.98 | 0.4540 | -808.0 | -758.0 | |
| 0.00 | 1.87 | 0.00 | 1.04 | -19.02 | 101.43 | 7.74 | 196.09 | 0.4613 | -901.0 | -694.4 | |
| 0.00 | 1.51 | 0.00 | 0.85 | -19.75 | 100.37 | 6.67 | 193.58 | 0.4679 | -718.0 | -583.2 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -23.26 | 100.00 | 6.31 | 191.26 | 0.5187 | -615.0 | -416.9 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -23.92 | 99.66 | 5.97 | 190.43 | 0.5275 | -528.0 | -480.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
