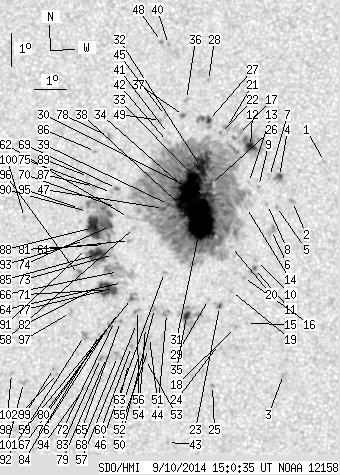

SDO HMI 2014-09-10 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 227.09 | 1319.21 | 114.52 | 665.41 | 15.87 | 87.56 | -6.14 | 34.47 | 0.1855 | 269.6 | 206.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-10 15:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.69 | 0.00 | 0.85 | 17.56 | 92.05 | -1.64 | 8.66 | 0.1822 | -692.0 | -533.8 | |
| 0.00 | 2.85 | 0.00 | 1.43 | 16.33 | 91.05 | -2.64 | 15.60 | 0.1651 | 950.0 | 818.5 | |
| 0.00 | 1.78 | 0.00 | 0.89 | 11.08 | 90.83 | -2.86 | 36.13 | 0.0835 | -855.0 | -678.6 | |
| 1.69 | 6.41 | 0.85 | 3.23 | 17.10 | 90.63 | -3.06 | 16.57 | 0.1797 | 1152.3 | 778.5 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 16.18 | 90.55 | -3.14 | 18.68 | 0.1650 | -789.0 | -632.9 | |
| 0.00 | 4.72 | 0.00 | 2.37 | 15.45 | 90.41 | -3.29 | 21.13 | 0.1540 | 573.0 | 442.1 | |
| 0.00 | 2.49 | 0.00 | 1.26 | 17.10 | 90.32 | -3.38 | 18.18 | 0.1813 | 726.0 | 657.1 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 16.24 | 90.27 | -3.42 | 20.10 | 0.1676 | -585.0 | -439.5 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 16.79 | 89.97 | -3.72 | 20.49 | 0.1782 | -780.0 | -618.6 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 14.53 | 89.95 | -3.74 | 26.41 | 0.1427 | -837.0 | -619.7 | |
| 0.53 | 6.32 | 0.27 | 3.16 | 14.29 | 89.89 | -3.80 | 27.58 | 0.1394 | -891.3 | -732.7 | |
| 6.50 | 32.15 | 3.29 | 16.25 | 18.01 | 89.70 | -4.00 | 19.49 | 0.1995 | 1115.2 | 437.5 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 16.91 | 89.66 | -4.04 | 21.81 | 0.1821 | -214.0 | -234.3 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 16.14 | 89.61 | -4.08 | 23.80 | 0.1703 | 443.0 | 413.6 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 12.61 | 89.67 | -4.02 | 36.06 | 0.1169 | -863.0 | -692.5 | |
| 0.00 | 1.78 | 0.00 | 0.89 | 14.01 | 89.55 | -4.14 | 30.63 | 0.1381 | -902.0 | -745.2 | |
| 0.00 | 6.32 | 0.00 | 3.20 | 18.38 | 89.31 | -4.39 | 20.55 | 0.2077 | 183.0 | 274.4 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 12.49 | 89.33 | -4.36 | 38.93 | 0.1187 | -813.0 | -715.3 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 13.58 | 89.19 | -4.51 | 34.55 | 0.1353 | -960.0 | -774.8 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 14.95 | 89.16 | -4.53 | 29.56 | 0.1555 | 828.0 | 592.1 | |
| 0.00 | 4.19 | 0.00 | 2.12 | 18.59 | 88.92 | -4.77 | 21.80 | 0.2134 | 593.0 | 615.6 | |
| 0.00 | 1.34 | 0.00 | 0.68 | 18.40 | 88.73 | -4.96 | 22.92 | 0.2117 | 829.0 | 744.3 | |
| 0.98 | 3.21 | 0.49 | 1.60 | 13.12 | 88.82 | -4.87 | 38.76 | 0.1327 | -1047.9 | -749.6 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 11.97 | 88.81 | -4.88 | 45.08 | 0.1181 | -893.0 | -719.4 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 10.73 | 88.65 | -5.05 | 54.60 | 0.1065 | -906.0 | -728.7 | |
| 0.80 | 907.28 | 0.40 | 457.62 | 16.84 | 88.46 | -5.24 | 27.58 | 0.1896 | 1082.7 | 445.4 | |
| 1.87 | 11.04 | 0.95 | 5.61 | 18.80 | 88.34 | -5.36 | 23.74 | 0.2205 | 917.2 | 728.3 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 20.03 | 88.30 | -5.40 | 21.70 | 0.2400 | 785.0 | 637.2 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 13.33 | 88.47 | -5.22 | 39.67 | 0.1393 | 514.0 | 356.2 | |
| 4.81 | -26.00 | 2.42 | -26.00 | 16.50 | 88.27 | -5.42 | 29.28 | 0.1860 | 1180.7 | 999999 | |
| 76.77 | -26.00 | 38.63 | -26.00 | 15.73 | 88.20 | -5.49 | 31.85 | 0.1754 | 1470.2 | 999999 | |
| 14.07 | -26.00 | 7.11 | -26.00 | 17.35 | 88.16 | -5.54 | 27.59 | 0.1997 | 1091.7 | 999999 | |
| 9.80 | -26.00 | 4.95 | -26.00 | 17.11 | 87.91 | -5.78 | 29.24 | 0.1980 | 1153.5 | 999999 | |
| 45.07 | -26.00 | 22.74 | -26.00 | 16.58 | 87.80 | -5.89 | 31.11 | 0.1913 | 1323.0 | 999999 | |
| 3.65 | 26.36 | 1.83 | 13.19 | 12.84 | 87.80 | -5.89 | 45.51 | 0.1409 | -1068.6 | -612.4 | |
| 0.00 | 2.23 | 0.00 | 1.13 | 19.44 | 87.61 | -6.08 | 25.24 | 0.2355 | 886.0 | 671.6 | |
| 0.62 | 2.67 | 0.32 | 1.36 | 18.94 | 87.53 | -6.16 | 26.50 | 0.2286 | 868.0 | 677.7 | |
| 7.57 | -26.00 | 3.82 | -26.00 | 16.15 | 87.56 | -6.13 | 33.39 | 0.1873 | 1137.6 | 999999 | |
| 0.80 | -26.00 | 0.40 | -26.00 | 16.21 | 87.15 | -6.55 | 34.93 | 0.1921 | 835.2 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 21.14 | 86.96 | -6.74 | 24.41 | 0.2659 | 722.0 | 563.8 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 18.38 | 87.07 | -6.62 | 29.41 | 0.2239 | 542.0 | 404.0 | |
| 0.00 | 3.83 | 0.00 | 1.94 | 18.14 | 87.05 | -6.65 | 30.07 | 0.2205 | -138.0 | 89.1 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 8.99 | 87.29 | -6.40 | 74.07 | 0.1151 | -930.0 | -738.2 | |
| 0.00 | 4.99 | 0.00 | 2.50 | 12.89 | 87.18 | -6.52 | 48.07 | 0.1494 | -688.0 | -799.2 | |
| 0.00 | 1.69 | 0.00 | 0.86 | 18.94 | 86.95 | -6.74 | 28.60 | 0.2330 | 728.0 | 466.0 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 14.14 | 87.08 | -6.61 | 42.71 | 0.1654 | -765.0 | -622.5 | |
| 1.60 | -26.00 | 0.81 | -26.00 | 16.08 | 86.99 | -6.70 | 35.94 | 0.1919 | 536.7 | 999999 | |
| 0.00 | 1.60 | 0.00 | 0.82 | 21.23 | 86.72 | -6.97 | 24.99 | 0.2689 | 840.0 | 694.4 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 18.78 | 86.80 | -6.89 | 29.48 | 0.2320 | 731.0 | 599.8 | |
| 0.00 | 3.03 | 0.00 | 1.52 | 13.04 | 86.80 | -6.89 | 48.90 | 0.1559 | -1107.0 | -862.6 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 12.16 | 86.67 | -7.03 | 54.04 | 0.1484 | -880.0 | -736.1 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 11.83 | 86.64 | -7.05 | 56.02 | 0.1455 | -860.0 | -645.8 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 11.49 | 86.56 | -7.13 | 58.30 | 0.1437 | -820.0 | -739.2 | |
| 0.00 | 1.60 | 0.00 | 0.80 | 12.46 | 86.53 | -7.16 | 52.90 | 0.1532 | -1085.0 | -760.3 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 11.67 | 86.37 | -7.32 | 57.90 | 0.1481 | -864.0 | -682.5 | |
| 0.00 | 2.94 | 0.00 | 1.48 | 12.97 | 86.27 | -7.42 | 51.27 | 0.1621 | -1052.0 | -871.8 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 12.58 | 86.25 | -7.44 | 53.33 | 0.1583 | -940.0 | -688.8 | |
| 0.00 | 1.87 | 0.00 | 0.94 | 15.49 | 86.09 | -7.60 | 41.37 | 0.1937 | 160.0 | 90.5 | |
| 0.62 | 6.95 | 0.31 | 3.49 | 13.33 | 86.07 | -7.62 | 50.26 | 0.1686 | -1202.4 | -791.3 | |
| 0.00 | 1.96 | 0.00 | 0.98 | 11.88 | 86.11 | -7.58 | 57.57 | 0.1536 | -923.0 | -738.4 | |
| 0.00 | 2.05 | 0.00 | 1.03 | 15.09 | 85.95 | -7.74 | 43.34 | 0.1904 | 571.0 | 470.3 | |
| 0.00 | 1.43 | 0.00 | 0.72 | 15.79 | 85.89 | -7.80 | 41.05 | 0.1997 | -554.0 | -416.7 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 11.36 | 86.03 | -7.66 | 60.79 | 0.1504 | -892.0 | -720.8 | |
| 0.00 | 4.45 | 0.00 | 2.24 | 13.81 | 85.78 | -7.92 | 49.14 | 0.1777 | -752.0 | -567.5 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 12.63 | 85.75 | -7.94 | 54.78 | 0.1658 | -1025.0 | -878.1 | |
| 0.00 | 32.15 | 0.00 | 16.20 | 14.15 | 85.64 | -8.05 | 48.19 | 0.1831 | -451.0 | -524.4 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 12.90 | 85.68 | -8.01 | 53.67 | 0.1694 | -820.0 | -637.5 | |
| 0.00 | 5.17 | 0.00 | 2.59 | 11.57 | 85.69 | -8.01 | 60.64 | 0.1573 | -697.0 | -767.1 | |
| 0.45 | 2.05 | 0.23 | 1.04 | 16.67 | 85.48 | -8.21 | 39.64 | 0.2155 | 638.4 | 589.7 | |
| 0.00 | 2.67 | 0.00 | 1.35 | 16.09 | 85.50 | -8.19 | 41.41 | 0.2079 | 149.0 | 132.3 | |
| 1.60 | 25.12 | 0.81 | 12.65 | 13.60 | 85.53 | -8.16 | 50.92 | 0.1785 | -1233.1 | -605.6 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 12.63 | 85.56 | -8.13 | 55.40 | 0.1684 | -1068.0 | -840.2 | |
| 0.00 | 3.38 | 0.00 | 1.71 | 14.66 | 85.46 | -8.23 | 46.71 | 0.1911 | -521.0 | -595.0 | |
| 0.71 | 79.53 | 0.36 | 40.28 | 15.54 | 85.37 | -8.33 | 43.75 | 0.2027 | 574.0 | -502.1 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 16.55 | 85.32 | -8.37 | 40.54 | 0.2156 | -272.0 | -239.9 | |
| 0.00 | 1.87 | 0.00 | 0.94 | 12.53 | 85.41 | -8.28 | 56.35 | 0.1697 | -968.0 | -873.9 | |
| 11.04 | -71.00 | 5.56 | -71.00 | 13.59 | 85.34 | -8.35 | 51.56 | 0.1810 | -1129.9 | 999999 | |
| 0.00 | 2.76 | 0.00 | 1.41 | 18.26 | 85.15 | -8.54 | 36.21 | 0.2398 | 900.0 | 765.7 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 11.53 | 85.35 | -8.35 | 61.81 | 0.1621 | -1030.0 | -858.6 | |
| 0.00 | 2.14 | 0.00 | 1.07 | 12.32 | 85.29 | -8.40 | 57.79 | 0.1695 | -939.0 | -802.2 | |
| 0.00 | 1.51 | 0.00 | 0.77 | 14.96 | 85.20 | -8.49 | 46.43 | 0.1978 | -327.0 | -439.4 | |
| 2.05 | -71.00 | 1.03 | -71.00 | 13.71 | 85.12 | -8.57 | 51.75 | 0.1852 | -860.4 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.03 | 11.50 | 85.16 | -8.53 | 62.49 | 0.1647 | -1036.0 | -803.3 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 12.23 | 85.11 | -8.59 | 58.80 | 0.1713 | -874.0 | -582.3 | |
| 13.36 | 25.92 | 6.75 | 13.09 | 14.65 | 84.96 | -8.73 | 48.39 | 0.1974 | -1162.5 | -657.4 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 17.80 | 84.76 | -8.94 | 38.68 | 0.2377 | 883.0 | 722.4 | |
| 0.00 | 2.67 | 0.00 | 1.36 | 16.72 | 84.78 | -8.92 | 41.75 | 0.2239 | -166.0 | -160.0 | |
| 20.13 | -74.00 | 10.19 | -74.00 | 15.47 | 84.80 | -8.89 | 45.84 | 0.2086 | -1169.0 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 17.03 | 84.57 | -9.12 | 41.47 | 0.2300 | -652.0 | -482.5 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 15.96 | 84.59 | -9.10 | 44.82 | 0.2168 | -993.0 | -747.4 | |
| 0.00 | 1.51 | 0.00 | 0.77 | 14.83 | 84.60 | -9.09 | 48.81 | 0.2038 | -661.0 | -542.7 | |
| 0.00 | 5.70 | 0.00 | 2.87 | 12.19 | 84.64 | -9.05 | 60.27 | 0.1779 | -835.0 | -724.5 | |
| 0.00 | 1.96 | 0.00 | 0.99 | 15.07 | 84.53 | -9.16 | 48.12 | 0.2074 | -575.0 | -552.8 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 10.58 | 84.66 | -9.03 | 68.78 | 0.1663 | -742.0 | -586.6 | |
| 0.00 | 2.94 | 0.00 | 1.49 | 16.04 | 84.33 | -9.36 | 45.30 | 0.2210 | -904.0 | -795.5 | |
| 0.00 | 4.81 | 0.00 | 2.43 | 14.03 | 84.38 | -9.31 | 52.60 | 0.1984 | -917.0 | -804.3 | |
| 0.00 | 2.40 | 0.00 | 1.21 | 12.88 | 84.18 | -9.52 | 58.19 | 0.1905 | -698.0 | -595.4 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 11.02 | 83.83 | -9.86 | 68.01 | 0.1820 | -698.0 | -672.6 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 11.17 | 83.70 | -9.99 | 67.50 | 0.1850 | -775.0 | -669.0 | |
| 0.00 | 1.51 | 0.00 | 0.77 | 15.73 | 82.59 | -11.10 | 51.01 | 0.2395 | -681.0 | -404.4 | |
| 0.00 | 3.47 | 0.00 | 1.75 | 10.73 | 82.78 | -10.91 | 71.25 | 0.1973 | -787.0 | -641.1 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 10.99 | 82.40 | -11.30 | 70.56 | 0.2048 | -787.0 | -631.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
