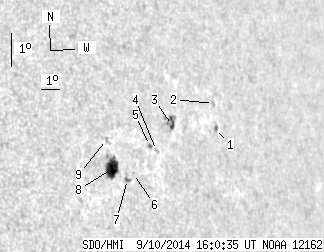

SDO HMI 2014-09-10 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.88 | 43.45 | 15.31 | 36.14 | 9.62 | 147.13 | 53.99 | 276.64 | 0.8047 | 295.4 | -204.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-10 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.53 | 2.05 | 0.49 | 1.89 | 9.88 | 151.22 | 58.08 | 277.14 | 0.8448 | -494.0 | -315.5 | |
| 0.00 | 1.60 | 0.00 | 1.48 | 10.64 | 151.33 | 58.19 | 278.03 | 0.8456 | -418.0 | -371.4 | |
| 1.78 | 10.51 | 1.54 | 9.09 | 10.22 | 148.88 | 55.74 | 277.44 | 0.8225 | -538.0 | -567.2 | |
| 0.00 | 1.96 | 0.00 | 1.66 | 9.57 | 147.85 | 54.71 | 276.60 | 0.8125 | -597.0 | -481.6 | |
| 0.36 | 1.60 | 0.30 | 1.35 | 9.75 | 147.53 | 54.38 | 276.81 | 0.8091 | -621.2 | -573.9 | |
| 0.00 | 1.07 | 0.00 | 0.88 | 9.00 | 146.52 | 53.38 | 275.83 | 0.7990 | -295.0 | -270.6 | |
| 0.00 | 2.40 | 0.00 | 1.96 | 8.85 | 146.18 | 53.04 | 275.63 | 0.7956 | 467.0 | 364.8 | |
| 16.21 | 20.48 | 12.98 | 16.41 | 9.25 | 145.50 | 52.36 | 276.11 | 0.7883 | 717.1 | 395.6 | |
| 0.00 | 1.78 | 0.00 | 1.42 | 10.15 | 145.40 | 52.26 | 277.24 | 0.7869 | 498.0 | 404.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
