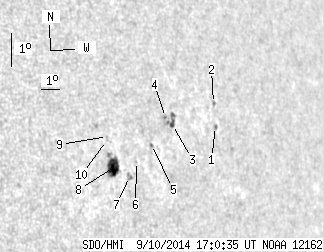

SDO HMI 2014-09-10 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.67 | 40.89 | 12.86 | 34.38 | 9.61 | 147.08 | 54.49 | 276.64 | 0.8097 | 280.6 | -51.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-10 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 1.78 | 0.33 | 1.67 | 9.91 | 151.27 | 58.68 | 277.20 | 0.8503 | -397.8 | -282.9 | |
| 0.00 | 1.96 | 0.00 | 1.84 | 10.61 | 151.36 | 58.77 | 278.02 | 0.8508 | -427.0 | -327.1 | |
| 1.60 | 8.64 | 1.41 | 7.58 | 10.23 | 148.88 | 56.30 | 277.47 | 0.8278 | -564.2 | -536.1 | |
| 0.00 | 1.16 | 0.00 | 1.01 | 10.48 | 148.56 | 55.98 | 277.76 | 0.8247 | -659.0 | -542.8 | |
| 0.00 | 1.34 | 0.00 | 1.14 | 9.75 | 147.61 | 55.02 | 276.83 | 0.8155 | -733.0 | -624.2 | |
| 0.00 | 0.27 | 0.00 | 0.22 | 9.32 | 146.71 | 54.12 | 276.27 | 0.8066 | -575.0 | -474.0 | |
| 0.00 | 3.83 | 0.00 | 3.16 | 8.91 | 146.25 | 53.66 | 275.73 | 0.8021 | 463.0 | 326.9 | |
| 13.71 | 21.10 | 11.12 | 17.11 | 9.26 | 145.51 | 52.92 | 276.14 | 0.7941 | 732.3 | 541.7 | |
| 0.00 | 0.36 | 0.00 | 0.29 | 10.22 | 145.42 | 52.83 | 277.34 | 0.7929 | 484.0 | 392.0 | |
| 0.00 | 0.45 | 0.00 | 0.36 | 10.10 | 145.34 | 52.75 | 277.19 | 0.7921 | 481.0 | 415.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
