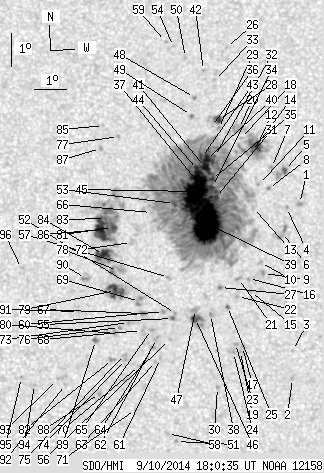

SDO HMI 2014-09-10 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 243.15 | 1295.76 | 122.32 | 651.87 | 16.00 | 87.66 | -4.37 | 26.07 | 0.1722 | 342.6 | 242.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-10 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.14 | 0.00 | 1.07 | 16.31 | 91.06 | -0.97 | 5.89 | 0.1591 | 1191.0 | 909.2 | |
| 0.00 | 1.25 | 0.00 | 0.62 | 10.99 | 90.86 | -1.17 | 17.04 | 0.0688 | -992.0 | -787.6 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 11.84 | 90.86 | -1.17 | 14.03 | 0.0830 | -788.0 | -550.5 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 16.19 | 90.66 | -1.38 | 8.46 | 0.1579 | -822.0 | -659.2 | |
| 1.69 | 8.73 | 0.85 | 4.39 | 17.32 | 90.59 | -1.45 | 7.86 | 0.1774 | 1169.6 | 820.1 | |
| 0.00 | 6.68 | 0.00 | 3.34 | 15.42 | 90.54 | -1.50 | 10.05 | 0.1452 | 271.0 | 74.9 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 17.41 | 90.17 | -1.86 | 9.95 | 0.1801 | 1023.0 | 866.9 | |
| 0.00 | 1.69 | 0.00 | 0.85 | 16.77 | 90.09 | -1.95 | 11.14 | 0.1694 | -882.0 | -660.6 | |
| 0.00 | 2.05 | 0.00 | 1.02 | 14.17 | 89.95 | -2.08 | 16.28 | 0.1264 | -904.0 | -806.2 | |
| 0.00 | 2.67 | 0.00 | 1.33 | 14.51 | 89.85 | -2.18 | 16.23 | 0.1324 | -746.0 | -575.2 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 16.89 | 89.77 | -2.27 | 12.72 | 0.1726 | -807.0 | -612.5 | |
| 7.39 | 964.59 | 3.73 | 485.35 | 18.05 | 89.69 | -2.34 | 11.70 | 0.1925 | 1147.7 | 450.3 | |
| 0.00 | 1.87 | 0.00 | 0.94 | 16.18 | 89.62 | -2.42 | 14.59 | 0.1614 | 153.0 | 166.1 | |
| 0.27 | -12.00 | 0.13 | -12.00 | 17.90 | 89.54 | -2.50 | 12.65 | 0.1905 | 1369.7 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 13.63 | 89.55 | -2.48 | 20.73 | 0.1195 | -819.0 | -651.7 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 14.02 | 89.49 | -2.55 | 20.07 | 0.1263 | -681.0 | -610.3 | |
| 0.00 | 1.78 | 0.00 | 0.89 | 11.96 | 89.32 | -2.72 | 29.39 | 0.0949 | -836.0 | -730.0 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 18.30 | 89.18 | -2.85 | 13.85 | 0.1985 | 539.0 | 408.1 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 11.81 | 89.26 | -2.78 | 30.75 | 0.0932 | -972.0 | -789.5 | |
| 0.00 | 10.59 | 0.00 | 5.36 | 18.60 | 89.11 | -2.92 | 13.78 | 0.2039 | 676.0 | 413.6 | |
| 0.00 | 2.40 | 0.00 | 1.20 | 14.02 | 89.17 | -2.86 | 22.29 | 0.1283 | -965.0 | -781.6 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 13.47 | 89.15 | -2.89 | 24.26 | 0.1197 | -1018.0 | -865.4 | |
| 0.00 | 1.96 | 0.00 | 0.97 | 12.05 | 89.10 | -2.93 | 30.81 | 0.0982 | -1027.0 | -850.1 | |
| 0.00 | 1.25 | 0.00 | 0.62 | 11.77 | 89.04 | -2.99 | 32.84 | 0.0947 | -966.0 | -837.6 | |
| 0.53 | 1.60 | 0.27 | 0.80 | 13.17 | 88.84 | -3.19 | 27.68 | 0.1173 | -1109.3 | -936.1 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 21.10 | 88.68 | -3.36 | 12.83 | 0.2470 | 706.0 | 532.2 | |
| 0.00 | 2.23 | 0.00 | 1.11 | 13.74 | 88.62 | -3.42 | 27.05 | 0.1279 | -953.0 | -761.0 | |
| 3.83 | 9.88 | 1.94 | 5.01 | 18.88 | 88.47 | -3.57 | 16.26 | 0.2112 | 904.2 | 648.4 | |
| 0.00 | 1.51 | 0.00 | 0.77 | 18.60 | 88.47 | -3.56 | 16.63 | 0.2067 | 965.0 | 878.7 | |
| 0.00 | 1.25 | 0.00 | 0.62 | 10.71 | 88.56 | -3.47 | 44.42 | 0.0855 | -1081.0 | -777.9 | |
| 3.03 | -12.00 | 1.52 | -12.00 | 16.48 | 88.42 | -3.62 | 20.61 | 0.1726 | 1105.3 | 999999 | |
| 0.27 | -12.00 | 0.13 | -12.00 | 17.74 | 88.36 | -3.67 | 18.49 | 0.1932 | 953.3 | 999999 | |
| 0.00 | 1.69 | 0.00 | 0.86 | 20.08 | 88.32 | -3.72 | 15.32 | 0.2316 | 635.0 | 587.3 | |
| 1.34 | -12.00 | 0.67 | -12.00 | 16.82 | 88.32 | -3.72 | 20.43 | 0.1786 | 1069.3 | 999999 | |
| 3.29 | -12.00 | 1.66 | -12.00 | 17.03 | 88.28 | -3.75 | 20.18 | 0.1822 | 1099.7 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 18.66 | 88.25 | -3.79 | 17.52 | 0.2088 | 540.0 | 493.3 | |
| 1.69 | -12.00 | 0.85 | -12.00 | 16.48 | 88.26 | -3.77 | 21.43 | 0.1735 | 1230.1 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.62 | 12.92 | 88.32 | -3.72 | 32.50 | 0.1182 | -1149.0 | -937.6 | |
| 77.99 | -12.00 | 39.15 | -12.00 | 15.69 | 88.15 | -3.89 | 23.92 | 0.1617 | 1680.5 | 999999 | |
| 5.34 | -12.00 | 2.70 | -12.00 | 17.64 | 88.11 | -3.92 | 19.83 | 0.1931 | 1105.2 | 999999 | |
| 7.75 | -12.00 | 3.91 | -12.00 | 17.40 | 88.09 | -3.95 | 20.42 | 0.1893 | 1172.4 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.73 | 20.39 | 87.95 | -4.08 | 16.33 | 0.2383 | 791.0 | 609.5 | |
| 1.25 | -12.00 | 0.63 | -12.00 | 17.70 | 87.95 | -4.08 | 20.45 | 0.1950 | 926.2 | 999999 | |
| 3.38 | -12.00 | 1.71 | -12.00 | 17.34 | 87.83 | -4.20 | 21.72 | 0.1898 | 1122.3 | 999999 | |
| 59.56 | -12.00 | 29.99 | -12.00 | 16.66 | 87.82 | -4.22 | 23.26 | 0.1793 | 1419.0 | 999999 | |
| 4.72 | 10.68 | 2.35 | 5.33 | 12.80 | 87.85 | -4.18 | 36.21 | 0.1209 | -1206.5 | -861.5 | |
| 0.00 | 3.92 | 0.00 | 1.96 | 13.07 | 87.85 | -4.18 | 34.91 | 0.1248 | -127.0 | -79.6 | |
| 0.00 | 1.69 | 0.00 | 0.86 | 19.55 | 87.68 | -4.35 | 18.51 | 0.2261 | 938.0 | 678.8 | |
| 0.00 | 1.34 | 0.00 | 0.68 | 18.99 | 87.60 | -4.43 | 19.71 | 0.2177 | 931.0 | 748.2 | |
| 0.00 | 1.51 | 0.00 | 0.77 | 20.78 | 87.36 | -4.67 | 18.00 | 0.2477 | 857.0 | 581.9 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 9.07 | 87.32 | -4.72 | 68.26 | 0.0878 | -1042.0 | -823.5 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 12.94 | 87.23 | -4.80 | 39.29 | 0.1295 | -814.0 | -688.8 | |
| 3.65 | -12.00 | 1.84 | -12.00 | 16.29 | 87.13 | -4.91 | 27.50 | 0.1786 | 930.7 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 21.12 | 86.96 | -5.07 | 18.95 | 0.2553 | 613.0 | 515.6 | |
| 0.71 | 1.78 | 0.36 | 0.89 | 12.79 | 87.14 | -4.89 | 40.59 | 0.1285 | -1141.8 | -937.5 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 12.15 | 87.06 | -4.98 | 44.57 | 0.1214 | -869.0 | -688.5 | |
| 0.00 | 2.14 | 0.00 | 1.07 | 14.03 | 86.99 | -5.04 | 35.69 | 0.1468 | -636.0 | -351.7 | |
| 0.00 | 1.78 | 0.00 | 0.89 | 9.31 | 87.04 | -4.99 | 66.93 | 0.0938 | -897.0 | -684.0 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 21.28 | 86.70 | -5.34 | 19.64 | 0.2591 | 763.0 | 596.1 | |
| 0.00 | 1.87 | 0.00 | 0.93 | 13.00 | 86.86 | -5.18 | 41.10 | 0.1344 | -1121.0 | -883.9 | |
| 0.00 | 1.25 | 0.00 | 0.62 | 11.58 | 86.79 | -5.24 | 49.65 | 0.1180 | -884.0 | -712.9 | |
| 0.00 | 4.01 | 0.00 | 2.00 | 12.18 | 86.66 | -5.38 | 46.62 | 0.1267 | -974.0 | -787.0 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 11.48 | 86.64 | -5.40 | 51.06 | 0.1191 | -1027.0 | -855.7 | |
| 0.00 | 2.14 | 0.00 | 1.07 | 11.91 | 86.54 | -5.50 | 48.87 | 0.1250 | -1064.0 | -924.9 | |
| 0.00 | 2.23 | 0.00 | 1.11 | 12.45 | 86.50 | -5.54 | 45.90 | 0.1319 | -1110.0 | -890.9 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 16.01 | 86.41 | -5.62 | 31.63 | 0.1804 | 140.0 | 174.2 | |
| 0.00 | 3.47 | 0.00 | 1.74 | 12.93 | 86.24 | -5.80 | 44.62 | 0.1408 | -1209.0 | -965.0 | |
| 0.00 | 0.53 | 0.00 | 0.27 | 12.42 | 86.19 | -5.85 | 47.62 | 0.1354 | -756.0 | -697.0 | |
| 0.00 | 5.16 | 0.00 | 2.59 | 13.30 | 86.10 | -5.93 | 43.47 | 0.1469 | -754.0 | -977.8 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 11.36 | 86.15 | -5.89 | 54.26 | 0.1245 | -947.0 | -775.6 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 10.03 | 86.05 | -5.99 | 64.39 | 0.1145 | -830.0 | -664.9 | |
| 0.00 | 3.47 | 0.00 | 1.75 | 15.09 | 85.81 | -6.23 | 37.37 | 0.1734 | 516.0 | 144.1 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 12.65 | 85.78 | -6.26 | 48.22 | 0.1433 | -1139.0 | -859.5 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 11.53 | 85.71 | -6.33 | 55.01 | 0.1324 | -1027.0 | -827.2 | |
| 0.00 | 1.78 | 0.00 | 0.89 | 11.68 | 85.67 | -6.36 | 54.22 | 0.1344 | -864.0 | -826.8 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 12.50 | 85.50 | -6.53 | 50.25 | 0.1452 | -1170.0 | -956.3 | |
| 0.00 | 1.78 | 0.00 | 0.90 | 18.32 | 85.29 | -6.75 | 30.02 | 0.2239 | 896.0 | 691.2 | |
| 0.00 | 14.51 | 0.00 | 7.29 | 14.23 | 85.39 | -6.64 | 42.49 | 0.1668 | -795.0 | -789.2 | |
| 11.84 | 26.35 | 5.94 | 13.22 | 13.62 | 85.35 | -6.69 | 45.33 | 0.1599 | -1199.1 | -757.3 | |
| 0.00 | 2.67 | 0.00 | 1.34 | 12.32 | 85.38 | -6.65 | 51.75 | 0.1448 | -991.0 | -800.6 | |
| 5.43 | 121.89 | 2.74 | 61.47 | 15.53 | 85.20 | -6.84 | 38.34 | 0.1858 | -200.1 | -443.9 | |
| 0.00 | 3.21 | 0.00 | 1.60 | 11.53 | 85.31 | -6.73 | 56.65 | 0.1381 | -1057.0 | -812.8 | |
| 1.16 | -81.00 | 0.58 | -81.00 | 15.81 | 84.97 | -7.07 | 38.32 | 0.1918 | -900.8 | 999999 | |
| 11.75 | -81.00 | 5.92 | -81.00 | 14.71 | 84.94 | -7.10 | 42.40 | 0.1780 | -1213.7 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 18.65 | 84.79 | -7.24 | 30.99 | 0.2329 | 719.0 | 555.2 | |
| 25.29 | -81.00 | 12.75 | -81.00 | 15.47 | 84.88 | -7.15 | 39.80 | 0.1883 | -1139.4 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 17.95 | 84.73 | -7.31 | 32.95 | 0.2235 | 989.0 | 822.4 | |
| 0.00 | 2.23 | 0.00 | 1.11 | 10.50 | 84.93 | -7.11 | 64.64 | 0.1353 | -926.0 | -751.6 | |
| 0.00 | 3.03 | 0.00 | 1.52 | 12.10 | 84.76 | -7.27 | 55.33 | 0.1512 | -1004.0 | -902.8 | |
| 0.00 | 3.74 | 0.00 | 1.88 | 13.97 | 84.40 | -7.64 | 47.49 | 0.1758 | -1059.0 | -848.9 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 12.97 | 84.21 | -7.83 | 52.76 | 0.1674 | -814.0 | -601.4 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 10.75 | 83.87 | -8.17 | 65.90 | 0.1536 | -656.0 | -432.8 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 10.90 | 83.62 | -8.42 | 65.65 | 0.1586 | -710.0 | -624.2 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 10.73 | 82.91 | -9.13 | 68.16 | 0.1687 | -961.0 | -771.9 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 10.94 | 82.49 | -9.54 | 67.88 | 0.1765 | -915.0 | -757.0 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 14.24 | 82.37 | -9.66 | 52.78 | 0.2052 | -700.0 | -574.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
