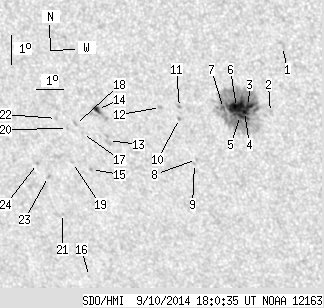

SDO HMI 2014-09-10 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.34 | 188.41 | 18.81 | 113.50 | -15.86 | 65.99 | -26.05 | 132.06 | 0.5703 | 413.1 | 290.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-10 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.29 | 0.00 | 1.91 | -13.59 | 68.52 | -23.51 | 131.70 | 0.5214 | 594.0 | 420.9 | |
| 0.00 | 2.14 | 0.00 | 1.26 | -15.77 | 67.86 | -24.18 | 133.97 | 0.5498 | 609.0 | 583.1 | |
| 4.45 | 152.07 | 2.65 | 90.83 | -15.61 | 67.12 | -24.92 | 132.90 | 0.5561 | 1250.4 | 427.4 | |
| 3.47 | -3.00 | 2.07 | -3.00 | -15.78 | 66.96 | -25.08 | 132.95 | 0.5594 | 1130.1 | 999999 | |
| 4.01 | -3.00 | 2.40 | -3.00 | -15.92 | 66.80 | -25.23 | 132.97 | 0.5624 | 908.6 | 999999 | |
| 14.96 | -3.00 | 8.94 | -3.00 | -15.67 | 66.70 | -25.34 | 132.50 | 0.5611 | 1142.8 | 999999 | |
| 1.42 | -3.00 | 0.85 | -3.00 | -15.73 | 66.24 | -25.80 | 132.07 | 0.5665 | 701.3 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -17.48 | 65.02 | -27.01 | 133.07 | 0.5953 | 691.0 | 524.4 | |
| 0.00 | 1.25 | 0.00 | 0.77 | -17.61 | 64.93 | -27.11 | 133.15 | 0.5975 | 477.0 | 416.0 | |
| 0.00 | 1.42 | 0.00 | 0.87 | -16.15 | 64.63 | -27.41 | 130.93 | 0.5874 | 662.0 | 550.4 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -15.78 | 64.68 | -27.35 | 130.50 | 0.5836 | 842.0 | 578.0 | |
| 0.00 | 1.87 | 0.00 | 1.15 | -15.83 | 64.00 | -28.03 | 129.87 | 0.5913 | 664.0 | 516.6 | |
| 0.00 | 5.07 | 0.00 | 3.21 | -17.04 | 61.93 | -30.11 | 129.47 | 0.6236 | -192.0 | -499.5 | |
| 3.03 | 10.15 | 1.90 | 6.39 | -16.04 | 61.70 | -30.34 | 127.96 | 0.6179 | -957.2 | -644.3 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -18.06 | 61.11 | -30.93 | 130.02 | 0.6403 | -787.0 | -678.9 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -21.73 | 60.21 | -31.82 | 133.62 | 0.6789 | 384.0 | 536.7 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -16.87 | 61.00 | -31.03 | 128.42 | 0.6320 | -659.0 | -614.2 | |
| 0.00 | 1.25 | 0.00 | 0.79 | -16.59 | 60.80 | -31.24 | 127.87 | 0.6319 | -724.0 | -564.3 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -17.87 | 60.44 | -31.60 | 129.19 | 0.6457 | -767.0 | -594.2 | |
| 0.00 | 1.07 | 0.00 | 0.68 | -16.74 | 60.47 | -31.56 | 127.79 | 0.6366 | -614.0 | -508.2 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -19.63 | 59.69 | -32.35 | 130.70 | 0.6671 | -576.0 | -506.1 | |
| 0.00 | 1.25 | 0.00 | 0.80 | -16.44 | 60.12 | -31.92 | 127.09 | 0.6380 | -674.0 | -506.6 | |
| 0.00 | 1.16 | 0.00 | 0.76 | -18.41 | 59.43 | -32.61 | 128.99 | 0.6602 | -767.0 | -647.8 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -18.00 | 59.10 | -32.94 | 128.21 | 0.6605 | -784.0 | -599.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
