SDO HMI 2014-09-10 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 227.98 | 1321.57 | 114.61 | 664.36 | 15.99 | 87.64 | -3.84 | 351.09 | 0.1683 | 398.8 | 217.2 | |
|
previous
or next observation for the same group /

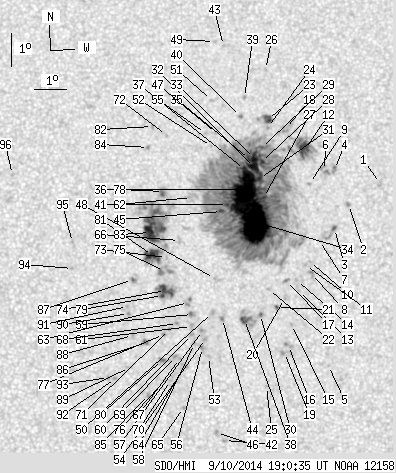

back to the solar disc SDO HMI 2014-09-10 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.03 | 0.00 | 1.52 | 16.92 | 92.08 | 0.60 | 356.58 | 0.1692 | -827.0 | -599.5 | |
| 0.00 | 2.05 | 0.00 | 1.03 | 16.28 | 91.08 | -0.41 | 2.48 | 0.1579 | 1032.0 | 825.0 | |
| 0.89 | 8.99 | 0.45 | 4.50 | 15.55 | 90.64 | -0.84 | 5.61 | 0.1458 | 852.2 | 2.5 | |
| 0.00 | 3.47 | 0.00 | 1.75 | 17.35 | 90.63 | -0.85 | 4.61 | 0.1769 | 900.0 | 899.3 | |
| 0.00 | 0.71 | 0.00 | 0.35 | 11.39 | 90.46 | -1.02 | 13.55 | 0.0747 | -770.0 | -587.6 | |
| 0.00 | 5.25 | 0.00 | 2.64 | 17.32 | 90.32 | -1.17 | 6.33 | 0.1769 | 661.0 | 850.7 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 15.18 | 90.17 | -1.31 | 9.09 | 0.1405 | -695.0 | -377.2 | |
| 0.00 | 2.94 | 0.00 | 1.47 | 14.18 | 89.93 | -1.56 | 12.30 | 0.1242 | -665.0 | -753.5 | |
| 0.00 | 1.60 | 0.00 | 0.81 | 16.92 | 89.85 | -1.64 | 9.23 | 0.1711 | -803.0 | -510.6 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 14.54 | 89.86 | -1.62 | 12.15 | 0.1306 | -712.0 | -514.7 | |
| 0.00 | 1.60 | 0.00 | 0.80 | 14.42 | 89.74 | -1.74 | 13.27 | 0.1290 | -812.0 | -531.3 | |
| 10.59 | 47.36 | 5.34 | 23.90 | 17.97 | 89.68 | -1.80 | 9.14 | 0.1893 | 1110.2 | 430.7 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 13.66 | 89.53 | -1.96 | 16.53 | 0.1172 | -850.0 | -628.8 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 13.97 | 89.46 | -2.02 | 16.29 | 0.1226 | -855.0 | -678.6 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 12.63 | 89.32 | -2.17 | 21.44 | 0.1014 | -953.0 | -762.8 | |
| 0.00 | 3.56 | 0.00 | 1.77 | 11.99 | 89.23 | -2.25 | 24.90 | 0.0918 | -756.0 | -841.5 | |
| 0.00 | 2.58 | 0.00 | 1.29 | 13.97 | 89.15 | -2.33 | 18.64 | 0.1242 | -908.0 | -787.9 | |
| 0.00 | 9.97 | 0.00 | 5.04 | 18.61 | 89.07 | -2.41 | 11.45 | 0.2021 | 578.0 | 515.3 | |
| 0.00 | 3.12 | 0.00 | 1.55 | 11.78 | 89.11 | -2.38 | 27.14 | 0.0894 | -934.0 | -799.5 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 13.42 | 89.09 | -2.39 | 20.65 | 0.1155 | -839.0 | -663.7 | |
| 0.62 | 1.69 | 0.31 | 0.84 | 13.14 | 88.85 | -2.64 | 23.52 | 0.1127 | -992.3 | -842.8 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 13.69 | 88.59 | -2.89 | 23.55 | 0.1232 | -938.0 | -736.8 | |
| 4.36 | 9.17 | 2.21 | 4.64 | 18.88 | 88.49 | -2.99 | 13.75 | 0.2088 | 950.3 | 686.0 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 18.64 | 88.49 | -2.99 | 14.03 | 0.2047 | 1047.0 | 892.1 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 10.75 | 88.56 | -2.92 | 39.25 | 0.0795 | -1023.0 | -788.1 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 20.43 | 88.40 | -3.08 | 12.46 | 0.2348 | 712.0 | 534.9 | |
| 1.60 | 938.92 | 0.81 | 472.03 | 16.49 | 88.40 | -3.08 | 17.77 | 0.1697 | 1133.6 | 437.4 | |
| 2.40 | -27.00 | 1.21 | -27.00 | 17.59 | 88.32 | -3.16 | 16.30 | 0.1882 | 1091.2 | 999999 | |
| 1.25 | -27.00 | 0.63 | -27.00 | 18.02 | 88.31 | -3.17 | 15.69 | 0.1953 | 759.4 | 999999 | |
| 0.53 | 1.69 | 0.27 | 0.84 | 12.93 | 88.35 | -3.13 | 28.20 | 0.1131 | -1068.0 | -896.7 | |
| 2.94 | -27.00 | 1.48 | -27.00 | 17.07 | 88.27 | -3.22 | 17.43 | 0.1799 | 1136.6 | 999999 | |
| 8.10 | -27.00 | 4.08 | -27.00 | 17.41 | 88.10 | -3.38 | 17.67 | 0.1862 | 1177.6 | 999999 | |
| 5.70 | -27.00 | 2.88 | -27.00 | 17.68 | 88.10 | -3.39 | 17.24 | 0.1908 | 1099.3 | 999999 | |
| 86.36 | -27.00 | 43.33 | -27.00 | 15.76 | 88.10 | -3.39 | 20.98 | 0.1594 | 1720.6 | 999999 | |
| 1.51 | -27.00 | 0.76 | -27.00 | 17.65 | 87.94 | -3.54 | 18.04 | 0.1911 | 1017.9 | 999999 | |
| 53.95 | -27.00 | 27.15 | -27.00 | 16.73 | 87.80 | -3.68 | 20.45 | 0.1770 | 1405.2 | 999999 | |
| 2.58 | -27.00 | 1.30 | -27.00 | 17.34 | 87.79 | -3.70 | 19.31 | 0.1869 | 1113.1 | 999999 | |
| 3.92 | 17.45 | 1.95 | 8.70 | 12.78 | 87.86 | -3.62 | 32.54 | 0.1151 | -1211.3 | -646.2 | |
| 0.00 | 1.60 | 0.00 | 0.81 | 19.56 | 87.74 | -3.74 | 16.07 | 0.2232 | 880.0 | 603.1 | |
| 0.00 | 1.96 | 0.00 | 0.99 | 18.97 | 87.63 | -3.86 | 17.36 | 0.2142 | 1041.0 | 807.0 | |
| 1.42 | -27.00 | 0.72 | -27.00 | 16.27 | 87.27 | -4.21 | 24.16 | 0.1730 | 1048.4 | 999999 | |
| 0.00 | 1.69 | 0.00 | 0.84 | 9.11 | 87.29 | -4.20 | 65.50 | 0.0797 | -888.0 | -670.5 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 21.16 | 87.02 | -4.46 | 16.75 | 0.2527 | 769.0 | 611.3 | |
| 0.00 | 2.40 | 0.00 | 1.20 | 12.80 | 87.18 | -4.31 | 37.00 | 0.1222 | -1174.0 | -961.7 | |
| 2.14 | -27.00 | 1.07 | -27.00 | 16.05 | 87.09 | -4.40 | 25.64 | 0.1710 | 882.8 | 999999 | |
| 0.00 | 2.23 | 0.00 | 1.11 | 9.35 | 87.04 | -4.44 | 64.09 | 0.0854 | -935.0 | -760.0 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 18.44 | 86.87 | -4.61 | 21.40 | 0.2099 | 849.0 | 626.8 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 14.01 | 86.91 | -4.58 | 33.22 | 0.1419 | -744.0 | -535.4 | |
| 0.00 | 1.42 | 0.00 | 0.73 | 21.29 | 86.73 | -4.76 | 17.64 | 0.2561 | 889.0 | 580.2 | |
| 0.00 | 2.40 | 0.00 | 1.20 | 12.98 | 86.86 | -4.62 | 38.04 | 0.1279 | -996.0 | -822.5 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 19.46 | 86.68 | -4.80 | 20.41 | 0.2272 | 755.0 | 627.2 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 18.04 | 86.72 | -4.76 | 22.80 | 0.2045 | 604.0 | 447.9 | |
| 0.00 | 1.96 | 0.00 | 0.98 | 11.65 | 86.76 | -4.72 | 46.26 | 0.1121 | -871.0 | -669.9 | |
| 0.00 | 2.14 | 0.00 | 1.07 | 12.19 | 86.66 | -4.82 | 43.49 | 0.1199 | -985.0 | -880.7 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 18.44 | 86.52 | -4.96 | 22.87 | 0.2121 | 747.0 | 586.1 | |
| 0.00 | 2.76 | 0.00 | 1.38 | 11.92 | 86.57 | -4.91 | 45.65 | 0.1177 | -1050.0 | -833.1 | |
| 0.00 | 1.78 | 0.00 | 0.89 | 12.43 | 86.56 | -4.92 | 42.67 | 0.1241 | -1094.0 | -886.3 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 12.04 | 86.32 | -5.16 | 46.32 | 0.1222 | -885.0 | -747.5 | |
| 0.00 | 3.21 | 0.00 | 1.60 | 12.91 | 86.24 | -5.24 | 41.88 | 0.1339 | -1109.0 | -1003.9 | |
| 0.00 | 1.78 | 0.00 | 0.89 | 12.31 | 86.22 | -5.26 | 45.26 | 0.1266 | -854.0 | -751.5 | |
| 0.00 | 2.23 | 0.00 | 1.11 | 12.55 | 86.22 | -5.26 | 43.93 | 0.1297 | -850.0 | -725.4 | |
| 0.00 | 8.99 | 0.00 | 4.53 | 16.47 | 86.13 | -5.35 | 29.08 | 0.1849 | 401.0 | 280.7 | |
| 0.00 | 3.65 | 0.00 | 1.83 | 13.28 | 86.11 | -5.37 | 40.79 | 0.1401 | -829.0 | -966.1 | |
| 0.00 | 2.49 | 0.00 | 1.24 | 11.37 | 86.02 | -5.46 | 52.16 | 0.1186 | -883.0 | -772.7 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 10.10 | 86.02 | -5.47 | 61.79 | 0.1069 | -931.0 | -799.7 | |
| 0.00 | 2.49 | 0.00 | 1.25 | 15.16 | 85.79 | -5.70 | 34.72 | 0.1690 | 285.0 | 213.2 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 11.58 | 85.87 | -5.62 | 51.55 | 0.1230 | -988.0 | -807.5 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 12.64 | 85.78 | -5.70 | 45.71 | 0.1360 | -1117.0 | -906.3 | |
| 0.00 | 1.78 | 0.00 | 0.89 | 11.64 | 85.74 | -5.74 | 51.78 | 0.1253 | -1080.0 | -878.2 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 10.91 | 85.60 | -5.88 | 57.33 | 0.1201 | -875.0 | -709.8 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 12.45 | 85.54 | -5.94 | 47.89 | 0.1369 | -1107.0 | -959.9 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 18.36 | 85.28 | -6.20 | 27.93 | 0.2200 | 893.0 | 675.9 | |
| 0.00 | 1.60 | 0.00 | 0.80 | 14.64 | 85.39 | -6.09 | 38.45 | 0.1658 | -697.0 | -551.2 | |
| 7.92 | 22.44 | 3.97 | 11.24 | 13.63 | 85.39 | -6.10 | 42.68 | 0.1529 | -1278.9 | -822.0 | |
| 0.00 | 9.79 | 0.00 | 4.91 | 14.21 | 85.34 | -6.14 | 40.39 | 0.1608 | -788.0 | -887.7 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 10.91 | 85.42 | -6.07 | 58.12 | 0.1228 | -777.0 | -577.3 | |
| 0.00 | 1.60 | 0.00 | 0.80 | 12.30 | 85.36 | -6.13 | 49.60 | 0.1376 | -1071.0 | -898.1 | |
| 0.00 | 5.34 | 0.00 | 2.70 | 16.65 | 85.24 | -6.24 | 32.42 | 0.1952 | -211.0 | -272.0 | |
| 1.69 | -74.00 | 0.85 | -74.00 | 13.48 | 85.30 | -6.19 | 43.79 | 0.1521 | -1064.4 | 999999 | |
| 0.71 | 3.03 | 0.36 | 1.51 | 11.54 | 85.34 | -6.14 | 54.20 | 0.1298 | -1057.2 | -795.0 | |
| 11.66 | 26.98 | 5.86 | 13.56 | 14.69 | 84.95 | -6.53 | 40.16 | 0.1714 | -1223.7 | -679.6 | |
| 0.00 | 1.96 | 0.00 | 1.00 | 18.64 | 84.82 | -6.66 | 29.01 | 0.2277 | 787.0 | 605.5 | |
| 14.78 | 86.45 | 7.44 | 43.57 | 15.39 | 84.87 | -6.61 | 37.94 | 0.1815 | -1255.6 | -486.4 | |
| 0.00 | 1.51 | 0.00 | 0.77 | 17.99 | 84.72 | -6.77 | 30.90 | 0.2192 | 956.0 | 794.5 | |
| 0.00 | 2.85 | 0.00 | 1.42 | 10.48 | 84.93 | -6.55 | 63.00 | 0.1265 | -904.0 | -697.8 | |
| 0.00 | 3.29 | 0.00 | 1.65 | 12.05 | 84.83 | -6.65 | 53.25 | 0.1420 | -1048.0 | -884.4 | |
| 0.36 | 1.51 | 0.18 | 0.76 | 13.95 | 84.35 | -7.14 | 45.68 | 0.1693 | -1019.2 | -863.8 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 12.25 | 84.39 | -7.09 | 53.81 | 0.1501 | -823.0 | -643.5 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 11.29 | 84.32 | -7.16 | 59.70 | 0.1422 | -602.0 | -420.3 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 12.92 | 84.25 | -7.23 | 50.86 | 0.1589 | -938.0 | -754.3 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 13.13 | 84.21 | -7.27 | 49.96 | 0.1617 | -887.0 | -731.5 | |
| 0.00 | 1.69 | 0.00 | 0.85 | 10.95 | 83.90 | -7.58 | 63.14 | 0.1459 | -955.0 | -829.4 | |
| 0.00 | 1.25 | 0.00 | 0.62 | 10.97 | 83.68 | -7.80 | 63.60 | 0.1495 | -794.0 | -731.5 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 14.26 | 82.45 | -9.03 | 50.92 | 0.1969 | -871.0 | -684.6 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 15.05 | 82.42 | -9.06 | 47.94 | 0.2058 | -827.0 | -629.0 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 17.08 | 80.40 | -11.08 | 46.70 | 0.2535 | -709.0 | -475.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
