SDO HMI 2014-09-10 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.57 | 69.73 | 8.86 | 40.73 | -21.55 | 78.76 | -12.72 | 157.83 | 0.5263 | 91.4 | 99.6 | |
|
previous
or next observation for the same group /

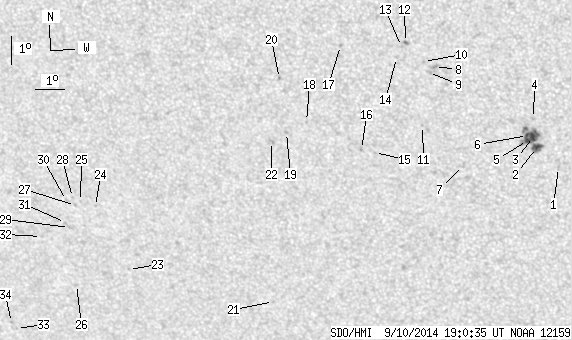

back to the solar disc SDO HMI 2014-09-10 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.69 | 0.00 | 0.97 | -22.05 | 84.38 | -7.10 | 166.81 | 0.5038 | 758.0 | 608.7 | |
| 4.54 | 30.80 | 2.59 | 17.52 | -21.38 | 83.70 | -7.78 | 165.22 | 0.4963 | 862.9 | 706.2 | |
| 7.03 | -2.00 | 3.99 | -2.00 | -21.00 | 83.62 | -7.86 | 164.87 | 0.4911 | 1065.2 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -20.38 | 83.66 | -7.83 | 164.57 | 0.4819 | 738.0 | 700.5 | |
| 2.49 | -2.00 | 1.42 | -2.00 | -21.14 | 83.42 | -8.06 | 164.58 | 0.4939 | 824.9 | 999999 | |
| 1.51 | -2.00 | 0.86 | -2.00 | -20.97 | 83.43 | -8.05 | 164.49 | 0.4914 | 985.2 | 999999 | |
| 0.00 | 2.23 | 0.00 | 1.29 | -22.05 | 81.25 | -10.23 | 161.34 | 0.5165 | 660.0 | 535.5 | |
| 0.00 | 2.85 | 0.00 | 1.60 | -18.69 | 80.54 | -10.94 | 157.56 | 0.4728 | -988.0 | -811.1 | |
| 0.00 | 2.31 | 0.00 | 1.30 | -18.90 | 80.33 | -11.15 | 157.35 | 0.4769 | -712.0 | -592.7 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -18.53 | 80.20 | -11.29 | 156.78 | 0.4726 | -768.0 | -626.4 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -20.70 | 80.00 | -11.48 | 158.24 | 0.5041 | 796.0 | 579.3 | |
| 0.00 | 2.23 | 0.00 | 1.25 | -17.91 | 79.66 | -11.83 | 155.22 | 0.4673 | -952.0 | -775.3 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -18.05 | 79.52 | -11.97 | 155.10 | 0.4701 | -730.0 | -627.2 | |
| 0.00 | 1.34 | 0.00 | 0.75 | -18.42 | 79.33 | -12.16 | 155.10 | 0.4765 | -707.0 | -597.6 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -21.67 | 78.33 | -13.15 | 156.25 | 0.5271 | 755.0 | 611.8 | |
| 0.00 | 1.34 | 0.00 | 0.78 | -21.58 | 77.90 | -13.58 | 155.50 | 0.5284 | 706.0 | 641.2 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -18.07 | 77.53 | -13.96 | 151.60 | 0.4840 | -789.0 | -636.5 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -20.68 | 76.16 | -15.32 | 151.95 | 0.5280 | 621.0 | 528.0 | |
| 0.00 | 1.69 | 0.00 | 0.99 | -21.08 | 75.44 | -16.04 | 151.25 | 0.5381 | 725.0 | 513.6 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -19.25 | 75.41 | -16.08 | 149.36 | 0.5151 | 818.0 | 671.6 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -27.10 | 74.18 | -17.31 | 154.65 | 0.6209 | 530.0 | 477.2 | |
| 0.00 | 2.31 | 0.00 | 1.37 | -21.41 | 74.90 | -16.58 | 150.76 | 0.5461 | 718.0 | 593.0 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -26.17 | 69.13 | -22.35 | 147.81 | 0.6429 | -680.0 | -488.1 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -23.96 | 68.38 | -23.10 | 144.83 | 0.6248 | -684.0 | -605.8 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -23.82 | 67.87 | -23.62 | 144.10 | 0.6273 | -707.0 | -623.3 | |
| 0.00 | 1.60 | 0.00 | 1.06 | -26.82 | 67.08 | -24.40 | 146.17 | 0.6645 | -310.0 | -382.4 | |
| 0.00 | 1.34 | 0.00 | 0.85 | -23.97 | 67.66 | -23.83 | 144.02 | 0.6305 | -605.0 | -467.8 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -23.69 | 67.60 | -23.88 | 143.68 | 0.6281 | -662.0 | -474.9 | |
| 0.00 | 1.16 | 0.00 | 0.75 | -24.77 | 67.28 | -24.21 | 144.40 | 0.6418 | -616.0 | -515.5 | |
| 0.00 | 1.87 | 0.00 | 1.19 | -23.81 | 67.36 | -24.12 | 143.53 | 0.6312 | -593.0 | -485.4 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -24.59 | 67.17 | -24.32 | 144.11 | 0.6409 | -502.0 | -481.9 | |
| 0.00 | 0.89 | 0.00 | 0.58 | -25.15 | 66.17 | -25.32 | 143.59 | 0.6544 | -390.0 | -359.1 | |
| 0.00 | 0.53 | 0.00 | 0.37 | -28.60 | 64.35 | -27.13 | 145.07 | 0.7016 | -655.0 | -590.8 | |
| 0.00 | 0.89 | 0.00 | 0.62 | -28.38 | 64.22 | -27.27 | 144.75 | 0.7006 | -725.0 | -612.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
