SDO HMI 2014-09-10 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 243.68 | 1253.74 | 122.42 | 629.88 | 15.88 | 87.59 | -3.34 | 356.09 | 0.1636 | 435.4 | 206.6 | |
|
previous
or next observation for the same group /

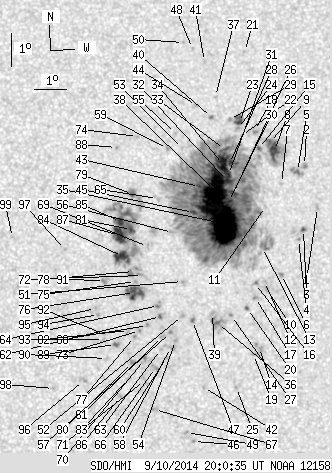

back to the solar disc SDO HMI 2014-09-10 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.58 | 0.00 | 1.29 | 16.23 | 91.06 | 0.13 | 359.21 | 0.1568 | 944.0 | 663.1 | |
| 0.00 | 3.47 | 0.00 | 1.75 | 17.52 | 90.65 | -0.28 | 1.50 | 0.1791 | 1034.0 | 873.5 | |
| 0.80 | 2.23 | 0.40 | 1.11 | 15.56 | 90.62 | -0.31 | 2.07 | 0.1453 | 919.4 | 694.9 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 15.25 | 90.46 | -0.47 | 3.24 | 0.1401 | -800.0 | -630.0 | |
| 0.71 | 6.68 | 0.36 | 3.36 | 17.33 | 90.43 | -0.50 | 2.73 | 0.1761 | 1104.2 | 834.3 | |
| 0.00 | 2.05 | 0.00 | 1.02 | 14.19 | 89.93 | -1.00 | 7.93 | 0.1226 | -894.0 | -771.8 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 16.96 | 89.92 | -1.01 | 5.68 | 0.1704 | -784.0 | -497.5 | |
| 9.97 | 46.12 | 5.03 | 23.26 | 17.98 | 89.70 | -1.23 | 6.27 | 0.1881 | 1109.6 | 480.4 | |
| 1.51 | -8.00 | 0.76 | -8.00 | 18.22 | 89.54 | -1.39 | 6.91 | 0.1926 | -148.4 | 999999 | |
| 0.00 | 2.85 | 0.00 | 1.42 | 13.76 | 89.47 | -1.46 | 12.30 | 0.1167 | -850.0 | -674.0 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 16.26 | 89.42 | -1.51 | 9.15 | 0.1594 | 232.0 | 183.1 | |
| 0.00 | 1.60 | 0.00 | 0.80 | 13.98 | 89.41 | -1.52 | 12.42 | 0.1205 | -718.0 | -542.4 | |
| 0.00 | 34.63 | 0.00 | 17.32 | 15.01 | 89.34 | -1.59 | 11.23 | 0.1384 | 185.0 | 70.2 | |
| 0.00 | 4.01 | 0.00 | 1.99 | 11.97 | 89.26 | -1.67 | 19.05 | 0.0876 | -884.0 | -831.0 | |
| 0.80 | -8.00 | 0.40 | -8.00 | 18.04 | 89.19 | -1.74 | 8.77 | 0.1903 | 1047.9 | 999999 | |
| 0.00 | 2.23 | 0.00 | 1.11 | 13.91 | 89.13 | -1.80 | 14.73 | 0.1206 | -935.0 | -758.0 | |
| 0.00 | 2.23 | 0.00 | 1.11 | 13.49 | 89.13 | -1.80 | 15.69 | 0.1135 | -999.0 | -778.5 | |
| 0.00 | 2.76 | 0.00 | 1.40 | 18.59 | 89.06 | -1.87 | 8.95 | 0.2000 | 801.0 | 715.6 | |
| 0.00 | 1.69 | 0.00 | 0.84 | 11.76 | 89.08 | -1.85 | 21.89 | 0.0853 | -908.0 | -819.7 | |
| 0.45 | 1.51 | 0.22 | 0.75 | 13.16 | 88.88 | -2.05 | 18.65 | 0.1092 | -1047.6 | -889.8 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 21.03 | 88.71 | -2.22 | 8.63 | 0.2421 | 732.0 | 594.0 | |
| 0.00 | 0.71 | 0.00 | 0.36 | 18.43 | 88.65 | -2.28 | 11.03 | 0.1986 | 739.0 | 639.1 | |
| 2.31 | 7.39 | 1.17 | 3.74 | 18.83 | 88.58 | -2.35 | 10.95 | 0.2056 | 1013.0 | 733.8 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 18.65 | 88.52 | -2.41 | 11.41 | 0.2027 | 975.0 | 842.6 | |
| 0.00 | 1.16 | 0.00 | 0.57 | 10.76 | 88.56 | -2.37 | 33.48 | 0.0739 | -975.0 | -707.7 | |
| 3.38 | 840.36 | 1.70 | 422.36 | 16.68 | 88.41 | -2.52 | 14.38 | 0.1701 | 970.3 | 469.2 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 12.94 | 88.39 | -2.54 | 23.51 | 0.1088 | -1045.0 | -894.7 | |
| 3.03 | -26.00 | 1.53 | -26.00 | 17.57 | 88.28 | -2.65 | 13.83 | 0.1855 | 1087.8 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.04 | 18.92 | 88.26 | -2.67 | 12.29 | 0.2082 | 780.0 | 603.0 | |
| 2.49 | -26.00 | 1.25 | -26.00 | 16.41 | 88.26 | -2.67 | 15.67 | 0.1662 | 1221.0 | 999999 | |
| 2.94 | -26.00 | 1.48 | -26.00 | 17.24 | 88.25 | -2.68 | 14.44 | 0.1800 | 1097.1 | 999999 | |
| 4.45 | -26.00 | 2.24 | -26.00 | 17.05 | 88.22 | -2.71 | 14.86 | 0.1771 | 1119.9 | 999999 | |
| 2.76 | -26.00 | 1.39 | -26.00 | 18.00 | 88.11 | -2.82 | 14.06 | 0.1933 | 821.4 | 999999 | |
| 10.33 | -26.00 | 5.21 | -26.00 | 17.54 | 88.09 | -2.84 | 14.82 | 0.1858 | 1169.3 | 999999 | |
| 91.08 | -26.00 | 45.67 | -26.00 | 15.74 | 88.08 | -2.85 | 17.95 | 0.1560 | 1703.2 | 999999 | |
| 0.00 | 12.11 | 0.00 | 6.03 | 12.70 | 87.96 | -2.97 | 28.00 | 0.1082 | -1270.0 | -935.4 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 19.63 | 87.80 | -3.13 | 13.49 | 0.2217 | 826.0 | 591.0 | |
| 56.09 | -26.00 | 28.21 | -26.00 | 16.74 | 87.81 | -3.12 | 17.50 | 0.1739 | 1422.7 | 999999 | |
| 0.00 | 2.23 | 0.00 | 1.11 | 13.00 | 87.80 | -3.13 | 27.92 | 0.1141 | -133.0 | -115.1 | |
| 0.00 | 1.78 | 0.00 | 0.90 | 18.98 | 87.68 | -3.25 | 14.75 | 0.2115 | 946.0 | 759.0 | |
| 0.00 | 1.42 | 0.00 | 0.73 | 20.71 | 87.42 | -3.51 | 13.80 | 0.2411 | 788.0 | 602.6 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 10.76 | 87.55 | -3.38 | 43.35 | 0.0848 | -801.0 | -539.1 | |
| 0.89 | -26.00 | 0.45 | -26.00 | 16.86 | 87.34 | -3.59 | 19.72 | 0.1785 | 940.7 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 19.35 | 87.19 | -3.74 | 16.33 | 0.2197 | 892.0 | 630.8 | |
| 2.94 | -26.00 | 1.48 | -26.00 | 16.07 | 87.16 | -3.77 | 22.35 | 0.1668 | 949.8 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.57 | 9.13 | 87.26 | -3.67 | 62.46 | 0.0717 | -980.0 | -798.4 | |
| 0.45 | 2.49 | 0.22 | 1.24 | 12.78 | 87.18 | -3.75 | 33.39 | 0.1163 | -1156.4 | -884.9 | |
| 0.00 | 1.42 | 0.00 | 0.73 | 21.11 | 87.02 | -3.91 | 14.84 | 0.2493 | 797.0 | 583.6 | |
| 0.00 | 1.60 | 0.00 | 0.80 | 9.40 | 87.04 | -3.89 | 60.59 | 0.0772 | -922.0 | -815.7 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 21.30 | 86.73 | -4.20 | 15.69 | 0.2536 | 748.0 | 572.6 | |
| 0.00 | 1.25 | 0.00 | 0.62 | 13.96 | 86.85 | -4.08 | 30.47 | 0.1366 | -782.0 | -554.1 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 12.93 | 86.87 | -4.06 | 34.78 | 0.1215 | -1102.0 | -955.1 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 18.02 | 86.78 | -4.15 | 20.20 | 0.2004 | 599.0 | 512.5 | |
| 0.00 | 1.60 | 0.00 | 0.80 | 12.17 | 86.67 | -4.26 | 40.15 | 0.1133 | -1016.0 | -821.6 | |
| 0.00 | 0.62 | 0.00 | 0.32 | 18.48 | 86.54 | -4.39 | 20.39 | 0.2092 | 852.0 | 600.0 | |
| 0.00 | 3.03 | 0.00 | 1.52 | 15.45 | 86.51 | -4.42 | 27.42 | 0.1619 | 103.0 | 204.0 | |
| 0.00 | 1.87 | 0.00 | 0.93 | 12.41 | 86.51 | -4.42 | 39.80 | 0.1182 | -1165.0 | -949.2 | |
| 0.00 | 5.16 | 0.00 | 2.57 | 11.96 | 86.51 | -4.42 | 42.40 | 0.1122 | -939.0 | -803.5 | |
| 0.00 | 1.96 | 0.00 | 0.99 | 18.02 | 86.30 | -4.63 | 22.29 | 0.2033 | 800.0 | 643.1 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 11.66 | 86.39 | -4.53 | 45.08 | 0.1099 | -921.0 | -681.1 | |
| 0.00 | 2.40 | 0.00 | 1.20 | 12.29 | 86.26 | -4.67 | 42.01 | 0.1194 | -848.0 | -697.7 | |
| 0.62 | 3.29 | 0.31 | 1.65 | 12.90 | 86.19 | -4.74 | 39.19 | 0.1281 | -1189.1 | -888.1 | |
| 0.00 | 1.25 | 0.00 | 0.62 | 11.90 | 86.21 | -4.72 | 44.70 | 0.1151 | -863.0 | -724.7 | |
| 0.00 | 4.27 | 0.00 | 2.14 | 13.23 | 86.12 | -4.81 | 37.96 | 0.1333 | -940.0 | -835.3 | |
| 0.00 | 3.38 | 0.00 | 1.70 | 16.49 | 86.02 | -4.91 | 27.02 | 0.1815 | 256.0 | 248.3 | |
| 0.00 | 3.03 | 0.00 | 1.51 | 11.35 | 86.06 | -4.87 | 49.15 | 0.1105 | -920.0 | -768.9 | |
| 0.00 | 3.47 | 0.00 | 1.73 | 10.08 | 86.05 | -4.88 | 59.24 | 0.0980 | -877.0 | -704.5 | |
| 0.00 | 1.69 | 0.00 | 0.85 | 12.62 | 85.79 | -5.14 | 42.90 | 0.1290 | -1094.0 | -858.7 | |
| 0.00 | 2.31 | 0.00 | 1.16 | 15.02 | 85.74 | -5.19 | 32.78 | 0.1621 | -262.0 | -89.3 | |
| 0.00 | 2.76 | 0.00 | 1.38 | 11.59 | 85.72 | -5.21 | 49.44 | 0.1177 | -1095.0 | -873.6 | |
| 0.00 | 4.18 | 0.00 | 2.09 | 10.95 | 85.73 | -5.20 | 53.81 | 0.1108 | -713.0 | -731.7 | |
| 0.00 | 3.03 | 0.00 | 1.52 | 14.14 | 85.60 | -5.33 | 36.78 | 0.1510 | -822.0 | -572.8 | |
| 0.00 | 1.25 | 0.00 | 0.62 | 12.47 | 85.54 | -5.38 | 45.05 | 0.1301 | -1219.0 | -1049.1 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 18.38 | 85.33 | -5.60 | 25.55 | 0.2156 | 907.0 | 688.7 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 13.95 | 85.39 | -5.54 | 38.63 | 0.1508 | -1030.0 | -840.2 | |
| 12.38 | 22.97 | 6.20 | 11.50 | 13.62 | 85.36 | -5.56 | 40.21 | 0.1466 | -1180.3 | -812.2 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 12.28 | 85.39 | -5.54 | 46.87 | 0.1298 | -1084.0 | -884.1 | |
| 0.00 | 7.21 | 0.00 | 3.62 | 14.25 | 85.32 | -5.61 | 37.72 | 0.1556 | -597.0 | -860.3 | |
| 1.07 | 16.83 | 0.54 | 8.48 | 16.60 | 85.23 | -5.70 | 30.29 | 0.1897 | -475.8 | -94.1 | |
| 0.00 | 2.94 | 0.00 | 1.47 | 11.50 | 85.35 | -5.58 | 51.95 | 0.1216 | -1099.0 | -930.7 | |
| 3.56 | 111.47 | 1.79 | 56.07 | 15.53 | 85.22 | -5.71 | 33.51 | 0.1743 | -183.9 | -538.4 | |
| 0.00 | 3.21 | 0.00 | 1.60 | 12.46 | 85.20 | -5.73 | 46.81 | 0.1343 | -675.0 | -539.2 | |
| 0.00 | 1.78 | 0.00 | 0.89 | 11.01 | 85.23 | -5.70 | 55.81 | 0.1184 | -883.0 | -673.5 | |
| 11.31 | -81.00 | 5.68 | -81.00 | 14.71 | 84.96 | -5.97 | 37.62 | 0.1654 | -1228.5 | 999999 | |
| 4.45 | -81.00 | 2.24 | -81.00 | 15.77 | 84.87 | -6.06 | 34.31 | 0.1810 | -1249.7 | 999999 | |
| 0.00 | 1.96 | 0.00 | 0.98 | 10.46 | 84.99 | -5.93 | 60.84 | 0.1170 | -912.0 | -722.2 | |
| 12.29 | -81.00 | 6.18 | -81.00 | 15.34 | 84.85 | -6.08 | 35.82 | 0.1753 | -1269.2 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 18.03 | 84.67 | -6.26 | 28.89 | 0.2155 | 864.0 | 788.6 | |
| 0.62 | 2.67 | 0.31 | 1.34 | 12.03 | 84.81 | -6.12 | 51.11 | 0.1346 | -1011.4 | -862.4 | |
| 0.00 | 1.78 | 0.00 | 0.89 | 11.61 | 84.54 | -6.39 | 54.86 | 0.1339 | -681.0 | -528.3 | |
| 0.00 | 4.01 | 0.00 | 2.01 | 13.97 | 84.42 | -6.51 | 43.04 | 0.1619 | -1102.0 | -899.8 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 12.33 | 84.46 | -6.47 | 50.92 | 0.1424 | -808.0 | -636.0 | |
| 0.00 | 1.87 | 0.00 | 0.94 | 12.18 | 84.43 | -6.50 | 51.89 | 0.1412 | -873.0 | -687.2 | |
| 0.00 | 1.25 | 0.00 | 0.62 | 12.94 | 84.26 | -6.67 | 48.57 | 0.1517 | -950.0 | -815.3 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 13.12 | 84.16 | -6.77 | 48.08 | 0.1550 | -821.0 | -722.5 | |
| 0.00 | 3.65 | 0.00 | 1.83 | 10.93 | 83.84 | -7.09 | 61.72 | 0.1382 | -771.0 | -744.8 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 14.89 | 83.17 | -7.76 | 44.22 | 0.1880 | -886.0 | -746.8 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 10.68 | 82.92 | -8.01 | 66.00 | 0.1506 | -946.0 | -707.5 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 15.23 | 81.48 | -9.45 | 48.43 | 0.2127 | -788.0 | -607.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
