SDO HMI 2014-09-10 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.37 | 187.42 | 20.41 | 111.71 | -15.86 | 66.08 | -24.85 | 133.39 | 0.5577 | 453.1 | 309.5 | |
|
previous
or next observation for the same group /

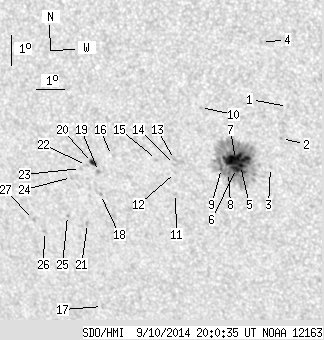

back to the solar disc SDO HMI 2014-09-10 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.67 | -13.80 | 68.75 | -22.18 | 133.67 | 0.5090 | 750.0 | 395.8 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -14.85 | 68.43 | -22.50 | 134.77 | 0.5231 | 770.0 | 553.1 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -15.82 | 67.94 | -22.99 | 135.50 | 0.5381 | 722.0 | 495.7 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -11.78 | 68.07 | -22.86 | 129.75 | 0.4967 | 499.0 | 353.2 | |
| 2.40 | 156.52 | 1.42 | 92.64 | -15.81 | 66.92 | -24.01 | 134.23 | 0.5486 | 1142.8 | 406.2 | |
| 7.66 | -5.00 | 4.54 | -5.00 | -15.92 | 66.77 | -24.16 | 134.20 | 0.5512 | 845.6 | 999999 | |
| 20.57 | -5.00 | 12.16 | -5.00 | -15.62 | 66.77 | -24.16 | 133.80 | 0.5482 | 1185.1 | 999999 | |
| 0.45 | -5.00 | 0.26 | -5.00 | -16.06 | 66.47 | -24.46 | 134.05 | 0.5557 | 333.2 | 999999 | |
| 0.80 | -5.00 | 0.48 | -5.00 | -15.94 | 66.25 | -24.68 | 133.63 | 0.5569 | 544.9 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -13.99 | 65.77 | -25.16 | 130.36 | 0.5435 | 762.0 | 595.7 | |
| 0.00 | 1.25 | 0.00 | 0.76 | -16.86 | 64.51 | -26.42 | 132.92 | 0.5836 | 204.0 | 292.1 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -16.17 | 64.61 | -26.32 | 132.11 | 0.5761 | 685.0 | 540.0 | |
| 0.00 | 1.60 | 0.00 | 0.97 | -15.74 | 64.64 | -26.29 | 131.56 | 0.5719 | 807.0 | 579.5 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -15.91 | 64.62 | -26.31 | 131.76 | 0.5737 | 444.0 | 489.7 | |
| 0.00 | 1.51 | 0.00 | 0.92 | -15.78 | 64.00 | -26.93 | 130.94 | 0.5791 | 534.0 | 456.5 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -15.74 | 62.41 | -28.52 | 129.28 | 0.5959 | -565.0 | -581.2 | |
| 0.00 | 1.60 | 0.00 | 1.05 | -20.86 | 61.12 | -29.81 | 134.44 | 0.6529 | 620.0 | 515.8 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -17.06 | 61.80 | -29.13 | 130.43 | 0.6136 | -743.0 | -543.5 | |
| 0.00 | 1.69 | 0.00 | 1.05 | -16.30 | 61.85 | -29.08 | 129.49 | 0.6066 | -765.0 | -671.9 | |
| 2.49 | 4.01 | 1.55 | 2.49 | -16.02 | 61.69 | -29.24 | 128.95 | 0.6060 | -879.1 | -756.5 | |
| 0.00 | 1.78 | 0.00 | 1.13 | -18.07 | 61.14 | -29.79 | 131.08 | 0.6288 | -783.0 | -632.4 | |
| 0.00 | 1.51 | 0.00 | 0.94 | -16.13 | 61.45 | -29.48 | 128.88 | 0.6095 | -705.0 | -608.6 | |
| 0.00 | 1.78 | 0.00 | 1.11 | -16.25 | 61.21 | -29.72 | 128.81 | 0.6130 | -583.0 | -417.5 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -16.57 | 60.83 | -30.10 | 128.87 | 0.6197 | -552.0 | -570.0 | |
| 0.00 | 1.16 | 0.00 | 0.74 | -17.85 | 60.45 | -30.48 | 130.17 | 0.6341 | -648.0 | -525.5 | |
| 0.00 | 1.69 | 0.00 | 1.10 | -18.44 | 59.48 | -31.45 | 130.04 | 0.6488 | -788.0 | -583.3 | |
| 0.00 | 1.42 | 0.00 | 0.93 | -18.07 | 59.14 | -31.79 | 129.28 | 0.6493 | -731.0 | -614.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
