Sunspot Group 12158

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

12158	238.88	1228.21	119.97	616.81	15.97	87.63	-2.75	6.31	0.1614	460.5	215.9

previous or next observation for the same group / back to the solar disc

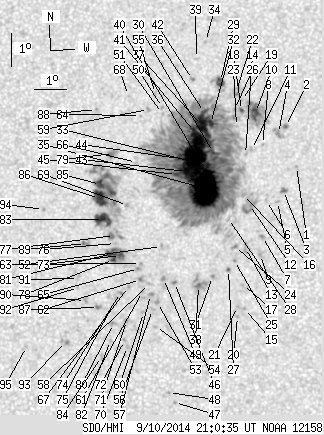

SDO HMI 2014-09-10 21:00:35 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	0.80	0.00	0.40	16.32	91.01	0.63	356.15	0.1587	1027.0	915.6
2	0.53	2.58	0.27	1.30	17.55	90.67	0.29	358.45	0.1796	1159.7	867.4
3	0.80	3.29	0.40	1.65	15.59	90.60	0.22	358.52	0.1457	1034.8	767.4
4	0.00	7.21	0.00	3.63	17.33	90.45	0.07	359.63	0.1758	1175.0	787.6
5	0.00	1.42	0.00	0.71	15.25	90.41	0.03	359.77	0.1399	-750.0	-524.6
6	0.00	1.34	0.00	0.67	15.28	90.07	-0.31	2.14	0.1405	-605.0	-278.1
7	0.00	2.23	0.00	1.11	14.19	89.94	-0.43	3.48	0.1216	-817.0	-663.8
8	0.00	1.25	0.00	0.63	16.99	89.94	-0.44	2.47	0.1702	-701.0	-543.0
9	0.00	5.07	0.00	2.53	13.64	89.88	-0.50	4.32	0.1121	-894.0	-614.4
10	8.37	42.38	4.22	21.37	17.98	89.72	-0.66	3.37	0.1873	1175.1	477.6
11	0.00	1.60	0.00	0.81	16.84	89.59	-0.78	4.49	0.1679	-724.0	-412.6
12	0.00	17.98	0.00	9.00	15.16	89.54	-0.84	5.88	0.1390	-113.0	-148.2
13	0.00	4.18	0.00	2.09	13.86	89.41	-0.96	8.07	0.1167	-743.0	-735.0
14	0.00	1.25	0.00	0.63	16.69	89.41	-0.97	5.66	0.1655	830.0	597.9
15	0.00	0.89	0.00	0.44	12.01	89.39	-0.99	11.50	0.0850	-906.0	-711.0
16	0.00	2.76	0.00	1.38	15.47	89.35	-1.03	6.91	0.1446	248.0	275.9
17	0.00	1.25	0.00	0.62	12.73	89.33	-1.05	10.62	0.0976	-824.0	-676.8
18	0.89	-10.00	0.45	-10.00	18.04	89.27	-1.10	5.59	0.1889	1040.6	999999
19	0.00	0.80	0.00	0.40	18.34	89.27	-1.11	5.44	0.1942	521.0	437.9
20	0.00	1.07	0.00	0.53	11.76	89.17	-1.20	14.64	0.0817	-930.0	-722.5
21	0.00	1.25	0.00	0.62	12.07	89.17	-1.20	13.76	0.0868	-1022.0	-817.2
22	0.00	6.32	0.00	3.20	18.65	89.11	-1.27	6.05	0.1997	379.0	491.7
23	0.00	0.62	0.00	0.31	17.55	89.12	-1.26	6.69	0.1808	618.0	486.9
24	0.00	2.31	0.00	1.15	13.89	89.07	-1.30	10.83	0.1182	-981.0	-846.8
25	0.00	1.16	0.00	0.58	13.46	89.07	-1.30	11.55	0.1109	-1008.0	-797.3
26	0.00	1.34	0.00	0.67	18.07	89.05	-1.33	6.69	0.1898	988.0	811.1
27	0.53	1.42	0.27	0.71	13.19	88.89	-1.49	13.73	0.1070	-991.7	-827.0
28	0.00	2.40	0.00	1.20	14.74	88.88	-1.50	10.96	0.1333	196.0	103.7
29	4.54	13.00	2.30	6.58	18.93	88.60	-1.78	8.25	0.2055	914.5	683.5
30	0.98	850.36	0.49	427.19	16.75	88.40	-1.98	11.34	0.1691	872.0	458.3
31	0.00	1.25	0.00	0.62	12.97	88.40	-1.98	18.66	0.1058	-1042.0	-888.5
32	2.76	-30.00	1.39	-30.00	17.64	88.29	-2.08	10.88	0.1845	1095.2	999999
33	2.49	-30.00	1.25	-30.00	16.35	88.21	-2.17	12.91	0.1631	1270.7	999999
34	0.00	1.25	0.00	0.63	20.16	88.10	-2.27	9.46	0.2276	767.0	589.9
35	79.77	-30.00	39.98	-30.00	15.65	88.12	-2.25	14.52	0.1516	1746.3	999999
36	0.27	-30.00	0.13	-30.00	17.97	88.10	-2.28	11.48	0.1908	857.3	999999
37	18.88	-30.00	9.51	-30.00	17.57	88.04	-2.34	12.23	0.1843	1126.8	999999
38	0.62	16.03	0.31	7.98	12.70	87.96	-2.41	23.37	0.1040	-1277.6	-778.8
39	0.00	1.07	0.00	0.54	19.63	87.82	-2.55	11.07	0.2196	706.0	391.4
40	58.41	-30.00	29.36	-30.00	16.72	87.83	-2.55	14.51	0.1707	1445.4	999999
41	4.10	-30.00	2.06	-30.00	17.39	87.79	-2.59	13.75	0.1821	1104.7	999999
42	0.00	1.87	0.00	0.95	18.99	87.70	-2.67	12.23	0.2092	1010.0	727.0
43	10.95	-30.00	5.50	-30.00	16.16	87.55	-2.82	16.97	0.1629	1254.8	999999
44	0.27	-30.00	0.13	-30.00	16.56	87.33	-3.05	17.48	0.1705	1110.7	999999
45	1.69	-30.00	0.85	-30.00	16.07	87.24	-3.14	18.91	0.1630	988.8	999999
46	0.00	1.69	0.00	0.84	12.79	87.22	-3.16	29.06	0.1111	-1117.0	-991.3
47	0.00	1.16	0.00	0.57	9.16	87.25	-3.12	58.11	0.0636	-947.0	-768.1
48	0.00	1.16	0.00	0.57	9.46	87.07	-3.31	55.78	0.0692	-866.0	-692.2
49	0.00	2.05	0.00	1.02	12.91	86.88	-3.50	31.07	0.1158	-1170.0	-927.8
50	0.00	1.42	0.00	0.72	18.12	86.76	-3.61	17.61	0.1990	769.0	555.9
51	0.00	1.25	0.00	0.63	17.94	86.77	-3.61	17.89	0.1959	747.0	569.9
52	0.00	1.69	0.00	0.85	13.88	86.80	-3.57	27.64	0.1311	-596.0	-448.3
53	0.00	1.87	0.00	0.93	12.18	86.70	-3.68	36.04	0.1070	-983.0	-862.0
54	0.00	1.60	0.00	0.80	11.45	86.65	-3.73	40.94	0.0977	-1007.0	-700.5
55	0.00	1.87	0.00	0.95	18.55	86.53	-3.85	17.96	0.2071	779.0	520.1
56	0.00	1.87	0.00	0.93	11.96	86.55	-3.83	38.39	0.1056	-922.0	-851.9
57	0.00	2.23	0.00	1.11	12.42	86.48	-3.90	36.30	0.1126	-1037.0	-905.8
58	0.00	1.42	0.00	0.71	12.75	86.45	-3.93	34.82	0.1176	-812.0	-615.8
59	0.00	2.23	0.00	1.13	18.06	86.32	-4.06	19.72	0.2003	845.0	662.8
60	0.00	1.60	0.00	0.80	11.87	86.27	-4.10	40.90	0.1075	-755.0	-672.6
61	0.00	1.42	0.00	0.71	12.51	86.23	-4.14	37.51	0.1164	-927.0	-739.0
62	0.00	2.67	0.00	1.33	12.87	86.16	-4.21	36.09	0.1221	-1237.0	-1002.9
63	0.00	1.07	0.00	0.53	13.36	86.16	-4.22	33.87	0.1290	-897.0	-793.1
64	0.00	1.07	0.00	0.54	17.87	86.07	-4.31	21.17	0.1988	768.0	544.2
65	0.00	1.51	0.00	0.76	13.20	86.10	-4.28	34.93	0.1275	-1183.0	-992.4
66	0.00	1.69	0.00	0.85	16.43	85.97	-4.40	24.74	0.1768	655.0	417.7
67	0.00	1.07	0.00	0.53	12.66	85.80	-4.58	39.49	0.1231	-1058.0	-897.2
68	0.00	0.71	0.00	0.36	18.48	85.67	-4.71	21.74	0.2110	-541.0	-417.8
69	0.00	2.67	0.00	1.34	15.11	85.72	-4.66	29.74	0.1587	-45.0	-74.5
70	0.00	1.96	0.00	0.98	10.84	85.79	-4.58	51.26	0.1011	-866.0	-780.4
71	0.00	1.34	0.00	0.67	11.63	85.75	-4.63	45.86	0.1106	-1162.0	-964.0
72	0.00	1.16	0.00	0.58	11.02	85.70	-4.68	50.44	0.1043	-1076.0	-845.2
73	3.12	25.11	1.56	12.56	13.59	85.53	-4.85	36.52	0.1386	-1205.8	-786.2
74	0.00	1.78	0.00	0.89	12.47	85.55	-4.83	41.94	0.1235	-1132.0	-948.8
75	0.00	1.07	0.00	0.53	12.32	85.43	-4.95	43.50	0.1230	-942.0	-773.8
76	0.00	0.98	0.00	0.49	13.96	85.37	-5.01	35.87	0.1453	-1004.0	-735.5
77	0.00	9.79	0.00	4.91	14.20	85.33	-5.05	35.08	0.1490	-995.0	-886.2
78	2.14	-73.00	1.07	-73.00	13.47	85.32	-5.06	38.27	0.1392	-1044.0	999999
79	0.00	6.14	0.00	3.10	16.70	85.24	-5.14	27.52	0.1864	-90.0	-235.7
80	0.00	2.94	0.00	1.47	11.53	85.35	-5.03	48.82	0.1146	-1071.0	-872.2
81	5.97	-73.00	2.99	-73.00	13.65	85.28	-5.10	37.64	0.1420	-1216.3	999999
82	0.00	1.16	0.00	0.58	11.02	85.27	-5.11	52.89	0.1101	-892.0	-705.9
83	12.20	112.63	6.12	56.60	14.68	84.98	-5.40	35.04	0.1593	-1211.0	-469.9
84	0.00	2.58	0.00	1.29	10.53	85.00	-5.38	57.95	0.1093	-897.0	-708.6
85	6.05	-83.00	3.05	-83.00	15.75	84.86	-5.52	31.99	0.1756	-1192.3	999999
86	12.55	-83.00	6.31	-83.00	15.32	84.84	-5.54	33.46	0.1697	-1237.9	999999
87	0.00	2.76	0.00	1.38	12.01	84.88	-5.50	48.30	0.1261	-1077.0	-876.9
88	0.00	0.80	0.00	0.41	18.04	84.66	-5.71	26.75	0.2112	848.0	733.8
89	0.00	4.54	0.00	2.28	13.95	84.43	-5.95	40.62	0.1551	-1069.0	-896.3
90	0.00	2.40	0.00	1.20	12.22	84.47	-5.91	49.07	0.1337	-910.0	-793.8
91	0.00	2.67	0.00	1.34	12.88	84.24	-6.14	46.54	0.1443	-645.0	-580.9
92	0.00	0.45	0.00	0.22	12.61	84.24	-6.13	47.94	0.1411	-390.0	-325.4
93	0.00	3.56	0.00	1.78	10.97	83.88	-6.50	59.43	0.1297	-851.0	-774.7
94	0.00	1.42	0.00	0.72	14.96	83.08	-7.29	42.22	0.1833	-864.0	-715.5
95	0.00	0.98	0.00	0.49	10.80	82.67	-7.70	64.42	0.1466	-843.0	-702.5

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
