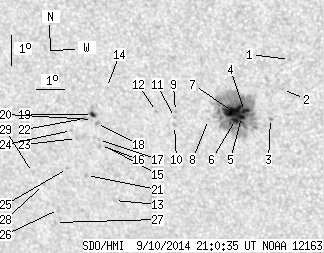

SDO HMI 2014-09-10 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.23 | 186.79 | 16.70 | 111.04 | -15.89 | 65.92 | -24.45 | 133.91 | 0.5538 | 271.3 | 291.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-10 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.61 | -13.84 | 68.79 | -21.58 | 134.52 | 0.5029 | 713.0 | 534.4 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -14.82 | 68.46 | -21.92 | 135.48 | 0.5168 | 834.0 | 579.7 | |
| 0.00 | 1.42 | 0.00 | 0.83 | -15.80 | 67.94 | -22.44 | 136.15 | 0.5322 | 660.0 | 503.1 | |
| 3.74 | 152.78 | 2.20 | 90.00 | -15.61 | 67.08 | -23.30 | 134.82 | 0.5392 | 1287.0 | 441.5 | |
| 2.85 | -4.00 | 1.68 | -4.00 | -15.78 | 66.95 | -23.42 | 134.90 | 0.5422 | 1128.8 | 999999 | |
| 4.81 | -4.00 | 2.84 | -4.00 | -15.89 | 66.73 | -23.64 | 134.79 | 0.5456 | 905.1 | 999999 | |
| 14.69 | -4.00 | 8.66 | -4.00 | -15.63 | 66.66 | -23.71 | 134.35 | 0.5437 | 1177.1 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -15.94 | 65.80 | -24.58 | 133.75 | 0.5558 | -178.0 | -128.7 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -15.74 | 64.68 | -25.70 | 132.21 | 0.5656 | 628.0 | 601.7 | |
| 0.00 | 1.69 | 0.00 | 1.02 | -16.20 | 64.58 | -25.80 | 132.73 | 0.5710 | 754.0 | 448.9 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -15.94 | 64.62 | -25.76 | 132.41 | 0.5682 | 734.0 | 531.8 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -15.78 | 64.01 | -26.37 | 131.54 | 0.5731 | 593.0 | 477.2 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -18.84 | 62.01 | -28.36 | 133.42 | 0.6213 | 196.0 | 195.2 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -15.10 | 62.35 | -28.03 | 128.89 | 0.5851 | -608.0 | -429.8 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -17.05 | 62.01 | -28.37 | 131.15 | 0.6056 | -668.0 | -538.1 | |
| 0.00 | 1.25 | 0.00 | 0.78 | -17.03 | 61.83 | -28.55 | 130.95 | 0.6072 | -608.0 | -548.7 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -16.83 | 61.79 | -28.59 | 130.66 | 0.6059 | -627.0 | -643.2 | |
| 0.00 | 1.69 | 0.00 | 1.05 | -16.31 | 61.81 | -28.57 | 129.98 | 0.6013 | -766.0 | -645.7 | |
| 2.14 | 6.05 | 1.32 | 3.74 | -16.02 | 61.71 | -28.67 | 129.50 | 0.5998 | -923.7 | -471.7 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -16.18 | 61.68 | -28.69 | 129.70 | 0.6015 | -609.0 | -616.8 | |
| 0.00 | 1.51 | 0.00 | 0.96 | -18.07 | 61.14 | -29.24 | 131.60 | 0.6233 | -811.0 | -629.9 | |
| 0.00 | 3.21 | 0.00 | 1.99 | -16.17 | 61.40 | -28.98 | 129.40 | 0.6045 | -778.0 | -618.8 | |
| 0.00 | 1.07 | 0.00 | 0.67 | -16.85 | 60.99 | -29.38 | 129.91 | 0.6145 | -659.0 | -562.5 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -16.60 | 60.86 | -29.52 | 129.45 | 0.6138 | -701.0 | -517.5 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -17.88 | 60.48 | -29.90 | 130.74 | 0.6284 | -761.0 | -560.6 | |
| 0.00 | 1.96 | 0.00 | 1.27 | -19.28 | 59.87 | -30.51 | 131.92 | 0.6463 | -598.0 | -455.0 | |
| 0.00 | 1.25 | 0.00 | 0.81 | -19.74 | 59.66 | -30.72 | 132.28 | 0.6521 | -557.0 | -538.2 | |
| 0.00 | 1.16 | 0.00 | 0.75 | -18.47 | 59.48 | -30.90 | 130.57 | 0.6435 | -789.0 | -669.2 | |
| 0.00 | 0.89 | 0.00 | 0.57 | -18.10 | 59.15 | -31.23 | 129.81 | 0.6439 | -625.0 | -583.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
