SDO HMI 2014-09-10 21:44:05 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.93 | 33.47 | 10.34 | 30.07 | 9.71 | 147.09 | 57.11 | 276.86 | 0.8353 | 338.6 | -108.8 | |
|
previous
or next observation for the same group /

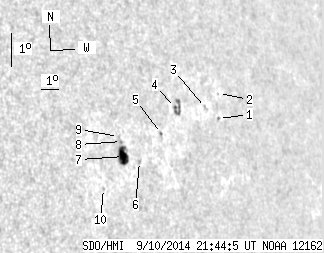

back to the solar disc SDO HMI 2014-09-10 21:44:05 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 1.17 | 9.85 | 151.30 | 61.32 | 277.25 | 0.8734 | -271.0 | -296.0 | |
| 0.00 | 0.53 | 0.00 | 0.54 | 10.59 | 151.55 | 61.57 | 278.11 | 0.8751 | -454.0 | -371.5 | |
| 0.00 | 1.78 | 0.00 | 1.76 | 10.26 | 150.61 | 60.63 | 277.69 | 0.8673 | -508.0 | -406.5 | |
| 0.62 | 7.92 | 0.58 | 7.47 | 10.46 | 148.82 | 58.85 | 277.83 | 0.8516 | -630.4 | -437.8 | |
| 0.00 | 1.42 | 0.00 | 1.30 | 9.77 | 147.80 | 57.82 | 276.98 | 0.8425 | -655.0 | -537.2 | |
| 0.00 | 1.78 | 0.00 | 1.57 | 9.07 | 146.37 | 56.39 | 276.06 | 0.8292 | 397.0 | 272.0 | |
| 11.31 | 15.40 | 9.76 | 13.29 | 9.31 | 145.55 | 55.57 | 276.31 | 0.8211 | 679.6 | 330.8 | |
| 0.00 | 1.34 | 0.00 | 1.15 | 9.76 | 145.55 | 55.57 | 276.87 | 0.8209 | 484.0 | 431.7 | |
| 0.00 | 1.07 | 0.00 | 0.92 | 9.93 | 145.43 | 55.45 | 277.06 | 0.8197 | 543.0 | 426.0 | |
| 0.00 | 1.07 | 0.00 | 0.90 | 8.46 | 144.28 | 54.31 | 275.20 | 0.8088 | 407.0 | 381.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
