SDO HMI 2014-09-11 01:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 208.16 | 1131.93 | 112.48 | 611.53 | -14.19 | 96.85 | 8.67 | 201.58 | 0.3995 | 18.2 | -15.2 | |
|
previous
or next observation for the same group /

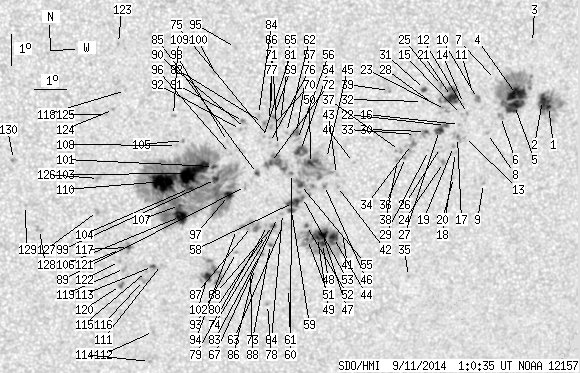

back to the solar disc SDO HMI 2014-09-11 01:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.78 | 48.63 | 0.98 | 26.77 | -12.21 | 105.28 | 17.11 | 221.27 | 0.4378 | 984.6 | 417.0 | |
| 5.70 | -1.00 | 3.13 | -1.00 | -12.01 | 105.08 | 16.90 | 221.23 | 0.4333 | 1111.8 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -10.15 | 104.65 | 16.48 | 223.52 | 0.4071 | 843.0 | 602.0 | |
| 16.21 | 97.98 | 8.85 | 53.43 | -11.78 | 104.23 | 16.05 | 220.11 | 0.4220 | 1186.9 | 623.6 | |
| 14.25 | -4.00 | 7.80 | -4.00 | -12.13 | 104.18 | 16.01 | 219.50 | 0.4258 | 868.3 | 999999 | |
| 0.00 | 3.30 | 0.00 | 1.80 | -12.47 | 103.75 | 15.58 | 218.23 | 0.4256 | 813.0 | 722.3 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -11.28 | 103.52 | 15.35 | 219.64 | 0.4088 | 188.0 | 179.9 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -13.00 | 103.37 | 15.20 | 216.76 | 0.4286 | 714.0 | 444.2 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -14.61 | 103.35 | 15.17 | 214.52 | 0.4488 | 664.0 | 582.1 | |
| 0.00 | 4.36 | 0.00 | 2.37 | -11.86 | 102.98 | 14.81 | 217.72 | 0.4106 | 1050.0 | 855.6 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -11.63 | 102.81 | 14.64 | 217.74 | 0.4061 | 303.0 | 336.6 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -12.33 | 102.69 | 14.52 | 216.47 | 0.4138 | 882.0 | 754.1 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -13.10 | 102.64 | 14.47 | 215.27 | 0.4231 | 635.0 | 638.8 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -12.01 | 102.54 | 14.37 | 216.67 | 0.4083 | 721.0 | 636.2 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -12.36 | 102.50 | 14.33 | 216.07 | 0.4123 | 847.0 | 697.8 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -12.68 | 102.45 | 14.28 | 215.52 | 0.4160 | 780.0 | 601.4 | |
| 0.00 | 5.17 | 0.00 | 2.82 | -13.09 | 102.41 | 14.24 | 214.86 | 0.4210 | 1043.0 | 794.2 | |
| 0.00 | 1.60 | 0.00 | 0.88 | -13.58 | 102.38 | 14.21 | 214.13 | 0.4269 | 684.0 | 491.8 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -13.38 | 102.30 | 14.13 | 214.26 | 0.4237 | 840.0 | 729.4 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -14.38 | 102.36 | 14.19 | 213.04 | 0.4373 | 594.0 | 442.8 | |
| 12.56 | 24.32 | 6.79 | 13.14 | -11.77 | 102.15 | 13.98 | 216.26 | 0.4015 | 1097.4 | 832.6 | |
| 1.07 | 9.44 | 0.58 | 5.13 | -12.69 | 102.01 | 13.84 | 214.64 | 0.4121 | 997.2 | 683.0 | |
| 0.00 | 4.28 | 0.00 | 2.31 | -12.18 | 101.98 | 13.81 | 215.32 | 0.4052 | 798.0 | 668.6 | |
| 0.00 | 2.05 | 0.00 | 1.12 | -13.89 | 102.01 | 13.84 | 213.03 | 0.4278 | 767.0 | 694.3 | |
| 0.00 | 2.76 | 0.00 | 1.49 | -11.41 | 101.81 | 13.64 | 216.14 | 0.3937 | 902.0 | 715.4 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -13.40 | 101.89 | 13.72 | 213.44 | 0.4203 | 797.0 | 550.9 | |
| 4.45 | -22.00 | 2.42 | -22.00 | -12.85 | 101.82 | 13.65 | 214.07 | 0.4125 | 899.4 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -11.98 | 101.56 | 13.38 | 214.78 | 0.3987 | 672.0 | 568.7 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -13.48 | 101.51 | 13.34 | 212.60 | 0.4182 | 673.0 | 488.6 | |
| 0.89 | 4.72 | 0.48 | 2.56 | -12.87 | 101.38 | 13.21 | 213.17 | 0.4089 | 998.5 | 843.1 | |
| 1.43 | 2.58 | 0.77 | 1.39 | -11.52 | 101.28 | 13.11 | 214.89 | 0.3902 | 975.2 | 777.9 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -11.90 | 101.24 | 13.06 | 214.24 | 0.3948 | 701.0 | 763.5 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -12.95 | 101.07 | 12.89 | 212.42 | 0.4073 | 822.0 | 699.4 | |
| 0.00 | 10.06 | 0.00 | 5.46 | -13.27 | 100.96 | 12.78 | 211.78 | 0.4107 | 650.0 | 637.5 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -17.60 | 101.13 | 12.96 | 207.12 | 0.4707 | -710.0 | -589.5 | |
| 0.00 | 1.87 | 0.00 | 1.02 | -13.69 | 100.79 | 12.61 | 210.91 | 0.4149 | 630.0 | 473.9 | |
| 0.00 | 3.56 | 0.00 | 1.93 | -13.45 | 100.58 | 12.41 | 210.79 | 0.4101 | 580.0 | 646.5 | |
| 0.00 | 1.60 | 0.00 | 0.87 | -13.78 | 100.54 | 12.37 | 210.29 | 0.4141 | 645.0 | 528.4 | |
| 0.00 | 1.78 | 0.00 | 0.95 | -11.52 | 100.18 | 12.00 | 212.56 | 0.3803 | -662.0 | -591.2 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -13.80 | 99.14 | 10.97 | 207.36 | 0.4038 | -598.0 | -510.8 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -16.11 | 98.91 | 10.74 | 204.40 | 0.4350 | 532.0 | 387.3 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -14.57 | 98.67 | 10.50 | 205.50 | 0.4114 | 843.0 | 797.9 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -14.18 | 98.62 | 10.45 | 205.82 | 0.4054 | 582.0 | 489.3 | |
| 8.02 | 88.27 | 4.41 | 48.51 | -16.23 | 98.63 | 10.45 | 203.72 | 0.4350 | 912.3 | 419.4 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -13.65 | 98.28 | 10.11 | 205.67 | 0.3955 | -276.0 | -281.1 | |
| 0.00 | 2.58 | 0.00 | 1.40 | -14.52 | 98.26 | 10.08 | 204.66 | 0.4080 | 996.0 | 830.1 | |
| 5.88 | -44.00 | 3.22 | -44.00 | -16.13 | 98.27 | 10.10 | 203.09 | 0.4312 | 1214.1 | 999999 | |
| 2.67 | -44.00 | 1.47 | -44.00 | -16.42 | 98.28 | 10.11 | 202.85 | 0.4356 | 862.8 | 999999 | |
| 1.25 | -44.00 | 0.68 | -44.00 | -16.22 | 98.11 | 9.94 | 202.69 | 0.4316 | 1025.7 | 999999 | |
| 2.85 | 102.43 | 1.54 | 55.30 | -13.80 | 97.78 | 9.61 | 204.39 | 0.3943 | -740.5 | 79.6 | |
| 0.80 | -44.00 | 0.44 | -44.00 | -16.28 | 97.80 | 9.63 | 201.98 | 0.4306 | 809.7 | 999999 | |
| 0.71 | 1.87 | 0.39 | 1.02 | -15.82 | 97.74 | 9.57 | 202.29 | 0.4235 | 923.0 | 662.2 | |
| 0.71 | -50.00 | 0.39 | -50.00 | -14.90 | 97.58 | 9.40 | 202.81 | 0.4091 | 914.6 | 999999 | |
| 6.06 | -50.00 | 3.25 | -50.00 | -13.37 | 97.45 | 9.28 | 204.10 | 0.3858 | -935.3 | 999999 | |
| 1.96 | -50.00 | 1.06 | -50.00 | -14.47 | 97.49 | 9.32 | 203.05 | 0.4023 | 1000.1 | 999999 | |
| 0.00 | 2.23 | 0.00 | 1.19 | -13.02 | 97.34 | 9.17 | 204.24 | 0.3799 | -830.0 | -674.8 | |
| 1.78 | 5.52 | 0.95 | 2.95 | -12.79 | 97.30 | 9.13 | 204.40 | 0.3763 | -1038.8 | -851.0 | |
| 6.68 | -50.00 | 3.62 | -50.00 | -15.06 | 97.30 | 9.13 | 202.05 | 0.4097 | 964.1 | 999999 | |
| 2.05 | -50.00 | 1.11 | -50.00 | -15.32 | 97.25 | 9.07 | 201.70 | 0.4132 | 833.2 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -14.11 | 97.20 | 9.02 | 202.75 | 0.3951 | 934.0 | 744.6 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -17.89 | 97.27 | 9.10 | 199.57 | 0.4513 | 443.0 | 444.5 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -12.78 | 96.99 | 8.82 | 203.66 | 0.3741 | -862.0 | -655.4 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -15.74 | 97.01 | 8.84 | 200.81 | 0.4181 | 836.0 | 631.1 | |
| 0.00 | 1.60 | 0.00 | 0.87 | -15.41 | 96.96 | 8.79 | 201.00 | 0.4130 | 771.0 | 598.1 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -12.43 | 96.79 | 8.62 | 203.58 | 0.3675 | -812.0 | -663.7 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -13.19 | 96.72 | 8.55 | 202.58 | 0.3786 | -930.0 | -794.7 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -15.54 | 96.81 | 8.64 | 200.55 | 0.4140 | 761.0 | 683.8 | |
| 0.89 | 2.23 | 0.49 | 1.21 | -15.79 | 96.70 | 8.52 | 200.08 | 0.4172 | 1113.0 | 959.4 | |
| 0.36 | 2.76 | 0.19 | 1.47 | -12.26 | 96.57 | 8.40 | 203.21 | 0.3636 | -975.2 | -775.4 | |
| 0.00 | 1.96 | 0.00 | 1.04 | -12.58 | 96.51 | 8.34 | 202.73 | 0.3681 | -951.0 | -771.2 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -11.91 | 96.49 | 8.32 | 203.42 | 0.3579 | -812.0 | -701.9 | |
| 1.34 | 23.25 | 0.72 | 12.48 | -13.74 | 96.52 | 8.35 | 201.56 | 0.3855 | 825.3 | 566.8 | |
| 0.53 | 1.78 | 0.29 | 0.97 | -16.42 | 96.63 | 8.45 | 199.41 | 0.4261 | 711.2 | 507.3 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -16.02 | 96.58 | 8.41 | 199.63 | 0.4200 | 863.0 | 732.5 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -12.93 | 96.46 | 8.29 | 202.23 | 0.3731 | -831.0 | -693.5 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -13.09 | 96.47 | 8.30 | 202.08 | 0.3755 | -725.0 | -559.3 | |
| 0.00 | 1.51 | 0.00 | 0.81 | -12.39 | 96.45 | 8.27 | 202.77 | 0.3647 | -1018.0 | -777.1 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -18.41 | 96.62 | 8.45 | 197.89 | 0.4557 | -851.0 | -718.1 | |
| 0.00 | 1.69 | 0.00 | 0.92 | -15.79 | 96.50 | 8.33 | 199.67 | 0.4161 | 646.0 | 683.8 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -16.12 | 96.45 | 8.28 | 199.29 | 0.4208 | 674.0 | 536.4 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -12.90 | 96.27 | 8.10 | 201.81 | 0.3714 | -825.0 | -709.4 | |
| 0.00 | 0.53 | 0.00 | 0.28 | -12.45 | 96.23 | 8.06 | 202.17 | 0.3643 | -714.0 | -828.7 | |
| 0.00 | 3.74 | 0.00 | 2.05 | -16.71 | 96.32 | 8.15 | 198.53 | 0.4289 | 883.0 | 626.8 | |
| 0.00 | 1.60 | 0.00 | 0.85 | -12.19 | 96.10 | 7.93 | 202.11 | 0.3596 | -717.0 | -552.5 | |
| 1.07 | 2.76 | 0.57 | 1.48 | -14.09 | 96.13 | 7.95 | 200.30 | 0.3885 | 715.8 | 610.2 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -17.20 | 96.15 | 7.98 | 197.80 | 0.4355 | 449.0 | 272.3 | |
| 0.00 | 13.72 | 0.00 | 7.46 | -15.81 | 96.00 | 7.83 | 198.54 | 0.4139 | 736.0 | 802.1 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -17.37 | 96.03 | 7.86 | 197.43 | 0.4373 | 452.0 | 297.5 | |
| 0.00 | 2.32 | 0.00 | 1.25 | -14.50 | 95.76 | 7.59 | 199.09 | 0.3928 | 505.0 | 463.9 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -12.63 | 95.70 | 7.53 | 200.67 | 0.3640 | -799.0 | -579.0 | |
| 0.00 | 2.49 | 0.00 | 1.32 | -12.40 | 95.64 | 7.46 | 200.72 | 0.3601 | -1022.0 | -860.8 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -12.66 | 95.55 | 7.38 | 200.25 | 0.3635 | -908.0 | -705.7 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -16.66 | 95.55 | 7.38 | 196.93 | 0.4245 | 611.0 | 414.6 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -15.90 | 95.53 | 7.36 | 197.43 | 0.4129 | 752.0 | 557.1 | |
| 0.00 | 1.34 | 0.00 | 0.70 | -10.04 | 95.33 | 7.16 | 202.49 | 0.3222 | -759.0 | -641.1 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -13.42 | 95.26 | 7.09 | 198.81 | 0.3737 | -577.0 | -543.5 | |
| 5.52 | 509.12 | 2.97 | 272.95 | -14.79 | 95.24 | 7.07 | 197.62 | 0.3945 | 794.1 | -335.6 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -13.04 | 95.15 | 6.98 | 198.90 | 0.3672 | -852.0 | -661.8 | |
| 3.38 | -97.00 | 1.81 | -97.00 | -14.26 | 94.81 | 6.64 | 197.03 | 0.3843 | -1021.5 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -10.82 | 94.73 | 6.56 | 199.92 | 0.3307 | -858.0 | -639.6 | |
| 1.51 | -97.00 | 0.81 | -97.00 | -13.84 | 94.74 | 6.57 | 197.18 | 0.3775 | -788.2 | 999999 | |
| 4.81 | 32.60 | 2.64 | 17.88 | -17.44 | 94.66 | 6.49 | 194.50 | 0.4326 | -1021.6 | -658.8 | |
| 37.05 | -97.00 | 19.81 | -97.00 | -14.05 | 94.09 | 5.92 | 195.41 | 0.3779 | -1253.1 | 999999 | |
| 3.30 | -97.00 | 1.77 | -97.00 | -14.54 | 94.01 | 5.83 | 194.87 | 0.3851 | -810.8 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.71 | -12.98 | 93.78 | 5.61 | 195.42 | 0.3598 | -1086.0 | -856.2 | |
| 11.76 | -97.00 | 6.34 | -97.00 | -15.45 | 93.75 | 5.57 | 193.66 | 0.3983 | 1005.5 | 999999 | |
| 0.27 | -97.00 | 0.14 | -97.00 | -15.09 | 93.71 | 5.53 | 193.78 | 0.3925 | -519.7 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.66 | -13.14 | 93.57 | 5.40 | 194.74 | 0.3614 | -870.0 | -636.1 | |
| 0.00 | 1.78 | 0.00 | 0.94 | -12.18 | 93.45 | 5.28 | 195.16 | 0.3456 | -866.0 | -726.0 | |
| 34.38 | -97.00 | 18.39 | -97.00 | -14.30 | 93.22 | 5.05 | 193.08 | 0.3783 | -1218.7 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -17.02 | 93.19 | 5.02 | 191.51 | 0.4209 | 555.0 | 282.4 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -19.26 | 92.99 | 4.82 | 190.09 | 0.4549 | -629.0 | -447.0 | |
| 1.07 | 2.40 | 0.58 | 1.31 | -17.08 | 92.90 | 4.73 | 190.84 | 0.4210 | 695.7 | 428.4 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -20.27 | 92.89 | 4.72 | 189.49 | 0.4702 | -601.0 | -515.7 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -17.25 | 92.72 | 4.55 | 190.35 | 0.4230 | -426.0 | -308.3 | |
| 0.00 | 4.45 | 0.00 | 2.44 | -17.54 | 92.63 | 4.46 | 190.03 | 0.4274 | -842.0 | -722.3 | |
| 1.16 | 6.32 | 0.63 | 3.43 | -16.45 | 92.13 | 3.96 | 189.36 | 0.4089 | -877.3 | -660.8 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -11.36 | 91.96 | 3.79 | 191.47 | 0.3269 | -806.0 | -631.1 | |
| 0.00 | 2.32 | 0.00 | 1.26 | -17.14 | 92.02 | 3.85 | 188.83 | 0.4195 | -716.0 | -620.9 | |
| 0.00 | 2.76 | 0.00 | 1.51 | -17.70 | 91.90 | 3.73 | 188.36 | 0.4281 | -826.0 | -785.9 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -16.51 | 91.88 | 3.71 | 188.75 | 0.4092 | -974.0 | -822.9 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -16.91 | 91.86 | 3.68 | 188.55 | 0.4154 | -832.0 | -650.1 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -9.87 | 91.73 | 3.55 | 191.73 | 0.3018 | -864.0 | -617.5 | |
| 0.00 | 1.16 | 0.00 | 0.61 | -11.96 | 91.59 | 3.42 | 190.07 | 0.3356 | -819.0 | -590.8 | |
| 0.00 | 1.25 | 0.00 | 0.66 | -12.12 | 91.38 | 3.21 | 189.37 | 0.3375 | -817.0 | -668.9 | |
| 0.00 | 2.67 | 0.00 | 1.42 | -14.18 | 91.16 | 2.98 | 187.87 | 0.3704 | -915.0 | -694.5 | |
| 0.00 | 3.21 | 0.00 | 1.72 | -15.25 | 91.14 | 2.97 | 187.43 | 0.3876 | -844.0 | -758.4 | |
| 0.00 | 3.92 | 0.00 | 2.11 | -15.83 | 89.32 | 1.15 | 182.83 | 0.3943 | -543.0 | -666.6 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -15.05 | 88.88 | 0.71 | 181.81 | 0.3813 | -763.0 | -535.4 | |
| 0.00 | 2.05 | 0.00 | 1.09 | -13.55 | 88.51 | 0.34 | 180.92 | 0.3568 | -889.0 | -756.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
