Sunspot Group 12158

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

12158	230.42	1195.42	115.63	599.61	15.98	87.61	-0.56	1.94	0.1545	461.0	237.2

previous or next observation for the same group / back to the solar disc

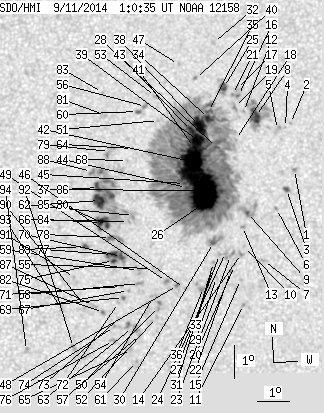

SDO HMI 2014-09-11 01:00:35 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	1.96	0.00	0.98	16.29	90.97	2.80	343.39	0.1647	986.0	795.0
2	0.00	1.07	0.00	0.54	17.70	90.87	2.70	346.12	0.1877	754.0	604.8
3	1.25	3.12	0.63	1.56	15.68	90.71	2.54	343.78	0.1534	1036.3	742.5
4	0.00	0.80	0.00	0.40	17.58	90.71	2.54	346.76	0.1850	685.0	549.4
5	0.00	3.56	0.00	1.80	17.52	90.45	2.28	347.98	0.1830	818.0	720.5
6	0.00	1.51	0.00	0.76	15.10	90.39	2.22	344.70	0.1423	-914.0	-709.1
7	0.00	1.51	0.00	0.75	13.53	89.97	1.80	344.40	0.1139	-866.0	-697.6
8	10.06	42.22	5.08	21.30	17.92	89.76	1.59	351.89	0.1878	1122.1	327.8
9	0.89	13.27	0.45	6.64	14.99	89.48	1.31	350.67	0.1370	-883.2	-192.7
10	0.00	0.80	0.00	0.40	13.95	89.38	1.21	350.03	0.1190	-699.0	-623.2
11	0.00	1.16	0.00	0.58	12.19	89.34	1.17	346.96	0.0888	-1051.0	-935.4
12	0.00	1.34	0.00	0.67	18.08	89.38	1.21	353.90	0.1897	894.0	731.1
13	0.00	1.78	0.00	0.89	14.56	89.32	1.15	351.30	0.1292	1034.0	759.5
14	0.00	2.40	0.00	1.20	13.74	89.29	1.12	350.49	0.1150	-749.0	-736.6
15	0.00	1.51	0.00	0.75	12.95	89.25	1.08	349.51	0.1014	-792.0	-595.6
16	0.00	0.80	0.00	0.41	18.57	89.23	1.05	354.92	0.1978	837.0	675.8
17	0.00	1.87	0.00	0.95	18.75	89.16	0.99	355.30	0.2009	623.0	442.0
18	0.00	1.43	0.00	0.72	17.22	89.12	0.95	354.77	0.1745	590.0	458.8
19	0.00	3.65	0.00	1.84	18.20	89.10	0.92	355.38	0.1913	925.0	751.9
20	0.00	1.16	0.00	0.58	13.38	89.07	0.90	351.87	0.1082	-861.0	-657.8
21	0.00	1.07	0.00	0.54	18.60	89.03	0.86	355.85	0.1981	874.0	782.2
22	0.00	1.43	0.00	0.71	13.20	88.94	0.77	352.78	0.1048	-1043.0	-818.9
23	0.00	3.92	0.00	1.95	13.68	88.95	0.77	353.31	0.1132	-979.0	-773.2
24	0.00	1.69	0.00	0.84	13.77	88.79	0.62	354.72	0.1145	-441.0	-485.6
25	3.83	11.31	1.94	5.72	18.82	88.75	0.58	357.27	0.2015	939.9	673.7
26	1.69	840.64	0.85	421.89	15.63	88.67	0.50	356.69	0.1465	1096.7	469.0
27	0.00	1.43	0.00	0.71	13.71	88.60	0.43	356.27	0.1132	-960.0	-735.8
28	1.51	-26.00	0.76	-26.00	16.97	88.52	0.35	358.02	0.1697	654.4	999999
29	0.00	0.98	0.00	0.49	13.01	88.51	0.34	356.73	0.1009	-939.0	-775.2
30	1.51	10.15	0.76	5.07	14.08	88.42	0.25	357.98	0.1194	-404.8	46.4
31	0.00	1.07	0.00	0.53	13.47	88.42	0.25	357.79	0.1088	-975.0	-742.6
32	0.00	1.78	0.00	0.91	20.21	88.43	0.26	358.90	0.2251	744.0	579.5
33	0.00	0.98	0.00	0.49	13.29	88.39	0.21	358.02	0.1056	-858.0	-498.8
34	4.45	-26.00	2.24	-26.00	17.86	88.27	0.10	359.49	0.1849	1004.1	999999
35	2.76	-26.00	1.39	-26.00	18.08	88.27	0.10	359.50	0.1886	817.0	999999
36	0.00	8.46	0.00	4.21	12.71	88.11	-0.07	0.67	0.0955	-1032.0	-856.8
37	80.88	-26.00	40.50	-26.00	15.66	88.08	-0.09	0.62	0.1468	1634.3	999999
38	16.30	-26.00	8.21	-26.00	17.65	87.98	-0.19	0.99	0.1812	1119.4	999999
39	15.14	-26.00	7.62	-26.00	17.19	87.92	-0.25	1.39	0.1733	1248.2	999999
40	0.00	1.60	0.00	0.81	19.09	87.86	-0.31	1.45	0.2061	821.0	601.8
41	2.23	-26.00	1.12	-26.00	16.97	87.83	-0.35	1.96	0.1697	1306.4	999999
42	42.40	-26.00	21.28	-26.00	16.55	87.73	-0.44	2.61	0.1623	1401.3	999999
43	4.01	-26.00	2.02	-26.00	17.50	87.73	-0.44	2.36	0.1787	1045.2	999999
44	0.89	-26.00	0.45	-26.00	15.75	87.58	-0.60	3.87	0.1488	987.6	999999
45	0.27	-26.00	0.13	-26.00	15.87	87.51	-0.66	4.22	0.1509	1082.3	999999
46	0.00	0.80	0.00	0.40	12.68	87.52	-0.65	6.71	0.0956	-823.0	-628.8
47	0.00	1.25	0.00	0.63	19.53	87.31	-0.86	3.81	0.2140	695.0	584.1
48	0.00	2.32	0.00	1.15	12.77	87.30	-0.87	8.75	0.0977	-1159.0	-961.4
49	0.00	2.58	0.00	1.29	12.89	86.96	-1.21	11.84	0.1008	-1177.0	-891.1
50	0.00	4.01	0.00	1.99	12.14	86.75	-1.42	15.94	0.0889	-715.0	-857.2
51	0.00	0.98	0.00	0.49	17.80	86.68	-1.49	7.69	0.1855	561.0	388.8
52	0.00	1.34	0.00	0.66	11.80	86.66	-1.52	18.08	0.0838	-923.0	-762.5
53	0.00	1.96	0.00	0.99	18.54	86.58	-1.59	7.65	0.1983	803.0	634.8
54	0.00	2.85	0.00	1.42	12.44	86.56	-1.61	16.90	0.0949	-911.0	-816.0
55	0.00	0.89	0.00	0.44	13.29	86.53	-1.65	14.90	0.1093	-801.0	-677.2
56	0.00	2.23	0.00	1.12	18.23	86.27	-1.90	9.40	0.1939	917.0	782.8
57	0.00	1.25	0.00	0.62	11.29	86.17	-2.01	26.00	0.0786	-972.0	-756.0
58	0.00	2.85	0.00	1.42	12.83	86.13	-2.05	19.70	0.1037	-1237.0	-957.5
59	0.00	3.74	0.00	1.86	13.23	86.09	-2.08	18.75	0.1104	-800.0	-785.1
60	0.71	2.32	0.36	1.17	18.08	86.02	-2.16	10.78	0.1920	952.4	736.2
61	0.00	1.07	0.00	0.53	10.47	86.05	-2.12	32.99	0.0672	-1042.0	-847.6
62	0.00	4.10	0.00	2.05	14.90	85.92	-2.25	15.91	0.1390	-14.0	-62.5
63	0.00	7.66	0.00	3.81	11.50	85.92	-2.25	27.49	0.0839	-654.0	-905.5
64	0.00	1.07	0.00	0.54	16.94	85.87	-2.30	12.86	0.1734	734.0	471.2
65	0.00	1.87	0.00	0.93	10.83	85.89	-2.28	32.02	0.0740	-823.0	-646.0
66	0.00	1.60	0.00	0.80	14.71	85.77	-2.40	17.35	0.1367	-676.0	-482.0
67	0.00	1.34	0.00	0.67	12.62	85.79	-2.38	23.47	0.1024	-984.0	-774.4
68	0.00	1.07	0.00	0.54	16.57	85.72	-2.45	14.22	0.1679	743.0	528.8
69	0.00	1.60	0.00	0.80	12.40	85.63	-2.54	25.70	0.1002	-1183.0	-955.7
70	2.58	21.11	1.29	10.53	13.65	85.56	-2.61	21.67	0.1205	-1189.0	-787.7
71	0.00	1.43	0.00	0.71	12.74	85.57	-2.60	24.85	0.1059	-784.0	-630.2
72	0.00	0.98	0.00	0.49	12.25	85.48	-2.69	27.75	0.0990	-922.0	-749.3
73	0.00	1.78	0.00	0.89	11.77	85.48	-2.69	30.22	0.0916	-867.0	-669.1
74	0.00	1.25	0.00	0.62	11.53	85.36	-2.81	32.76	0.0891	-1028.0	-816.3
75	1.69	-70.00	0.84	-70.00	13.53	85.31	-2.86	23.91	0.1202	-1028.8	999999
76	0.00	3.12	0.00	1.55	11.10	85.34	-2.84	35.83	0.0833	-911.0	-722.2
77	5.70	-70.00	2.85	-70.00	13.71	85.28	-2.89	23.54	0.1233	-1169.9	999999
78	1.60	8.82	0.80	4.41	14.22	85.21	-2.96	22.40	0.1320	-1019.0	-776.2
79	0.00	6.06	0.00	3.05	16.85	85.15	-3.03	16.86	0.1750	-161.0	-211.5
80	1.78	101.45	0.89	50.83	14.59	85.11	-3.06	22.00	0.1384	-1066.1	-422.5
81	0.00	0.98	0.00	0.49	17.95	85.00	-3.17	15.82	0.1939	-646.0	-348.5
82	0.00	1.78	0.00	0.89	11.95	85.02	-3.15	33.27	0.0985	-1063.0	-896.0
83	0.00	1.16	0.00	0.59	18.66	84.89	-3.28	15.31	0.2060	685.0	518.9
84	9.09	-80.00	4.55	-80.00	14.68	84.93	-3.25	22.95	0.1411	-1170.1	999999
85	11.67	-80.00	5.85	-80.00	15.35	84.85	-3.32	21.61	0.1523	-1213.2	999999
86	4.19	-80.00	2.10	-80.00	15.74	84.82	-3.36	20.87	0.1589	-1199.1	999999
87	0.00	3.12	0.00	1.55	12.16	84.71	-3.46	34.58	0.1045	-750.0	-669.0
88	0.00	2.58	0.00	1.30	16.23	84.59	-3.58	21.01	0.1681	-1055.0	-976.2
89	1.34	2.94	0.67	1.47	13.95	84.44	-3.73	28.44	0.1334	-1122.0	-875.2
90	0.00	1.60	0.00	0.80	12.13	84.46	-3.71	36.61	0.1066	-682.0	-614.8
91	0.00	1.16	0.00	0.58	13.00	84.11	-4.06	34.51	0.1224	-719.0	-589.8
92	0.00	2.85	0.00	1.42	10.88	84.11	-4.06	47.60	0.0947	-1003.0	-808.6
93	0.00	2.67	0.00	1.33	12.06	83.72	-4.45	42.07	0.1138	-726.0	-541.9
94	0.00	2.40	0.00	1.20	10.78	82.66	-5.51	56.69	0.1134	-759.0	-712.0

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
