SDO HMI 2014-09-11 01:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.05 | 67.00 | 3.42 | 38.92 | -21.86 | 77.73 | -10.44 | 162.07 | 0.5203 | 10.9 | 160.3 | |
|
previous
or next observation for the same group /

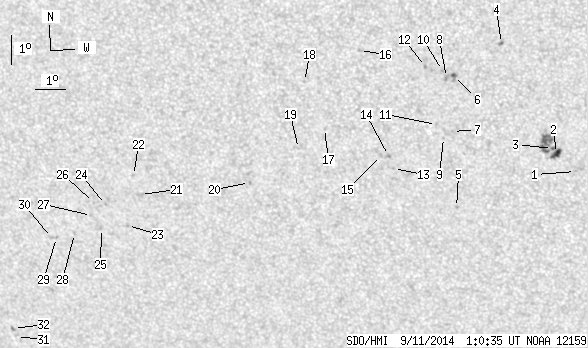

back to the solar disc SDO HMI 2014-09-11 01:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.30 | -22.08 | 84.34 | -3.83 | 172.80 | 0.4955 | 652.0 | 504.5 | |
| 4.54 | 25.74 | 2.57 | 14.56 | -21.46 | 83.74 | -4.43 | 171.48 | 0.4874 | 822.3 | 815.5 | |
| 0.62 | -2.00 | 0.35 | -2.00 | -21.29 | 83.62 | -4.55 | 171.19 | 0.4851 | 922.1 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.08 | -17.75 | 82.10 | -6.07 | 166.57 | 0.4357 | 920.0 | 723.6 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -23.38 | 80.37 | -7.80 | 166.23 | 0.5257 | 843.0 | 684.1 | |
| 0.89 | 4.10 | 0.50 | 2.28 | -18.85 | 80.51 | -7.66 | 163.97 | 0.4586 | -1016.6 | -694.4 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -20.75 | 80.39 | -7.78 | 164.87 | 0.4872 | 865.0 | 643.6 | |
| 0.00 | 2.67 | 0.00 | 1.49 | -18.92 | 80.29 | -7.89 | 163.56 | 0.4606 | -906.0 | -691.4 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -20.96 | 80.08 | -8.09 | 164.43 | 0.4916 | 570.0 | 518.3 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -18.68 | 80.17 | -8.00 | 163.18 | 0.4577 | -804.0 | -662.6 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -20.52 | 79.88 | -8.29 | 163.79 | 0.4860 | 644.0 | 567.1 | |
| 0.00 | 1.51 | 0.00 | 0.84 | -18.56 | 79.63 | -8.54 | 162.03 | 0.4583 | -972.0 | -799.0 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -22.06 | 78.37 | -9.80 | 162.08 | 0.5149 | 785.0 | 634.6 | |
| 0.00 | 1.43 | 0.00 | 0.82 | -21.61 | 78.24 | -9.94 | 161.56 | 0.5091 | 846.0 | 713.5 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -21.62 | 78.00 | -10.17 | 161.17 | 0.5103 | 772.0 | 652.7 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -18.07 | 77.53 | -10.64 | 157.58 | 0.4624 | -718.0 | -557.6 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -20.74 | 76.19 | -11.98 | 157.42 | 0.5076 | 647.0 | 446.7 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -19.16 | 75.66 | -12.51 | 155.16 | 0.4890 | 668.0 | 555.7 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -21.45 | 75.27 | -12.90 | 156.47 | 0.5227 | 648.0 | 585.9 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -22.68 | 73.50 | -14.67 | 154.74 | 0.5498 | 705.0 | 588.8 | |
| 0.00 | 3.47 | 0.00 | 2.11 | -23.24 | 69.70 | -18.47 | 149.87 | 0.5822 | -94.0 | -180.7 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -22.59 | 69.55 | -18.62 | 149.04 | 0.5754 | -803.0 | -596.8 | |
| 0.00 | 1.34 | 0.00 | 0.83 | -24.36 | 69.07 | -19.10 | 150.08 | 0.5998 | -593.0 | -419.5 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -23.65 | 68.41 | -19.76 | 148.58 | 0.5962 | -841.0 | -666.9 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -24.51 | 68.13 | -20.04 | 149.03 | 0.6081 | -528.0 | -359.0 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -23.60 | 68.00 | -20.17 | 148.01 | 0.5986 | -770.0 | -639.5 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -24.06 | 67.86 | -20.32 | 148.27 | 0.6050 | -582.0 | -535.8 | |
| 0.00 | 1.34 | 0.00 | 0.84 | -24.74 | 67.14 | -21.04 | 148.02 | 0.6178 | -603.0 | -443.3 | |
| 0.00 | 1.07 | 0.00 | 0.68 | -24.91 | 66.46 | -21.71 | 147.38 | 0.6247 | -805.0 | -639.8 | |
| 0.00 | 1.34 | 0.00 | 0.85 | -24.92 | 66.28 | -21.89 | 147.18 | 0.6261 | -634.0 | -505.7 | |
| 0.00 | 1.16 | 0.00 | 0.78 | -28.63 | 64.19 | -23.98 | 148.25 | 0.6803 | -634.0 | -627.8 | |
| 0.00 | 2.05 | 0.00 | 1.38 | -28.33 | 64.15 | -24.02 | 147.95 | 0.6775 | -737.0 | -664.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
