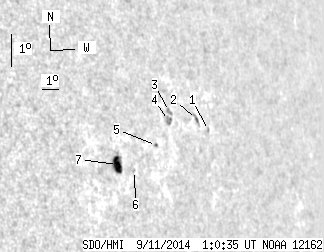

SDO HMI 2014-09-11 01:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.06 | 30.56 | 9.10 | 29.19 | 9.85 | 147.59 | 59.42 | 277.14 | 0.8563 | 244.7 | -191.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-11 01:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 1.24 | 9.83 | 151.36 | 63.19 | 277.34 | 0.8885 | -202.0 | -159.7 | |
| 0.00 | 4.01 | 0.00 | 4.20 | 10.24 | 150.69 | 62.52 | 277.76 | 0.8830 | -406.0 | -329.1 | |
| 0.00 | 3.12 | 0.00 | 3.10 | 10.67 | 149.07 | 60.90 | 278.17 | 0.8694 | -433.0 | -318.1 | |
| 0.00 | 4.63 | 0.00 | 4.59 | 10.41 | 148.92 | 60.75 | 277.86 | 0.8683 | -665.0 | -487.0 | |
| 0.00 | 1.34 | 0.00 | 1.29 | 9.75 | 147.96 | 59.79 | 277.05 | 0.8602 | -490.0 | -478.7 | |
| 0.00 | 1.43 | 0.00 | 1.32 | 9.14 | 146.47 | 58.30 | 276.26 | 0.8471 | 306.0 | 194.1 | |
| 10.06 | 14.87 | 9.10 | 13.45 | 9.43 | 145.56 | 57.39 | 276.54 | 0.8385 | 613.8 | 300.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
