SDO HMI 2014-09-11 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 208.29 | 1132.79 | 112.90 | 613.11 | -14.22 | 96.85 | 9.23 | 202.79 | 0.4033 | 26.1 | -29.9 | |
|
previous
or next observation for the same group /

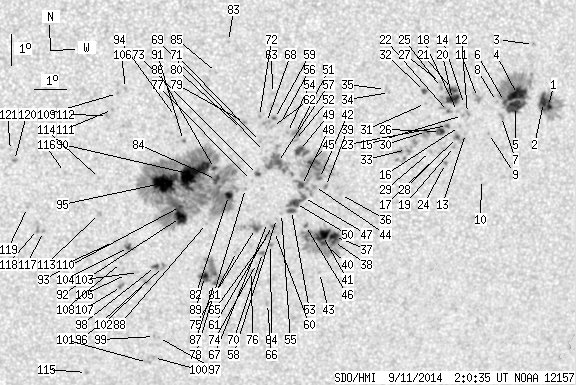

back to the solar disc SDO HMI 2014-09-11 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.79 | 45.88 | 3.20 | 25.34 | -12.20 | 105.28 | 17.66 | 222.18 | 0.4435 | 936.2 | 326.8 | |
| 8.37 | -1.00 | 4.61 | -1.00 | -12.07 | 105.11 | 17.49 | 222.11 | 0.4402 | 1040.7 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -10.21 | 104.68 | 17.06 | 224.42 | 0.4142 | 874.0 | 697.2 | |
| 15.23 | 96.92 | 8.34 | 53.02 | -11.78 | 104.26 | 16.63 | 221.13 | 0.4278 | 1185.6 | 618.3 | |
| 14.52 | -4.00 | 7.97 | -4.00 | -12.16 | 104.21 | 16.59 | 220.47 | 0.4320 | 875.9 | 999999 | |
| 0.89 | -4.00 | 0.49 | -4.00 | -11.98 | 103.85 | 16.23 | 220.10 | 0.4262 | 1024.9 | 999999 | |
| 0.00 | 2.85 | 0.00 | 1.56 | -12.46 | 103.78 | 16.16 | 219.26 | 0.4313 | 849.0 | 689.0 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -11.97 | 103.59 | 15.97 | 219.66 | 0.4235 | 680.0 | 654.6 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -12.99 | 103.40 | 15.78 | 217.81 | 0.4340 | 643.0 | 546.8 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -14.47 | 103.27 | 15.65 | 215.54 | 0.4513 | 738.0 | 560.1 | |
| 0.00 | 6.06 | 0.00 | 3.30 | -11.82 | 102.97 | 15.35 | 218.78 | 0.4154 | 1004.0 | 835.7 | |
| 0.00 | 1.78 | 0.00 | 0.97 | -12.33 | 102.68 | 15.06 | 217.49 | 0.4188 | 800.0 | 707.7 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -12.97 | 102.66 | 15.04 | 216.52 | 0.4266 | 780.0 | 584.1 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -12.03 | 102.57 | 14.95 | 217.72 | 0.4141 | 770.0 | 637.5 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -12.38 | 102.53 | 14.90 | 217.12 | 0.4181 | 803.0 | 688.0 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -12.73 | 102.45 | 14.83 | 216.47 | 0.4218 | 853.0 | 607.8 | |
| 0.98 | 6.95 | 0.54 | 3.80 | -13.09 | 102.41 | 14.79 | 215.89 | 0.4258 | 1023.2 | 771.3 | |
| 0.00 | 1.69 | 0.00 | 0.92 | -12.25 | 102.36 | 14.74 | 217.00 | 0.4148 | 756.0 | 574.0 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -13.37 | 102.33 | 14.71 | 215.34 | 0.4288 | 808.0 | 708.3 | |
| 8.64 | 24.32 | 4.68 | 13.17 | -11.86 | 102.18 | 14.56 | 217.25 | 0.4081 | 1122.8 | 855.9 | |
| 3.12 | -20.00 | 1.69 | -20.00 | -11.54 | 102.16 | 14.54 | 217.70 | 0.4039 | 1050.8 | 999999 | |
| 0.45 | 4.45 | 0.24 | 2.42 | -12.24 | 102.07 | 14.45 | 216.48 | 0.4119 | 821.8 | 625.0 | |
| 0.89 | 9.35 | 0.49 | 5.10 | -12.69 | 102.06 | 14.44 | 215.81 | 0.4176 | 989.4 | 699.0 | |
| 0.00 | 1.78 | 0.00 | 0.98 | -13.91 | 102.07 | 14.45 | 214.14 | 0.4334 | 779.0 | 694.8 | |
| 0.00 | 1.78 | 0.00 | 0.96 | -11.46 | 101.81 | 14.19 | 217.13 | 0.3995 | 1000.0 | 792.0 | |
| 3.92 | -23.00 | 2.14 | -23.00 | -12.87 | 101.85 | 14.23 | 215.15 | 0.4180 | 919.5 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -11.30 | 101.77 | 14.15 | 217.30 | 0.3971 | 809.0 | 592.4 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -13.58 | 101.89 | 14.27 | 214.25 | 0.4276 | 846.0 | 672.7 | |
| 0.00 | 1.87 | 0.00 | 1.02 | -13.51 | 101.57 | 13.95 | 213.74 | 0.4237 | 737.0 | 570.5 | |
| 0.80 | 6.06 | 0.44 | 3.30 | -12.86 | 101.40 | 13.78 | 214.31 | 0.4138 | 1086.6 | 809.9 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -11.96 | 101.32 | 13.70 | 215.44 | 0.4013 | 913.0 | 712.4 | |
| 1.51 | 2.85 | 0.82 | 1.54 | -11.57 | 101.27 | 13.65 | 215.91 | 0.3959 | 945.9 | 727.2 | |
| 0.00 | 18.26 | 0.00 | 9.94 | -13.42 | 100.80 | 13.18 | 212.36 | 0.4159 | 732.0 | 612.3 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -11.57 | 100.17 | 12.54 | 213.64 | 0.3857 | -755.0 | -531.8 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -11.47 | 100.03 | 12.41 | 213.51 | 0.3832 | -652.0 | -536.1 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -14.82 | 98.77 | 11.15 | 206.59 | 0.4194 | 729.0 | 563.2 | |
| 4.90 | 82.58 | 2.70 | 45.46 | -16.19 | 98.65 | 11.03 | 204.91 | 0.4380 | 941.8 | 428.6 | |
| 0.27 | -37.00 | 0.15 | -37.00 | -16.35 | 98.63 | 11.01 | 204.70 | 0.4402 | 760.7 | 999999 | |
| 0.00 | 2.23 | 0.00 | 1.21 | -14.54 | 98.28 | 10.66 | 205.86 | 0.4121 | 1072.0 | 871.0 | |
| 2.14 | -37.00 | 1.18 | -37.00 | -16.41 | 98.31 | 10.69 | 204.02 | 0.4390 | 812.2 | 999999 | |
| 10.24 | -37.00 | 5.63 | -37.00 | -16.15 | 98.26 | 10.64 | 204.18 | 0.4349 | 1140.7 | 999999 | |
| 0.80 | 106.18 | 0.43 | 57.42 | -14.28 | 98.08 | 10.45 | 205.72 | 0.4069 | 647.1 | -18.7 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -17.37 | 98.24 | 10.62 | 202.98 | 0.4522 | 341.0 | 258.6 | |
| 0.00 | 2.67 | 0.00 | 1.45 | -14.54 | 97.93 | 10.31 | 205.13 | 0.4096 | 972.0 | 784.7 | |
| 1.78 | -42.00 | 0.96 | -42.00 | -13.75 | 97.77 | 10.15 | 205.63 | 0.3972 | -895.3 | 999999 | |
| 0.53 | 1.87 | 0.29 | 1.02 | -15.80 | 97.70 | 10.08 | 203.37 | 0.4264 | 932.7 | 764.5 | |
| 1.25 | -42.00 | 0.68 | -42.00 | -14.89 | 97.60 | 9.98 | 204.06 | 0.4125 | 910.8 | 999999 | |
| 2.67 | -42.00 | 1.45 | -42.00 | -14.49 | 97.52 | 9.89 | 204.29 | 0.4062 | 983.7 | 999999 | |
| 3.92 | -42.00 | 2.11 | -42.00 | -13.36 | 97.41 | 9.78 | 205.27 | 0.3890 | -977.8 | 999999 | |
| 6.06 | -42.00 | 3.29 | -42.00 | -15.07 | 97.35 | 9.73 | 203.34 | 0.4137 | 1042.3 | 999999 | |
| 0.00 | 4.99 | 0.00 | 2.67 | -12.81 | 97.26 | 9.64 | 205.56 | 0.3800 | -1111.0 | -931.6 | |
| 0.00 | 1.43 | 0.00 | 0.76 | -13.03 | 97.24 | 9.61 | 205.25 | 0.3831 | -674.0 | -605.8 | |
| 2.32 | -42.00 | 1.26 | -42.00 | -15.30 | 97.24 | 9.61 | 202.87 | 0.4162 | 828.3 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -12.77 | 97.01 | 9.38 | 205.02 | 0.3777 | -871.0 | -729.6 | |
| 0.00 | 1.51 | 0.00 | 0.82 | -15.39 | 96.92 | 9.30 | 202.11 | 0.4157 | 890.0 | 619.0 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -12.44 | 96.77 | 9.15 | 204.84 | 0.3713 | -844.0 | -703.9 | |
| 0.00 | 37.86 | 0.00 | 20.35 | -13.73 | 96.73 | 9.11 | 203.32 | 0.3900 | 1005.0 | 371.6 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -15.55 | 96.77 | 9.15 | 201.64 | 0.4171 | 835.0 | 599.4 | |
| 0.45 | 1.60 | 0.24 | 0.85 | -12.31 | 96.58 | 8.96 | 204.53 | 0.3681 | -975.2 | -861.5 | |
| 0.00 | 1.43 | 0.00 | 0.78 | -15.98 | 96.73 | 9.10 | 201.16 | 0.4231 | 663.0 | 611.6 | |
| 0.53 | 1.78 | 0.29 | 0.97 | -15.78 | 96.65 | 9.03 | 201.18 | 0.4198 | 1069.5 | 892.6 | |
| 0.00 | 1.78 | 0.00 | 0.95 | -12.56 | 96.53 | 8.91 | 204.11 | 0.3715 | -977.0 | -781.5 | |
| 0.00 | 1.16 | 0.00 | 0.61 | -11.51 | 96.49 | 8.87 | 205.27 | 0.3556 | -506.0 | -508.1 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -16.40 | 96.62 | 9.00 | 200.57 | 0.4288 | 715.0 | 592.2 | |
| 0.00 | 2.94 | 0.00 | 1.61 | -16.07 | 96.54 | 8.92 | 200.68 | 0.4235 | 781.0 | 690.2 | |
| 0.00 | 1.69 | 0.00 | 0.94 | -18.36 | 96.62 | 9.00 | 199.00 | 0.4576 | -881.0 | -640.0 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -15.68 | 96.49 | 8.87 | 200.93 | 0.4174 | 832.0 | 597.5 | |
| 0.00 | 2.85 | 0.00 | 1.52 | -12.43 | 96.34 | 8.71 | 203.80 | 0.3682 | -986.0 | -903.4 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -13.36 | 96.31 | 8.68 | 202.72 | 0.3819 | -239.0 | -336.5 | |
| 0.45 | 2.76 | 0.24 | 1.52 | -16.66 | 96.37 | 8.75 | 199.84 | 0.4313 | 760.2 | 597.7 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -13.04 | 96.17 | 8.55 | 202.74 | 0.3762 | -815.0 | -776.1 | |
| 0.00 | 1.34 | 0.00 | 0.71 | -12.24 | 96.11 | 8.49 | 203.47 | 0.3639 | -902.0 | -738.2 | |
| 1.43 | 3.39 | 0.77 | 1.82 | -14.10 | 96.11 | 8.49 | 201.53 | 0.3918 | 737.9 | 569.8 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -17.02 | 96.20 | 8.58 | 199.19 | 0.4357 | 526.0 | 356.0 | |
| 2.14 | 12.92 | 1.16 | 7.03 | -15.87 | 96.12 | 8.50 | 199.96 | 0.4181 | 965.8 | 766.0 | |
| 0.00 | 1.51 | 0.00 | 0.83 | -17.28 | 96.05 | 8.43 | 198.68 | 0.4389 | 506.0 | 299.6 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -14.29 | 95.93 | 8.31 | 200.93 | 0.3936 | 261.0 | 241.4 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -14.55 | 95.75 | 8.13 | 200.29 | 0.3964 | 584.0 | 491.0 | |
| 0.00 | 1.78 | 0.00 | 0.95 | -12.42 | 95.65 | 8.03 | 202.12 | 0.3637 | -1086.0 | -877.8 | |
| 0.00 | 1.51 | 0.00 | 0.81 | -12.64 | 95.56 | 7.94 | 201.67 | 0.3665 | -875.0 | -683.1 | |
| 0.00 | 2.32 | 0.00 | 1.27 | -16.61 | 95.54 | 7.92 | 198.13 | 0.4263 | 560.0 | 414.9 | |
| 4.54 | 496.89 | 2.45 | 266.68 | -14.77 | 95.22 | 7.60 | 198.88 | 0.3969 | 797.6 | -342.6 | |
| 0.00 | 1.07 | 0.00 | 0.56 | -9.83 | 95.09 | 7.46 | 203.61 | 0.3209 | -763.0 | -564.8 | |
| 3.65 | -82.00 | 1.96 | -82.00 | -14.24 | 94.83 | 7.21 | 198.40 | 0.3868 | -1059.0 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.28 | -10.81 | 94.74 | 7.11 | 201.48 | 0.3336 | -745.0 | -623.7 | |
| 1.34 | -82.00 | 0.72 | -82.00 | -13.88 | 94.75 | 7.13 | 198.53 | 0.3810 | -766.9 | 999999 | |
| 0.45 | 39.82 | 0.25 | 21.87 | -17.66 | 94.89 | 7.26 | 195.99 | 0.4391 | -811.0 | -610.0 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -15.67 | 94.56 | 6.94 | 196.66 | 0.4074 | -789.0 | -576.0 | |
| 5.17 | -87.00 | 2.84 | -87.00 | -17.42 | 94.56 | 6.94 | 195.46 | 0.4341 | -1013.3 | 999999 | |
| 39.37 | -82.00 | 21.08 | -82.00 | -14.07 | 94.07 | 6.45 | 196.71 | 0.3805 | -1237.2 | 999999 | |
| 0.36 | 1.51 | 0.19 | 0.80 | -12.96 | 93.76 | 6.14 | 196.81 | 0.3619 | -985.0 | -811.8 | |
| 9.80 | -82.00 | 5.29 | -82.00 | -15.46 | 93.73 | 6.11 | 194.90 | 0.4006 | 1068.3 | 999999 | |
| 1.43 | -82.00 | 0.77 | -82.00 | -15.10 | 93.72 | 6.10 | 195.12 | 0.3950 | -599.4 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.75 | -12.19 | 93.50 | 5.87 | 196.75 | 0.3485 | -807.0 | -678.4 | |
| 32.16 | -82.00 | 17.22 | -82.00 | -14.31 | 93.23 | 5.61 | 194.47 | 0.3807 | -1228.2 | 999999 | |
| 0.00 | 3.12 | 0.00 | 1.70 | -17.07 | 93.24 | 5.62 | 192.82 | 0.4236 | 93.0 | 30.8 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -19.44 | 93.16 | 5.53 | 191.46 | 0.4598 | -756.0 | -672.1 | |
| 1.69 | 3.03 | 0.92 | 1.65 | -17.06 | 92.99 | 5.37 | 192.26 | 0.4227 | 760.5 | 559.8 | |
| 0.00 | 1.51 | 0.00 | 0.84 | -19.41 | 93.03 | 5.41 | 191.21 | 0.4588 | -790.0 | -626.8 | |
| 0.00 | 1.51 | 0.00 | 0.85 | -20.12 | 93.02 | 5.40 | 190.88 | 0.4696 | -823.0 | -648.5 | |
| 0.00 | 2.32 | 0.00 | 1.30 | -20.29 | 92.83 | 5.21 | 190.44 | 0.4716 | -683.0 | -609.7 | |
| 0.00 | 2.58 | 0.00 | 1.42 | -17.59 | 92.72 | 5.10 | 191.40 | 0.4300 | -973.0 | -823.7 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -17.26 | 92.45 | 4.83 | 190.98 | 0.4240 | -729.0 | -453.6 | |
| 1.34 | 4.99 | 0.73 | 2.71 | -16.42 | 92.12 | 4.50 | 190.61 | 0.4100 | -921.9 | -772.3 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -17.32 | 92.07 | 4.45 | 190.12 | 0.4238 | -753.0 | -538.7 | |
| 0.00 | 1.16 | 0.00 | 0.61 | -11.27 | 91.93 | 4.31 | 193.07 | 0.3273 | -909.0 | -753.8 | |
| 0.00 | 2.41 | 0.00 | 1.32 | -17.72 | 91.93 | 4.30 | 189.62 | 0.4296 | -895.0 | -814.7 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -16.92 | 91.91 | 4.29 | 189.91 | 0.4171 | -824.0 | -649.5 | |
| 0.00 | 1.16 | 0.00 | 0.61 | -11.43 | 91.69 | 4.07 | 192.25 | 0.3290 | -866.0 | -691.4 | |
| 0.00 | 1.43 | 0.00 | 0.77 | -16.22 | 91.67 | 4.05 | 189.67 | 0.4055 | -773.0 | -687.9 | |
| 0.00 | 1.34 | 0.00 | 0.70 | -11.94 | 91.54 | 3.92 | 191.50 | 0.3367 | -865.0 | -683.8 | |
| 0.00 | 2.32 | 0.00 | 1.22 | -12.13 | 91.39 | 3.77 | 190.96 | 0.3393 | -893.0 | -632.6 | |
| 0.00 | 2.41 | 0.00 | 1.29 | -15.30 | 91.18 | 3.56 | 188.89 | 0.3896 | -862.0 | -699.8 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -14.16 | 91.17 | 3.55 | 189.33 | 0.3714 | -892.0 | -629.2 | |
| 0.00 | 1.78 | 0.00 | 1.00 | -20.61 | 90.87 | 3.25 | 186.47 | 0.4721 | -739.0 | -561.0 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -13.95 | 90.07 | 2.45 | 186.55 | 0.3656 | -700.0 | -450.6 | |
| 0.00 | 1.51 | 0.00 | 0.82 | -15.87 | 89.43 | 1.81 | 184.43 | 0.3956 | -850.0 | -641.5 | |
| 0.00 | 2.94 | 0.00 | 1.58 | -15.81 | 89.25 | 1.62 | 183.98 | 0.3943 | -907.0 | -713.2 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -15.09 | 88.93 | 1.31 | 183.31 | 0.3824 | -817.0 | -547.2 | |
| 0.00 | 1.96 | 0.00 | 1.04 | -13.56 | 88.52 | 0.90 | 182.45 | 0.3572 | -898.0 | -742.8 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -13.24 | 88.39 | 0.77 | 182.14 | 0.3518 | -892.0 | -664.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
