SDO HMI 2014-09-11 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.98 | 27.88 | 9.16 | 27.16 | 9.91 | 147.73 | 60.11 | 277.25 | 0.8624 | 273.9 | -224.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-11 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

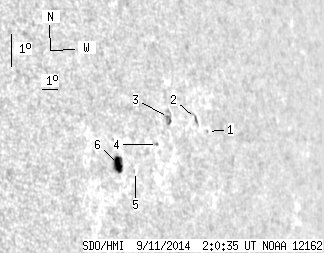

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 1.07 | 9.83 | 151.37 | 63.75 | 277.37 | 0.8929 | -148.0 | -165.5 | |
| 0.00 | 4.10 | 0.00 | 4.37 | 10.30 | 150.71 | 63.09 | 277.86 | 0.8875 | -309.0 | -309.1 | |
| 0.00 | 7.57 | 0.00 | 7.65 | 10.52 | 148.99 | 61.37 | 278.02 | 0.8735 | -672.0 | -397.4 | |
| 0.00 | 1.16 | 0.00 | 1.14 | 9.80 | 148.05 | 60.43 | 277.14 | 0.8658 | -478.0 | -470.8 | |
| 0.00 | 0.80 | 0.00 | 0.75 | 9.14 | 146.52 | 58.90 | 276.29 | 0.8525 | 184.0 | 172.9 | |
| 9.98 | 13.27 | 9.16 | 12.18 | 9.45 | 145.60 | 57.98 | 276.60 | 0.8440 | 578.8 | 308.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
