SDO HMI 2014-09-11 03:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.79 | 63.19 | 3.27 | 36.23 | -21.46 | 79.49 | -7.59 | 166.56 | 0.5016 | 159.4 | 330.3 | |
|
previous
or next observation for the same group /

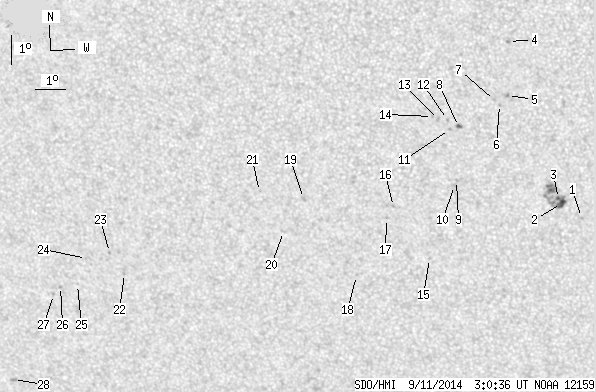

back to the solar disc SDO HMI 2014-09-11 03:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.61 | -21.97 | 84.39 | -2.68 | 174.92 | 0.4920 | 739.0 | 633.6 | |
| 4.28 | 28.69 | 2.42 | 16.21 | -21.49 | 83.75 | -3.32 | 173.60 | 0.4857 | 874.6 | 760.0 | |
| 0.80 | -2.00 | 0.45 | -2.00 | -21.32 | 83.66 | -3.42 | 173.37 | 0.4833 | 1033.2 | 999999 | |
| 0.00 | 1.69 | 0.00 | 0.92 | -16.06 | 82.19 | -4.88 | 168.31 | 0.4053 | 773.0 | 623.5 | |
| 0.00 | 1.78 | 0.00 | 0.98 | -17.84 | 82.11 | -4.96 | 169.01 | 0.4335 | 871.0 | 721.7 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -18.15 | 81.85 | -5.23 | 168.58 | 0.4389 | 632.0 | 512.5 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -18.02 | 81.69 | -5.38 | 168.19 | 0.4374 | 666.0 | 511.8 | |
| 0.71 | 2.14 | 0.40 | 1.19 | -18.90 | 80.51 | -6.56 | 166.19 | 0.4550 | -1002.2 | -799.8 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -20.74 | 80.36 | -6.71 | 166.87 | 0.4831 | 833.0 | 650.8 | |
| 0.00 | 2.14 | 0.00 | 1.21 | -20.91 | 80.29 | -6.78 | 166.82 | 0.4859 | 897.0 | 723.5 | |
| 0.00 | 1.34 | 0.00 | 0.74 | -19.01 | 80.21 | -6.86 | 165.66 | 0.4577 | -911.0 | -730.6 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -18.67 | 80.16 | -6.91 | 165.36 | 0.4529 | -769.0 | -612.4 | |
| 0.00 | 1.87 | 0.00 | 1.04 | -18.68 | 79.87 | -7.20 | 164.78 | 0.4541 | -880.0 | -749.0 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -18.58 | 79.69 | -7.39 | 164.34 | 0.4534 | -879.0 | -721.1 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -23.46 | 79.33 | -7.74 | 166.37 | 0.5265 | 512.0 | 414.3 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -21.67 | 78.25 | -8.82 | 163.54 | 0.5048 | 1016.0 | 781.0 | |
| 0.00 | 0.53 | 0.00 | 0.31 | -22.09 | 78.00 | -9.08 | 163.34 | 0.5120 | 833.0 | 717.7 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -24.11 | 76.85 | -10.23 | 162.65 | 0.5455 | 615.0 | 463.6 | |
| 0.00 | 2.41 | 0.00 | 1.39 | -21.46 | 75.30 | -11.77 | 158.33 | 0.5164 | 724.0 | 574.8 | |
| 0.00 | 1.87 | 0.00 | 1.10 | -22.62 | 74.53 | -12.54 | 157.97 | 0.5365 | 709.0 | 574.5 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -21.26 | 73.85 | -13.22 | 155.80 | 0.5220 | 645.0 | 469.4 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -24.29 | 68.89 | -18.18 | 151.21 | 0.5927 | -475.0 | -438.1 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -23.57 | 68.48 | -18.59 | 150.01 | 0.5869 | -795.0 | -724.9 | |
| 0.00 | 1.34 | 0.00 | 0.82 | -23.82 | 67.64 | -19.43 | 149.15 | 0.5958 | -550.0 | -526.4 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -24.76 | 67.17 | -19.90 | 149.43 | 0.6100 | -603.0 | -514.3 | |
| 0.00 | 1.25 | 0.00 | 0.78 | -24.86 | 66.55 | -20.52 | 148.76 | 0.6155 | -583.0 | -604.0 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -25.16 | 66.25 | -20.83 | 148.67 | 0.6211 | -672.0 | -600.8 | |
| 0.00 | 2.41 | 0.00 | 1.60 | -28.35 | 64.13 | -22.94 | 149.11 | 0.6705 | -735.0 | -650.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
