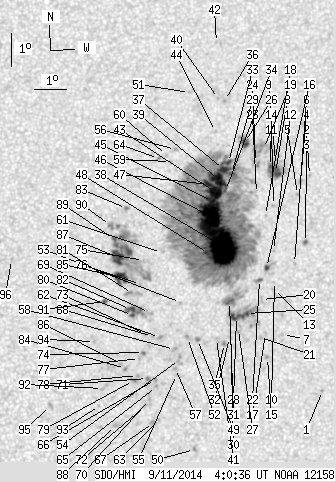

SDO HMI 2014-09-11 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 233.86 | 1280.35 | 117.36 | 642.24 | 15.98 | 87.68 | 1.15 | 352.51 | 0.1550 | 445.1 | 224.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-11 04:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.40 | 11.22 | 91.17 | 4.65 | 311.24 | 0.1062 | -840.0 | -719.3 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 17.77 | 90.91 | 4.38 | 338.30 | 0.1978 | 694.0 | 507.5 | |
| 0.71 | 1.87 | 0.36 | 0.94 | 15.72 | 90.73 | 4.21 | 334.43 | 0.1644 | 1073.9 | 873.2 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 17.59 | 90.62 | 4.09 | 339.27 | 0.1931 | 976.0 | 850.2 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 17.19 | 90.51 | 3.99 | 338.98 | 0.1861 | 830.0 | 544.1 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 15.09 | 90.37 | 3.85 | 334.61 | 0.1519 | -724.0 | -580.3 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 12.93 | 89.96 | 3.44 | 329.49 | 0.1157 | -832.0 | -626.0 | |
| 7.84 | 22.45 | 3.96 | 11.34 | 17.87 | 89.83 | 3.31 | 343.44 | 0.1934 | 1171.0 | 631.2 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 18.24 | 89.84 | 3.31 | 343.95 | 0.1995 | 294.0 | 235.8 | |
| 0.00 | 0.36 | 0.00 | 0.18 | 14.54 | 89.74 | 3.21 | 336.88 | 0.1389 | -495.0 | -387.2 | |
| 0.00 | 1.43 | 0.00 | 0.72 | 16.86 | 89.75 | 3.22 | 342.16 | 0.1764 | -773.0 | -522.4 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 15.49 | 89.72 | 3.20 | 339.45 | 0.1539 | 640.0 | 412.7 | |
| 0.00 | 0.62 | 0.00 | 0.31 | 14.30 | 89.70 | 3.18 | 336.38 | 0.1348 | -700.0 | -428.4 | |
| 1.07 | -8.00 | 0.54 | -8.00 | 18.06 | 89.67 | 3.15 | 344.44 | 0.1957 | 1076.7 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 12.24 | 89.49 | 2.96 | 329.87 | 0.1012 | -1109.0 | -950.9 | |
| 1.60 | 4.45 | 0.80 | 2.23 | 14.97 | 89.50 | 2.97 | 339.58 | 0.1442 | -831.7 | -438.0 | |
| 0.00 | 1.60 | 0.00 | 0.80 | 12.97 | 89.44 | 2.91 | 333.60 | 0.1119 | -803.0 | -603.3 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 16.56 | 89.49 | 2.97 | 342.97 | 0.1701 | 656.0 | 527.1 | |
| 0.00 | 22.54 | 0.00 | 11.40 | 18.61 | 89.46 | 2.94 | 346.16 | 0.2040 | 288.0 | 243.0 | |
| 0.00 | 2.23 | 0.00 | 1.11 | 14.00 | 89.33 | 2.80 | 338.04 | 0.1274 | -633.0 | -536.2 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 12.85 | 89.28 | 2.76 | 334.35 | 0.1088 | -822.0 | -705.3 | |
| 0.62 | 3.47 | 0.31 | 1.74 | 14.61 | 89.27 | 2.75 | 340.11 | 0.1369 | 977.6 | 663.7 | |
| 0.00 | 2.41 | 0.00 | 1.21 | 17.23 | 89.22 | 2.69 | 345.50 | 0.1800 | 192.0 | 271.0 | |
| 0.00 | 6.50 | 0.00 | 3.29 | 18.19 | 89.20 | 2.68 | 346.85 | 0.1958 | 752.0 | 787.3 | |
| 1.78 | 963.87 | 0.89 | 483.68 | 13.58 | 88.85 | 2.33 | 340.29 | 0.1177 | -926.7 | 407.3 | |
| 4.63 | 10.87 | 2.34 | 5.50 | 18.80 | 88.86 | 2.34 | 349.10 | 0.2050 | 999.4 | 650.6 | |
| 0.00 | 4.81 | 0.00 | 2.40 | 13.09 | 88.60 | 2.08 | 340.89 | 0.1083 | -568.0 | -683.4 | |
| 6.50 | -25.00 | 3.24 | -25.00 | 13.49 | 88.54 | 2.02 | 342.51 | 0.1145 | -998.9 | 999999 | |
| 2.05 | -25.00 | 1.03 | -25.00 | 17.85 | 88.43 | 1.91 | 350.22 | 0.1876 | 793.5 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.67 | 13.25 | 88.35 | 1.83 | 343.43 | 0.1095 | -1036.0 | -835.3 | |
| 2.94 | -25.00 | 1.47 | -25.00 | 13.95 | 88.33 | 1.81 | 345.31 | 0.1211 | -527.7 | 999999 | |
| 0.00 | 1.69 | 0.00 | 0.84 | 12.85 | 88.32 | 1.80 | 342.63 | 0.1028 | -781.0 | -679.9 | |
| 2.14 | -25.00 | 1.08 | -25.00 | 18.19 | 88.34 | 1.82 | 350.98 | 0.1931 | 783.7 | 999999 | |
| 0.27 | -25.00 | 0.13 | -25.00 | 17.33 | 88.24 | 1.71 | 350.74 | 0.1782 | 870.7 | 999999 | |
| 0.00 | 2.41 | 0.00 | 1.20 | 12.67 | 88.16 | 1.64 | 343.54 | 0.0990 | -1008.0 | -863.3 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 20.10 | 88.24 | 1.71 | 352.81 | 0.2253 | 721.0 | 636.4 | |
| 4.45 | -25.00 | 2.25 | -25.00 | 17.98 | 88.18 | 1.66 | 351.60 | 0.1890 | 1019.5 | 999999 | |
| 77.07 | -25.00 | 38.61 | -25.00 | 15.62 | 88.13 | 1.60 | 349.52 | 0.1487 | 1725.9 | 999999 | |
| 15.77 | -25.00 | 7.95 | -25.00 | 17.67 | 88.02 | 1.50 | 352.17 | 0.1834 | 1129.2 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 20.17 | 88.04 | 1.52 | 353.64 | 0.2259 | 675.0 | 548.3 | |
| 0.00 | 1.43 | 0.00 | 0.71 | 12.82 | 87.92 | 1.39 | 346.29 | 0.1004 | -1031.0 | -624.9 | |
| 0.00 | 0.89 | 0.00 | 0.46 | 21.91 | 88.00 | 1.48 | 354.61 | 0.2553 | 736.0 | 593.4 | |
| 14.52 | -25.00 | 7.31 | -25.00 | 17.27 | 87.92 | 1.40 | 352.38 | 0.1764 | 1265.9 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.63 | 19.15 | 87.94 | 1.41 | 353.55 | 0.2084 | 722.0 | 510.8 | |
| 5.70 | -25.00 | 2.87 | -25.00 | 17.00 | 87.82 | 1.30 | 352.70 | 0.1715 | 1220.2 | 999999 | |
| 46.24 | -25.00 | 23.22 | -25.00 | 16.54 | 87.76 | 1.23 | 352.72 | 0.1634 | 1411.6 | 999999 | |
| 5.08 | -25.00 | 2.56 | -25.00 | 17.52 | 87.70 | 1.18 | 353.73 | 0.1801 | 1014.9 | 999999 | |
| 4.28 | -25.00 | 2.14 | -25.00 | 15.41 | 87.69 | 1.16 | 352.16 | 0.1439 | 1299.2 | 999999 | |
| 0.00 | 2.23 | 0.00 | 1.11 | 12.80 | 87.33 | 0.80 | 351.93 | 0.0980 | -1188.0 | -967.6 | |
| 0.00 | 1.60 | 0.00 | 0.80 | 9.47 | 87.22 | 0.70 | 342.71 | 0.0407 | -1023.0 | -878.0 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 20.36 | 87.11 | 0.59 | 357.56 | 0.2280 | 794.0 | 654.4 | |
| 0.00 | 1.87 | 0.00 | 0.93 | 12.86 | 87.02 | 0.50 | 355.07 | 0.0985 | -1057.0 | -932.6 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 13.92 | 86.81 | 0.28 | 357.65 | 0.1167 | -719.0 | -514.0 | |
| 0.00 | 4.99 | 0.00 | 2.48 | 12.19 | 86.77 | 0.25 | 357.21 | 0.0866 | -797.0 | -780.5 | |
| 0.00 | 1.34 | 0.00 | 0.66 | 11.74 | 86.68 | 0.15 | 358.09 | 0.0786 | -818.0 | -652.9 | |
| 0.00 | 2.05 | 0.00 | 1.04 | 18.60 | 86.66 | 0.13 | 359.35 | 0.1976 | 872.0 | 611.0 | |
| 0.00 | 1.51 | 0.00 | 0.75 | 11.92 | 86.65 | 0.12 | 358.53 | 0.0818 | -1002.0 | -831.8 | |
| 0.00 | 2.41 | 0.00 | 1.20 | 12.49 | 86.62 | 0.09 | 359.01 | 0.0918 | -1056.0 | -939.9 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 18.23 | 86.50 | -0.02 | 0.12 | 0.1913 | 539.0 | 368.1 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 18.41 | 86.37 | -0.15 | 0.74 | 0.1944 | 731.0 | 572.8 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 15.44 | 86.21 | -0.31 | 2.09 | 0.1432 | 143.0 | 185.8 | |
| 0.00 | 2.23 | 0.00 | 1.11 | 12.86 | 86.15 | -0.37 | 3.70 | 0.0984 | -1130.0 | -930.5 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 10.38 | 86.15 | -0.37 | 6.66 | 0.0551 | -942.0 | -797.1 | |
| 0.00 | 1.96 | 0.00 | 0.99 | 18.32 | 86.12 | -0.41 | 2.01 | 0.1930 | 859.0 | 673.1 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 11.37 | 86.06 | -0.46 | 6.29 | 0.0727 | -1114.0 | -966.8 | |
| 0.00 | 1.69 | 0.00 | 0.84 | 11.59 | 86.03 | -0.49 | 6.38 | 0.0764 | -1033.0 | -899.6 | |
| 0.00 | 2.49 | 0.00 | 1.24 | 10.29 | 85.97 | -0.55 | 10.21 | 0.0540 | -883.0 | -803.1 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 12.89 | 85.94 | -0.59 | 5.81 | 0.0992 | -929.0 | -796.2 | |
| 0.00 | 3.30 | 0.00 | 1.64 | 13.62 | 85.84 | -0.68 | 5.96 | 0.1120 | -686.0 | -692.9 | |
| 0.00 | 1.34 | 0.00 | 0.66 | 10.98 | 85.85 | -0.68 | 10.13 | 0.0664 | -957.0 | -712.3 | |
| 0.00 | 2.58 | 0.00 | 1.28 | 11.62 | 85.78 | -0.74 | 9.44 | 0.0775 | -1271.0 | -1000.4 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 10.80 | 85.72 | -0.80 | 12.51 | 0.0637 | -944.0 | -744.0 | |
| 0.00 | 1.51 | 0.00 | 0.75 | 12.95 | 85.72 | -0.80 | 7.85 | 0.1007 | -993.0 | -726.3 | |
| 0.00 | 1.60 | 0.00 | 0.80 | 12.40 | 85.66 | -0.87 | 9.33 | 0.0914 | -1149.0 | -964.1 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 15.20 | 85.65 | -0.87 | 6.07 | 0.1397 | 383.0 | 286.9 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 14.47 | 85.56 | -0.96 | 7.39 | 0.1273 | -852.0 | -663.4 | |
| 0.00 | 1.43 | 0.00 | 0.71 | 12.22 | 85.54 | -0.99 | 11.01 | 0.0887 | -1025.0 | -787.9 | |
| 0.00 | 1.25 | 0.00 | 0.62 | 11.71 | 85.48 | -1.05 | 12.99 | 0.0801 | -975.0 | -903.6 | |
| 0.00 | 2.49 | 0.00 | 1.24 | 11.56 | 85.35 | -1.17 | 14.94 | 0.0781 | -998.0 | -871.9 | |
| 1.25 | 16.48 | 0.62 | 8.22 | 13.53 | 85.31 | -1.21 | 10.63 | 0.1117 | -1051.5 | -941.6 | |
| 0.00 | 6.50 | 0.00 | 3.25 | 14.19 | 85.31 | -1.21 | 9.63 | 0.1232 | -894.0 | -811.1 | |
| 3.56 | -80.00 | 1.78 | -80.00 | 13.71 | 85.25 | -1.27 | 10.86 | 0.1150 | -1207.1 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.07 | 16.79 | 85.11 | -1.41 | 8.11 | 0.1681 | -955.0 | -767.7 | |
| 0.00 | 1.78 | 0.00 | 0.89 | 11.92 | 85.10 | -1.42 | 16.59 | 0.0853 | -1130.0 | -902.3 | |
| 9.89 | 109.50 | 4.94 | 54.80 | 14.68 | 84.97 | -1.56 | 11.49 | 0.1326 | -1155.7 | -379.3 | |
| 0.00 | 1.43 | 0.00 | 0.71 | 12.07 | 84.95 | -1.57 | 17.73 | 0.0886 | -866.0 | -614.7 | |
| 11.67 | -85.00 | 5.84 | -85.00 | 15.29 | 84.84 | -1.69 | 11.47 | 0.1434 | -1188.2 | 999999 | |
| 0.00 | 2.41 | 0.00 | 1.19 | 10.19 | 84.80 | -1.72 | 29.90 | 0.0595 | -877.0 | -719.2 | |
| 1.25 | -85.00 | 0.63 | -85.00 | 15.84 | 84.74 | -1.78 | 11.34 | 0.1530 | -1196.8 | 999999 | |
| 0.00 | 4.28 | 0.00 | 2.15 | 16.26 | 84.61 | -1.91 | 11.56 | 0.1607 | -1208.0 | -884.4 | |
| 0.98 | 2.14 | 0.49 | 1.07 | 13.95 | 84.44 | -2.08 | 16.81 | 0.1225 | -1099.4 | -868.8 | |
| 0.00 | 1.60 | 0.00 | 0.80 | 11.31 | 84.40 | -2.13 | 27.16 | 0.0800 | -836.0 | -766.8 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 10.80 | 84.31 | -2.21 | 31.51 | 0.0730 | -741.0 | -649.1 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 12.73 | 84.14 | -2.38 | 22.98 | 0.1044 | -852.0 | -745.8 | |
| 0.00 | 2.76 | 0.00 | 1.37 | 10.79 | 82.80 | -3.72 | 45.82 | 0.0893 | -904.0 | -662.7 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 15.21 | 81.52 | -5.01 | 31.23 | 0.1632 | -789.0 | -610.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
