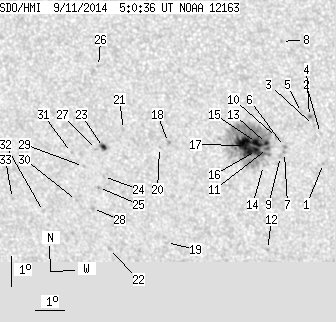

SDO HMI 2014-09-11 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.10 | 182.83 | 22.94 | 104.86 | -15.82 | 66.28 | -19.69 | 139.97 | 0.5052 | 387.3 | 322.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-11 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.50 | -16.18 | 69.13 | -16.85 | 144.66 | 0.4831 | -822.0 | -699.9 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -15.20 | 69.12 | -16.86 | 143.38 | 0.4712 | -497.0 | -330.5 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -14.95 | 68.91 | -17.07 | 142.71 | 0.4700 | -594.0 | -432.3 | |
| 0.36 | 2.32 | 0.20 | 1.30 | -14.66 | 68.80 | -17.17 | 142.16 | 0.4675 | -876.2 | -693.2 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -14.54 | 68.55 | -17.43 | 141.59 | 0.4685 | -599.0 | -431.5 | |
| 0.00 | 1.43 | 0.00 | 0.81 | -15.67 | 67.89 | -18.08 | 142.07 | 0.4882 | 897.0 | 762.9 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -15.87 | 67.87 | -18.10 | 142.30 | 0.4907 | 796.0 | 695.6 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -12.27 | 68.07 | -17.90 | 137.53 | 0.4467 | 713.0 | 637.9 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -16.01 | 67.73 | -18.25 | 142.25 | 0.4937 | 714.0 | 532.3 | |
| 0.00 | 1.69 | 0.00 | 0.96 | -15.39 | 67.65 | -18.32 | 141.33 | 0.4871 | 979.0 | 815.3 | |
| 1.34 | 147.91 | 0.76 | 84.45 | -15.76 | 67.32 | -18.65 | 141.32 | 0.4946 | 893.9 | 439.3 | |
| 0.00 | 1.25 | 0.00 | 0.73 | -19.13 | 66.95 | -19.02 | 144.88 | 0.5374 | 756.0 | 604.4 | |
| 1.69 | -11.00 | 0.96 | -11.00 | -15.60 | 67.30 | -18.67 | 141.08 | 0.4928 | 1131.6 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -16.33 | 67.13 | -18.84 | 141.77 | 0.5029 | 303.0 | 216.8 | |
| 6.77 | -11.00 | 3.86 | -11.00 | -15.58 | 66.97 | -19.00 | 140.57 | 0.4958 | 1329.0 | 999999 | |
| 5.70 | -11.00 | 3.26 | -11.00 | -15.84 | 66.95 | -19.03 | 140.88 | 0.4990 | 945.4 | 999999 | |
| 22.19 | -11.00 | 12.68 | -11.00 | -15.70 | 66.60 | -19.38 | 140.17 | 0.5007 | 1056.9 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.78 | -15.72 | 64.01 | -21.96 | 136.65 | 0.5265 | 735.0 | 601.2 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -19.06 | 63.51 | -22.47 | 140.24 | 0.5669 | 485.0 | 464.0 | |
| 0.00 | 0.53 | 0.00 | 0.31 | -15.90 | 63.69 | -22.29 | 136.47 | 0.5317 | 560.0 | 466.5 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -15.37 | 62.52 | -23.45 | 134.30 | 0.5383 | -689.0 | -584.8 | |
| 0.00 | 1.96 | 0.00 | 1.20 | -19.37 | 61.47 | -24.50 | 138.18 | 0.5890 | 515.0 | 410.5 | |
| 2.05 | 3.56 | 1.22 | 2.11 | -16.00 | 61.76 | -24.22 | 134.24 | 0.5525 | -949.0 | -795.6 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -16.96 | 61.63 | -24.35 | 135.36 | 0.5633 | -807.0 | -631.2 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -17.33 | 61.40 | -24.58 | 135.58 | 0.5694 | -787.0 | -602.5 | |
| 0.00 | 1.51 | 0.00 | 0.88 | -13.36 | 61.90 | -24.07 | 130.69 | 0.5255 | 477.0 | 350.1 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -16.07 | 61.51 | -24.47 | 134.05 | 0.5559 | -811.0 | -693.0 | |
| 0.00 | 1.43 | 0.00 | 0.86 | -18.05 | 61.08 | -24.89 | 136.12 | 0.5795 | -872.0 | -684.9 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -16.66 | 60.97 | -25.00 | 134.22 | 0.5671 | -671.0 | -439.3 | |
| 0.00 | 0.89 | 0.00 | 0.54 | -17.81 | 60.56 | -25.42 | 135.23 | 0.5824 | -754.0 | -569.5 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -16.22 | 60.62 | -25.36 | 133.23 | 0.5666 | -626.0 | -510.9 | |
| 0.00 | 1.51 | 0.00 | 0.93 | -18.25 | 59.32 | -26.65 | 134.44 | 0.5989 | -617.0 | -454.6 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -17.88 | 58.28 | -27.70 | 132.88 | 0.6060 | -612.0 | -513.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
