SDO HMI 2014-09-11 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.68 | 67.54 | 3.78 | 38.76 | -21.50 | 78.21 | -7.22 | 167.46 | 0.5018 | 69.9 | 119.2 | |
|
previous
or next observation for the same group /

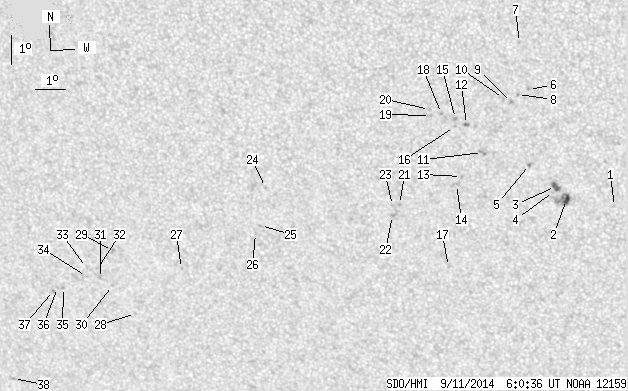

back to the solar disc SDO HMI 2014-09-11 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.45 | -21.70 | 85.29 | -0.14 | 179.73 | 0.4860 | 709.0 | 574.4 | |
| 3.83 | 13.90 | 2.17 | 7.86 | -21.46 | 83.73 | -1.70 | 176.71 | 0.4830 | 907.0 | 731.6 | |
| 2.85 | 5.17 | 1.61 | 2.91 | -21.01 | 83.38 | -2.05 | 175.97 | 0.4765 | 1042.6 | 846.7 | |
| 0.00 | 1.60 | 0.00 | 0.90 | -21.19 | 83.31 | -2.12 | 175.86 | 0.4792 | 379.0 | 606.4 | |
| 0.00 | 2.05 | 0.00 | 1.15 | -20.27 | 82.55 | -2.88 | 174.18 | 0.4661 | 962.0 | 799.4 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -17.74 | 82.57 | -2.86 | 173.58 | 0.4267 | 758.0 | 600.3 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -16.18 | 82.31 | -3.12 | 172.51 | 0.4026 | 668.0 | 555.7 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -17.91 | 82.22 | -3.21 | 172.85 | 0.4300 | 894.0 | 721.9 | |
| 0.00 | 2.05 | 0.00 | 1.13 | -18.18 | 82.02 | -3.41 | 172.50 | 0.4346 | 750.0 | 652.9 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -18.04 | 81.77 | -3.66 | 171.91 | 0.4330 | 720.0 | 582.9 | |
| 0.00 | 3.21 | 0.00 | 1.79 | -19.87 | 81.05 | -4.38 | 171.04 | 0.4629 | -843.0 | -697.4 | |
| 0.00 | 2.23 | 0.00 | 1.23 | -18.93 | 80.56 | -4.86 | 169.68 | 0.4497 | -939.0 | -793.5 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -20.69 | 80.34 | -5.08 | 169.96 | 0.4773 | 923.0 | 770.4 | |
| 0.00 | 3.56 | 0.00 | 2.01 | -20.97 | 80.17 | -5.26 | 169.73 | 0.4819 | 738.0 | 638.6 | |
| 0.00 | 1.78 | 0.00 | 0.99 | -18.73 | 80.22 | -5.21 | 168.88 | 0.4477 | -918.0 | -765.5 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -19.00 | 80.18 | -5.25 | 168.91 | 0.4520 | -825.0 | -671.8 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -23.83 | 79.79 | -5.63 | 170.12 | 0.5254 | 504.0 | 406.8 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -18.57 | 79.77 | -5.65 | 167.88 | 0.4466 | -909.0 | -811.9 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -18.64 | 79.42 | -6.01 | 167.18 | 0.4489 | -691.0 | -552.7 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -18.44 | 79.40 | -6.03 | 167.02 | 0.4459 | -714.0 | -561.6 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -21.68 | 78.28 | -7.15 | 166.54 | 0.4985 | 951.0 | 723.4 | |
| 0.00 | 1.69 | 0.00 | 0.97 | -22.07 | 78.03 | -7.40 | 166.28 | 0.5050 | 883.0 | 692.4 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -21.72 | 78.05 | -7.38 | 166.14 | 0.4998 | 842.0 | 676.2 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -21.19 | 73.91 | -11.52 | 158.54 | 0.5111 | 552.0 | 421.6 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -22.51 | 73.63 | -11.80 | 159.07 | 0.5308 | 675.0 | 603.8 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -22.79 | 73.44 | -11.99 | 158.97 | 0.5357 | 592.0 | 483.5 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -24.10 | 70.80 | -14.63 | 155.94 | 0.5678 | -765.0 | -559.7 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -25.77 | 68.99 | -16.44 | 154.74 | 0.5996 | -476.0 | -338.7 | |
| 0.00 | 2.32 | 0.00 | 1.40 | -23.55 | 68.50 | -16.93 | 152.23 | 0.5751 | -815.0 | -648.5 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -24.79 | 68.33 | -17.10 | 153.07 | 0.5916 | -564.0 | -480.6 | |
| 0.00 | 1.51 | 0.00 | 0.93 | -24.56 | 67.94 | -17.49 | 152.36 | 0.5912 | -746.0 | -653.6 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -24.21 | 67.89 | -17.54 | 151.98 | 0.5873 | -604.0 | -426.0 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -24.19 | 67.51 | -17.92 | 151.46 | 0.5895 | -458.0 | -437.4 | |
| 0.00 | 1.07 | 0.00 | 0.66 | -24.51 | 67.46 | -17.97 | 151.68 | 0.5937 | -596.0 | -417.2 | |
| 0.00 | 1.34 | 0.00 | 0.83 | -24.94 | 66.59 | -18.84 | 150.92 | 0.6047 | -483.0 | -525.5 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -24.95 | 66.38 | -19.05 | 150.66 | 0.6062 | -715.0 | -594.6 | |
| 0.00 | 1.43 | 0.00 | 0.89 | -25.06 | 66.22 | -19.21 | 150.56 | 0.6086 | -706.0 | -594.9 | |
| 0.00 | 1.51 | 0.00 | 1.00 | -28.35 | 64.16 | -21.27 | 150.94 | 0.6596 | -599.0 | -537.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
