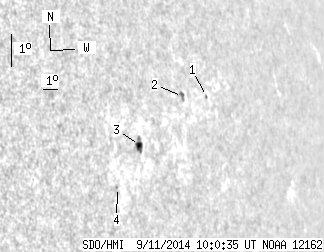

SDO HMI 2014-09-11 10:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.65 | 13.80 | 3.81 | 15.04 | 9.80 | 146.90 | 63.66 | 277.33 | 0.8918 | 279.2 | 36.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-11 10:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.90 | 10.37 | 150.92 | 67.68 | 278.22 | 0.9211 | -139.0 | -255.9 | |
| 0.00 | 3.74 | 0.00 | 4.40 | 10.58 | 149.12 | 65.88 | 278.34 | 0.9085 | -494.0 | -376.7 | |
| 3.65 | 8.64 | 3.81 | 9.03 | 9.47 | 145.65 | 62.41 | 276.89 | 0.8825 | 590.2 | 409.8 | |
| 0.00 | 0.71 | 0.00 | 0.71 | 8.38 | 143.90 | 60.67 | 275.53 | 0.8685 | 286.0 | 226.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
