SDO HMI 2014-09-11 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.34 | 60.68 | 3.02 | 35.08 | -22.41 | 76.04 | -6.65 | 168.96 | 0.5153 | 38.3 | 33.4 | |
|
previous
or next observation for the same group /

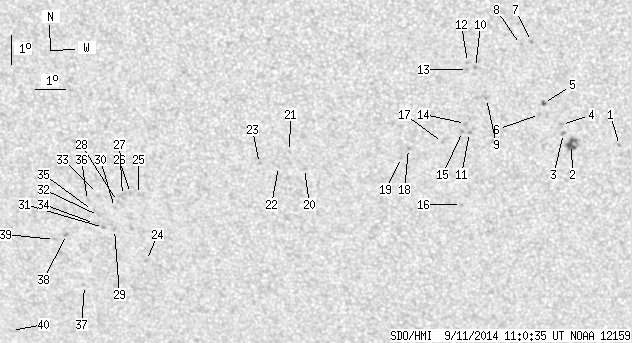

back to the solar disc SDO HMI 2014-09-11 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.66 | -21.61 | 85.18 | 2.49 | 184.79 | 0.4859 | 802.0 | 610.4 | |
| 4.63 | 10.78 | 2.62 | 6.09 | -21.56 | 83.62 | 0.93 | 181.80 | 0.4839 | 913.8 | 748.1 | |
| 0.00 | 1.69 | 0.00 | 0.95 | -21.18 | 83.36 | 0.67 | 181.31 | 0.4779 | 835.0 | 684.8 | |
| 0.00 | 1.60 | 0.00 | 0.90 | -20.88 | 83.29 | 0.60 | 181.20 | 0.4731 | 850.0 | 659.8 | |
| 0.71 | 1.87 | 0.40 | 1.04 | -20.16 | 82.71 | 0.02 | 180.05 | 0.4619 | 884.1 | 780.6 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -20.53 | 82.58 | -0.11 | 179.79 | 0.4677 | 188.0 | 154.3 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -18.07 | 82.33 | -0.36 | 179.21 | 0.4291 | 908.0 | 770.0 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -18.17 | 81.98 | -0.70 | 178.44 | 0.4308 | 739.0 | 598.8 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -19.99 | 80.88 | -1.81 | 176.29 | 0.4602 | -703.0 | -553.2 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -18.94 | 80.54 | -2.15 | 175.41 | 0.4442 | -897.0 | -739.8 | |
| 0.00 | 1.51 | 0.00 | 0.85 | -21.15 | 80.32 | -2.37 | 175.35 | 0.4788 | 704.0 | 620.6 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -18.77 | 80.29 | -2.40 | 174.84 | 0.4420 | -824.0 | -634.7 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -19.01 | 80.29 | -2.40 | 174.88 | 0.4457 | -780.0 | -620.8 | |
| 0.00 | 2.05 | 0.00 | 1.15 | -20.84 | 80.19 | -2.50 | 175.05 | 0.4742 | 605.0 | 548.7 | |
| 0.00 | 1.43 | 0.00 | 0.80 | -21.12 | 80.09 | -2.60 | 174.91 | 0.4786 | 734.0 | 592.9 | |
| 0.00 | 1.07 | 0.00 | 0.62 | -23.66 | 80.01 | -2.68 | 175.22 | 0.5171 | 529.0 | 468.4 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -21.50 | 79.43 | -3.26 | 173.72 | 0.4854 | 772.0 | 563.3 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -21.72 | 78.32 | -4.37 | 171.68 | 0.4908 | 811.0 | 692.8 | |
| 0.00 | 1.78 | 0.00 | 1.02 | -22.03 | 78.08 | -4.61 | 171.33 | 0.4960 | 759.0 | 544.0 | |
| 0.00 | 1.60 | 0.00 | 0.92 | -22.45 | 74.88 | -7.81 | 165.74 | 0.5119 | 651.0 | 522.7 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -21.87 | 74.42 | -8.27 | 164.62 | 0.5052 | 428.0 | 424.0 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -22.40 | 74.02 | -8.66 | 164.23 | 0.5144 | 609.0 | 466.7 | |
| 0.00 | 1.25 | 0.00 | 0.72 | -22.31 | 73.40 | -9.29 | 163.10 | 0.5157 | 710.0 | 498.9 | |
| 0.00 | 1.34 | 0.00 | 0.81 | -25.85 | 69.26 | -13.42 | 158.94 | 0.5837 | -600.0 | -489.7 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -23.50 | 69.25 | -13.44 | 157.24 | 0.5528 | -773.0 | -604.9 | |
| 0.00 | 1.51 | 0.00 | 0.90 | -23.47 | 68.98 | -13.70 | 156.81 | 0.5540 | -882.0 | -711.9 | |
| 0.00 | 4.36 | 0.00 | 2.60 | -23.55 | 68.70 | -13.98 | 156.45 | 0.5567 | -735.0 | -701.1 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -23.77 | 68.51 | -14.18 | 156.33 | 0.5606 | -723.0 | -636.7 | |
| 0.00 | 1.43 | 0.00 | 0.86 | -24.77 | 68.29 | -14.40 | 156.78 | 0.5748 | -686.0 | -488.0 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -23.98 | 68.38 | -14.30 | 156.32 | 0.5642 | -666.0 | -624.2 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -24.71 | 67.92 | -14.77 | 156.21 | 0.5762 | -722.0 | -594.8 | |
| 0.00 | 1.43 | 0.00 | 0.86 | -24.29 | 67.80 | -14.89 | 155.71 | 0.5715 | -722.0 | -533.2 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -23.51 | 67.86 | -14.83 | 155.17 | 0.5611 | -89.0 | -132.7 | |
| 0.00 | 1.34 | 0.00 | 0.81 | -24.57 | 67.63 | -15.06 | 155.69 | 0.5762 | -594.0 | -473.1 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -24.11 | 67.62 | -15.07 | 155.31 | 0.5704 | -460.0 | -504.8 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -23.77 | 67.49 | -15.20 | 154.84 | 0.5667 | -524.0 | -467.8 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -26.83 | 66.98 | -15.71 | 156.50 | 0.6083 | -453.0 | -396.8 | |
| 0.00 | 1.87 | 0.00 | 1.14 | -25.00 | 66.60 | -16.08 | 154.61 | 0.5877 | -837.0 | -636.2 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -25.20 | 66.16 | -16.53 | 154.16 | 0.5928 | -617.0 | -541.8 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -28.60 | 64.08 | -18.61 | 154.20 | 0.6460 | -369.0 | -380.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
