SDO HMI 2014-09-11 14:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 186.61 | 1159.02 | 94.30 | 585.18 | 16.21 | 87.77 | 6.73 | 324.11 | 0.1949 | 378.3 | 285.6 | |
|
previous
or next observation for the same group /

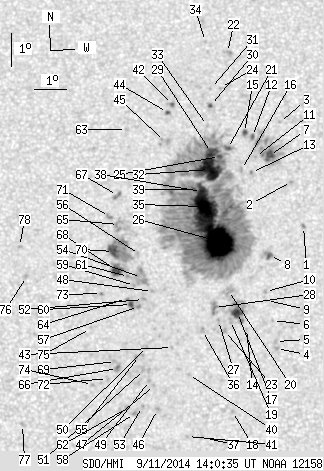

back to the solar disc SDO HMI 2014-09-11 14:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.78 | 0.00 | 0.91 | 15.88 | 90.84 | 9.80 | 312.90 | 0.2246 | 1069.0 | 852.8 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 17.26 | 90.53 | 9.49 | 318.16 | 0.2371 | 1006.0 | 817.9 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 19.08 | 90.25 | 9.21 | 323.84 | 0.2574 | -637.0 | -472.1 | |
| 0.00 | 2.23 | 0.00 | 1.12 | 12.19 | 89.84 | 8.80 | 300.47 | 0.1742 | -890.0 | -692.3 | |
| 0.00 | 2.31 | 0.00 | 1.16 | 12.40 | 89.81 | 8.77 | 301.60 | 0.1757 | -885.0 | -658.9 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 13.04 | 89.74 | 8.70 | 304.87 | 0.1804 | -748.0 | -584.9 | |
| 5.97 | 69.18 | 3.04 | 35.32 | 18.07 | 89.87 | 8.83 | 322.41 | 0.2403 | 1112.3 | 430.0 | |
| 1.87 | 7.12 | 0.95 | 3.60 | 15.02 | 89.72 | 8.69 | 313.19 | 0.2010 | -695.6 | -125.9 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 13.65 | 89.58 | 8.54 | 308.13 | 0.1842 | -607.0 | -485.6 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 13.93 | 89.55 | 8.52 | 309.38 | 0.1868 | -740.0 | -597.4 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 18.05 | 89.42 | 8.38 | 323.76 | 0.2354 | 1018.0 | 856.5 | |
| 0.89 | -7.00 | 0.45 | -7.00 | 18.67 | 89.35 | 8.31 | 325.54 | 0.2432 | 846.1 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.68 | 17.56 | 89.27 | 8.23 | 322.94 | 0.2274 | -703.0 | -484.1 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 12.82 | 88.92 | 7.88 | 306.38 | 0.1668 | -792.0 | -677.1 | |
| 1.42 | -7.00 | 0.73 | -7.00 | 18.80 | 89.10 | 8.06 | 326.64 | 0.2426 | 920.0 | 999999 | |
| 0.00 | 1.78 | 0.00 | 0.91 | 17.66 | 88.95 | 7.91 | 324.25 | 0.2255 | 784.0 | 623.0 | |
| 7.30 | 25.20 | 3.67 | 12.66 | 13.31 | 88.65 | 7.62 | 309.66 | 0.1683 | -1070.3 | -537.0 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 10.31 | 88.41 | 7.37 | 293.46 | 0.1383 | -975.0 | -717.4 | |
| 0.00 | 3.03 | 0.00 | 1.52 | 13.07 | 88.43 | 7.39 | 309.35 | 0.1627 | -751.0 | -673.8 | |
| 0.00 | 7.30 | 0.00 | 3.67 | 13.98 | 88.39 | 7.36 | 313.65 | 0.1725 | 189.0 | 222.9 | |
| 1.51 | 851.76 | 0.77 | 430.31 | 18.31 | 88.53 | 7.49 | 327.36 | 0.2306 | 815.6 | 482.2 | |
| 0.00 | 4.01 | 0.00 | 2.06 | 21.28 | 88.68 | 7.64 | 333.07 | 0.2747 | 764.0 | 681.2 | |
| 0.00 | 2.58 | 0.00 | 1.29 | 12.77 | 88.23 | 7.19 | 308.59 | 0.1569 | -990.0 | -768.6 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 20.20 | 88.40 | 7.36 | 331.94 | 0.2566 | 681.0 | 544.2 | |
| 1.96 | -21.00 | 1.00 | -21.00 | 18.07 | 88.27 | 7.23 | 327.69 | 0.2247 | 845.9 | 999999 | |
| 63.84 | -21.00 | 32.19 | -21.00 | 15.47 | 88.13 | 7.09 | 320.49 | 0.1879 | 1511.5 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 13.07 | 88.05 | 7.01 | 310.81 | 0.1579 | -857.0 | -753.1 | |
| 0.00 | 7.66 | 0.00 | 3.84 | 13.47 | 87.94 | 6.90 | 313.16 | 0.1609 | -676.0 | -452.7 | |
| 9.26 | -21.00 | 4.71 | -21.00 | 18.20 | 88.02 | 6.98 | 328.89 | 0.2243 | 897.2 | 999999 | |
| 0.71 | 1.69 | 0.36 | 0.86 | 19.65 | 88.05 | 7.01 | 331.98 | 0.2457 | -799.8 | -670.4 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 20.17 | 88.07 | 7.03 | 332.94 | 0.2537 | 763.0 | 591.0 | |
| 35.88 | -21.00 | 18.20 | -21.00 | 17.68 | 87.93 | 6.89 | 327.90 | 0.2161 | 1141.6 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.59 | 19.03 | 87.92 | 6.88 | 331.12 | 0.2356 | 823.0 | 533.9 | |
| 0.00 | 1.16 | 0.00 | 0.60 | 21.64 | 87.98 | 6.94 | 335.78 | 0.2750 | 759.0 | 572.2 | |
| 31.61 | -21.00 | 15.97 | -21.00 | 16.55 | 87.73 | 6.69 | 325.55 | 0.1983 | 1283.3 | 999999 | |
| 0.00 | 2.49 | 0.00 | 1.25 | 12.78 | 87.55 | 6.51 | 311.41 | 0.1480 | -1168.0 | -884.2 | |
| 0.00 | 1.87 | 0.00 | 0.93 | 9.54 | 87.47 | 6.43 | 290.43 | 0.1184 | -905.0 | -632.6 | |
| 4.63 | -21.00 | 2.34 | -21.00 | 17.01 | 87.65 | 6.61 | 327.17 | 0.2040 | 1024.0 | 999999 | |
| 1.07 | -21.00 | 0.54 | -21.00 | 17.07 | 87.43 | 6.39 | 328.21 | 0.2029 | 744.6 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.62 | 11.45 | 87.08 | 6.04 | 305.78 | 0.1277 | -817.0 | -661.3 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 9.58 | 87.01 | 5.97 | 292.11 | 0.1112 | -902.0 | -716.8 | |
| 0.62 | 2.85 | 0.32 | 1.45 | 19.70 | 86.82 | 5.78 | 336.33 | 0.2374 | 1048.1 | 834.9 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 12.28 | 86.60 | 5.56 | 313.07 | 0.1302 | -999.0 | -764.4 | |
| 0.89 | 2.14 | 0.45 | 1.09 | 19.45 | 86.65 | 5.61 | 336.51 | 0.2325 | 883.5 | 728.1 | |
| 0.00 | 6.32 | 0.00 | 3.21 | 18.56 | 86.53 | 5.49 | 335.29 | 0.2178 | -369.0 | -353.3 | |
| 0.00 | 1.69 | 0.00 | 0.84 | 10.41 | 86.10 | 5.06 | 302.79 | 0.1037 | -931.0 | -829.7 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 11.13 | 86.02 | 4.98 | 308.81 | 0.1099 | -979.0 | -812.1 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 13.98 | 86.02 | 4.98 | 324.49 | 0.1457 | -790.0 | -705.0 | |
| 0.00 | 1.51 | 0.00 | 0.75 | 11.29 | 85.87 | 4.83 | 310.76 | 0.1095 | -1072.0 | -834.4 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 12.32 | 85.83 | 4.79 | 317.52 | 0.1213 | -975.0 | -774.9 | |
| 0.00 | 5.79 | 0.00 | 2.88 | 11.62 | 85.72 | 4.68 | 313.91 | 0.1115 | -1025.0 | -867.0 | |
| 0.00 | 1.78 | 0.00 | 0.89 | 13.74 | 85.73 | 4.69 | 325.07 | 0.1395 | -916.0 | -771.0 | |
| 0.00 | 1.25 | 0.00 | 0.62 | 10.50 | 85.64 | 4.60 | 306.08 | 0.0981 | -931.0 | -769.0 | |
| 0.00 | 16.03 | 0.00 | 8.03 | 14.41 | 85.68 | 4.65 | 327.97 | 0.1486 | -425.0 | -363.6 | |
| 0.00 | 3.56 | 0.00 | 1.78 | 12.05 | 85.57 | 4.54 | 317.48 | 0.1150 | -786.0 | -735.5 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 15.11 | 85.64 | 4.60 | 330.63 | 0.1585 | 241.0 | 313.6 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 13.53 | 85.57 | 4.53 | 325.10 | 0.1349 | -979.0 | -907.4 | |
| 0.00 | 1.87 | 0.00 | 0.93 | 10.29 | 85.39 | 4.35 | 305.78 | 0.0925 | -948.0 | -833.1 | |
| 0.00 | 1.25 | 0.00 | 0.62 | 14.17 | 85.46 | 4.42 | 328.33 | 0.1431 | -907.0 | -700.2 | |
| 1.78 | 3.83 | 0.89 | 1.91 | 13.59 | 85.36 | 4.32 | 326.66 | 0.1337 | -1201.0 | -965.9 | |
| 0.00 | 1.69 | 0.00 | 0.85 | 14.45 | 85.28 | 4.24 | 330.38 | 0.1455 | -877.0 | -725.4 | |
| 0.00 | 2.31 | 0.00 | 1.15 | 10.45 | 85.15 | 4.11 | 308.70 | 0.0907 | -996.0 | -824.9 | |
| 0.00 | 1.87 | 0.00 | 0.95 | 18.94 | 85.32 | 4.28 | 340.84 | 0.2162 | 765.0 | 509.0 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 13.78 | 85.20 | 4.16 | 328.34 | 0.1350 | -875.0 | -840.7 | |
| 0.00 | 7.57 | 0.00 | 3.80 | 16.03 | 85.00 | 3.96 | 336.59 | 0.1678 | -409.0 | -321.4 | |
| 0.00 | 3.83 | 0.00 | 1.91 | 11.66 | 84.89 | 3.85 | 319.69 | 0.1021 | -1093.0 | -874.4 | |
| 0.00 | 4.01 | 0.00 | 2.02 | 16.92 | 84.99 | 3.95 | 338.66 | 0.1818 | -865.0 | -803.4 | |
| 6.94 | 15.31 | 3.48 | 7.67 | 14.63 | 84.91 | 3.87 | 333.18 | 0.1453 | -1198.7 | -701.8 | |
| 0.00 | 2.31 | 0.00 | 1.15 | 11.87 | 84.83 | 3.79 | 321.45 | 0.1043 | -905.0 | -757.5 | |
| 8.46 | 38.28 | 4.24 | 19.20 | 15.21 | 84.83 | 3.79 | 335.39 | 0.1537 | -1140.2 | -374.5 | |
| 0.00 | 2.40 | 0.00 | 1.21 | 16.28 | 84.72 | 3.68 | 338.63 | 0.1699 | -872.0 | -888.8 | |
| 0.00 | 2.58 | 0.00 | 1.28 | 11.36 | 84.58 | 3.54 | 320.07 | 0.0947 | -913.0 | -721.4 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 13.94 | 84.43 | 3.39 | 333.88 | 0.1309 | -948.0 | -828.0 | |
| 0.00 | 1.25 | 0.00 | 0.62 | 11.18 | 84.11 | 3.07 | 322.74 | 0.0872 | -989.0 | -805.4 | |
| 0.00 | 0.45 | 0.00 | 0.22 | 12.88 | 84.07 | 3.03 | 332.39 | 0.1118 | -760.0 | -677.8 | |
| 0.00 | 2.23 | 0.00 | 1.11 | 14.47 | 82.10 | 1.06 | 351.91 | 0.1279 | -771.0 | -634.1 | |
| 0.00 | 2.49 | 0.00 | 1.24 | 9.99 | 81.95 | 0.91 | 341.92 | 0.0508 | -788.0 | -538.0 | |
| 0.00 | 1.60 | 0.00 | 0.80 | 15.38 | 81.88 | 0.85 | 354.27 | 0.1432 | -838.0 | -630.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
