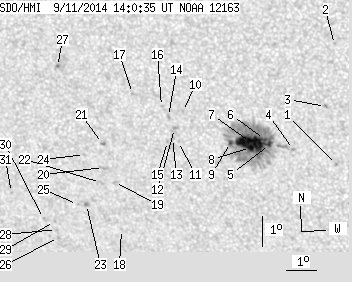

SDO HMI 2014-09-11 14:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.28 | 210.39 | 19.06 | 117.56 | -15.84 | 66.00 | -15.04 | 147.36 | 0.4634 | 385.4 | 271.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-11 14:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.64 | -16.36 | 69.41 | -11.63 | 154.07 | 0.4441 | -914.0 | -673.2 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -12.46 | 69.56 | -11.48 | 149.84 | 0.3885 | 783.0 | 624.9 | |
| 0.00 | 1.42 | 0.00 | 0.78 | -14.47 | 69.17 | -11.87 | 151.52 | 0.4194 | -836.0 | -617.0 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -15.90 | 68.06 | -12.98 | 151.00 | 0.4475 | 631.0 | 579.5 | |
| 2.05 | 173.17 | 1.14 | 96.29 | -15.76 | 67.29 | -13.75 | 149.43 | 0.4515 | 994.4 | 398.2 | |
| 1.34 | -5.00 | 0.74 | -5.00 | -15.60 | 67.14 | -13.90 | 148.97 | 0.4506 | 1198.1 | 999999 | |
| 25.37 | -5.00 | 14.11 | -5.00 | -15.72 | 66.68 | -14.36 | 148.27 | 0.4558 | 1126.9 | 999999 | |
| 4.01 | -5.00 | 2.23 | -5.00 | -15.88 | 66.67 | -14.37 | 148.45 | 0.4580 | 946.7 | 999999 | |
| 1.51 | -5.00 | 0.84 | -5.00 | -15.74 | 66.03 | -15.01 | 147.16 | 0.4614 | 642.4 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -14.78 | 64.55 | -16.49 | 143.41 | 0.4624 | 733.0 | 491.2 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -15.77 | 64.33 | -16.70 | 144.34 | 0.4764 | 668.0 | 509.6 | |
| 0.00 | 3.03 | 0.00 | 1.70 | -15.34 | 64.24 | -16.80 | 143.65 | 0.4721 | 675.0 | 416.3 | |
| 0.00 | 1.69 | 0.00 | 0.95 | -15.67 | 64.15 | -16.89 | 143.92 | 0.4770 | 759.0 | 605.5 | |
| 0.00 | 1.60 | 0.00 | 0.90 | -14.96 | 64.08 | -16.96 | 142.87 | 0.4689 | 729.0 | 583.7 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -15.78 | 63.97 | -17.07 | 143.78 | 0.4799 | 639.0 | 534.5 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -14.64 | 63.87 | -17.17 | 142.12 | 0.4670 | 668.0 | 560.7 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -14.25 | 62.96 | -18.08 | 140.14 | 0.4712 | 702.0 | 482.2 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -18.77 | 62.14 | -18.90 | 144.62 | 0.5318 | 572.0 | 465.0 | |
| 0.00 | 1.60 | 0.00 | 0.92 | -17.20 | 62.08 | -18.96 | 142.68 | 0.5140 | -686.0 | -522.4 | |
| 0.00 | 3.21 | 0.00 | 1.85 | -16.72 | 61.76 | -19.28 | 141.62 | 0.5113 | -635.0 | -539.5 | |
| 0.00 | 2.05 | 0.00 | 1.17 | -15.93 | 61.81 | -19.23 | 140.68 | 0.5017 | -755.0 | -671.5 | |
| 0.00 | 1.87 | 0.00 | 1.08 | -17.23 | 61.61 | -19.43 | 142.03 | 0.5185 | -839.0 | -638.5 | |
| 0.00 | 2.31 | 0.00 | 1.35 | -17.98 | 61.05 | -19.99 | 142.17 | 0.5322 | -877.0 | -708.7 | |
| 0.00 | 1.34 | 0.00 | 0.77 | -16.32 | 61.17 | -19.87 | 140.26 | 0.5123 | -564.0 | -445.9 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -17.99 | 60.74 | -20.30 | 141.77 | 0.5352 | -592.0 | -520.0 | |
| 0.00 | 1.51 | 0.00 | 0.90 | -19.14 | 59.95 | -21.09 | 142.06 | 0.5551 | -510.0 | -372.9 | |
| 0.00 | 1.87 | 0.00 | 1.06 | -13.48 | 60.55 | -20.49 | 135.47 | 0.4873 | -832.0 | -683.9 | |
| 0.00 | 1.42 | 0.00 | 0.85 | -18.87 | 59.92 | -21.12 | 141.71 | 0.5524 | -637.0 | -469.8 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -18.60 | 59.88 | -21.16 | 141.35 | 0.5498 | -657.0 | -565.1 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -18.52 | 59.52 | -21.52 | 140.77 | 0.5522 | -763.0 | -650.5 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -17.70 | 58.53 | -22.51 | 138.51 | 0.5526 | -666.0 | -515.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
