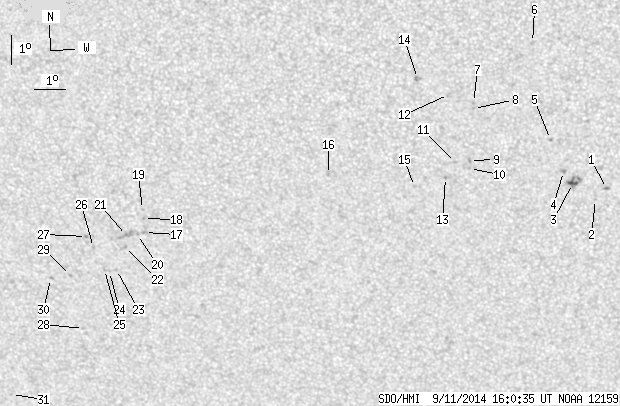

SDO HMI 2014-09-11 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.67 | 57.54 | 1.51 | 33.02 | -22.05 | 76.06 | -3.88 | 173.77 | 0.5039 | -114.1 | -68.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-11 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.78 | 0.00 | 1.01 | -21.83 | 84.64 | 4.71 | 188.92 | 0.4934 | 800.0 | 673.0 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -22.21 | 84.29 | 4.36 | 188.15 | 0.4983 | 632.0 | 479.4 | |
| 2.67 | 10.86 | 1.51 | 6.15 | -21.65 | 83.53 | 3.59 | 186.88 | 0.4883 | 889.3 | 757.1 | |
| 0.00 | 2.58 | 0.00 | 1.46 | -21.23 | 83.23 | 3.29 | 186.41 | 0.4814 | 945.0 | 698.8 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -20.14 | 82.79 | 2.85 | 185.80 | 0.4638 | 835.0 | 784.8 | |
| 0.00 | 2.14 | 0.00 | 1.16 | -16.88 | 82.17 | 2.23 | 185.21 | 0.4119 | 489.0 | 336.3 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -18.87 | 80.31 | 0.37 | 180.80 | 0.4419 | -698.0 | -594.1 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -19.07 | 80.31 | 0.37 | 180.80 | 0.4451 | -895.0 | -650.2 | |
| 0.00 | 1.87 | 0.00 | 1.05 | -20.84 | 80.18 | 0.25 | 180.49 | 0.4725 | 870.0 | 667.0 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -21.11 | 80.18 | 0.25 | 180.48 | 0.4768 | 777.0 | 596.5 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -20.91 | 79.73 | -0.21 | 179.59 | 0.4736 | 755.0 | 519.7 | |
| 0.00 | 2.05 | 0.00 | 1.13 | -18.60 | 79.51 | -0.42 | 179.08 | 0.4377 | -682.0 | -558.6 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -21.42 | 79.40 | -0.53 | 178.97 | 0.4816 | 813.0 | 729.7 | |
| 0.00 | 3.47 | 0.00 | 1.90 | -18.07 | 78.53 | -1.41 | 176.88 | 0.4298 | -655.0 | -628.2 | |
| 0.00 | 1.34 | 0.00 | 0.76 | -21.73 | 78.40 | -1.54 | 177.05 | 0.4869 | 698.0 | 477.5 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -21.34 | 75.61 | -4.33 | 171.64 | 0.4850 | 764.0 | 599.0 | |
| 0.00 | 2.40 | 0.00 | 1.41 | -23.45 | 69.43 | -10.50 | 161.79 | 0.5373 | -827.0 | -710.7 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -22.96 | 69.44 | -10.50 | 161.49 | 0.5304 | -830.0 | -697.9 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -22.65 | 69.43 | -10.50 | 161.27 | 0.5261 | -706.0 | -584.2 | |
| 0.00 | 1.25 | 0.00 | 0.73 | -23.53 | 69.19 | -10.74 | 161.45 | 0.5394 | -798.0 | -596.3 | |
| 0.00 | 7.39 | 0.00 | 4.35 | -23.57 | 68.82 | -11.12 | 160.89 | 0.5418 | -903.0 | -723.7 | |
| 0.00 | 1.34 | 0.00 | 0.79 | -23.96 | 68.75 | -11.18 | 161.03 | 0.5475 | -781.0 | -655.7 | |
| 0.00 | 1.34 | 0.00 | 0.80 | -24.79 | 68.37 | -11.56 | 160.98 | 0.5605 | -472.0 | -420.9 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -24.86 | 68.13 | -11.81 | 160.66 | 0.5627 | -603.0 | -433.7 | |
| 0.00 | 1.16 | 0.00 | 0.69 | -24.80 | 67.96 | -11.97 | 160.37 | 0.5626 | -498.0 | -437.9 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -24.03 | 67.67 | -12.27 | 159.40 | 0.5537 | -703.0 | -510.6 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -23.64 | 67.47 | -12.47 | 158.82 | 0.5496 | -862.0 | -770.8 | |
| 0.00 | 1.34 | 0.00 | 0.82 | -26.95 | 67.01 | -12.93 | 160.36 | 0.5957 | -397.0 | -371.3 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -25.05 | 66.78 | -13.16 | 158.78 | 0.5719 | -766.0 | -606.6 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -25.17 | 66.08 | -13.86 | 157.85 | 0.5772 | -642.0 | -590.5 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -29.49 | 64.10 | -15.83 | 158.20 | 0.6418 | -598.0 | -525.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
