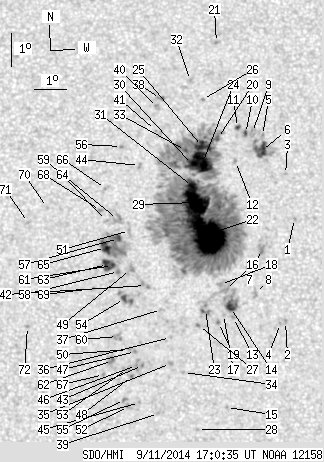

SDO HMI 2014-09-11 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 222.03 | 1095.07 | 112.56 | 554.67 | 16.06 | 87.67 | 8.29 | 317.87 | 0.2094 | 594.9 | 269.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-11 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 0.64 | 15.93 | 90.85 | 11.46 | 308.80 | 0.2463 | 980.0 | 827.8 | |
| 0.00 | 1.69 | 0.00 | 0.86 | 12.81 | 90.40 | 11.01 | 298.09 | 0.2121 | -614.0 | -561.6 | |
| 0.00 | 1.33 | 0.00 | 0.68 | 17.29 | 90.64 | 11.26 | 313.49 | 0.2581 | 790.0 | 629.9 | |
| 0.00 | 1.33 | 0.00 | 0.68 | 12.76 | 90.24 | 10.85 | 298.18 | 0.2093 | -793.0 | -648.1 | |
| 0.00 | 1.33 | 0.00 | 0.69 | 18.50 | 89.98 | 10.59 | 318.55 | 0.2645 | 255.0 | 335.6 | |
| 8.45 | 24.21 | 4.33 | 12.41 | 18.04 | 89.91 | 10.53 | 317.47 | 0.2583 | 1108.5 | 585.0 | |
| 0.00 | 4.81 | 0.00 | 2.44 | 15.02 | 89.75 | 10.36 | 308.34 | 0.2225 | -205.0 | -278.9 | |
| 0.00 | 4.36 | 0.00 | 2.21 | 13.68 | 89.49 | 10.11 | 303.81 | 0.2062 | -724.0 | -518.3 | |
| 0.00 | 6.05 | 0.00 | 3.11 | 18.60 | 89.66 | 10.28 | 319.65 | 0.2623 | 584.0 | 396.2 | |
| 0.80 | 2.58 | 0.41 | 1.32 | 18.57 | 89.43 | 10.05 | 320.19 | 0.2595 | 877.6 | 722.0 | |
| 0.98 | 2.14 | 0.50 | 1.10 | 18.76 | 89.18 | 9.80 | 321.36 | 0.2593 | 901.9 | 744.8 | |
| 0.00 | 1.25 | 0.00 | 0.64 | 17.72 | 89.06 | 9.68 | 318.93 | 0.2448 | 905.0 | 674.8 | |
| 0.00 | 1.87 | 0.00 | 0.94 | 12.97 | 88.77 | 9.39 | 302.59 | 0.1895 | -844.0 | -653.5 | |
| 4.72 | 19.85 | 2.38 | 10.02 | 13.28 | 88.69 | 9.30 | 304.18 | 0.1911 | -1102.2 | -466.9 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 10.25 | 88.46 | 9.07 | 289.26 | 0.1651 | -985.0 | -743.6 | |
| 0.00 | 6.23 | 0.00 | 3.15 | 13.83 | 88.55 | 9.17 | 306.94 | 0.1945 | 229.0 | 237.1 | |
| 0.00 | 1.60 | 0.00 | 0.81 | 13.07 | 88.46 | 9.08 | 303.88 | 0.1859 | -873.0 | -686.7 | |
| 0.00 | 2.85 | 0.00 | 1.44 | 13.98 | 88.40 | 9.02 | 308.03 | 0.1940 | 153.0 | 167.0 | |
| 0.00 | 1.87 | 0.00 | 0.94 | 12.83 | 88.29 | 8.91 | 303.24 | 0.1814 | -945.0 | -790.9 | |
| 1.33 | 838.78 | 0.68 | 425.30 | 18.44 | 88.52 | 9.14 | 322.43 | 0.2482 | 784.5 | 457.4 | |
| 0.00 | 1.96 | 0.00 | 1.01 | 21.41 | 88.67 | 9.28 | 328.64 | 0.2898 | 805.0 | 685.4 | |
| 88.73 | -20.00 | 44.91 | -20.00 | 15.51 | 88.02 | 8.64 | 315.10 | 0.2060 | 1586.0 | 999999 | |
| 0.00 | 7.21 | 0.00 | 3.63 | 13.23 | 87.90 | 8.52 | 306.27 | 0.1797 | -227.0 | -601.3 | |
| 25.45 | -20.00 | 12.96 | -20.00 | 17.71 | 88.00 | 8.62 | 322.08 | 0.2333 | 1130.4 | 999999 | |
| 13.35 | -20.00 | 6.81 | -20.00 | 18.20 | 88.02 | 8.64 | 323.32 | 0.2400 | 939.7 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 19.65 | 88.10 | 8.72 | 326.58 | 0.2604 | -850.0 | -742.8 | |
| 0.00 | 1.87 | 0.00 | 0.94 | 12.75 | 87.67 | 8.28 | 304.73 | 0.1717 | -1131.0 | -947.4 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 9.61 | 87.54 | 8.16 | 286.96 | 0.1469 | -916.0 | -648.2 | |
| 40.31 | -20.00 | 20.44 | -20.00 | 16.49 | 87.72 | 8.34 | 319.39 | 0.2145 | 1308.1 | 999999 | |
| 10.32 | -20.00 | 5.25 | -20.00 | 17.66 | 87.68 | 8.29 | 322.96 | 0.2292 | 1314.6 | 999999 | |
| 7.48 | -20.00 | 3.80 | -20.00 | 16.98 | 87.65 | 8.26 | 321.14 | 0.2200 | 1057.1 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.78 | 20.25 | 87.75 | 8.36 | 328.92 | 0.2655 | 930.0 | 737.5 | |
| 1.07 | -20.00 | 0.54 | -20.00 | 18.09 | 87.47 | 8.09 | 324.78 | 0.2330 | 730.2 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.62 | 11.34 | 87.15 | 7.77 | 298.73 | 0.1519 | -828.0 | -662.0 | |
| 0.00 | 2.49 | 0.00 | 1.25 | 11.62 | 86.76 | 7.38 | 301.62 | 0.1483 | -957.0 | -757.8 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 12.40 | 86.78 | 7.40 | 305.92 | 0.1560 | -915.0 | -706.6 | |
| 0.00 | 2.14 | 0.00 | 1.07 | 13.26 | 86.53 | 7.14 | 311.17 | 0.1615 | -822.0 | -611.0 | |
| 0.00 | 3.20 | 0.00 | 1.64 | 19.71 | 86.75 | 7.36 | 330.92 | 0.2493 | 1070.0 | 863.5 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 10.11 | 86.35 | 6.97 | 293.17 | 0.1305 | -909.0 | -691.8 | |
| 0.00 | 3.47 | 0.00 | 1.77 | 19.43 | 86.64 | 7.25 | 330.70 | 0.2444 | 372.0 | 476.2 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 18.72 | 86.54 | 7.16 | 329.47 | 0.2333 | -747.0 | -584.8 | |
| 0.00 | 3.47 | 0.00 | 1.74 | 13.99 | 86.05 | 6.67 | 316.45 | 0.1642 | -644.0 | -714.8 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 11.57 | 85.89 | 6.51 | 304.53 | 0.1354 | -1107.0 | -902.6 | |
| 0.00 | 2.40 | 0.00 | 1.22 | 17.66 | 85.99 | 6.60 | 328.91 | 0.2131 | 788.0 | 656.5 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 10.45 | 85.77 | 6.39 | 297.48 | 0.1239 | -934.0 | -778.4 | |
| 0.00 | 4.72 | 0.00 | 2.36 | 11.57 | 85.70 | 6.32 | 305.31 | 0.1328 | -1243.0 | -871.4 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 12.00 | 85.68 | 6.30 | 307.97 | 0.1368 | -1088.0 | -914.6 | |
| 0.00 | 1.69 | 0.00 | 0.84 | 11.24 | 85.54 | 6.16 | 303.86 | 0.1273 | -1017.0 | -829.5 | |
| 0.00 | 5.52 | 0.00 | 2.77 | 14.49 | 85.59 | 6.21 | 320.47 | 0.1653 | -227.0 | -316.1 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 12.06 | 85.50 | 6.11 | 309.15 | 0.1349 | -952.0 | -660.1 | |
| 0.00 | 4.63 | 0.00 | 2.33 | 15.67 | 85.60 | 6.22 | 324.74 | 0.1814 | 552.0 | 401.0 | |
| 0.00 | 2.94 | 0.00 | 1.46 | 10.34 | 85.43 | 6.05 | 297.88 | 0.1177 | -868.0 | -723.1 | |
| 0.00 | 4.45 | 0.00 | 2.22 | 11.49 | 85.42 | 6.04 | 305.96 | 0.1280 | -823.0 | -764.7 | |
| 1.78 | 10.68 | 0.89 | 5.35 | 13.61 | 85.38 | 6.00 | 317.71 | 0.1516 | -1289.2 | -894.9 | |
| 0.00 | 2.67 | 0.00 | 1.33 | 10.55 | 85.31 | 5.93 | 299.96 | 0.1177 | -1065.0 | -774.1 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 18.25 | 85.43 | 6.05 | 332.43 | 0.2172 | 942.0 | 806.7 | |
| 2.49 | 45.92 | 1.25 | 23.08 | 15.43 | 85.25 | 5.86 | 325.50 | 0.1746 | 403.0 | -366.2 | |
| 0.00 | 2.40 | 0.00 | 1.21 | 14.43 | 85.22 | 5.83 | 321.98 | 0.1605 | -939.0 | -806.5 | |
| 0.00 | 8.01 | 0.00 | 4.04 | 16.01 | 85.23 | 5.85 | 327.42 | 0.1827 | -19.0 | -11.9 | |
| 0.00 | 6.94 | 0.00 | 3.47 | 12.46 | 85.14 | 5.75 | 313.13 | 0.1347 | -706.0 | -722.8 | |
| 1.60 | 11.12 | 0.80 | 5.58 | 14.61 | 85.03 | 5.65 | 323.56 | 0.1611 | -1045.1 | -859.1 | |
| 0.00 | 2.58 | 0.00 | 1.29 | 11.73 | 84.96 | 5.58 | 309.69 | 0.1243 | -1111.0 | -944.6 | |
| 5.96 | -61.00 | 2.99 | -61.00 | 14.65 | 84.88 | 5.49 | 324.43 | 0.1600 | -1200.0 | 999999 | |
| 0.00 | 1.69 | 0.00 | 0.85 | 15.99 | 84.88 | 5.50 | 328.90 | 0.1792 | -730.0 | -639.7 | |
| 7.21 | -57.00 | 3.62 | -57.00 | 15.17 | 84.83 | 5.45 | 326.52 | 0.1668 | -1172.1 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 16.97 | 84.88 | 5.50 | 331.61 | 0.1936 | -890.0 | -724.1 | |
| 0.00 | 1.60 | 0.00 | 0.80 | 11.31 | 84.68 | 5.29 | 308.39 | 0.1159 | -1100.0 | -863.0 | |
| 0.00 | 2.22 | 0.00 | 1.12 | 16.30 | 84.70 | 5.32 | 330.61 | 0.1822 | -1124.0 | -797.8 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 13.92 | 84.42 | 5.04 | 323.91 | 0.1454 | -982.0 | -770.8 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 16.41 | 83.04 | 3.65 | 339.05 | 0.1717 | -881.0 | -698.1 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 15.95 | 82.43 | 3.05 | 341.39 | 0.1608 | -783.0 | -527.5 | |
| 0.00 | 1.16 | 0.00 | 0.58 | 12.79 | 82.35 | 2.97 | 332.50 | 0.1098 | -971.0 | -730.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
