SDO HMI 2014-09-11 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.32 | 199.61 | 22.23 | 110.51 | -15.88 | 65.87 | -12.96 | 151.17 | 0.4478 | 461.3 | 283.7 | |
|
previous
or next observation for the same group /

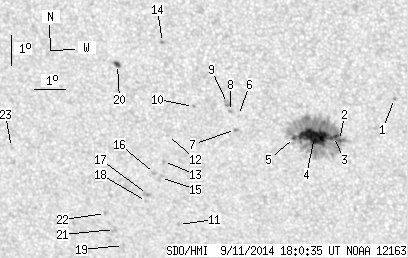

back to the solar disc SDO HMI 2014-09-11 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.72 | -14.47 | 69.28 | -9.55 | 156.43 | 0.4034 | -776.0 | -597.4 | |
| 1.25 | 164.99 | 0.69 | 90.90 | -15.88 | 67.46 | -11.37 | 154.09 | 0.4357 | 657.2 | 416.9 | |
| 3.74 | -2.00 | 2.05 | -2.00 | -15.76 | 67.28 | -11.55 | 153.59 | 0.4352 | 1049.4 | 999999 | |
| 31.86 | -2.00 | 17.55 | -2.00 | -15.77 | 66.67 | -12.16 | 152.42 | 0.4398 | 1196.6 | 999999 | |
| 1.60 | -2.00 | 0.89 | -2.00 | -15.82 | 66.02 | -12.81 | 151.24 | 0.4452 | 683.9 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -15.16 | 64.26 | -14.57 | 147.22 | 0.4503 | 617.0 | 570.1 | |
| 0.00 | 1.78 | 0.00 | 0.99 | -15.62 | 64.13 | -14.70 | 147.56 | 0.4574 | 766.0 | 702.7 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -15.03 | 64.01 | -14.82 | 146.63 | 0.4509 | 709.0 | 651.8 | |
| 0.00 | 4.27 | 0.00 | 2.36 | -14.78 | 63.93 | -14.90 | 146.16 | 0.4482 | 752.0 | 733.5 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -14.91 | 62.82 | -16.01 | 144.41 | 0.4597 | -860.0 | -662.2 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -18.84 | 61.97 | -16.86 | 147.72 | 0.5160 | 774.0 | 570.0 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -15.89 | 61.89 | -16.94 | 144.13 | 0.4802 | -722.0 | -556.1 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -16.76 | 61.68 | -17.15 | 144.87 | 0.4926 | -851.0 | -778.4 | |
| 0.00 | 1.42 | 0.00 | 0.79 | -12.87 | 61.97 | -16.86 | 140.13 | 0.4429 | 873.0 | 720.2 | |
| 0.00 | 3.11 | 0.00 | 1.78 | -17.29 | 61.53 | -17.30 | 145.28 | 0.5005 | -845.0 | -644.7 | |
| 0.00 | 1.87 | 0.00 | 1.07 | -17.17 | 61.34 | -17.49 | 144.84 | 0.5006 | -752.0 | -630.0 | |
| 0.00 | 3.20 | 0.00 | 1.84 | -17.87 | 61.04 | -17.79 | 145.22 | 0.5118 | -928.0 | -751.3 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -18.11 | 60.98 | -17.85 | 145.40 | 0.5151 | -685.0 | -454.2 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -19.63 | 60.03 | -18.80 | 145.74 | 0.5412 | -670.0 | -450.0 | |
| 1.87 | 3.47 | 1.05 | 1.94 | -13.64 | 60.45 | -18.38 | 138.80 | 0.4672 | -967.3 | -756.2 | |
| 0.00 | 2.76 | 0.00 | 1.62 | -19.10 | 59.79 | -19.04 | 144.81 | 0.5369 | -771.0 | -632.2 | |
| 0.00 | 1.51 | 0.00 | 0.88 | -18.57 | 59.55 | -19.28 | 143.87 | 0.5328 | -635.0 | -597.9 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -16.52 | 56.62 | -22.21 | 137.38 | 0.5373 | -636.0 | -485.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
