Sunspot Group 12158

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

12158	201.10	1146.41	102.27	582.28	16.02	87.63	9.35	314.33	0.2216	486.9	269.7

previous or next observation for the same group / back to the solar disc

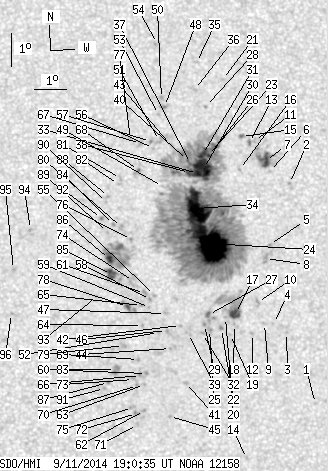

SDO HMI 2014-09-11 19:00:35 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	0.89	0.00	0.45	10.56	91.15	12.87	285.56	0.2283	-781.0	-606.3
2	0.00	1.25	0.00	0.64	17.26	90.70	12.42	310.72	0.2722	913.0	719.1
3	0.00	0.98	0.00	0.50	12.73	90.33	12.06	295.77	0.2273	-750.0	-619.2
4	0.00	0.53	0.00	0.27	13.01	89.94	11.66	297.64	0.2233	-729.0	-598.7
5	0.00	1.33	0.00	0.68	15.41	89.94	11.66	306.60	0.2438	832.0	597.2
6	0.00	1.16	0.00	0.59	17.64	90.08	11.80	313.21	0.2686	703.0	502.8
7	7.21	21.00	3.71	10.81	17.98	89.97	11.70	314.42	0.2711	1079.6	712.8
8	0.00	4.98	0.00	2.54	14.99	89.79	11.51	305.47	0.2377	-107.0	-207.1
9	0.00	1.78	0.00	0.90	13.02	89.65	11.38	298.22	0.2191	-716.0	-560.2
10	0.00	3.83	0.00	1.94	13.66	89.46	11.19	301.20	0.2214	-582.0	-530.7
11	0.00	2.49	0.00	1.28	18.61	89.66	11.38	316.84	0.2746	678.0	419.4
12	0.00	1.25	0.00	0.63	12.73	89.26	10.98	297.77	0.2110	-887.0	-750.4
13	0.00	2.22	0.00	1.14	18.55	89.49	11.22	317.09	0.2721	880.0	756.1
14	0.00	1.51	0.00	0.76	8.96	88.93	10.65	279.96	0.1862	-768.0	-648.4
15	0.44	2.22	0.23	1.14	18.74	89.25	10.97	318.20	0.2716	1005.8	726.6
16	0.00	1.25	0.00	0.64	17.73	89.12	10.84	315.80	0.2581	819.0	556.4
17	7.21	38.62	3.65	19.56	13.35	88.75	10.48	301.50	0.2084	-996.5	2.8
18	0.00	0.98	0.00	0.50	13.01	88.71	10.43	300.19	0.2050	-794.0	-635.0
19	0.00	1.33	0.00	0.67	12.71	88.57	10.29	299.19	0.2005	-701.0	-583.1
20	0.00	0.98	0.00	0.50	13.23	88.43	10.16	301.77	0.2028	-832.0	-649.5
21	0.00	0.98	0.00	0.51	20.52	88.75	10.47	323.68	0.2887	713.0	579.0
22	0.00	1.96	0.00	0.99	12.90	88.29	10.02	300.66	0.1980	-933.0	-795.8
23	1.16	861.47	0.59	438.09	18.45	88.39	10.11	319.70	0.2586	821.5	461.1
24	82.93	-23.00	42.10	-23.00	15.49	88.03	9.75	311.66	0.2195	1654.9	999999
25	0.00	3.29	0.00	1.66	12.88	87.92	9.64	301.49	0.1923	-835.0	-724.8
26	2.14	-23.00	1.09	-23.00	18.18	88.14	9.87	319.64	0.2525	944.0	999999
27	0.98	6.50	0.49	3.28	13.33	87.90	9.62	303.55	0.1961	-592.9	-458.5
28	0.00	1.25	0.00	0.64	19.69	88.14	9.86	323.43	0.2719	-746.0	-587.1
29	0.00	1.25	0.00	0.63	13.03	87.76	9.49	302.58	0.1914	-1094.0	-893.6
30	23.67	-23.00	12.09	-23.00	17.79	87.96	9.68	319.08	0.2456	1148.1	999999
31	7.56	-23.00	3.87	-23.00	18.22	87.95	9.68	320.27	0.2509	976.4	999999
32	0.00	1.87	0.00	0.94	12.76	87.69	9.41	301.53	0.1880	-859.0	-806.4
33	5.87	-23.00	3.00	-23.00	17.64	87.76	9.48	319.23	0.2415	1406.8	999999
34	45.20	-23.00	22.99	-23.00	16.57	87.67	9.39	316.29	0.2274	1288.2	999999
35	0.00	2.05	0.00	1.06	21.06	87.94	9.66	326.94	0.2883	589.0	472.9
36	0.00	0.89	0.00	0.46	20.23	87.82	9.54	325.51	0.2758	827.0	625.2
37	0.27	-23.00	0.14	-23.00	17.95	87.55	9.27	320.71	0.2432	970.3	999999
38	4.36	-23.00	2.22	-23.00	17.67	87.51	9.23	320.09	0.2392	1143.3	999999
39	0.00	2.49	0.00	1.26	12.77	87.25	8.98	302.76	0.1817	-683.0	-678.9
40	0.27	-23.00	0.14	-23.00	18.04	87.46	9.18	321.23	0.2434	824.7	999999
41	0.00	2.22	0.00	1.12	11.29	87.11	8.83	295.59	0.1677	-727.0	-546.4
42	0.00	1.42	0.00	0.72	13.02	87.01	8.73	304.61	0.1806	-767.0	-531.0
43	0.00	1.96	0.00	1.00	18.51	86.97	8.69	323.94	0.2446	145.0	184.0
44	0.00	0.71	0.00	0.36	12.33	86.67	8.40	302.25	0.1695	-996.0	-841.8
45	0.00	1.25	0.00	0.62	10.27	86.58	8.30	290.88	0.1528	-854.0	-715.3
46	0.00	1.07	0.00	0.54	12.88	86.57	8.29	305.29	0.1730	-928.0	-723.4
47	0.00	2.22	0.00	1.12	13.39	86.56	8.28	307.75	0.1779	-281.0	-136.9
48	0.00	2.76	0.00	1.41	19.72	86.81	8.53	327.28	0.2596	1161.0	907.7
49	0.00	1.16	0.00	0.59	17.26	86.62	8.34	321.67	0.2244	265.0	214.8
50	0.00	1.96	0.00	1.00	19.97	86.73	8.45	328.07	0.2623	778.0	626.9
51	0.00	3.92	0.00	2.00	18.68	86.59	8.32	325.52	0.2431	-523.0	-542.8
52	0.00	1.33	0.00	0.67	12.82	86.32	8.04	305.82	0.1689	-1005.0	-765.7
53	0.00	1.16	0.00	0.59	19.48	86.60	8.33	327.37	0.2543	918.0	666.6
54	0.00	2.67	0.00	1.38	21.68	86.70	8.42	331.50	0.2864	782.0	686.0
55	0.00	1.42	0.00	0.72	13.94	86.23	7.95	311.29	0.1795	-634.0	-553.5
56	0.00	1.07	0.00	0.54	18.43	86.39	8.11	325.57	0.2378	252.0	150.1
57	0.00	1.25	0.00	0.64	18.65	86.30	8.03	326.38	0.2400	-938.0	-709.0
58	0.00	1.25	0.00	0.63	13.83	86.10	7.82	311.22	0.1765	-759.0	-660.3
59	0.00	0.80	0.00	0.40	13.58	86.06	7.78	310.29	0.1734	-753.0	-656.1
60	0.00	1.51	0.00	0.76	11.59	85.90	7.63	300.59	0.1517	-1135.0	-920.6
61	0.00	2.94	0.00	1.48	14.01	85.92	7.64	312.68	0.1763	-714.0	-699.8
62	0.00	1.60	0.00	0.80	10.47	85.81	7.53	293.99	0.1418	-1061.0	-807.6
63	0.00	1.16	0.00	0.58	11.25	85.83	7.56	298.86	0.1479	-919.0	-709.9
64	0.00	1.16	0.00	0.58	13.04	85.82	7.55	308.60	0.1645	-910.0	-695.3
65	0.00	1.69	0.00	0.85	13.65	85.81	7.53	311.48	0.1709	-953.0	-779.8
66	0.00	1.96	0.00	0.98	11.53	85.72	7.44	300.86	0.1485	-1086.0	-948.5
67	0.00	2.94	0.00	1.50	18.59	85.98	7.70	327.31	0.2362	-434.0	-230.9
68	0.44	2.94	0.23	1.49	17.77	85.88	7.60	325.57	0.2237	892.2	723.5
69	0.00	1.42	0.00	0.71	12.01	85.67	7.39	303.80	0.1521	-1055.0	-858.4
70	0.00	1.51	0.00	0.76	11.23	85.62	7.34	299.39	0.1444	-989.0	-757.6
71	0.00	1.60	0.00	0.80	10.05	85.59	7.31	291.77	0.1355	-780.0	-621.5
72	0.00	2.40	0.00	1.20	10.38	85.56	7.28	294.11	0.1373	-883.0	-828.8
73	0.00	1.51	0.00	0.76	11.41	85.50	7.22	300.90	0.1442	-643.0	-605.8
74	0.00	8.99	0.00	4.52	14.38	85.59	7.31	315.47	0.1765	-266.0	-351.9
75	0.00	2.85	0.00	1.42	10.57	85.44	7.17	295.68	0.1367	-979.0	-772.9
76	0.00	1.78	0.00	0.90	15.66	85.57	7.29	320.34	0.1923	753.0	532.0
77	0.00	0.98	0.00	0.50	18.75	85.67	7.39	328.74	0.2357	835.0	595.3
78	1.78	6.05	0.89	3.04	13.63	85.37	7.10	313.05	0.1650	-1281.3	-900.5
79	0.00	2.85	0.00	1.43	12.45	85.21	6.94	307.84	0.1500	-975.0	-830.3
80	0.00	3.11	0.00	1.57	16.03	85.27	6.99	322.74	0.1940	-40.0	57.2
81	0.00	2.14	0.00	1.08	17.53	85.29	7.02	327.03	0.2150	740.0	599.7
82	0.00	1.07	0.00	0.54	17.35	85.22	6.94	326.80	0.2117	776.0	526.1
83	0.00	6.67	0.00	3.34	11.72	84.95	6.67	304.79	0.1391	-991.0	-900.6
84	0.00	1.60	0.00	0.81	16.13	85.02	6.74	324.02	0.1928	-613.0	-425.0
85	6.14	63.71	3.09	32.08	14.61	84.90	6.63	319.12	0.1714	-1192.4	-381.3
86	3.47	-85.00	1.75	-85.00	15.06	84.86	6.58	321.06	0.1768	-1268.4	999999
87	0.00	1.42	0.00	0.71	11.33	84.72	6.44	303.26	0.1322	-1021.0	-848.8
88	0.00	1.42	0.00	0.72	16.99	84.89	6.61	327.07	0.2035	-839.0	-613.7
89	0.00	0.89	0.00	0.45	15.89	84.82	6.54	324.05	0.1875	-801.0	-627.0
90	0.00	1.07	0.00	0.54	16.80	84.82	6.54	326.83	0.2003	-718.0	-520.8
91	0.00	1.51	0.00	0.76	11.15	84.59	6.31	302.60	0.1287	-956.0	-691.2
92	0.00	1.33	0.00	0.67	16.32	84.64	6.37	326.11	0.1918	-992.0	-793.5
93	0.00	1.07	0.00	0.54	13.94	84.41	6.14	318.54	0.1574	-1022.0	-711.6
94	0.00	1.42	0.00	0.72	16.01	82.40	4.12	335.67	0.1684	-807.0	-704.2
95	0.00	1.16	0.00	0.58	14.79	81.84	3.56	335.48	0.1454	-904.0	-689.5
96	0.00	0.80	0.00	0.40	13.46	81.76	3.48	331.47	0.1241	-735.0	-517.8

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
