SDO HMI 2014-09-11 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.16 | 42.72 | 0.66 | 24.54 | -22.27 | 76.22 | -2.05 | 176.87 | 0.5060 | -59.7 | 70.3 | |
|
previous
or next observation for the same group /

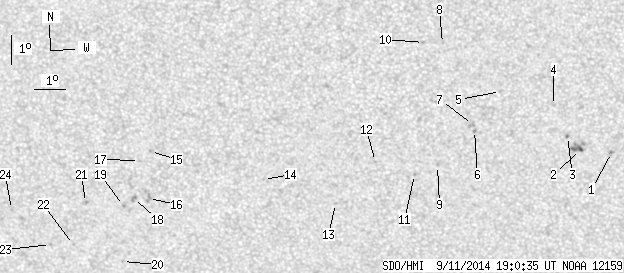

back to the solar disc SDO HMI 2014-09-11 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.60 | 0.00 | 0.91 | -21.82 | 84.68 | 6.41 | 192.06 | 0.4979 | 883.0 | 724.9 | |
| 1.16 | 9.97 | 0.66 | 5.66 | -21.70 | 83.67 | 5.39 | 190.23 | 0.4932 | 911.5 | 807.1 | |
| 0.00 | 1.51 | 0.00 | 0.86 | -21.24 | 83.23 | 4.95 | 189.58 | 0.4852 | 882.0 | 789.6 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -20.18 | 82.74 | 4.47 | 189.02 | 0.4678 | 769.0 | 704.7 | |
| 0.00 | 1.33 | 0.00 | 0.74 | -19.69 | 81.03 | 2.75 | 185.70 | 0.4568 | -541.0 | -389.8 | |
| 0.00 | 1.42 | 0.00 | 0.80 | -21.01 | 80.21 | 1.93 | 183.80 | 0.4762 | 724.0 | 624.5 | |
| 0.00 | 3.29 | 0.00 | 1.85 | -20.80 | 80.14 | 1.86 | 183.70 | 0.4730 | 916.0 | 717.0 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -18.06 | 79.16 | 0.88 | 181.96 | 0.4294 | -767.0 | -635.5 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -22.21 | 79.02 | 0.74 | 181.39 | 0.4938 | 775.0 | 602.1 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -18.03 | 78.56 | 0.28 | 180.63 | 0.4287 | -881.0 | -687.4 | |
| 0.00 | 1.33 | 0.00 | 0.76 | -22.52 | 78.27 | -0.01 | 179.98 | 0.4984 | 788.0 | 584.9 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -22.07 | 77.00 | -1.28 | 177.58 | 0.4920 | 524.0 | 459.0 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -23.54 | 75.67 | -2.61 | 175.33 | 0.5154 | 622.0 | 483.3 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -22.72 | 73.32 | -4.96 | 170.93 | 0.5073 | 558.0 | 415.4 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -21.80 | 69.66 | -8.62 | 163.96 | 0.5058 | -746.0 | -565.7 | |
| 0.00 | 3.74 | 0.00 | 2.18 | -23.44 | 69.48 | -8.79 | 164.59 | 0.5300 | -681.0 | -730.2 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -22.12 | 69.27 | -9.00 | 163.48 | 0.5120 | -629.0 | -534.5 | |
| 0.00 | 3.03 | 0.00 | 1.77 | -23.45 | 68.98 | -9.29 | 163.77 | 0.5321 | -827.0 | -803.9 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -23.71 | 68.63 | -9.65 | 163.34 | 0.5372 | -715.0 | -701.2 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -25.70 | 68.44 | -9.84 | 164.14 | 0.5658 | -645.0 | -526.8 | |
| 0.00 | 2.49 | 0.00 | 1.47 | -23.63 | 67.36 | -10.91 | 161.25 | 0.5418 | -837.0 | -652.8 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -25.13 | 66.82 | -11.46 | 161.36 | 0.5648 | -839.0 | -644.9 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -25.15 | 66.04 | -12.24 | 160.20 | 0.5688 | -807.0 | -581.2 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -23.95 | 64.84 | -13.44 | 157.57 | 0.5589 | -539.0 | -430.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
