Sunspot Group 12158

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

12158	213.27	1090.35	108.63	554.69	16.00	87.61	9.88	312.76	0.2277	494.1	285.2

previous or next observation for the same group / back to the solar disc

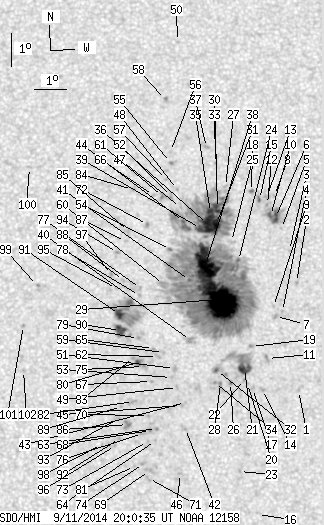

SDO HMI 2014-09-11 20:00:35 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	1.25	0.00	0.64	12.66	90.41	12.68	294.43	0.2363	-573.0	-549.1
2	0.00	1.42	0.00	0.73	15.94	90.54	12.81	305.87	0.2643	910.0	760.0
3	0.00	1.07	0.00	0.55	16.92	90.38	12.65	309.21	0.2717	818.0	596.8
4	0.00	1.07	0.00	0.55	15.07	90.03	12.31	304.01	0.2494	-557.0	-401.4
5	0.00	1.16	0.00	0.60	17.60	90.17	12.44	311.64	0.2760	581.0	410.1
6	4.27	22.25	2.20	11.47	17.94	90.00	12.27	312.97	0.2776	1090.0	714.5
7	0.00	2.14	0.00	1.09	14.92	89.80	12.08	303.98	0.2449	-521.0	-443.8
8	0.00	1.07	0.00	0.55	18.62	90.01	12.29	314.75	0.2853	692.0	489.2
9	0.00	1.16	0.00	0.59	15.23	89.76	12.03	305.14	0.2470	618.0	432.5
10	1.51	-6.00	0.78	-6.00	18.01	89.84	12.12	313.51	0.2764	1232.2	999999
11	0.00	3.20	0.00	1.63	13.65	89.48	11.75	299.98	0.2295	-668.0	-546.2
12	0.00	1.07	0.00	0.55	18.35	89.77	12.04	314.59	0.2793	713.0	585.3
13	0.00	1.78	0.00	0.92	18.56	89.75	12.03	315.21	0.2816	303.0	390.5
14	0.00	2.49	0.00	1.26	12.72	89.27	11.55	296.62	0.2194	-838.0	-616.5
15	0.53	2.22	0.28	1.15	18.51	89.52	11.79	315.59	0.2782	890.3	704.1
16	0.00	0.36	0.00	0.18	8.94	88.96	11.24	279.46	0.1961	-411.0	-402.0
17	0.00	2.14	0.00	1.08	12.75	88.96	11.23	297.38	0.2149	-843.0	-640.7
18	0.44	1.69	0.23	0.87	18.76	89.28	11.55	316.83	0.2784	897.8	727.1
19	0.00	1.69	0.00	0.86	14.03	88.99	11.26	302.45	0.2256	904.0	790.2
20	0.00	1.07	0.00	0.54	12.91	88.81	11.08	298.33	0.2138	-739.0	-552.2
21	8.45	34.53	4.29	17.52	13.37	88.73	11.01	300.38	0.2163	-881.5	-19.0
22	0.00	1.16	0.00	0.59	13.03	88.72	10.99	299.03	0.2135	-803.0	-590.0
23	0.00	1.25	0.00	0.63	10.26	88.45	10.72	286.64	0.1920	-931.0	-645.9
24	0.62	800.96	0.32	408.02	16.66	88.72	10.99	312.22	0.2478	651.3	472.8
25	0.00	3.20	0.00	1.64	17.24	88.53	10.81	314.47	0.2520	454.0	280.7
26	0.00	1.60	0.00	0.81	12.95	88.27	10.55	299.65	0.2062	-857.0	-808.0
27	0.00	1.42	0.00	0.73	18.94	88.44	10.72	319.33	0.2711	292.0	283.2
28	0.00	1.07	0.00	0.54	12.93	87.96	10.23	300.26	0.2014	-873.0	-734.0
29	89.52	-24.00	45.52	-24.00	15.48	88.05	10.32	310.07	0.2267	1615.5	999999
30	7.65	-24.00	3.92	-24.00	18.27	88.14	10.42	318.37	0.2596	875.9	999999
31	12.01	-24.00	6.15	-24.00	17.81	88.08	10.36	317.27	0.2534	1122.7	999999
32	0.80	8.36	0.41	4.23	13.33	87.85	10.12	302.24	0.2032	-587.3	-199.8
33	0.00	0.98	0.00	0.50	19.65	88.17	10.44	321.80	0.2772	-705.0	-605.1
34	0.00	1.07	0.00	0.54	12.97	87.77	10.05	300.86	0.1989	-1091.0	-879.7
35	6.23	-24.00	3.19	-24.00	18.15	87.91	10.18	318.67	0.2556	1019.6	999999
36	15.84	-24.00	8.10	-24.00	17.78	87.79	10.07	317.99	0.2498	1247.7	999999
37	0.00	2.49	0.00	1.29	20.15	87.91	10.18	323.62	0.2811	851.0	671.4
38	44.76	-24.00	22.80	-24.00	16.56	87.66	9.93	314.71	0.2337	1276.1	999999
39	4.72	-24.00	2.41	-24.00	17.66	87.56	9.83	318.30	0.2457	1192.5	999999
40	0.00	8.19	0.00	4.14	14.26	87.07	9.35	308.16	0.2011	393.0	324.6
41	0.62	-24.00	0.32	-24.00	16.08	87.12	9.40	314.70	0.2217	1021.1	999999
42	0.00	0.89	0.00	0.45	11.59	86.81	9.09	296.57	0.1738	-786.0	-692.9
43	0.00	0.71	0.00	0.36	12.38	86.84	9.11	300.48	0.1803	-879.0	-747.4
44	0.89	-24.00	0.45	-24.00	17.89	87.03	9.30	320.47	0.2427	878.4	999999
45	0.00	1.60	0.00	0.81	12.29	86.71	8.99	300.39	0.1777	-804.0	-691.0
46	0.00	1.42	0.00	0.71	10.24	86.61	8.89	289.45	0.1620	-740.0	-574.0
47	0.00	0.53	0.00	0.27	18.32	86.95	9.23	321.84	0.2475	234.0	176.8
48	0.00	0.80	0.00	0.41	18.88	86.89	9.16	323.44	0.2541	-725.0	-568.9
49	0.00	2.05	0.00	1.03	12.84	86.61	8.88	303.32	0.1810	-906.0	-746.8
50	0.00	1.51	0.00	0.79	23.48	87.19	9.46	331.80	0.3204	663.0	399.3
51	0.00	3.29	0.00	1.66	13.42	86.53	8.81	306.19	0.1854	-65.0	-130.3
52	0.00	2.49	0.00	1.27	18.67	86.68	8.96	323.53	0.2492	-693.0	-526.5
53	0.00	0.98	0.00	0.49	13.15	86.43	8.70	305.27	0.1813	-836.0	-648.3
54	0.00	1.60	0.00	0.81	17.04	86.57	8.84	319.43	0.2269	996.0	795.5
55	0.00	1.33	0.00	0.69	19.72	86.71	8.98	325.94	0.2636	958.0	860.4
56	0.00	1.07	0.00	0.55	20.06	86.73	9.00	326.63	0.2685	721.0	580.5
57	0.00	0.98	0.00	0.50	19.19	86.55	8.82	325.20	0.2550	819.0	620.5
58	0.00	1.69	0.00	0.88	21.67	86.66	8.94	330.05	0.2905	793.0	749.4
59	0.00	1.25	0.00	0.63	13.91	86.21	8.48	309.35	0.1860	-558.0	-460.5
60	0.00	6.23	0.00	3.16	15.98	86.29	8.57	316.93	0.2107	153.0	211.2
61	0.00	3.11	0.00	1.59	18.67	86.39	8.67	324.42	0.2464	-992.0	-592.7
62	0.00	2.76	0.00	1.39	13.79	86.01	8.29	309.47	0.1822	-760.0	-615.3
63	0.00	1.42	0.00	0.71	11.61	85.91	8.18	299.03	0.1602	-1034.0	-835.3
64	0.00	0.89	0.00	0.45	11.25	85.87	8.14	297.10	0.1567	-883.0	-708.4
65	0.00	1.69	0.00	0.85	14.04	85.90	8.17	310.91	0.1833	-813.0	-638.9
66	0.00	1.78	0.00	0.91	18.71	86.10	8.38	325.40	0.2441	-81.0	-155.9
67	0.00	1.07	0.00	0.54	13.04	85.80	8.07	306.74	0.1715	-957.0	-729.2
68	0.00	1.16	0.00	0.58	11.55	85.72	8.00	299.26	0.1569	-1145.0	-1049.5
69	0.00	4.09	0.00	2.05	10.35	85.66	7.93	292.17	0.1472	-916.0	-766.7
70	0.00	1.07	0.00	0.54	12.01	85.67	7.95	301.92	0.1601	-1061.0	-860.5
71	0.00	2.49	0.00	1.25	10.10	85.62	7.89	290.70	0.1452	-678.0	-663.9
72	0.00	1.87	0.00	0.95	17.82	85.87	8.14	323.88	0.2298	1014.0	899.9
73	0.00	1.42	0.00	0.71	11.22	85.62	7.89	297.65	0.1527	-884.0	-707.5
74	0.00	1.96	0.00	0.98	10.56	85.48	7.75	293.98	0.1458	-1035.0	-852.7
75	0.00	0.98	0.00	0.49	13.50	85.56	7.84	309.68	0.1731	-1034.0	-934.3
76	0.00	2.22	0.00	1.11	11.47	85.47	7.74	299.52	0.1525	-918.0	-795.8
77	0.00	1.69	0.00	0.85	15.87	85.56	7.83	319.05	0.2010	622.0	514.7
78	0.00	1.16	0.00	0.58	15.66	85.52	7.79	318.47	0.1978	753.0	601.8
79	0.00	1.51	0.00	0.76	14.35	85.44	7.71	313.82	0.1810	-744.0	-612.8
80	1.60	4.27	0.81	2.15	13.62	85.38	7.66	310.90	0.1721	-1289.8	-979.3
81	0.00	0.98	0.00	0.49	10.47	85.19	7.47	294.18	0.1408	-785.0	-605.1
82	0.00	1.87	0.00	0.94	12.44	85.22	7.49	305.73	0.1576	-951.0	-733.8
83	0.00	1.07	0.00	0.54	13.77	85.26	7.54	312.02	0.1722	-1135.0	-862.6
84	0.00	2.05	0.00	1.04	18.91	85.44	7.71	328.00	0.2407	759.0	604.4
85	0.00	4.09	0.00	2.08	17.62	85.25	7.53	325.42	0.2210	827.0	472.8
86	0.00	5.43	0.00	2.72	11.75	85.01	7.29	302.63	0.1481	-1079.0	-938.4
87	0.00	1.60	0.00	0.81	17.31	85.14	7.42	324.97	0.2157	680.0	556.9
88	0.00	1.42	0.00	0.72	16.12	85.03	7.31	321.81	0.1985	-510.0	-416.8
89	0.00	1.07	0.00	0.54	12.30	84.84	7.12	306.33	0.1509	-827.0	-639.1
90	6.76	70.83	3.40	35.70	14.60	84.88	7.16	316.94	0.1774	-1146.6	-345.6
91	6.05	-90.00	3.05	-90.00	15.09	84.87	7.14	318.86	0.1833	-1199.3	999999
92	0.00	1.69	0.00	0.85	11.33	84.75	7.03	301.03	0.1406	-988.0	-745.2
93	0.00	1.16	0.00	0.58	11.93	84.74	7.01	304.69	0.1459	-894.0	-748.7
94	0.00	1.42	0.00	0.72	16.98	84.87	7.15	325.01	0.2085	-842.0	-623.9
95	0.00	0.98	0.00	0.49	15.88	84.80	7.08	321.90	0.1929	-773.0	-588.3
96	0.00	0.98	0.00	0.49	11.12	84.62	6.90	300.16	0.1369	-900.0	-724.6
97	0.00	1.78	0.00	0.90	16.31	84.66	6.93	323.83	0.1972	-1025.0	-692.0
98	0.00	0.71	0.00	0.36	11.16	84.19	6.47	301.99	0.1309	-710.0	-579.5
99	0.00	1.25	0.00	0.63	16.01	82.31	4.59	333.28	0.1718	-811.0	-669.6
100	0.00	1.51	0.00	0.77	19.63	82.16	4.43	341.29	0.2279	548.0	537.1
101	0.00	1.16	0.00	0.58	14.79	81.85	4.12	332.18	0.1496	-948.0	-770.9
102	0.00	1.69	0.00	0.84	13.43	81.82	4.10	327.25	0.1290	-985.0	-689.1

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
