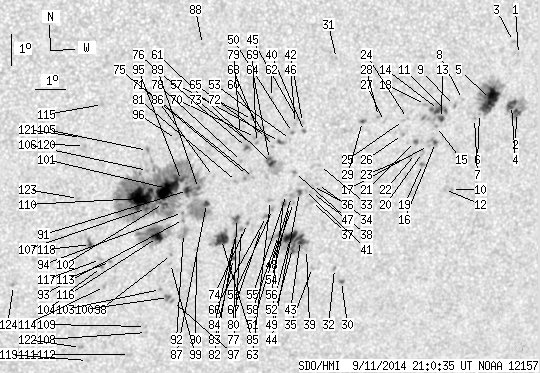

SDO HMI 2014-09-11 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 168.27 | 803.29 | 96.01 | 455.74 | -14.23 | 96.57 | 19.40 | 221.40 | 0.4874 | -21.4 | -73.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-11 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.58 | -10.47 | 105.47 | 28.30 | 238.16 | 0.5509 | 736.0 | 549.6 | |
| 3.11 | 29.37 | 1.87 | 17.61 | -12.32 | 105.60 | 28.43 | 235.46 | 0.5668 | 762.2 | 374.6 | |
| 0.00 | 1.33 | 0.00 | 0.79 | -10.05 | 105.26 | 28.08 | 238.62 | 0.5450 | 817.0 | 682.5 | |
| 5.43 | -2.00 | 3.25 | -2.00 | -12.09 | 105.40 | 28.23 | 235.62 | 0.5625 | 933.9 | 999999 | |
| 27.32 | 59.71 | 16.19 | 35.36 | -11.85 | 104.64 | 27.47 | 235.24 | 0.5515 | 1029.1 | 549.0 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -12.27 | 104.30 | 27.13 | 234.27 | 0.5511 | 588.0 | 580.8 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -12.42 | 104.15 | 26.97 | 233.88 | 0.5505 | 817.0 | 736.0 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -11.79 | 103.66 | 26.49 | 234.35 | 0.5394 | 687.0 | 596.3 | |
| 0.00 | 1.96 | 0.00 | 1.15 | -11.96 | 103.41 | 26.23 | 233.81 | 0.5379 | 816.0 | 661.9 | |
| 0.00 | 1.33 | 0.00 | 0.80 | -14.68 | 103.62 | 26.45 | 230.07 | 0.5640 | 688.0 | 555.8 | |
| 0.89 | 24.74 | 0.52 | 14.45 | -12.11 | 103.11 | 25.94 | 233.28 | 0.5356 | 882.4 | 799.1 | |
| 0.00 | 1.51 | 0.00 | 0.90 | -14.66 | 103.37 | 26.20 | 229.83 | 0.5611 | 648.0 | 547.6 | |
| 2.22 | -11.00 | 1.30 | -11.00 | -12.36 | 103.00 | 25.83 | 232.79 | 0.5365 | 889.7 | 999999 | |
| 3.56 | -11.00 | 2.08 | -11.00 | -12.06 | 102.87 | 25.69 | 233.09 | 0.5323 | 1067.2 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.57 | -12.60 | 102.85 | 25.68 | 232.26 | 0.5369 | 851.0 | 706.7 | |
| 0.89 | 5.70 | 0.52 | 3.35 | -13.12 | 102.88 | 25.70 | 231.51 | 0.5417 | 893.1 | 733.8 | |
| 0.00 | 1.33 | 0.00 | 0.78 | -13.20 | 102.64 | 25.47 | 231.14 | 0.5398 | 709.0 | 660.6 | |
| 0.00 | 1.51 | 0.00 | 0.88 | -11.87 | 102.40 | 25.23 | 232.87 | 0.5252 | 897.0 | 743.5 | |
| 0.00 | 2.40 | 0.00 | 1.42 | -13.80 | 102.51 | 25.33 | 230.10 | 0.5437 | 823.0 | 652.5 | |
| 0.00 | 2.22 | 0.00 | 1.31 | -13.41 | 102.46 | 25.29 | 230.62 | 0.5397 | 710.0 | 668.9 | |
| 0.89 | 2.40 | 0.52 | 1.41 | -13.04 | 102.18 | 25.01 | 230.85 | 0.5331 | 861.3 | 752.7 | |
| 0.00 | 1.42 | 0.00 | 0.83 | -13.43 | 102.22 | 25.05 | 230.33 | 0.5372 | 979.0 | 664.2 | |
| 0.00 | 1.51 | 0.00 | 0.89 | -13.52 | 102.03 | 24.86 | 229.98 | 0.5357 | 700.0 | 583.1 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -12.29 | 101.83 | 24.66 | 231.60 | 0.5222 | 745.0 | 664.1 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -12.34 | 101.70 | 24.53 | 231.36 | 0.5212 | 805.0 | 676.5 | |
| 0.00 | 1.42 | 0.00 | 0.83 | -12.79 | 101.71 | 24.54 | 230.69 | 0.5255 | 589.0 | 553.2 | |
| 0.00 | 1.60 | 0.00 | 0.92 | -12.34 | 101.06 | 23.88 | 230.62 | 0.5138 | 568.0 | 505.9 | |
| 0.00 | 2.14 | 0.00 | 1.23 | -12.17 | 100.84 | 23.66 | 230.62 | 0.5096 | 768.0 | 646.2 | |
| 0.89 | 2.85 | 0.51 | 1.63 | -12.30 | 100.31 | 23.14 | 229.78 | 0.5048 | 891.8 | 789.4 | |
| 0.62 | 1.96 | 0.37 | 1.16 | -17.50 | 100.18 | 23.01 | 222.35 | 0.5555 | -822.7 | -720.3 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -10.25 | 99.27 | 22.10 | 231.79 | 0.4731 | 812.0 | 674.1 | |
| 0.00 | 1.07 | 0.00 | 0.63 | -17.05 | 99.88 | 22.71 | 222.55 | 0.5480 | 627.0 | 422.6 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -13.64 | 98.99 | 21.82 | 226.08 | 0.5035 | -594.0 | -489.7 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -14.26 | 98.99 | 21.82 | 225.19 | 0.5097 | 652.0 | 503.6 | |
| 0.00 | 1.78 | 0.00 | 1.05 | -16.98 | 99.12 | 21.95 | 221.68 | 0.5398 | 616.0 | 550.5 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -14.31 | 98.83 | 21.65 | 224.89 | 0.5086 | 740.0 | 616.1 | |
| 0.00 | 1.51 | 0.00 | 0.87 | -14.80 | 98.84 | 21.67 | 224.23 | 0.5139 | 726.0 | 552.6 | |
| 0.00 | 1.78 | 0.00 | 1.02 | -14.51 | 98.81 | 21.64 | 224.60 | 0.5105 | 804.0 | 634.8 | |
| 0.00 | 1.16 | 0.00 | 0.68 | -16.37 | 98.85 | 21.68 | 222.11 | 0.5306 | -102.0 | -63.6 | |
| 0.00 | 1.96 | 0.00 | 1.11 | -12.52 | 98.39 | 21.22 | 226.97 | 0.4854 | -737.0 | -619.4 | |
| 0.00 | 1.87 | 0.00 | 1.07 | -14.43 | 98.57 | 21.40 | 224.39 | 0.5071 | 533.0 | 584.6 | |
| 0.00 | 1.69 | 0.00 | 0.95 | -12.23 | 98.30 | 21.13 | 227.30 | 0.4814 | -314.0 | -338.8 | |
| 5.78 | 45.83 | 3.36 | 26.58 | -16.06 | 98.61 | 21.44 | 222.20 | 0.5249 | 853.8 | 526.3 | |
| 1.33 | 2.85 | 0.77 | 1.63 | -14.49 | 98.41 | 21.24 | 224.09 | 0.5060 | 981.1 | 823.0 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -12.09 | 98.13 | 20.95 | 227.27 | 0.4780 | -208.0 | -396.6 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -12.25 | 98.07 | 20.90 | 226.95 | 0.4790 | -734.0 | -614.4 | |
| 0.00 | 2.05 | 0.00 | 1.17 | -13.83 | 98.18 | 21.01 | 224.72 | 0.4967 | -740.0 | -562.4 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -14.80 | 98.24 | 21.07 | 223.42 | 0.5077 | 563.0 | 492.9 | |
| 2.49 | -43.00 | 1.45 | -43.00 | -16.31 | 98.37 | 21.20 | 221.55 | 0.5252 | 638.4 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.80 | -12.54 | 98.00 | 20.82 | 226.41 | 0.4811 | -812.0 | -667.8 | |
| 0.00 | 4.00 | 0.00 | 2.29 | -14.61 | 98.15 | 20.98 | 223.58 | 0.5046 | 844.0 | 722.9 | |
| 9.08 | -43.00 | 5.26 | -43.00 | -15.95 | 98.26 | 21.09 | 221.89 | 0.5202 | 1063.2 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -12.76 | 97.95 | 20.78 | 226.00 | 0.4829 | -612.0 | -507.0 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -14.93 | 98.12 | 20.95 | 223.08 | 0.5078 | 315.0 | 399.0 | |
| 0.00 | 1.60 | 0.00 | 0.92 | -14.53 | 97.98 | 20.81 | 223.44 | 0.5021 | 684.0 | 525.1 | |
| 1.07 | 3.38 | 0.61 | 1.94 | -14.82 | 97.91 | 20.73 | 222.94 | 0.5044 | 926.6 | 767.3 | |
| 0.89 | 3.65 | 0.50 | 2.06 | -12.80 | 97.59 | 20.42 | 225.43 | 0.4795 | -922.4 | -686.9 | |
| 0.89 | -43.00 | 0.51 | -43.00 | -15.86 | 97.85 | 20.67 | 221.44 | 0.5152 | 995.7 | 999999 | |
| 0.00 | 1.69 | 0.00 | 0.97 | -15.00 | 97.56 | 20.39 | 222.21 | 0.5028 | 1081.0 | 854.1 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -12.95 | 97.37 | 20.20 | 224.89 | 0.4787 | -934.0 | -743.7 | |
| 2.22 | 19.40 | 1.26 | 10.99 | -13.50 | 97.38 | 20.21 | 224.10 | 0.4847 | -917.4 | -255.0 | |
| 0.00 | 1.33 | 0.00 | 0.74 | -11.38 | 97.21 | 20.04 | 227.12 | 0.4603 | -616.0 | -499.5 | |
| 0.00 | 2.22 | 0.00 | 1.27 | -14.70 | 97.46 | 20.29 | 222.49 | 0.4986 | 904.0 | 743.6 | |
| 1.25 | -61.00 | 0.70 | -61.00 | -13.37 | 97.31 | 20.13 | 224.18 | 0.4825 | -979.5 | 999999 | |
| 0.36 | 1.16 | 0.20 | 0.65 | -12.66 | 97.15 | 19.98 | 225.03 | 0.4731 | -851.2 | -725.2 | |
| 0.00 | 2.76 | 0.00 | 1.58 | -15.22 | 97.38 | 20.21 | 221.66 | 0.5035 | 800.0 | 607.9 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -15.57 | 97.25 | 20.08 | 221.00 | 0.5061 | 776.0 | 573.4 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -12.45 | 96.87 | 19.70 | 224.94 | 0.4679 | -801.0 | -655.8 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -12.80 | 96.83 | 19.66 | 224.35 | 0.4712 | -802.0 | -713.2 | |
| 0.00 | 1.51 | 0.00 | 0.85 | -12.64 | 96.79 | 19.61 | 224.53 | 0.4690 | -1012.0 | -842.6 | |
| 0.00 | 1.33 | 0.00 | 0.75 | -13.93 | 96.83 | 19.65 | 222.68 | 0.4836 | 858.0 | 612.9 | |
| 0.00 | 1.42 | 0.00 | 0.79 | -12.06 | 96.64 | 19.47 | 225.22 | 0.4611 | -809.0 | -641.2 | |
| 0.00 | 1.42 | 0.00 | 0.80 | -12.82 | 96.64 | 19.46 | 224.02 | 0.4694 | -908.0 | -763.0 | |
| 0.00 | 1.33 | 0.00 | 0.76 | -15.42 | 96.77 | 19.59 | 220.52 | 0.4996 | 804.0 | 695.3 | |
| 0.00 | 4.27 | 0.00 | 2.41 | -13.85 | 96.62 | 19.45 | 222.48 | 0.4806 | 739.0 | 425.3 | |
| 0.80 | 2.14 | 0.45 | 1.20 | -12.95 | 96.51 | 19.34 | 223.66 | 0.4695 | -941.0 | -769.3 | |
| 0.00 | 2.05 | 0.00 | 1.17 | -15.61 | 96.59 | 19.41 | 220.00 | 0.5000 | 750.0 | 679.1 | |
| 0.00 | 1.33 | 0.00 | 0.75 | -13.39 | 96.39 | 19.21 | 222.81 | 0.4730 | -773.0 | -593.3 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -12.55 | 96.29 | 19.11 | 223.92 | 0.4627 | -781.0 | -617.3 | |
| 1.69 | 6.05 | 0.96 | 3.44 | -15.24 | 96.38 | 19.21 | 220.20 | 0.4938 | 989.8 | 809.5 | |
| 0.00 | 1.96 | 0.00 | 1.10 | -14.03 | 96.28 | 19.10 | 221.72 | 0.4791 | 546.0 | 476.6 | |
| 0.00 | 2.40 | 0.00 | 1.37 | -15.76 | 96.40 | 19.23 | 219.53 | 0.5000 | 865.0 | 776.4 | |
| 0.98 | 2.40 | 0.56 | 1.38 | -16.55 | 96.41 | 19.24 | 218.53 | 0.5092 | 775.6 | 601.1 | |
| 0.36 | 2.40 | 0.20 | 1.38 | -16.02 | 96.36 | 19.19 | 219.13 | 0.5026 | 765.0 | 643.2 | |
| 10.41 | 18.33 | 5.94 | 10.45 | -15.91 | 95.95 | 18.78 | 218.68 | 0.4974 | 978.1 | 594.4 | |
| 0.00 | 1.16 | 0.00 | 0.65 | -13.84 | 95.50 | 18.33 | 220.82 | 0.4691 | -650.0 | -503.5 | |
| 2.14 | 366.99 | 1.20 | 204.37 | -14.70 | 95.35 | 18.17 | 219.37 | 0.4776 | 673.0 | -431.3 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -9.60 | 94.86 | 17.69 | 226.54 | 0.4146 | -735.0 | -470.7 | |
| 0.89 | -87.00 | 0.50 | -87.00 | -14.21 | 95.04 | 17.87 | 219.58 | 0.4688 | -659.3 | 999999 | |
| 0.00 | 1.69 | 0.00 | 0.96 | -16.20 | 95.15 | 17.98 | 217.10 | 0.4934 | -604.0 | -459.2 | |
| 3.29 | -87.00 | 1.84 | -87.00 | -14.26 | 94.69 | 17.51 | 218.95 | 0.4659 | -949.6 | 999999 | |
| 0.00 | 9.70 | 0.00 | 5.48 | -15.65 | 94.67 | 17.50 | 217.05 | 0.4825 | -210.0 | -281.5 | |
| 0.00 | 2.05 | 0.00 | 1.15 | -15.20 | 94.63 | 17.46 | 217.59 | 0.4766 | -687.0 | -582.1 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -14.97 | 94.58 | 17.41 | 217.81 | 0.4734 | -737.0 | -592.1 | |
| 0.27 | -87.00 | 0.15 | -87.00 | -13.92 | 94.47 | 17.29 | 219.06 | 0.4598 | -1052.0 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.83 | -12.59 | 94.21 | 17.03 | 220.57 | 0.4415 | -483.0 | -301.9 | |
| 0.00 | 1.51 | 0.00 | 0.87 | -17.89 | 94.52 | 17.35 | 214.08 | 0.5083 | -712.0 | -625.6 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -16.33 | 94.34 | 17.17 | 215.67 | 0.4877 | -645.0 | -465.8 | |
| 0.00 | 1.25 | 0.00 | 0.71 | -16.63 | 94.33 | 17.16 | 215.30 | 0.4912 | -624.0 | -528.4 | |
| 0.53 | 3.47 | 0.31 | 1.99 | -17.75 | 94.37 | 17.20 | 214.02 | 0.5054 | -975.2 | -848.0 | |
| 27.41 | -87.00 | 15.26 | -87.00 | -14.16 | 94.03 | 16.86 | 218.00 | 0.4585 | -1200.6 | 999999 | |
| 3.03 | -87.00 | 1.69 | -87.00 | -14.65 | 93.94 | 16.76 | 217.19 | 0.4635 | -658.0 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -17.48 | 94.08 | 16.91 | 213.89 | 0.4995 | -881.0 | -713.0 | |
| 7.12 | 51.79 | 4.00 | 29.11 | -15.75 | 93.83 | 16.66 | 215.58 | 0.4761 | 959.1 | 217.1 | |
| 0.00 | 1.78 | 0.00 | 0.98 | -12.91 | 93.29 | 16.12 | 218.54 | 0.4362 | -762.0 | -619.8 | |
| 0.00 | 1.42 | 0.00 | 0.79 | -13.55 | 93.34 | 16.16 | 217.69 | 0.4445 | -1002.0 | -837.9 | |
| 1.51 | -87.00 | 0.84 | -87.00 | -14.79 | 93.39 | 16.22 | 216.10 | 0.4602 | -641.1 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.67 | -18.90 | 93.76 | 16.58 | 211.79 | 0.5146 | -660.0 | -547.7 | |
| 0.00 | 0.98 | 0.00 | 0.56 | -18.69 | 93.70 | 16.53 | 211.93 | 0.5116 | -690.0 | -643.1 | |
| 35.33 | -87.00 | 19.62 | -87.00 | -14.45 | 93.17 | 16.00 | 216.18 | 0.4541 | -1167.8 | 999999 | |
| 0.00 | 2.22 | 0.00 | 1.29 | -19.62 | 93.26 | 16.09 | 210.27 | 0.5199 | -501.0 | -477.0 | |
| 0.00 | 1.51 | 0.00 | 0.87 | -19.61 | 93.03 | 15.86 | 209.92 | 0.5181 | -514.0 | -359.4 | |
| 0.00 | 1.25 | 0.00 | 0.70 | -16.48 | 92.35 | 15.18 | 212.23 | 0.4727 | 641.0 | 532.4 | |
| 0.00 | 2.22 | 0.00 | 1.26 | -17.30 | 92.22 | 15.05 | 211.08 | 0.4823 | -842.0 | -673.4 | |
| 0.00 | 1.51 | 0.00 | 0.82 | -11.38 | 91.76 | 14.59 | 218.05 | 0.4023 | -861.0 | -644.9 | |
| 0.00 | 1.42 | 0.00 | 0.80 | -16.67 | 92.07 | 14.90 | 211.54 | 0.4729 | -941.0 | -749.2 | |
| 0.00 | 1.96 | 0.00 | 1.10 | -16.41 | 92.02 | 14.85 | 211.76 | 0.4690 | -657.0 | -407.4 | |
| 1.33 | 4.81 | 0.74 | 2.68 | -15.90 | 91.66 | 14.49 | 211.72 | 0.4595 | -813.7 | -657.1 | |
| 0.00 | 1.42 | 0.00 | 0.82 | -19.77 | 91.88 | 14.71 | 207.95 | 0.5119 | -760.0 | -625.4 | |
| 0.00 | 1.69 | 0.00 | 0.92 | -12.68 | 91.26 | 14.09 | 215.16 | 0.4140 | -868.0 | -684.3 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -12.42 | 91.15 | 13.98 | 215.32 | 0.4097 | -845.0 | -623.1 | |
| 0.00 | 2.05 | 0.00 | 1.17 | -19.32 | 91.61 | 14.44 | 207.94 | 0.5041 | -858.0 | -708.7 | |
| 0.00 | 1.78 | 0.00 | 0.98 | -14.38 | 91.17 | 14.00 | 212.69 | 0.4355 | -760.0 | -598.8 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -17.17 | 89.26 | 12.08 | 205.96 | 0.4588 | -700.0 | -558.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
